WIKA Compound Gauge 213.53.063, -30 inHg...+15 psi, Dual Scale, 2.5" Dial, 1/4" Male NPT Lower Mount, 84149710
Technical overview

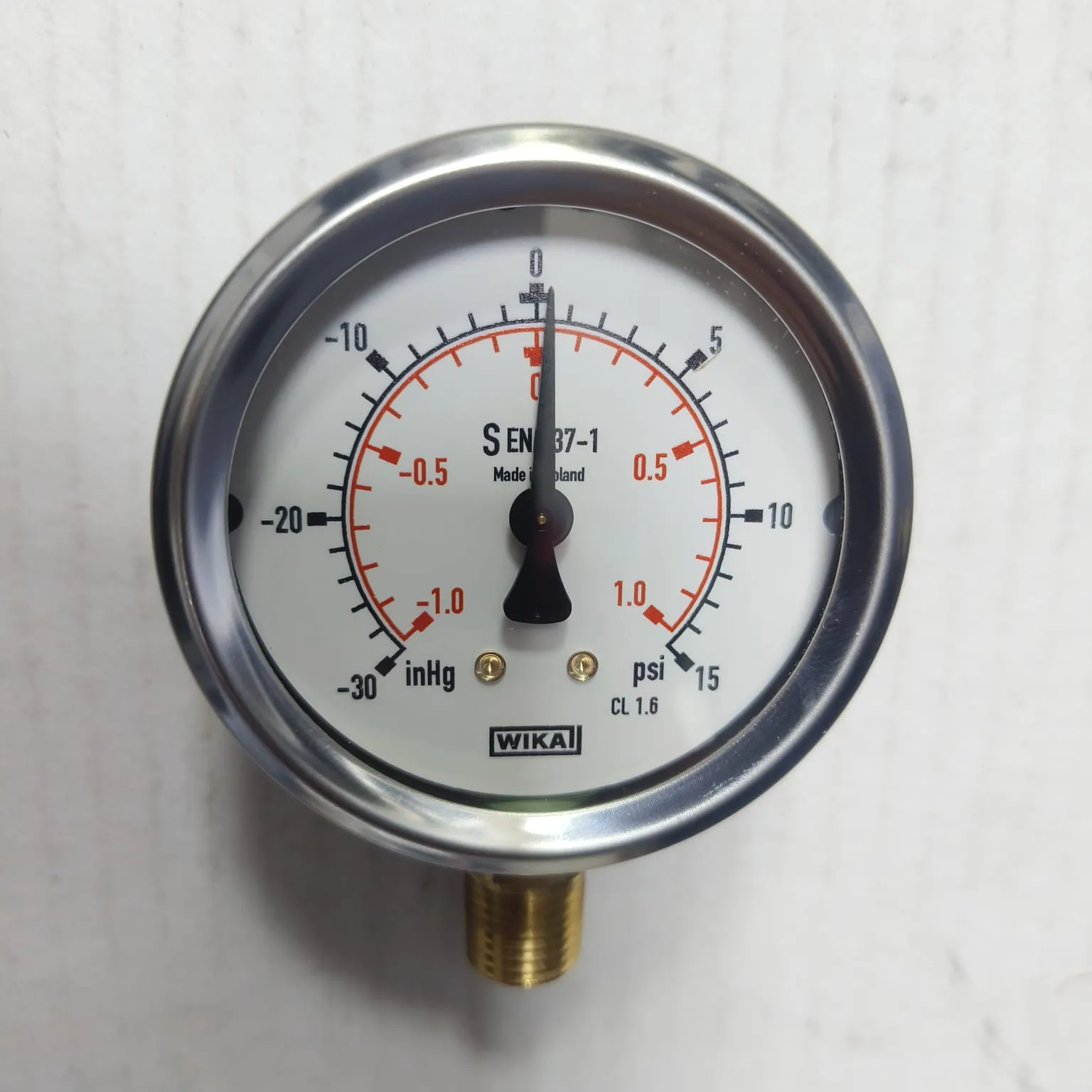

This WIKA 213.53 compound gauge is designed for reliable vacuum and pressure monitoring in compressors, pumps, hydraulic equipment and general industrial systems. It has a 2.5" dial with a 1/4" Male NPT brass lower connection and a stainless steel case for dependable everyday service. The gauge is prepared for liquid filling, which makes it suitable for installations where vibration resistance may be required. It features a -30 inHg...+15 psi measuring range and a clear white dual scale dial with a black primary psi scale and a red secondary bar scale for quick cross reference.
Key Features
- Stainless steel case and copper alloy wetted parts support dependable industrial service.
- 1/4" Male NPT lower mount connection suits common installation points.
- Dual scale dial shows psi as the primary scale with a red bar secondary scale.
- Prepared-for-filling construction suits applications with vibration or pulsation.
- 63 mm / 2.5" dial size and Class 1.6 accuracy support clear everyday reading.
- Made in Poland
Applications
- Hydraulic systems
- Air compressors
- Pump skids
- General industrial service
- Vibration service
Specifications
Model213.53.063
Gauge TypeCompound
Measuring Range-30 inHg...+15 psi
Dial Size63 mm / 2.5"
Measuring SystemBourdon Tube
Secondary Scale2nd scale bar
Process Connection1/4" Male NPT
Mounting PositionLower mount
Accuracy ClassClass 1.6
Case FillingDry Case, Prepared for filling
Wetted PartsCopper alloy
Case MaterialStainless steel 1.4301
Case DesignCrimp ring case (version 53)
WindowPlastic, clear
