WIKA Compound Gauge 213.53.063, -30 inHg...+100 psi, Dual Scale, 2.5" Dial, 1/4" Male NPT Lower Mount, 39939574
- Mfr. part no.
- 39939574
- SKU
- PWC25-100
Specifications
| Model | 213.53.063 |
|---|---|
| Gauge Type | Compound |
| Measuring Range | -30 inHg...+100 psi |
| Dial Size | 63 mm / 2.5" |
| Measuring System | Bourdon Tube |
| Secondary Scale | 2nd scale bar |
| Process Connection | 1/4" Male NPT |
| Mounting Position | Lower mount |
| Accuracy Class | Class 1.6 |
| Case Filling | Dry Case, Prepared for filling |
| Wetted Parts | Copper alloy |
| Case Material | Stainless steel 1.4301 |
| Case Design | Crimp ring case (version 53) |
| Window | Plastic, clear |
Key Features
- Stainless steel case and copper alloy wetted parts support dependable industrial service.
- 1/4" Male NPT lower mount connection suits common installation points.

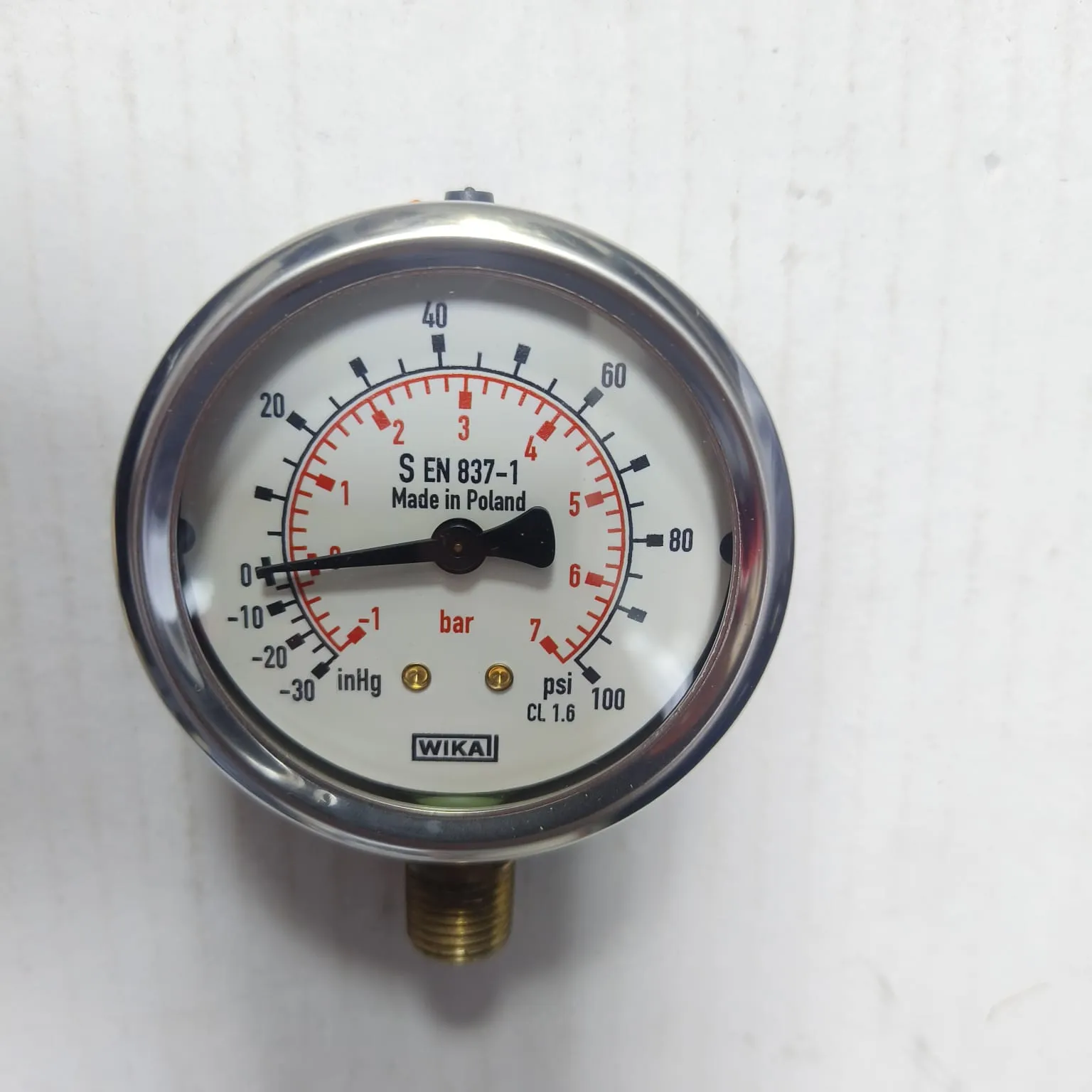

- Dual scale dial shows psi as the primary scale with a red bar secondary scale.
- Prepared-for-filling construction suits applications with vibration or pulsation.
- 63 mm / 2.5" dial size and Class 1.6 accuracy support clear everyday reading.
- Made in Poland
Description
This WIKA 213.53 compound gauge is designed for reliable vacuum and pressure monitoring in compressors, pumps, hydraulic equipment and general industrial systems. It has a 2.5" dial with a 1/4" Male NPT brass lower connection and a stainless steel case for dependable everyday service. The gauge is prepared for liquid filling, which makes it suitable for installations where vibration resistance may be required. It features a -30 inHg...+100 psi measuring range and a clear white dual scale dial with a black primary psi scale and a red secondary bar scale for quick cross reference. This gauge can also marked as WIKA’s current part number84306807 , which corresponds to the exact matching configuration of this product.
Applications
- Hydraulic systems
- Air compressors
- Pump skids
- General industrial service
- Vibration service
