WIKA Compound Gauge 213.53.100, -30 inHg...+300 psi / -1...+20 bar, 4" Dial, 1/2" Male NPT Lower Mount, 31104965
WIKA

WIKA Compound Gauge 213.53.100, -30 inHg...+300 psi / -1...+20 bar, 4" Dial, 1/2" Male NPT Lower Mount, 31104965

Mfr. part no.
31104965
SKU
PWC40-0300

Specifications

Model 213.53.100
Gauge Type Compound
Measuring Range -30 inHg...+300 psi / -1...20 bar
Dial Size 100 mm / 4"
Measuring System Bourdon Tube
Secondary Scale 2nd scale bar
Process Connection 1/2" Male NPT
Mounting Position Lower mount
Accuracy Class Class 1.0
Case Filling Dry Case, Prepared for filling
Wetted Parts Copper alloy
Case Material Stainless steel 1.4301
Case Design Crimp ring case (version 53)
Window Plastic, clear

Key Features

  • Stainless steel case and copper alloy wetted parts support dependable industrial service.
  • 1/2" Male NPT lower mount connection suits common installation points.
  • Dual scale dial shows psi as the primary scale with a red bar secondary scale.
  • Prepared-for-filling construction suits applications with vibration or pulsation.
  • 100 mm / 4" dial size and Class 1.0 accuracy support clear everyday reading.
  • Made in Poland

Other versions in this series

Other versions in this series
Part no. Measuring Range Mounting Position Gauge Type
84136772 -30 inHg...+100 psi / -1...6.8 bar Lower mount Compound
31104958 0...100 psi / 0...6.9 bar Lower back mount
84136767 -30 inHg...+160 psi / -1...11 bar Lower mount Compound
31104986 0...160 psi / 0...11 bar Lower back mount
84136769 -30 inHg...+200 psi / -1...13.5 bar Lower mount Compound
39997610 0...200 psi / 0...13.5 bar Lower back mount
31104965 (This part) -30 inHg...+300 psi / -1...20 bar Lower mount Compound
39999515 0...300 psi / 0...20 bar Lower back mount
84153967 0...400 psi / 0...27.5 bar Lower back mount
84153968 0...600 psi / 0...40 bar Lower back mount
39001831 0...1000 psi / 0...69 bar Lower back mount
84029433 0...1500 psi / 0...100 bar Lower back mount
84029435 0...2000 psi / 0...135 bar Lower back mount

Description

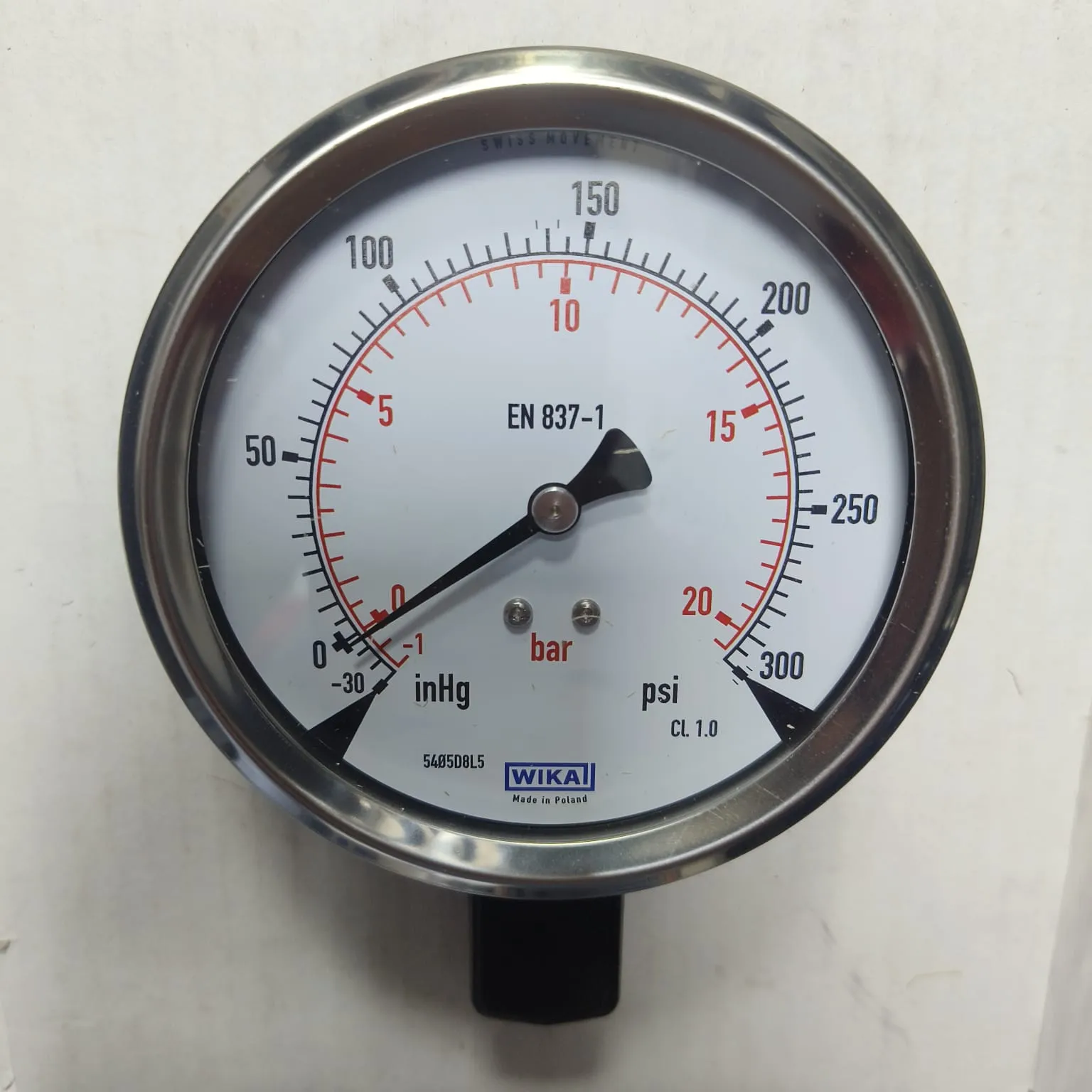

This WIKA 213.53 compound gauge is designed for reliable vacuum and pressure monitoring in compressors, pumps, hydraulic equipment and general industrial systems. It has a 4" dial with a 1/2" Male NPT brass lower connection and a stainless steel case for dependable everyday service. The gauge is prepared for liquid filling, which makes it suitable for installations where vibration resistance may be required. It features a -30 inHg...+300 psi measuring range and a clear white dual scale dial with a black primary psi scale and a red secondary bar scale for quick cross reference. This gauge can also marked as WIKA’s current part number84153969 , which corresponds to the exact matching configuration of this product.

Applications

  • Hydraulic systems
  • Air compressors
  • Pump skids
  • General industrial service
  • Vibration service
