Bourdon Tube Pressure Gauges
WIKA Compound Gauge 213.53.100, -30 inHg...+100 psi / -1...+6.8 bar, 4" Dial, 1/2" Male NPT Lower Mount, 84136772
WIKA

WIKA Compound Gauge 213.53.100, -30 inHg...+100 psi / -1...+6.8 bar, 4" Dial, 1/2" Male NPT Lower Mount, 84136772

Mfr. part no.
84136772
SKU
PWC40-0100

Specifications

Model 213.53.100
Gauge Type Compound
Measuring Range -30 inHg...+100 psi / -1...6.8 bar
Dial Size 100 mm / 4"
Measuring System Bourdon Tube
Secondary Scale 2nd scale bar
Process Connection 1/2" Male NPT
Mounting Position Lower mount
Accuracy Class Class 1.0
Case Filling Dry Case, Prepared for filling
Wetted Parts Copper alloy
Case Material Stainless steel 1.4301
Case Design Crimp ring case (version 53)
Window Plastic, clear

Key Features

  • Stainless steel case and copper alloy wetted parts support dependable industrial service.
  • 1/2" Male NPT lower mount connection suits common installation points.

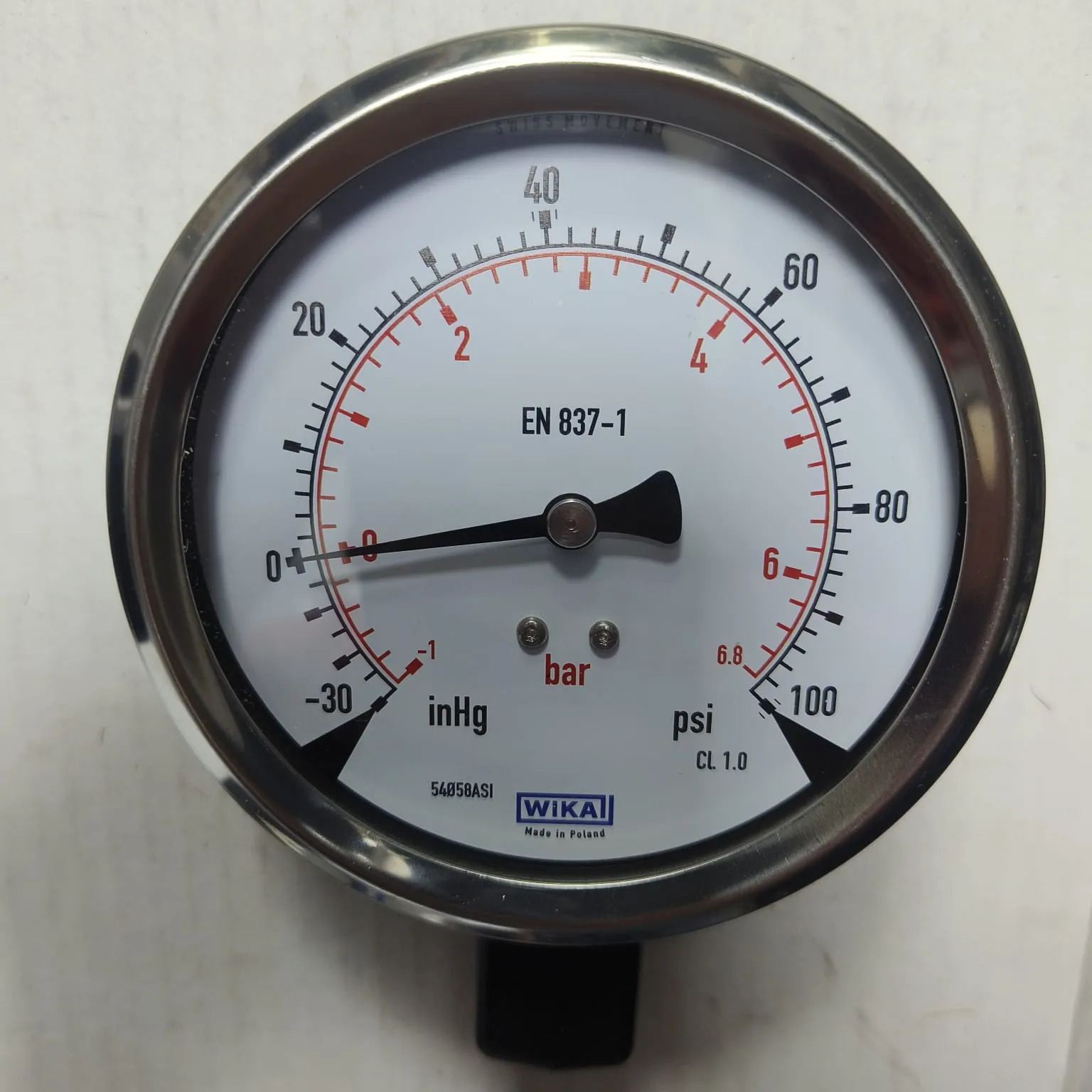

  • Dual scale dial shows psi as the primary scale with a red bar secondary scale.
  • Prepared-for-filling construction suits applications with vibration or pulsation.
  • 100 mm / 4" dial size and Class 1.0 accuracy support clear everyday reading.
  • Made in Poland

Other versions in this series

Other versions in this series
Part no. Measuring Range Mounting Position Gauge Type
84000528 -1...0 bar / -30...0 inHg Lower mount Vacuum
84187958 -30 inHg...+15 psi / -1.0...1.0 bar Lower mount Compound
39997609 0...15 psi / 0...1.0 bar Lower back mount
84136771 -30 inHg...+30 psi / -1.0...2.0 bar Lower mount Compound
39176690 0...30 psi / 0...2.0 bar Lower back mount
31104957 0...60 psi / 0...4 bar Lower back mount
84136772 (This part) -30 inHg...+100 psi / -1...6.8 bar Lower mount Compound
31104958 0...100 psi / 0...6.9 bar Lower back mount
84136767 -30 inHg...+160 psi / -1...11 bar Lower mount Compound
31104986 0...160 psi / 0...11 bar Lower back mount
84136769 -30 inHg...+200 psi / -1...13.5 bar Lower mount Compound
39997610 0...200 psi / 0...13.5 bar Lower back mount
31104965 -30 inHg...+300 psi / -1...20 bar Lower mount Compound

Description

This WIKA 213.53 compound gauge is designed for reliable vacuum and pressure monitoring in compressors, pumps, hydraulic equipment and general industrial systems. It has a 4" dial with a 1/2" Male NPT brass lower connection and a stainless steel case for dependable everyday service. The gauge is prepared for liquid filling, which makes it suitable for installations where vibration resistance may be required. It features a -30 inHg...+100 psi measuring range and a clear white dual scale dial with a black primary psi scale and a red secondary bar scale for quick cross reference.

Applications

  • Hydraulic systems
  • Air compressors
  • Pump skids
  • General industrial service
  • Vibration service

Documents

  • Wika Datasheet-84136772

    PDF, 52 KB

  • Wika-213.53 Model Pressure Gauge — Datasheet

    PDF, 878 KB

  • Wika Operating Instructions for Pressure Gauges

    PDF, 1.3 MB
