Dimensional Measuring Tools

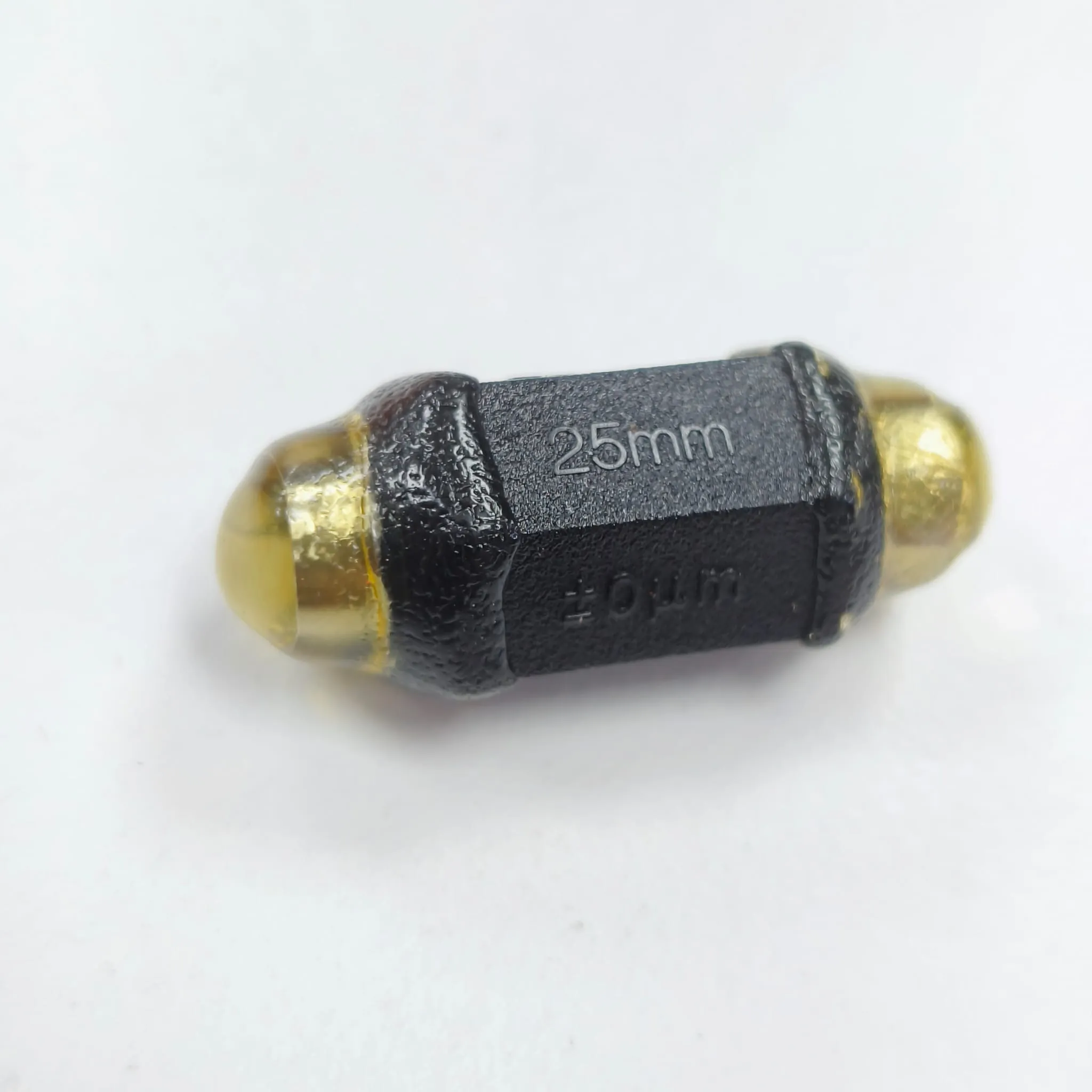

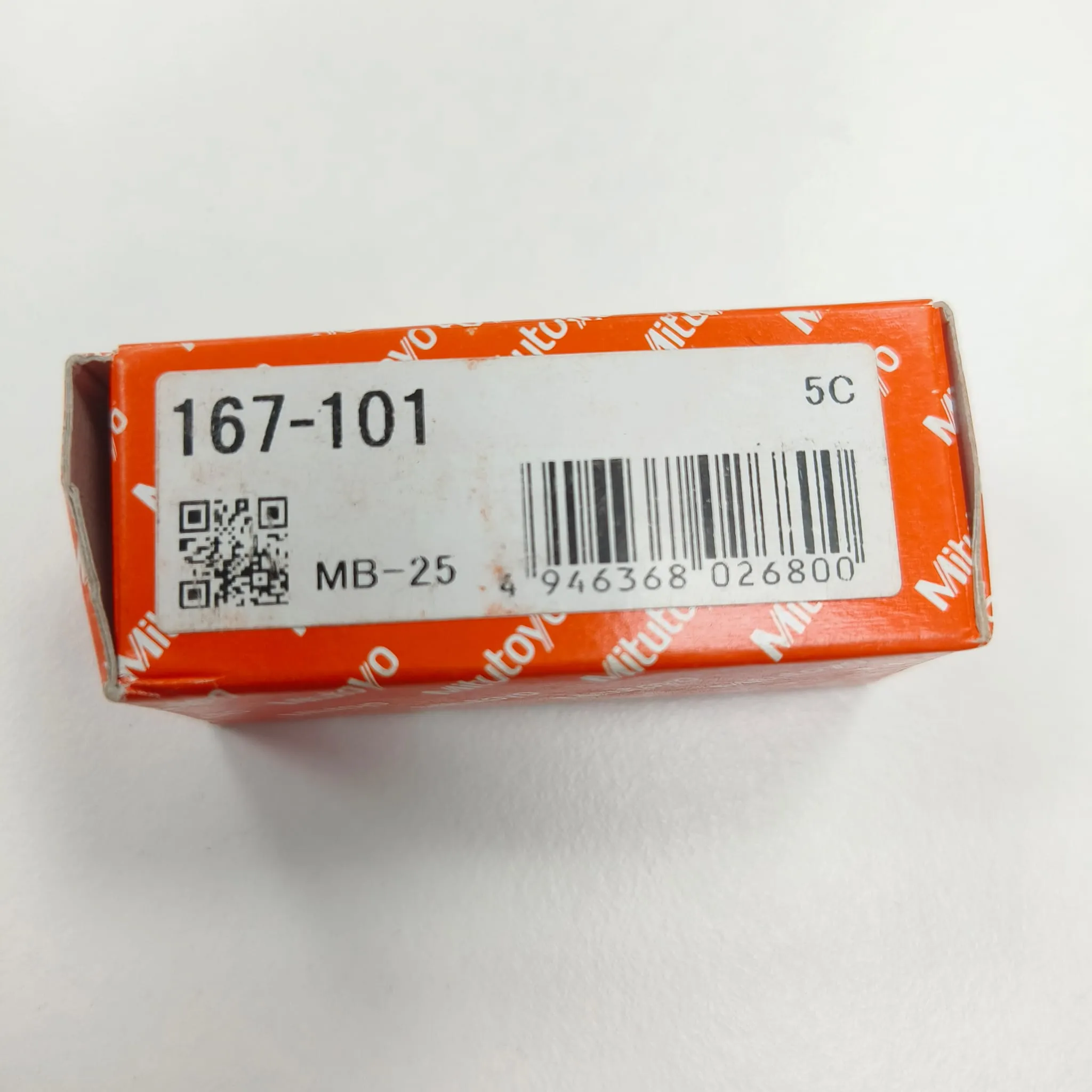

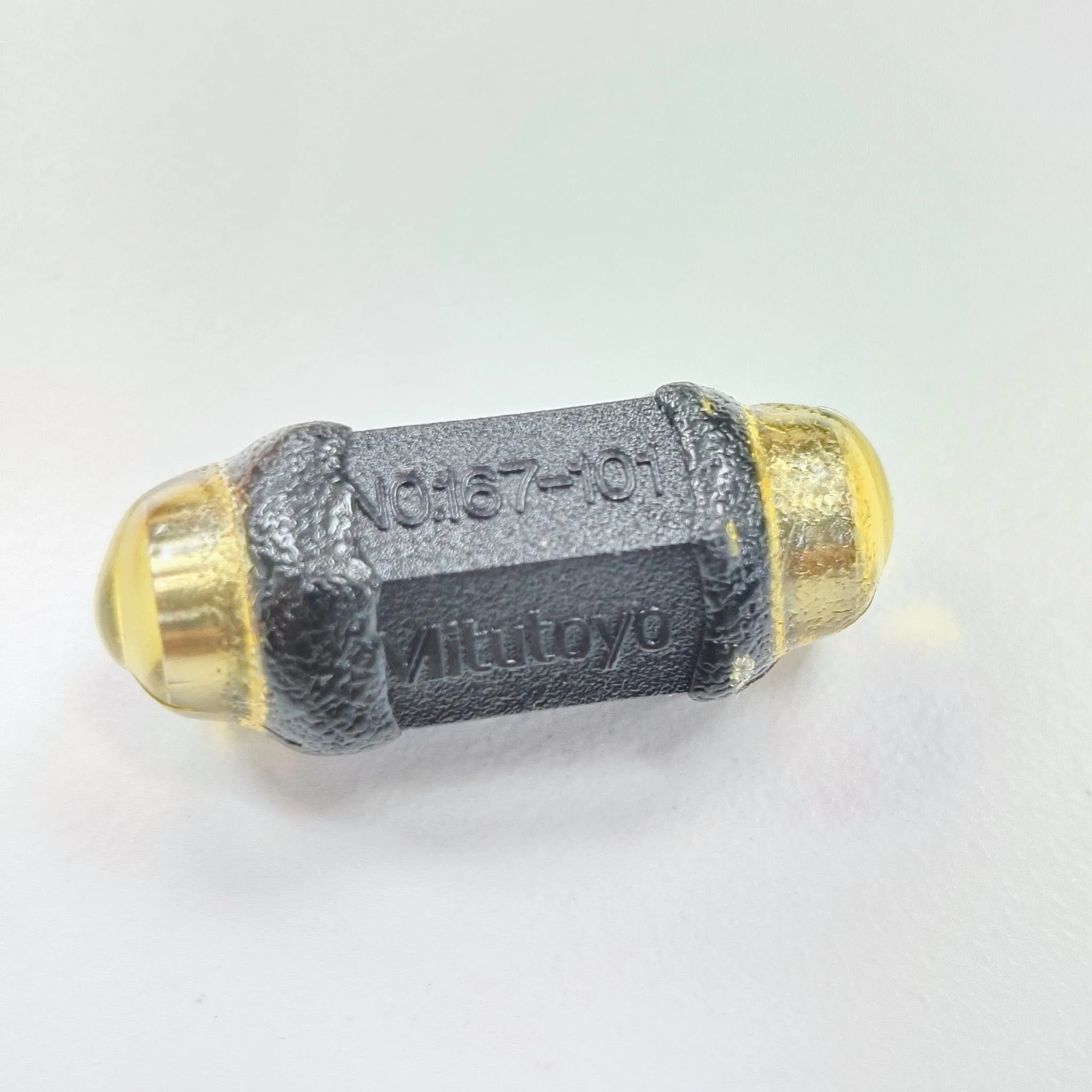

Mitutoyo Series 167 Micrometer Setting Standard Bar, 25 mm Length, 6.35 mm OD, 167-101
Mitutoyo

Mitutoyo Series 167 Micrometer Setting Standard Bar, 25 mm Length, 6.35 mm OD, 167-101

Mfr. part no.
167-101
SKU
MT-167-101

Specifications

Series 167 Series
Product Type Micrometer Setting Standard Bar
Component Length 25 mm
Outside Diameter 6.35 mm
Accuracy ±1.5 µm
Measuring Face Micro-Lap Finish
Model MB-25

Key Features

  • 25 mm precision length standard for micrometer setting.
  • Micro-lap measuring faces support accurate contact.
  • Suitable for checking micrometers at a known reference point.
  • Compact accessory for inspection bench and tool room use.
  • Includes: Operating Instructions paperwork inside the box.
  • Made in Japan.

Description

Mitutoyo 167-101 / MB-25 is a 25 mm micrometer setting standard used for accurately setting or checking outside micrometers and other continuous-scale measuring instruments. It has a 6.35 mm diameter, ±1.5 µm accuracy, flat micro-lap measuring faces, 0.3 µm flatness and 2 µm parallelism for reliable reference setting. This precision standard bar helps tool rooms, QC benches and calibration areas verify micrometer zero or range setting before inspection work.

Applications

  • Setting outside micrometers before inspection.
  • Tool room and calibration bench reference checking.
  • Quality control of micrometer measurement routines.

Documents

  • Mitutoyo-167-101 — Datasheet

    PDF, 1.3 MB

  • Mitutoyo-167 Series Micrometer Standards catalog

    PDF, 100 KB

Cross-reference

The closest equivalents from other brands, with the differences stated so you can check before you order.

Starrett 234MA-25

Starrett 234MA Series Micrometer Setting Standard, 25 mm

Starrett 234MA-25 (EDP 50970) is the 25 mm size in Starrett's 234 line of end measuring rods, supplied with an insulating handle. It is made from special tool steel in rod form with the ends hardened and lapped, and is used for checking and setting micrometers, comparing gauges and checking precision measuring tools. Starrett gives 1/4 in (6.3 mm) as the rod diameter across the 25–150 mm sizes. One difference a buyer must note against the Mitutoyo 167-101 supplied here: the Starrett 234 line is built with ends lapped to a spherical radius, while the Mitutoyo has flat micro-lapped measuring faces specified at 0.3 µm flatness, 2 µm parallelism and ±1.5 µm length accuracy. Starrett does not publish a length tolerance, flatness or parallelism figure for the 234 line, so those specifications cannot be compared between the two, and where the work is referenced to a flat-faced setting standard the two are not equivalent.

Specifications of the Starrett part

Nominal Length
25 mm
Diameter
6.35 mm
Accuracy
±1.5 µm
Material
Hardened alloy steel
Application
Outside micrometer setting standard
Grade
Grade 1

Tesa (Hexagon) 02140001

Tesa Setting Standard Bar 25 mm for Outside Micrometers

TESA 02140001 is the 25 mm entry in TESA's metric setting-standard range for external micrometers, listed in TESA's own catalogue under accessories for external micrometers alongside the 50 mm to 300 mm sizes. TESA publishes only the article number, the designation and the nominal length for this item. No diameter, length tolerance, flatness, parallelism, material or DIN reference is given, so none of those can be set against the Mitutoyo 167-101 supplied here, which is specified at 25 mm length, 6.35 mm diameter, ±1.5 µm accuracy, 0.3 µm flatness and 2 µm parallelism on micro-lapped faces. TESA's current online catalogue lists only the 50 mm size in this family, so the 25 mm should be treated as a catalogue reference rather than a currently listed item.

Specifications of the Tesa (Hexagon) part

Nominal Length
25 mm
Accuracy
±1.5 µm
Parallelism
≤2 µm
Standard
DIN 863 Part 2
Material
Hardened steel
Application
Outside micrometer setting standard

We carry 167-101 as the indSpare-stocked equivalent. Looking for a different brand? Request a quote →
