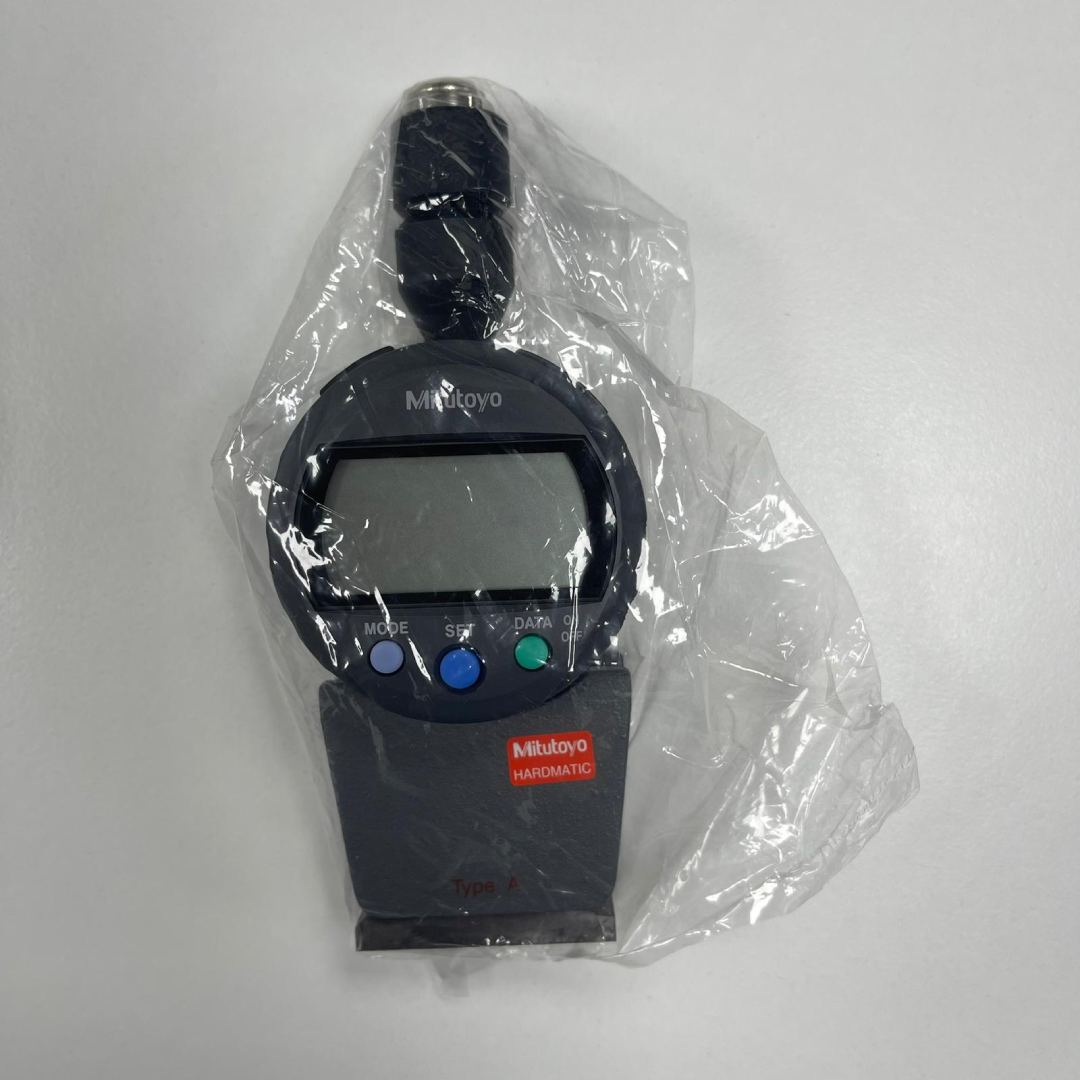

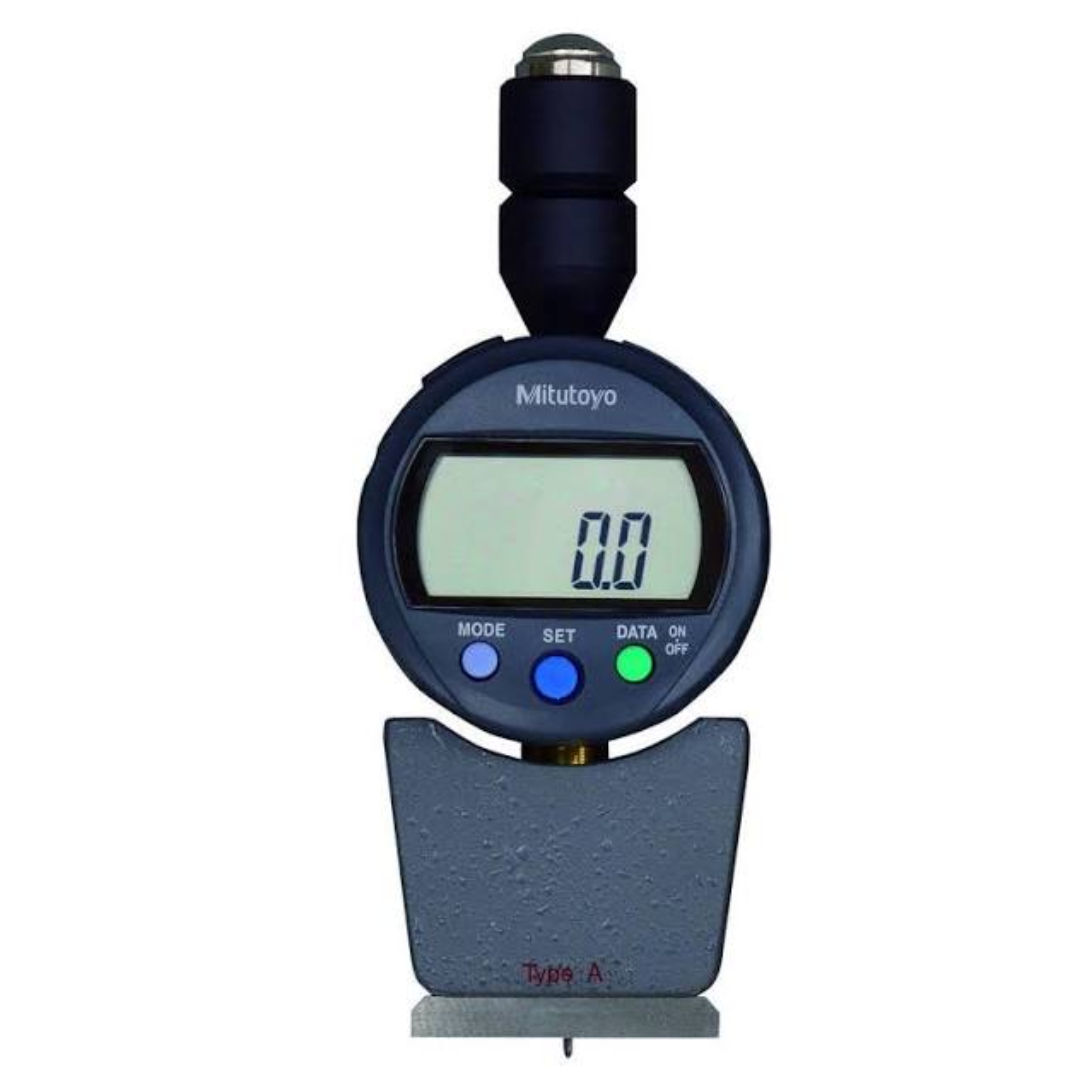

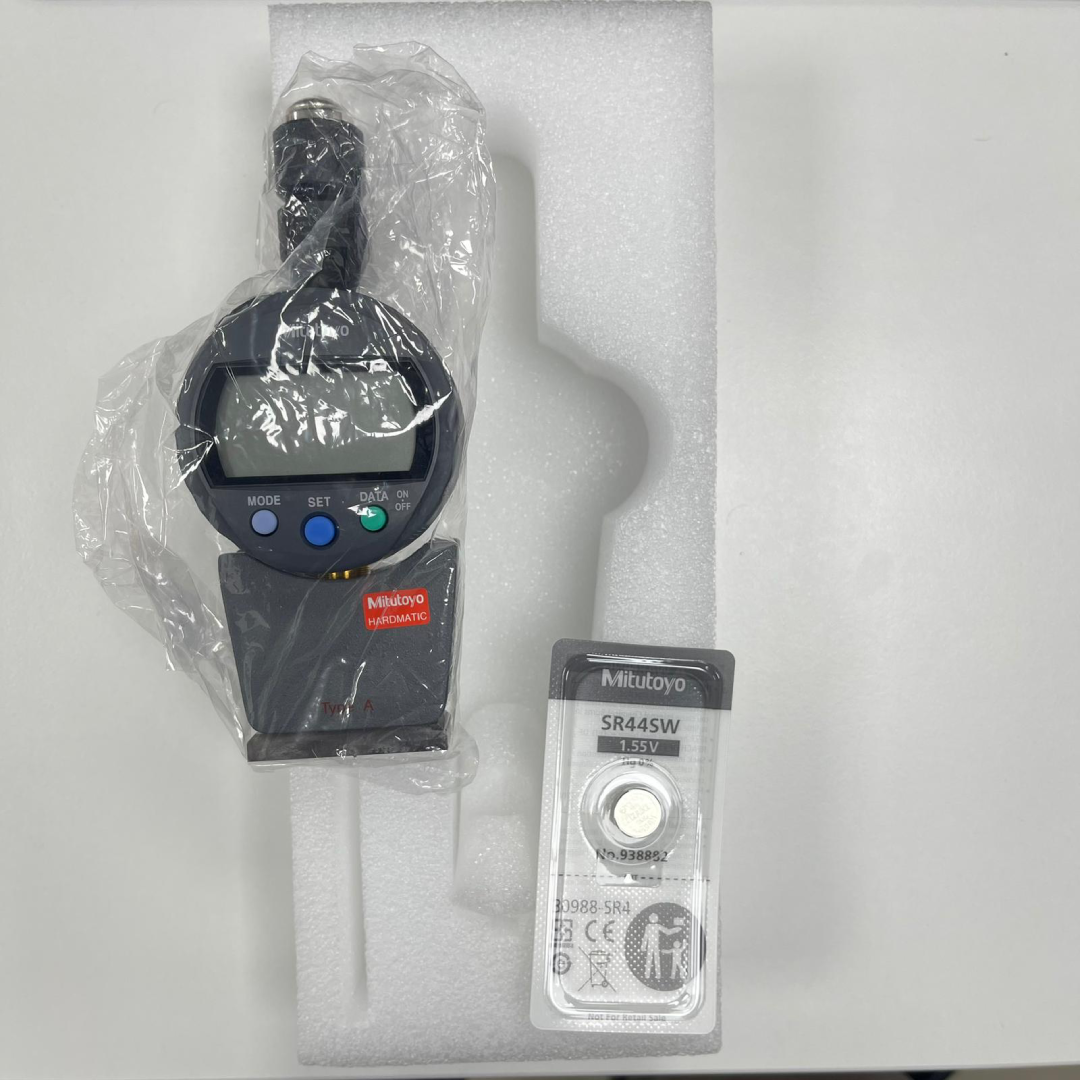

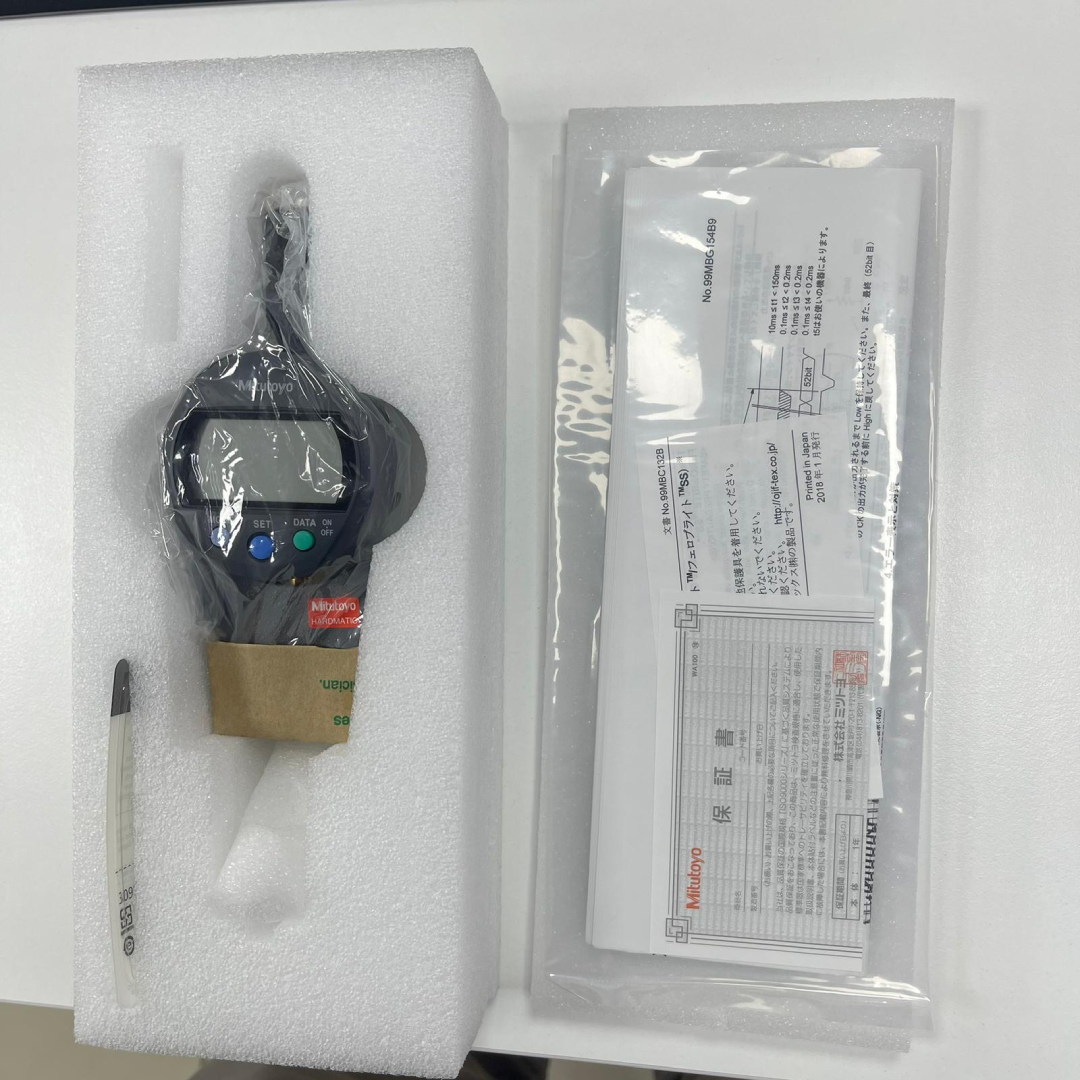

Mitutoyo HH-336 Digital Shore A Durometer, 10 to 90 HA, 811-336-10
All Mitutoyo products
Mitutoyo Dimensional Measuring Tools
All Dimensional Measuring Tools (every brand)
Technical overview
Mitutoyo 811-336-10 is a compact digital Shore A durometer from the Hardmatic HH-300 Series for hardness testing of natural rubber, soft elastomers and similar flexible materials. The HH-336 measures from 10 to 90 HA with 0.1 digital resolution and uses a blunt-taper indenter with a 0.79 mm tip diameter. Data hold, zero setting and Digimatic SPC output support convenient inspection and measurement recording, while the compact handheld design is suitable for production testing, incoming material inspection and laboratory hardness evaluation.
Key Features
- Digital Shore A hardness measurement for natural rubber and soft elastomers.
- 10 to 90 HA measuring range with 0.1 digital resolution.
- Compact handheld design for production, inspection and laboratory use.
- Data hold and zero-setting functions support convenient reading.
- Digimatic SPC output allows measurement data transfer to compatible equipment.

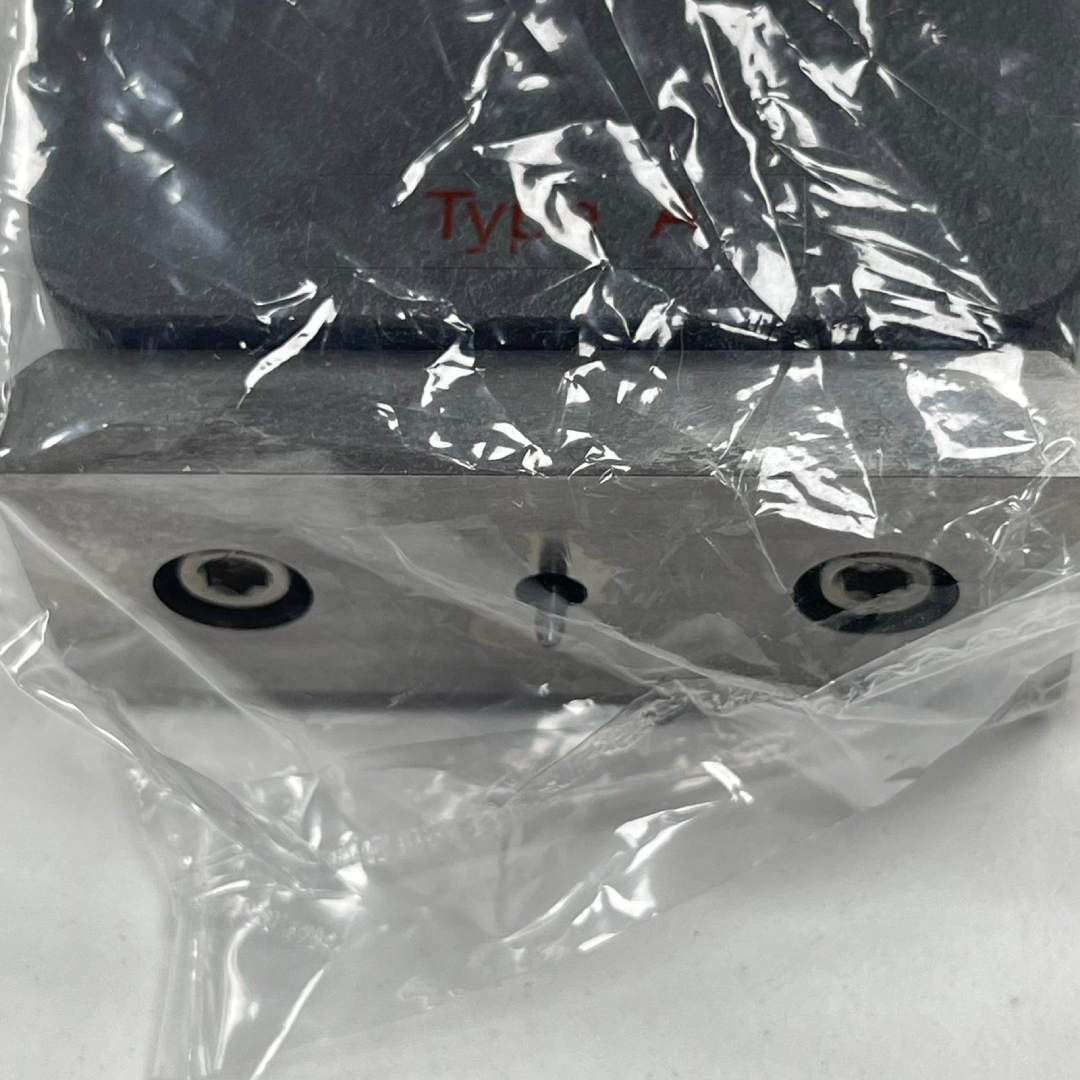

- Blunt-taper indenter with 0.79 mm tip diameter for Shore A testing.
Applications
- Hardness testing of natural rubber and soft elastomers.
- Inspection of neoprene, soft PVC and similar flexible polymer materials.
- Quality control of molded rubber and elastomer components.
- Incoming material inspection and production testing.
- Laboratory and workshop Shore A hardness evaluation.
Specifications
Product TypeDigital Durometer
ModelHH-336
Measurement TypeShore A
Measuring RangeHA 10 to 90
Resolution0.5
ApplicationNatural Rubber, Soft Elastomers
Output SignalSPC Output
Documentation
1 file
