Festo DSBC-50-175-PPVA-N3
Festo DSBC — standards-based cylinder to ISO 15552, profile barrel
Festo DSBC-50-175-PPVA-N3 (part 1463766) — ISO 15552 profile cylinder, Ø50 bore, 175 mm stroke, magnetic piston, adjustable cushioning both ends.
Pneumatic Cylinders
Janatics

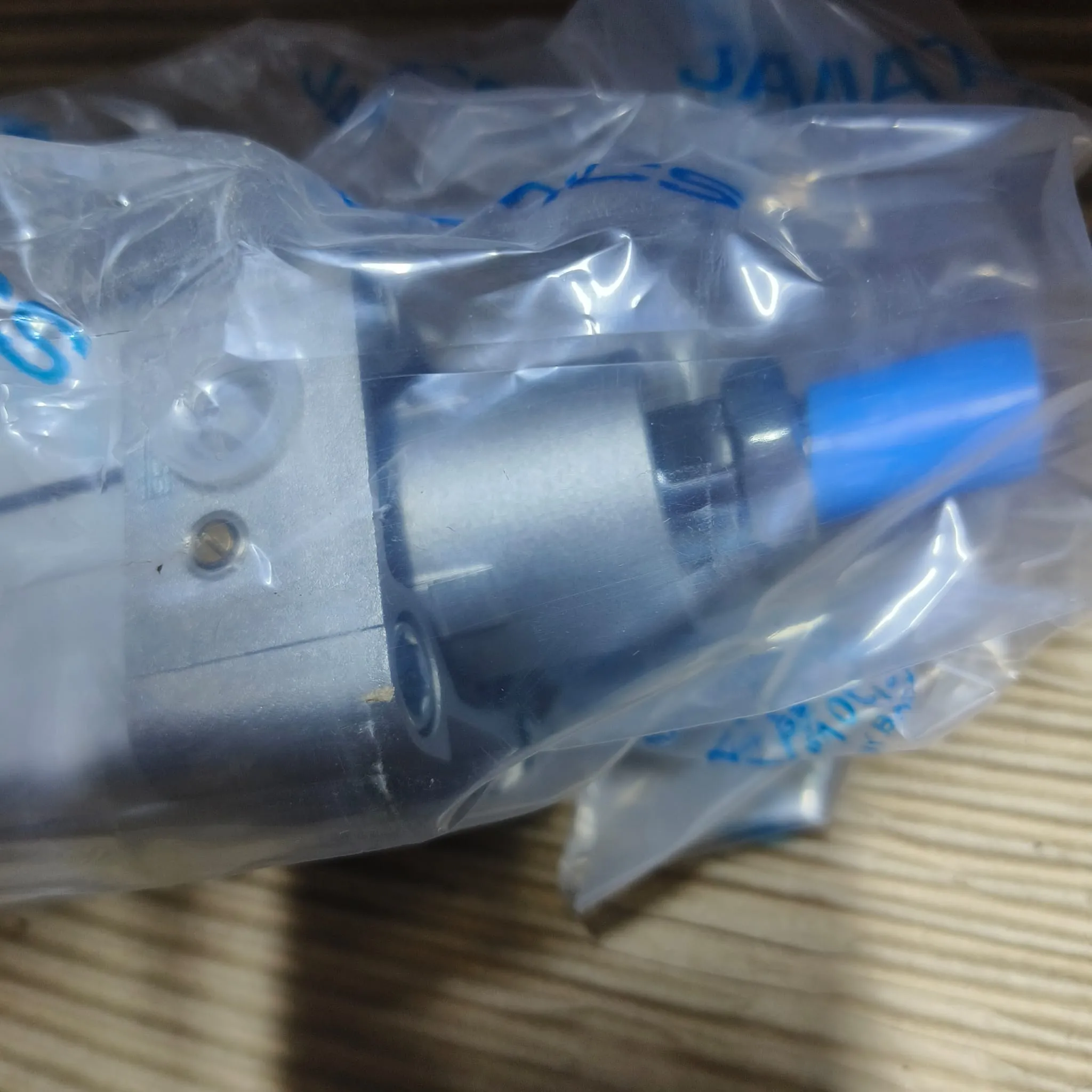

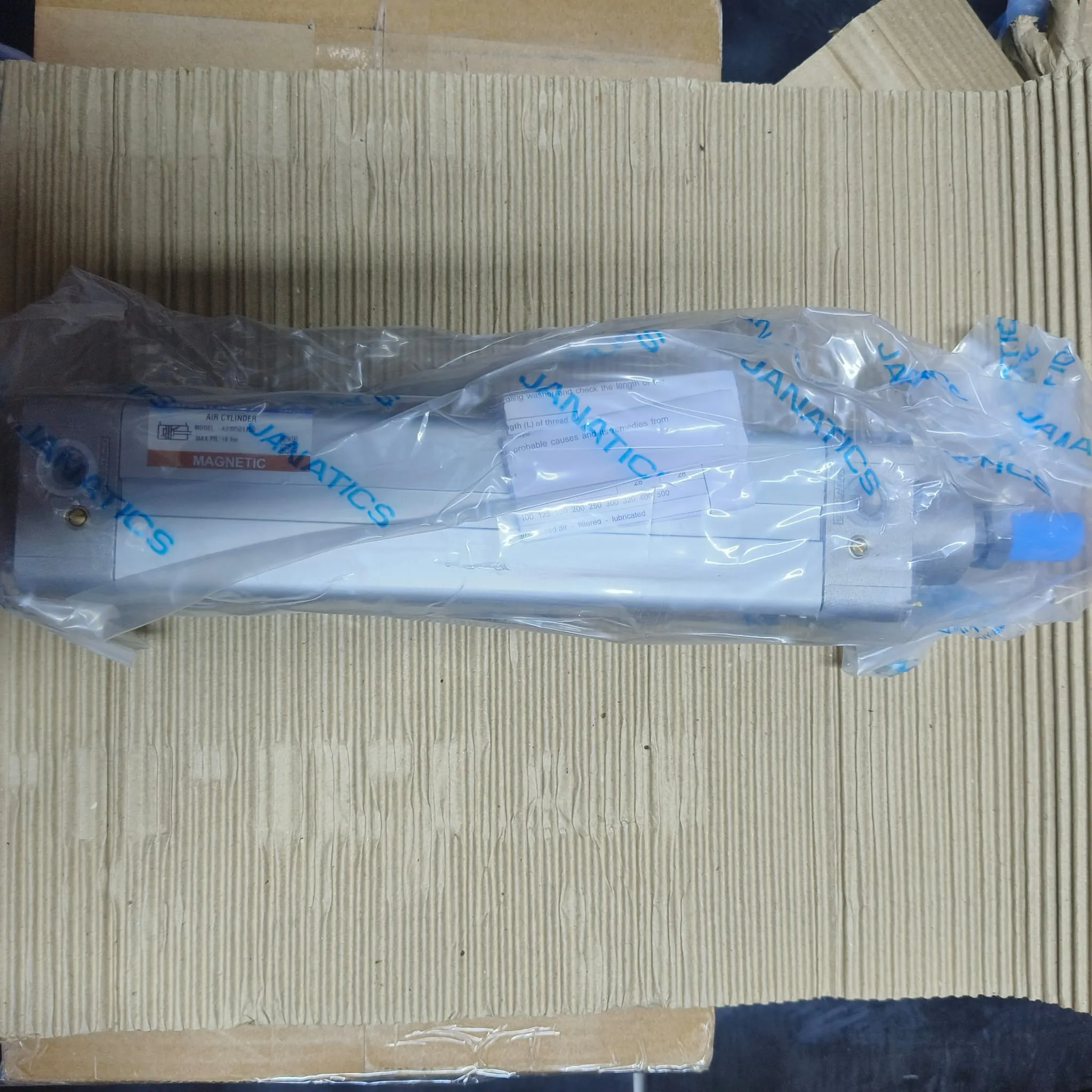

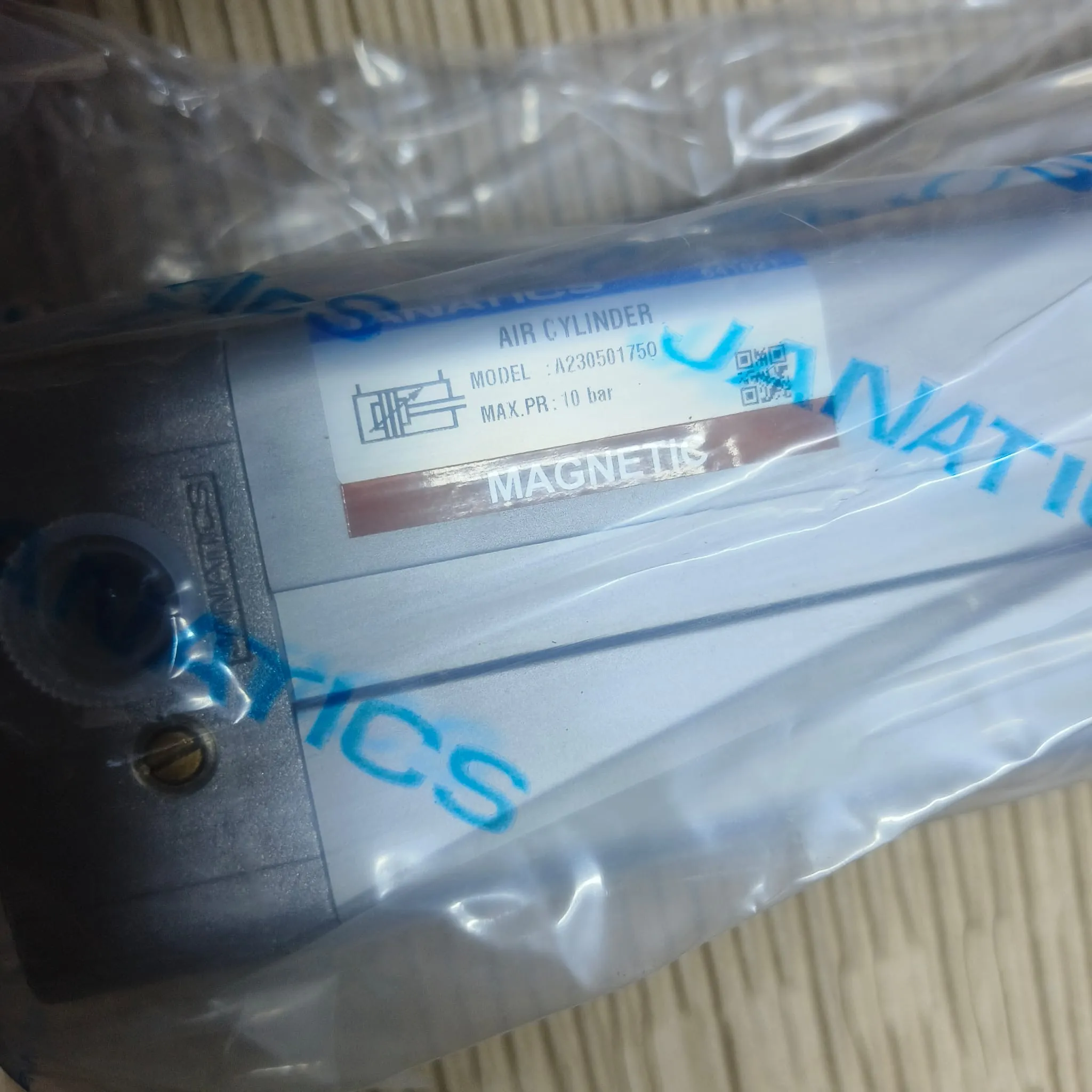

Janatics A23 Series Square Pneumatic Cylinder, Bore Diameter 50 mm, Stroke 175 mm, Double Acting Magnetic Piston, A23050175O
- Mfr. part no.
- A23050175O
- SKU
- PN-CYLA230-50175
Specifications
| Series | A23 Series |
|---|---|
| Port Size | G1/4 |
| Bore Diameter | 50 mm |
| Stroke Length | 175 mm |
| Action Type | Double Acting |
| Piston Type | Magnetic Piston |
| Cushioning | Adjustable Cushioning at Both Ends with Elastomer Pads |
| Working Pressure Range | 0.5 to 10 bar |
| Ambient Temperature Range | -10 °C to +60 °C |
| Piston Rod Diameter | 20 mm |
| Piston Rod End | M16 × 1.5 Thread |
| Body Material | Aluminium Profile Barrel |
| Compliance Standards | ISO 15552 / VDMA 24562 |
Key Features
- Square profile cylinder body provides robust linear pneumatic actuation for industrial machinery.
- Double acting operation gives controlled extension and retraction using compressed air.
- Adjustable cushioning at both ends helps reduce end-of-stroke impact.
- Multiple mounting options support flexible installation in automation equipment.
- Suitable for sensor-based position feedback on magnetic versions.
- Made in India.
Description
The Janatics A23 Series is a square profile magnetic pneumatic cylinder used where a rigid body, sensor-ready operation and reliable linear motion are needed on automated machines. It is a double acting linear pneumatic actuator with a 50 mm bore and 175 mm stroke, with magnetic piston position detection for external switches and adjustable cushioning at both ends with elastomer pads for smoother end-stroke operation. The aluminium square profile barrel gives a clean mounting form and suits a wide range of cylinder accessories and machine layouts. It is suitable for packaging machines, material handling equipment, conveyors, fixture actuation, machine tools and other industrial pneumatic actuator applications, with G1/4 pneumatic air port thread.
Applications
- Industrial automation and machine-building systems.
- Packaging, material handling and assembly line equipment.
- Clamping, pressing, pushing and transfer applications.
- Replacement use in pneumatic actuator assemblies for production machinery.
Documents
Cross-reference
The closest equivalent from another brand, with the differences stated so you can check before you order.
We carry A23050175O as the indSpare-stocked equivalent. Looking for a different brand? Request a quote →
