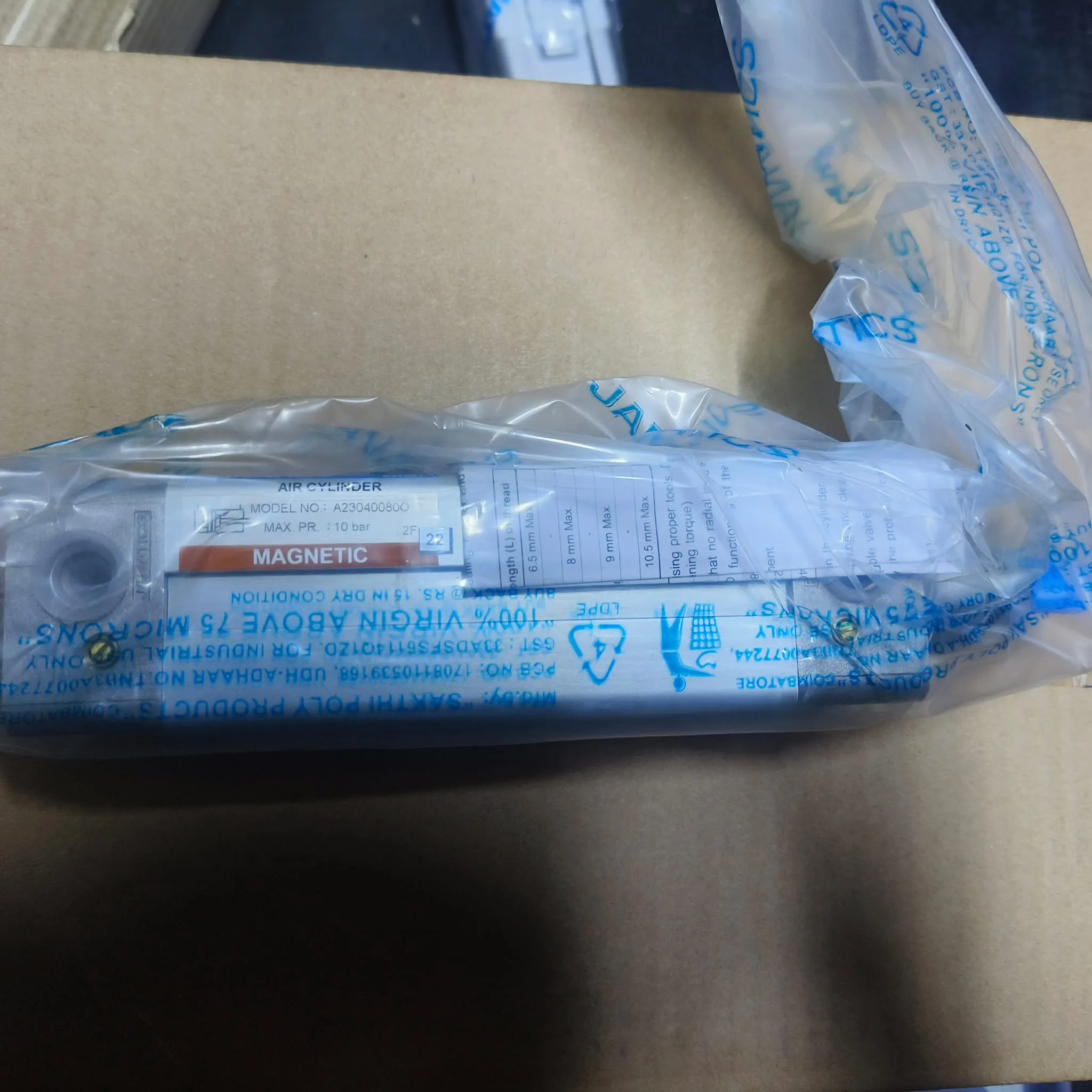

Janatics A23 Series Square Pneumatic Cylinder, Bore Diameter 40 mm, Stroke 80 mm, Double Acting Magnetic Piston, A23040080O
Technical overview
The Janatics A23 Series is a square profile magnetic pneumatic cylinder used where a rigid body, sensor-ready operation and reliable linear motion are needed on automated machines. It is a double acting linear pneumatic actuator with a 40 mm bore and 80 mm stroke, with magnetic piston position detection for external switches and adjustable cushioning at both ends with elastomer pads for smoother end-stroke operation. The aluminium square profile barrel gives a clean mounting form and suits a wide range of cylinder accessories and machine layouts. It is suitable for packaging machines, material handling equipment, conveyors, fixture actuation, machine tools and other industrial pneumatic actuator applications, with G1/8 pneumatic air port thread.
Key Features
- Square profile cylinder body provides robust linear pneumatic actuation for industrial machinery.
- Double acting operation gives controlled extension and retraction using compressed air.
- Adjustable cushioning at both ends helps reduce end-of-stroke impact.
- Multiple mounting options support flexible installation in automation equipment.
- Suitable for sensor-based position feedback on magnetic versions.
- Made in India.
Applications
- Industrial automation and machine-building systems.
- Packaging, material handling and assembly line equipment.
- Clamping, pressing, pushing and transfer applications.
- Replacement use in pneumatic actuator assemblies for production machinery.
Specifications
SeriesA23 Series
Port SizeG1/8
Bore Diameter40 mm
Stroke Length80 mm
Action TypeDouble Acting
Piston TypeMagnetic Piston
CushioningAdjustable Cushioning at Both Ends with Elastomer Pads
Working Pressure Range0.5 to 10 bar
Ambient Temperature Range-10 °C to +60 °C
Piston Rod Diameter16 mm
Piston Rod EndM12 × 1.25 Thread
Body MaterialAluminium Profile Barrel
Compliance StandardsISO 15552 / VDMA 24562
