Pneumatic Cylinders

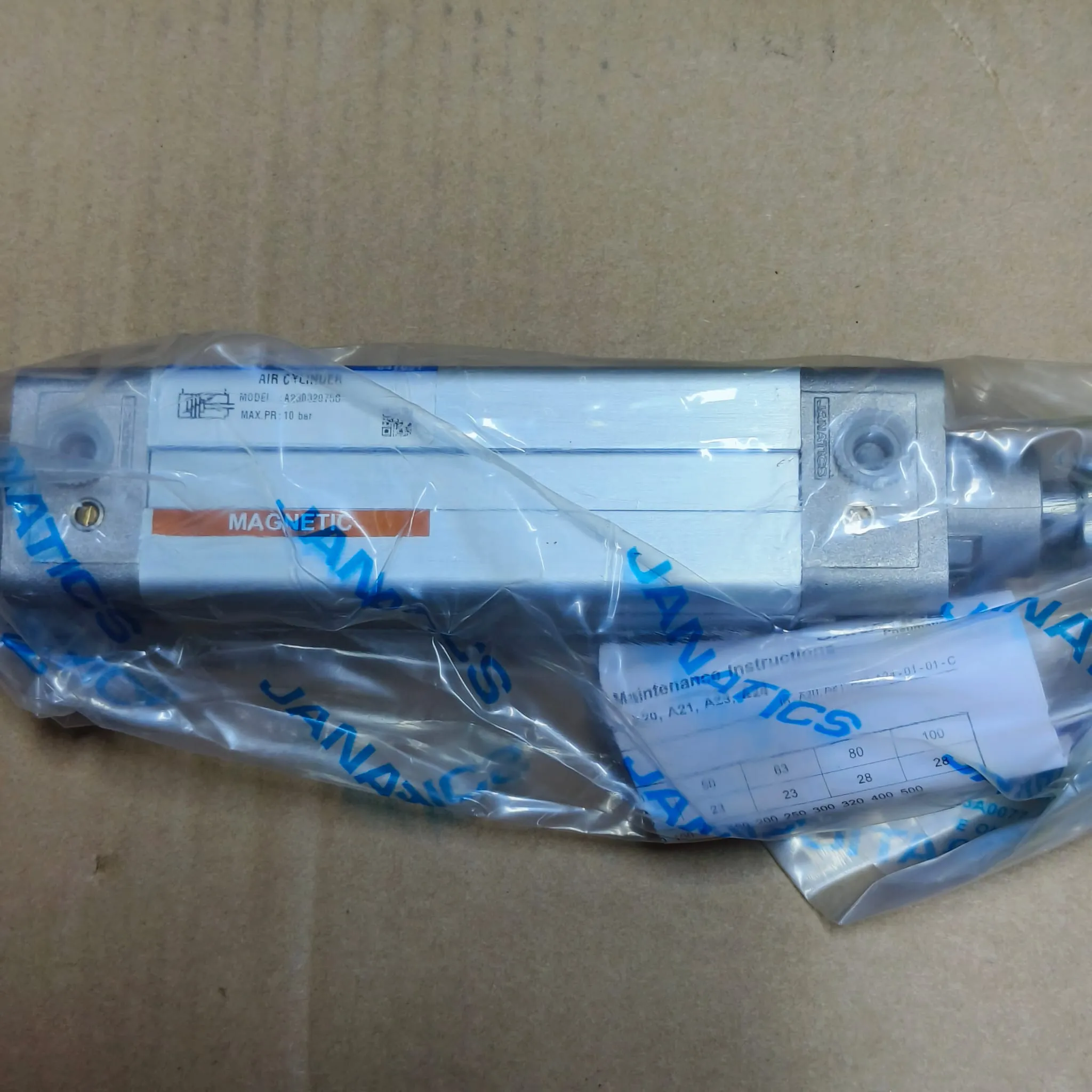

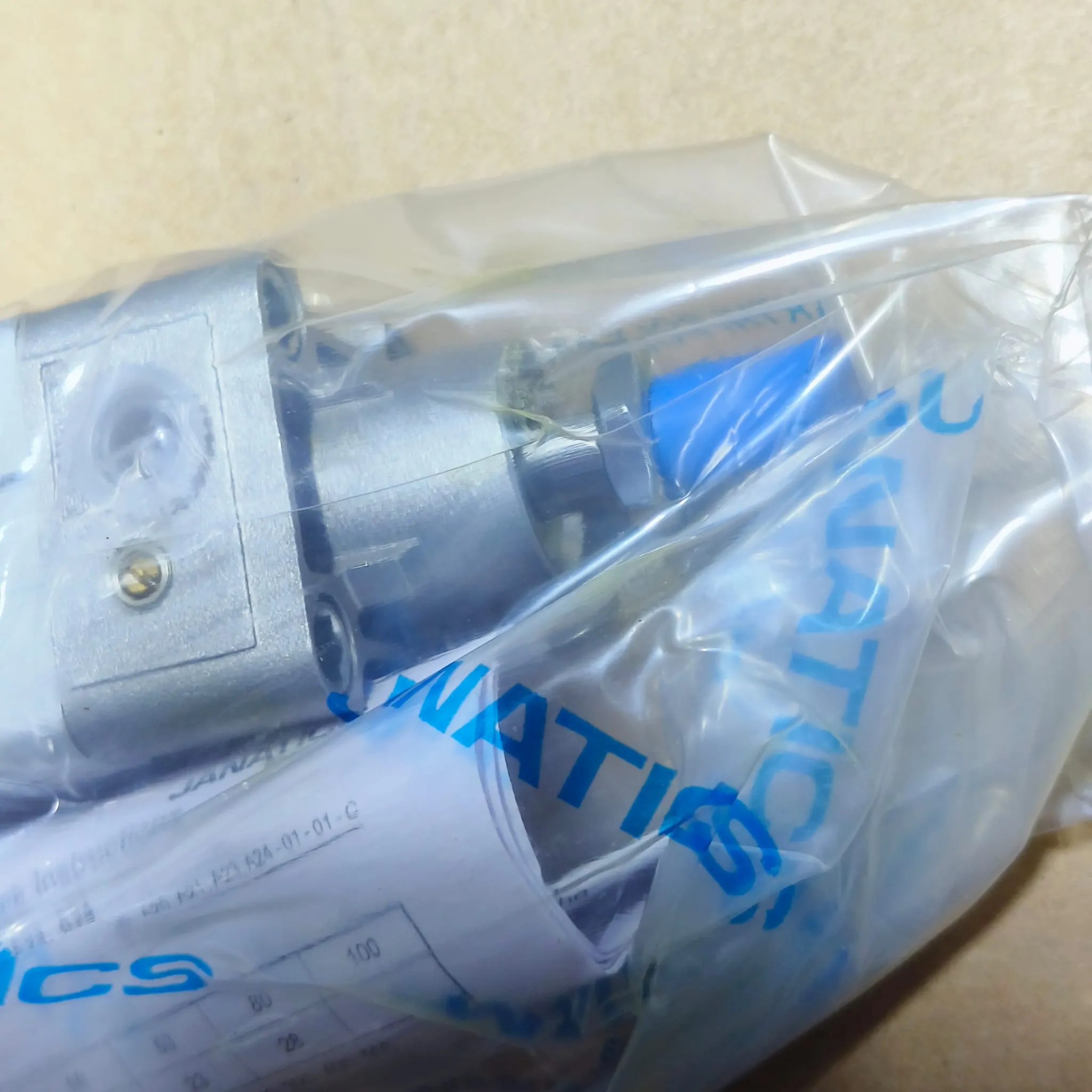

Janatics A23 Series Square Pneumatic Cylinder, Bore Diameter 32 mm, Stroke 75 mm, Double Acting Magnetic Piston, A23032075O
Janatics

Janatics A23 Series Square Pneumatic Cylinder, Bore Diameter 32 mm, Stroke 75 mm, Double Acting Magnetic Piston, A23032075O

Mfr. part no.
A23032075O
SKU
PN-CYLA230-3275

Specifications

Series A23 Series
Port Size G1/8
Bore Diameter 32 mm
Stroke Length 75 mm
Action Type Double Acting
Piston Type Magnetic Piston
Cushioning Adjustable Cushioning at Both Ends with Elastomer Pads
Working Pressure Range 0.5 to 10 bar
Ambient Temperature Range -10 °C to +60 °C
Piston Rod Diameter 12 mm
Piston Rod End M10 × 1.25 Thread
Body Material Aluminium Profile Barrel
Compliance Standards ISO 15552 / VDMA 24562

Key Features

  • Square profile cylinder body provides robust linear pneumatic actuation for industrial machinery.
  • Double acting operation gives controlled extension and retraction using compressed air.
  • Adjustable cushioning at both ends helps reduce end-of-stroke impact.
  • Multiple mounting options support flexible installation in automation equipment.
  • Suitable for sensor-based position feedback on magnetic versions.
  • Made in India.

Description

The Janatics A23 Series is a square profile magnetic pneumatic cylinder used where a rigid body, sensor-ready operation and reliable linear motion are needed on automated machines. It is a double acting linear pneumatic actuator with a 32 mm bore and 75 mm stroke, with magnetic piston position detection for external switches and adjustable cushioning at both ends with elastomer pads for smoother end-stroke operation. The aluminium square profile barrel gives a clean mounting form and suits a wide range of cylinder accessories and machine layouts. It is suitable for packaging machines, material handling equipment, conveyors, fixture actuation, machine tools and other industrial pneumatic actuator applications, with G1/8 pneumatic air port thread.

Applications

  • Industrial automation and machine-building systems.
  • Packaging, material handling and assembly line equipment.
  • Clamping, pressing, pushing and transfer applications.
  • Replacement use in pneumatic actuator assemblies for production machinery.

Documents

  • Janatics-A23-A24 Series Cylinders — Datasheet

    PDF, 1.9 MB

  • Janatics-A23-A24 Series Cylinders Instruction — Manual

    PDF, 943 KB

Cross-reference

The closest equivalent from another brand, with the differences stated so you can check before you order.

SMC CP96SDB32-75C

SMC Series CP96 (current generation CP96-C) — Profile Design ISO 15552 Cylinder, double acting, single rod

SMC CP96SDB32-75C — the CP96 ISO 15552 profile cylinder in Ø32 bore, 75 mm stroke, double-acting with magnetic piston and air-plus-bumper cushioning.

We carry A23032075O as the indSpare-stocked equivalent. Looking for a different brand? Request a quote →

Browse every published equivalence
