Pneumatic Cylinders

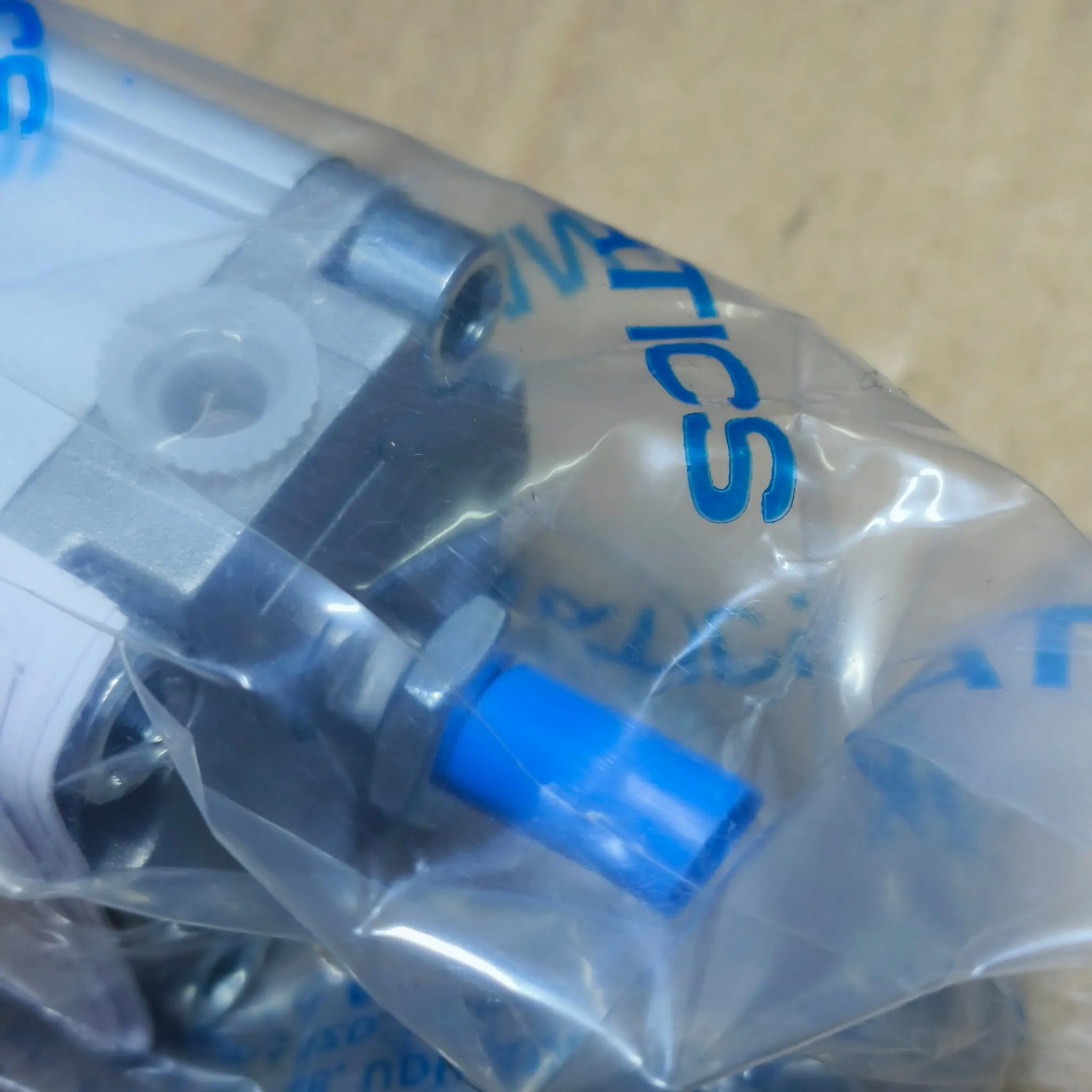

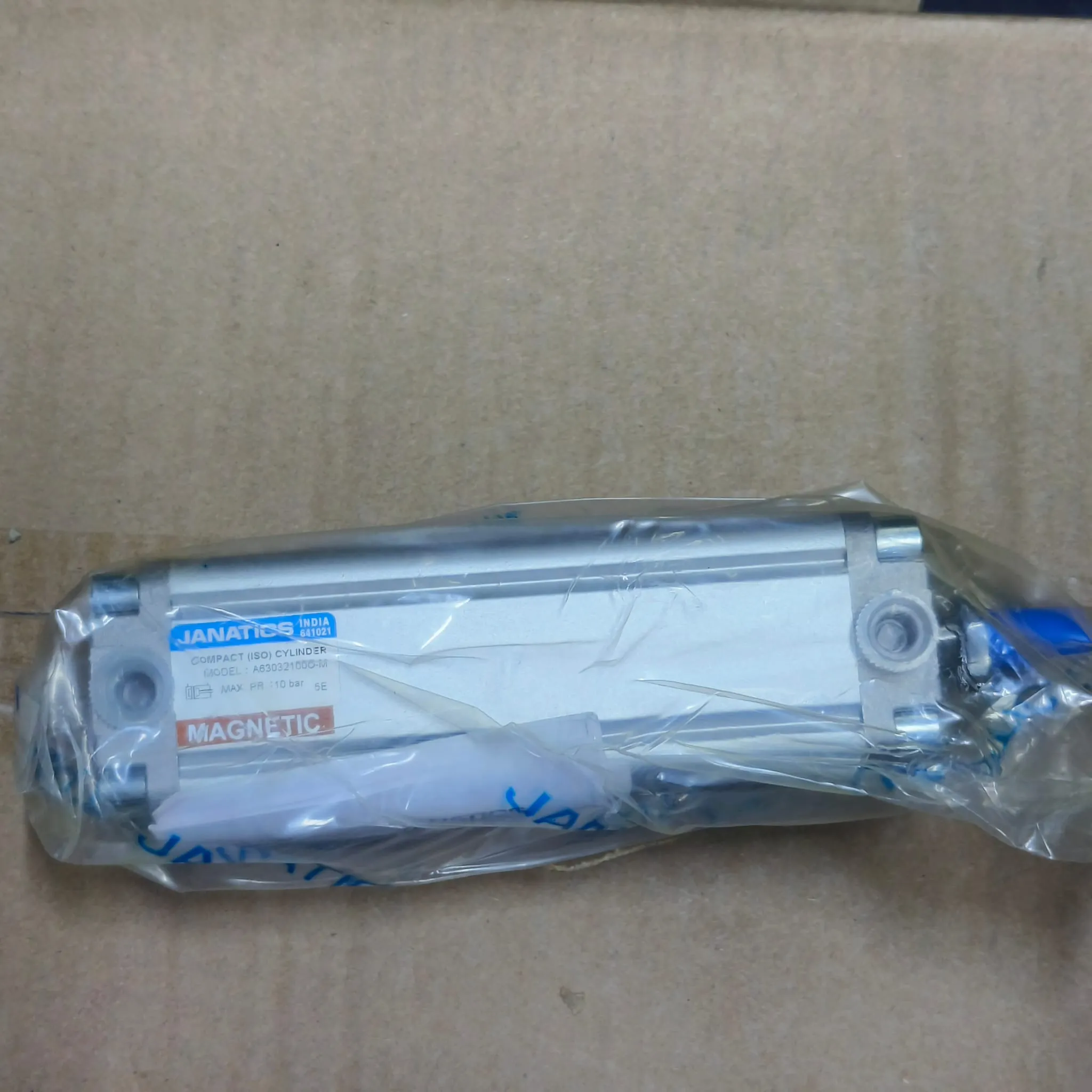

Janatics A63 Series Compact Pneumatic Cylinder, Bore Diameter 32 mm, Stroke 100 mm, Double Acting Magnetic Piston, Male Thread, A63032100O-M
Janatics

Janatics A63 Series Compact Pneumatic Cylinder, Bore Diameter 32 mm, Stroke 100 mm, Double Acting Magnetic Piston, Male Thread, A63032100O-M

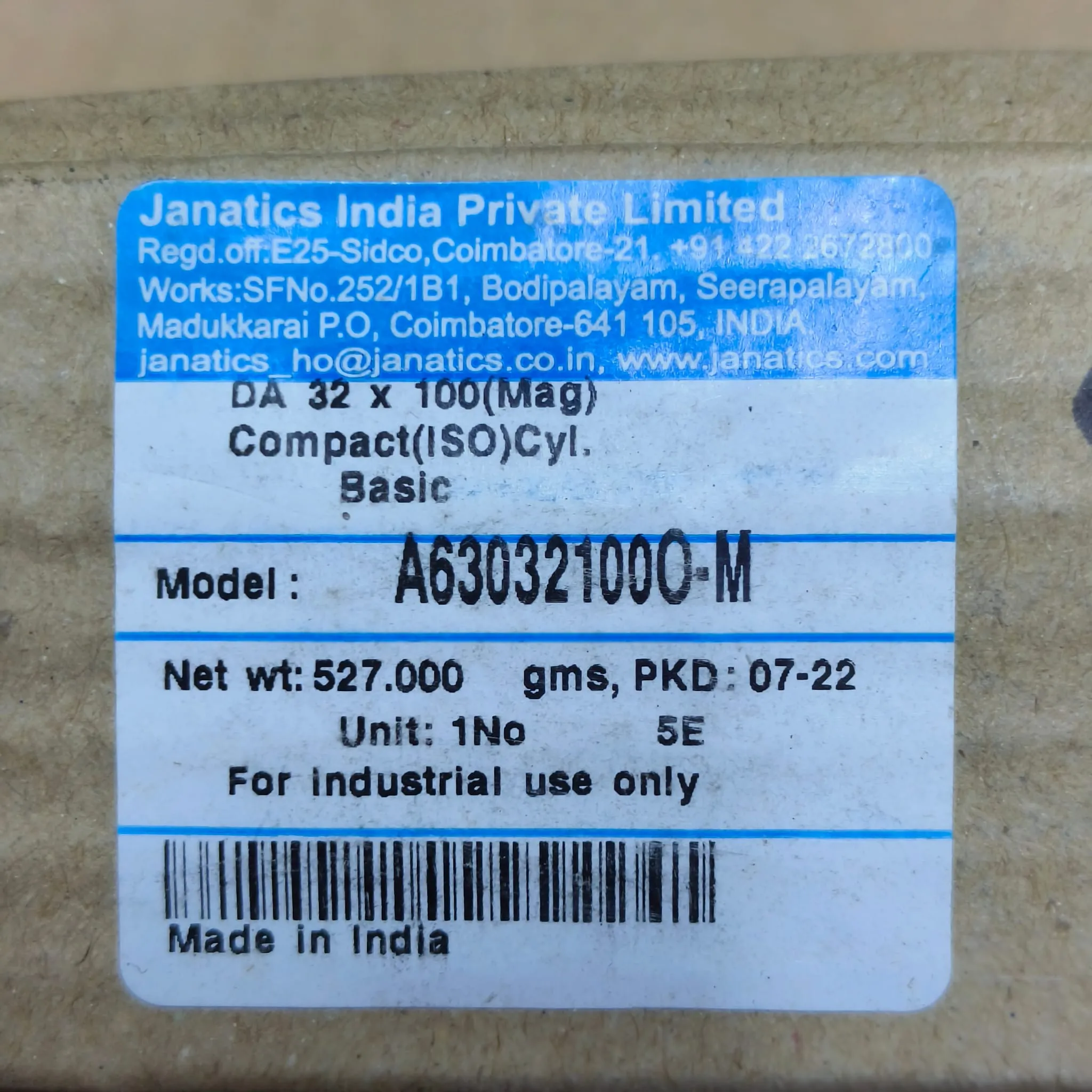

Mfr. part no.
A63032100O-M
SKU
PN-CYLA630-32100-M

Specifications

Series A63 Series
Port Size G1/8
Bore Diameter 32 mm
Stroke Length 100 mm
Action Type Double Acting
Piston Type Magnetic Piston
Cushioning Elastomer End Cushioning
Working Pressure Range 0.5 to 10 bar
Ambient Temperature Range -10 °C to +60 °C
Piston Rod Diameter 12 mm
Piston Rod End M10 × 1.25 Male Thread
Body Material Aluminium Profile Barrel
Compliance Standards ISO 21287

Key Features

  • Compact cylinder design supports controlled intermediate linear positions in automation systems.
  • Magnetic piston allows external sensor feedback for position detection.
  • Aluminium profile square barrel provides a space-saving body for machine mounting.
  • Elastomer end cushioning helps reduce impact at the end of the stroke.
  • Suitable for use with filtered and lubricated compressed air from 0.5 to 10 bar.
  • Made in India.

Description

The Janatics A63 Series is a magnetic Compact pneumatic cylinder for machines that need controlled intermediate linear positions instead of only fully extended and retracted movement. This double acting linear pneumatic actuator uses a 32 mm bore and 100 mm stroke with a male piston rod thread, working on filtered, lubricated compressed air at 0.5 to 10 bar. The series uses an aluminium profile square cylinder barrel, elastomer end cushioning, magnetic piston position detection and construction materials including aluminium, nitrile, steel and polyurethane. It is suitable for indexing slides, transfer mechanisms, fixtures, automation stations and SPM applications where repeatable Compact motion is required.

Applications

  • Indexing slides and transfer mechanisms.
  • Fixture positioning and multi-stop automation.
  • Special purpose machines and assembly stations.
  • Pick-and-place systems needing intermediate actuator positions.
  • Industrial compressed-air automation in packaging, handling and machine building.

Documents

  • Janatics-A63 Series Cylinders — Datasheet

    PDF, 1.2 MB

  • Janatics-A63 Series Cylinders Instruction — Manual

    PDF, 867 KB

Cross-reference

The closest equivalent from another brand, with the differences stated so you can check before you order.

Airtac ACE32X100SBG

Airtac ACE — ISO 21287 Cylinder, compact, double acting

Airtac ACE32X100SBG — ISO 21287 compact cylinder, 32 mm bore, 100 mm stroke, male rod thread, with magnet, BSPP ports.

We carry A63032100O-M as the indSpare-stocked equivalent. Looking for a different brand? Request a quote →

Browse every published equivalence
