Pneumatic Cylinders
Janatics

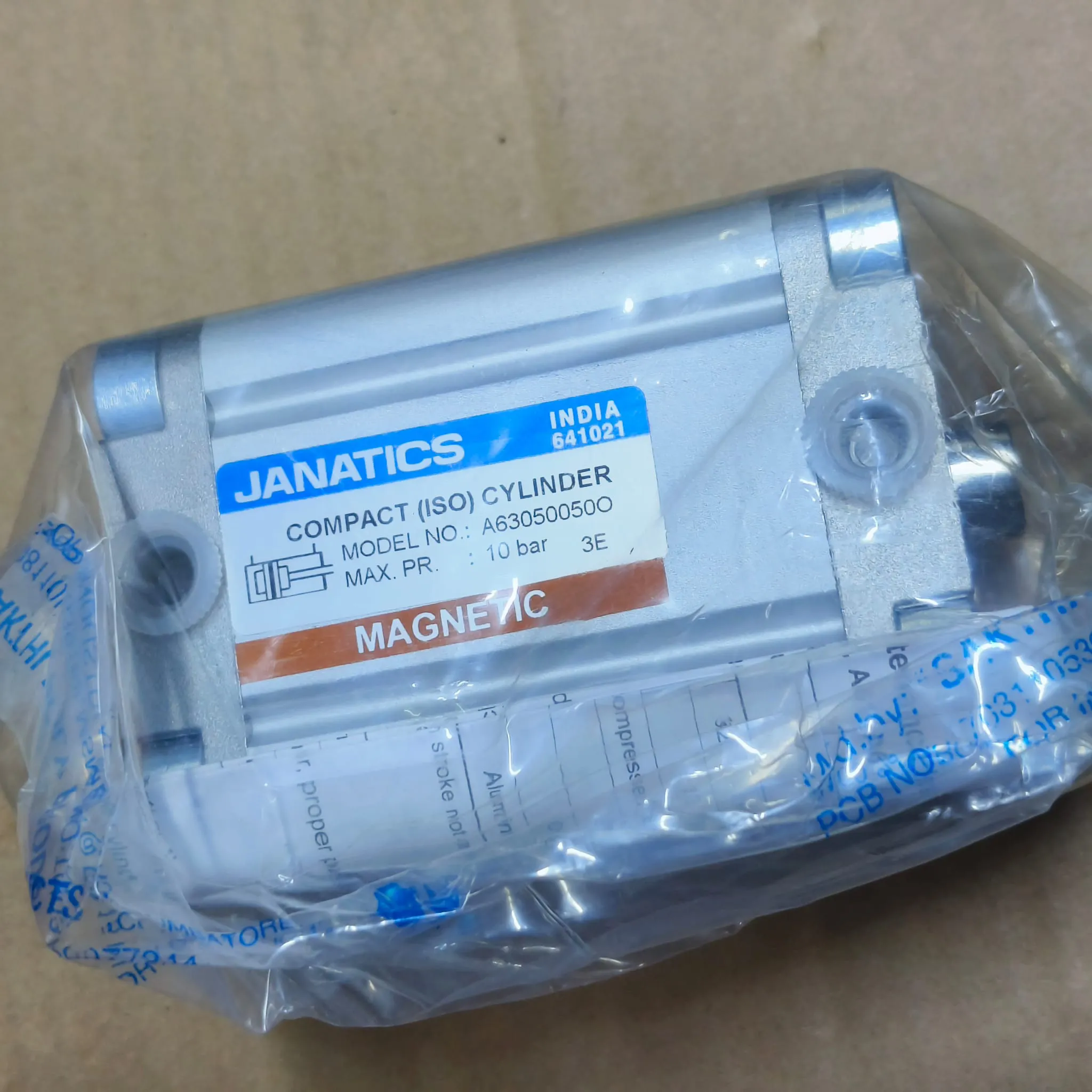

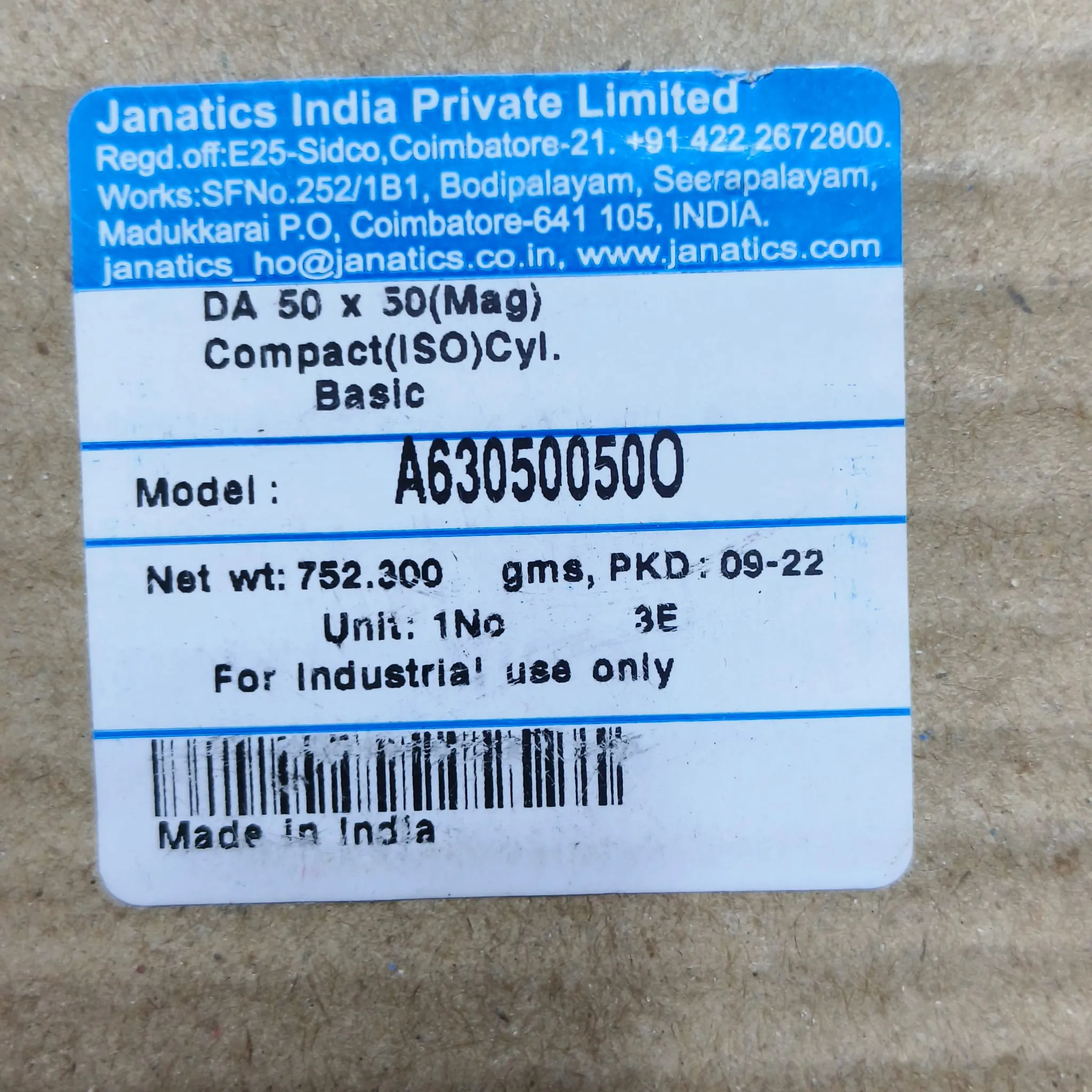

Janatics A63 Series Compact Pneumatic Cylinder, Bore Diameter 50 mm, Stroke 50 mm, Double Acting Magnetic Piston, A63050050O
- Mfr. part no.
- A63050050O
- SKU
- PN-CYLA630-5050
Specifications
| Series | A63 Series |
|---|---|
| Port Size | G1/8 |
| Bore Diameter | 50 mm |
| Stroke Length | 50 mm |
| Action Type | Double Acting |
| Piston Type | Magnetic Piston |
| Cushioning | Elastomer End Cushioning |
| Working Pressure Range | 0.5 to 10 bar |
| Ambient Temperature Range | -10 °C to +60 °C |
| Piston Rod Diameter | 16 mm |
| Piston Rod End | M12 × 1.25 Female Thread |
| Body Material | Aluminium Profile Barrel |
| Compliance Standards | ISO 21287 |
Key Features
- Compact cylinder design supports controlled intermediate linear positions in automation systems.
- Magnetic piston allows external sensor feedback for position detection.
- Aluminium profile square barrel provides a space-saving body for machine mounting.
- Elastomer end cushioning helps reduce impact at the end of the stroke.
- Suitable for use with filtered and lubricated compressed air from 0.5 to 10 bar.
- Made in India.
Description
The Janatics A63 Series is a magnetic Compact pneumatic cylinder for machines that need controlled intermediate linear positions instead of only fully extended and retracted movement. This double acting linear pneumatic actuator uses a 50 mm bore and 50 mm stroke with a female piston rod thread, working on filtered, lubricated compressed air at 0.5 to 10 bar. The series uses an aluminium profile square cylinder barrel, elastomer end cushioning, magnetic piston position detection and construction materials including aluminium, nitrile, steel and polyurethane. It is suitable for indexing slides, transfer mechanisms, fixtures, automation stations and SPM applications where repeatable Compact motion is required.
Applications
- Indexing slides and transfer mechanisms.
- Fixture positioning and multi-stop automation.
- Special purpose machines and assembly stations.
- Pick-and-place systems needing intermediate actuator positions.
- Industrial compressed-air automation in packaging, handling and machine building.
Documents
Cross-reference
The closest equivalents from other brands, with the differences stated so you can check before you order.
Parker P1PS050DS7G0050
Parker Pneumatic P1P — Compact ISO Cylinders, ISO 21287
Parker P1PS050DS7G0050 — ISO 21287 compact cylinder, 50 mm bore, 50 mm stroke, female rod thread, magnetic piston, BSP ports.
Airtac ACE50X50SG
Airtac ACE — ISO 21287 Cylinder, compact, double acting
Airtac ACE50X50SG — ISO 21287 compact cylinder, 50 mm bore, 50 mm stroke, female rod thread, with magnet, BSPP ports.
We carry A63050050O as the indSpare-stocked equivalent. Looking for a different brand? Request a quote →
