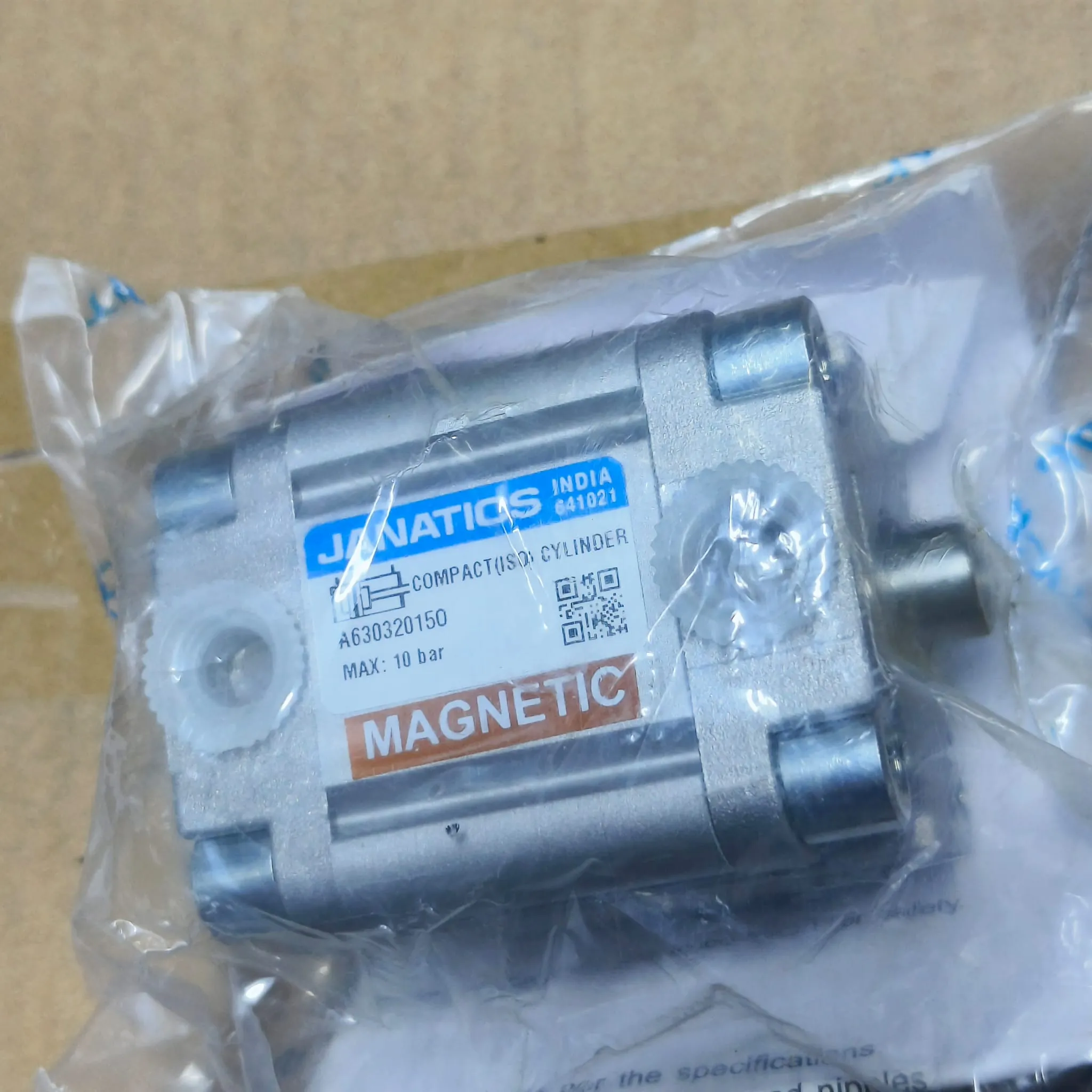

Janatics A63 Series Compact Pneumatic Cylinder, Bore Diameter 32 mm, Stroke 15 mm, Double Acting Magnetic Piston, A63032015O
Technical overview
The Janatics A63 Series is a magnetic Compact pneumatic cylinder for machines that need controlled intermediate linear positions instead of only fully extended and retracted movement. This double acting linear pneumatic actuator uses a 32 mm bore and 15 mm stroke with a female piston rod thread, working on filtered, lubricated compressed air at 0.5 to 10 bar. The series uses an aluminium profile square cylinder barrel, elastomer end cushioning, magnetic piston position detection and construction materials including aluminium, nitrile, steel and polyurethane. It is suitable for indexing slides, transfer mechanisms, fixtures, automation stations and SPM applications where repeatable Compact motion is required.
Key Features
- Compact cylinder design supports controlled intermediate linear positions in automation systems.
- Magnetic piston allows external sensor feedback for position detection.
- Aluminium profile square barrel provides a space-saving body for machine mounting.
- Elastomer end cushioning helps reduce impact at the end of the stroke.
- Suitable for use with filtered and lubricated compressed air from 0.5 to 10 bar.
- Made in India.
Applications
- Indexing slides and transfer mechanisms.
- Fixture positioning and multi-stop automation.
- Special purpose machines and assembly stations.
- Pick-and-place systems needing intermediate actuator positions.
- Industrial compressed-air automation in packaging, handling and machine building.
Specifications
SeriesA63 Series
Port SizeG1/8
Bore Diameter32 mm
Stroke Length15 mm
Action TypeDouble Acting
Piston TypeMagnetic Piston
CushioningElastomer End Cushioning
Working Pressure Range0.5 to 10 bar
Ambient Temperature Range-10 °C to +60 °C
Piston Rod Diameter12 mm
Piston Rod EndM10 × 1.25 Female Thread
Body MaterialAluminium Profile Barrel
Compliance StandardsISO 21287
