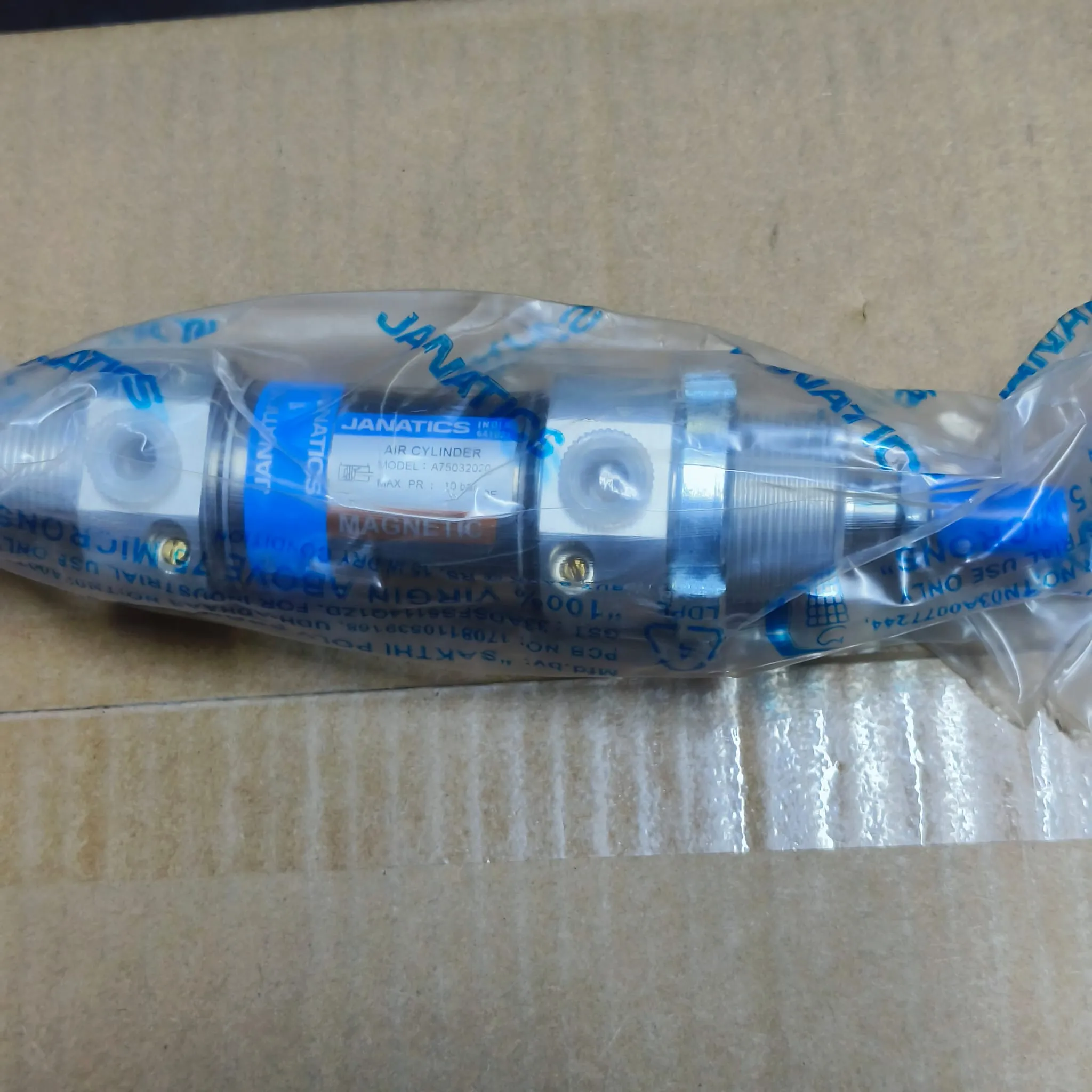

Janatics A75 Series Round Pneumatic Cylinder, Bore Diameter 32 mm, Stroke 20 mm, Double Acting Magnetic Piston, A75032020
Technical overview
The Janatics A75 Series is a round magnetic pneumatic cylinder for machine builders who need compact linear movement with direct mounting through the threaded end cover. This double acting linear pneumatic actuator uses a 32 mm bore and 20 mm stroke, with a 12 mm stainless steel piston rod, G1/8 air port and 12 mm cushion stroke with adjustable cushioning at both ends. The series is built with a stainless steel cylinder barrel and non-corrosive SS303 piston rod, along with aluminium, brass, nitrile, polyurethane, steel and acetal internal components for industrial compressed-air service. It is suited to packaging machines, printing machines, machine tools, SPMs, textile machinery, leak testing equipment and air gauging equipment.
Key Features
- Round magnetic cylinder design provides compact double acting linear motion.
- Adjustable cushioning at both ends supports smoother end-stroke operation.
- Threaded end cover allows direct mounting on the machine where suitable.
- Stainless steel cylinder barrel and SS303 piston rod improve corrosion resistance.
- Available with front foot, double foot, front trunnion and rear trunnion mounting options.
- Made in India.
Applications
- Packaging and packing machines.
- Printing, textile and food-industry machinery.
- Machine tools and special purpose machines.
- Leak testing and air gauging equipment.
- Compact pushing, clamping and positioning operations.
Specifications
SeriesA75 Series
Port SizeG1/8
Bore Diameter32 mm
Stroke Length20 mm
Action TypeDouble Acting
Piston TypeMagnetic Piston
CushioningAdjustable Cushioning at Both Ends
Working Pressure Range0.5 to 10 bar
Ambient Temperature Range-10 °C to +60 °C
Piston Rod Diameter12 mm
Piston Rod EndM10 × 1.25 Thread
