Pneumatic Cylinders

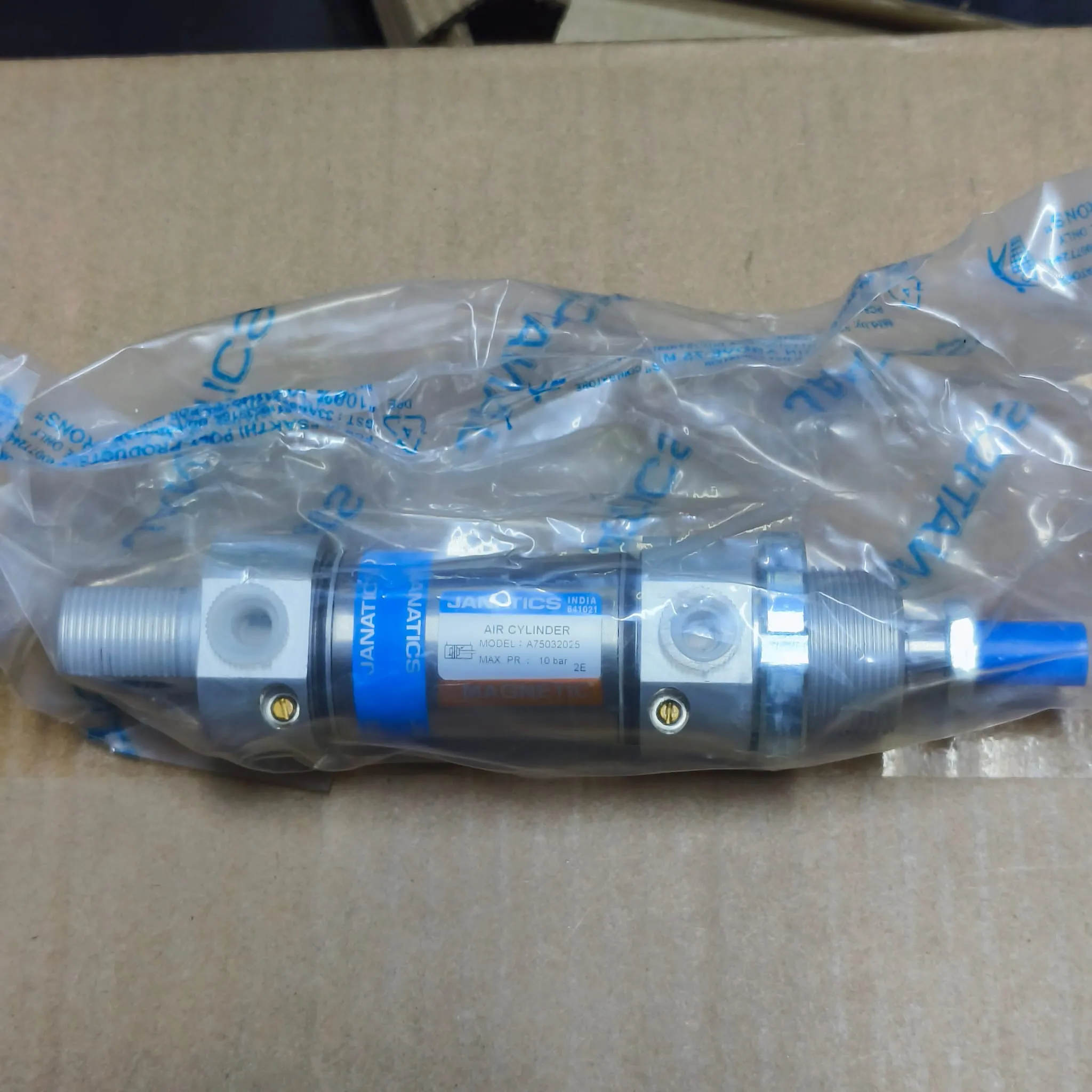

Janatics A75 Series Round Pneumatic Cylinder, Bore Diameter 32 mm, Stroke 25 mm, Double Acting Magnetic Piston, A75032025
Janatics

Janatics A75 Series Round Pneumatic Cylinder, Bore Diameter 32 mm, Stroke 25 mm, Double Acting Magnetic Piston, A75032025

Mfr. part no.
A75032025
SKU
PN-CYLA750-3225

Specifications

Series A75 Series
Port Size G1/8
Bore Diameter 32 mm
Stroke Length 25 mm
Action Type Double Acting
Piston Type Magnetic Piston
Cushioning Adjustable Cushioning at Both Ends
Working Pressure Range 0.5 to 10 bar
Ambient Temperature Range -10 °C to +60 °C
Piston Rod Diameter 12 mm
Piston Rod End M10 × 1.25 Thread

Key Features

  • Round magnetic cylinder design provides compact double acting linear motion.
  • Adjustable cushioning at both ends supports smoother end-stroke operation.
  • Threaded end cover allows direct mounting on the machine where suitable.
  • Stainless steel cylinder barrel and SS303 piston rod improve corrosion resistance.
  • Available with front foot, double foot, front trunnion and rear trunnion mounting options.
  • Made in India.

Description

The Janatics A75 Series is a round magnetic pneumatic cylinder for machine builders who need compact linear movement with direct mounting through the threaded end cover. This double acting linear pneumatic actuator uses a 32 mm bore and 25 mm stroke, with a 12 mm stainless steel piston rod, G1/8 air port and 12 mm cushion stroke with adjustable cushioning at both ends. The series is built with a stainless steel cylinder barrel and non-corrosive SS303 piston rod, along with aluminium, brass, nitrile, polyurethane, steel and acetal internal components for industrial compressed-air service. It is suited to packaging machines, printing machines, machine tools, SPMs, textile machinery, leak testing equipment and air gauging equipment.

Applications

  • Packaging and packing machines.
  • Printing, textile and food-industry machinery.
  • Machine tools and special purpose machines.
  • Leak testing and air gauging equipment.
  • Compact pushing, clamping and positioning operations.

Documents

  • A75032025-A75 Series — Datasheet

    PDF, 1.5 MB

  • Janatics-A75 Series Cylinders — Datasheet

    PDF, 930 KB

Cross-reference

The closest equivalent from another brand, with the differences stated so you can check before you order.

Festo DSNU-32-25-PPV-A

DSNU round cylinder, ISO 6432 (Ø32…63 range)

Festo DSNU-32-25-PPV-A (Festo part no. 196020) - Ø32 bore, 25 mm stroke round cylinder with adjustable pneumatic cushioning at both ends and a magnetic piston for position sensing. A direct functional match at this size, with a shared mounting envelope: M30x1.5 threaded front cover, Ø30 barrel, Ø12 piston rod, M10x1.25 rod thread and a G1/8 port, matching the Festo cylinder dimension for dimension. Cushioning is adjustable at both ends on both cylinders, over a 12 mm cushion stroke here against Festo's 14 mm. Working range is 0.5 to 10 bar, against 1 to 10 bar for the Festo cylinder, and the rated temperature range is -10 to +60 degC against Festo's -20 to +80 degC.

We carry A75032025 as the indSpare-stocked equivalent. Looking for a different brand? Request a quote →

Browse every published equivalence
