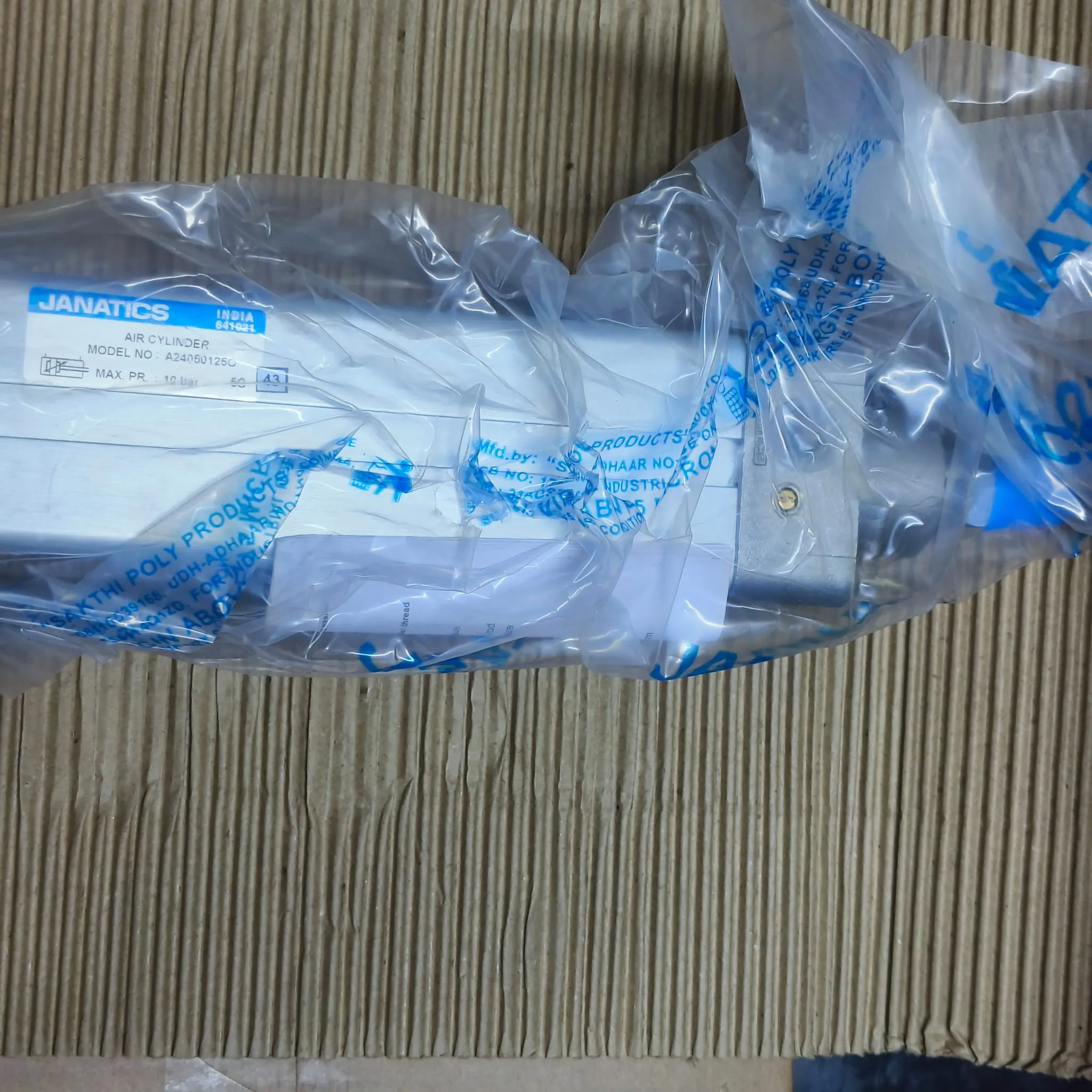

Janatics A24 Series Square Pneumatic Cylinder, Bore Diameter 50 mm, Stroke 125 mm, Double Acting Non-Magnetic Piston, A24050125O
Technical overview
The Janatics A24 Series is a square profile non-magnetic pneumatic cylinder for applications that need the same strong cylinder construction without piston position sensing. It is a double acting linear pneumatic actuator with a 50 mm bore and 125 mm stroke, without magnetic sensing, and uses adjustable cushioning at both ends with elastomer pads to reduce end-stroke impact. The aluminium square profile barrel provides a rigid body for machine mounting and works well where external position feedback is not required. It is suitable for general automation, clamping, pushing, lifting, conveyor equipment, packaging machinery and other compressed-air linear motion duties, with G1/4 pneumatic air port thread.
Key Features
- Square profile cylinder body provides robust linear pneumatic actuation for industrial machinery.
- Double acting operation gives controlled extension and retraction using compressed air.
- Adjustable cushioning at both ends helps reduce end-of-stroke impact.
- Multiple mounting options support flexible installation in automation equipment.
- Suitable for sensor-based position feedback on magnetic versions.
- Made in India.
Applications
- Industrial automation and machine-building systems.
- Packaging, material handling and assembly line equipment.
- Clamping, pressing, pushing and transfer applications.
- Replacement use in pneumatic actuator assemblies for production machinery.
Specifications
SeriesA24 Series
Port SizeG1/4
Bore Diameter50 mm
Stroke Length125 mm
Action TypeDouble Acting
Piston TypeNon-Magnetic Piston
CushioningAdjustable Cushioning at Both Ends with Elastomer Pads
Working Pressure Range0.5 to 10 bar
Ambient Temperature Range-10 °C to +60 °C
Piston Rod Diameter20 mm
Piston Rod EndM16 × 1.5 Thread
Body MaterialAluminium Profile Barrel
Compliance StandardsISO 15552 / VDMA 24562
