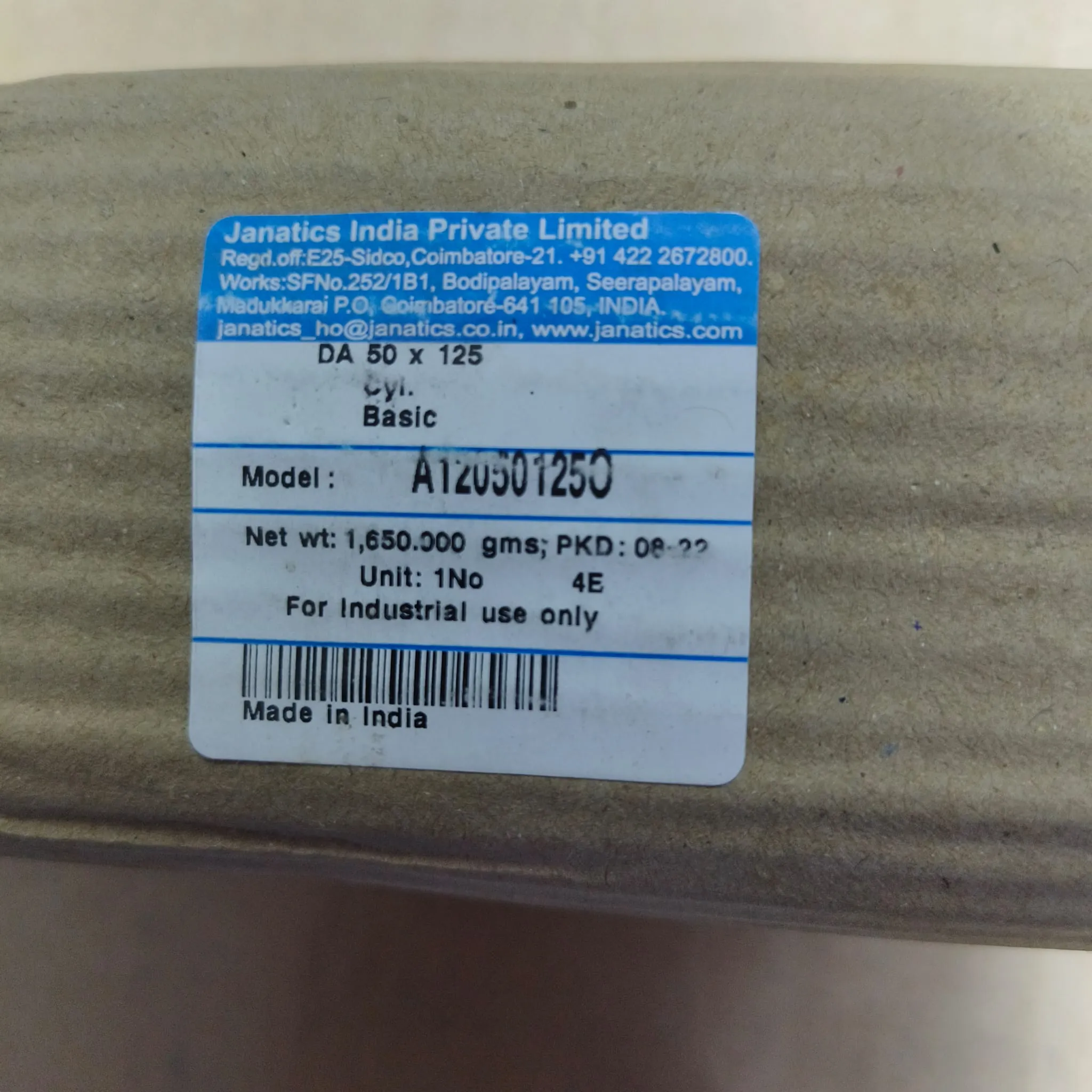

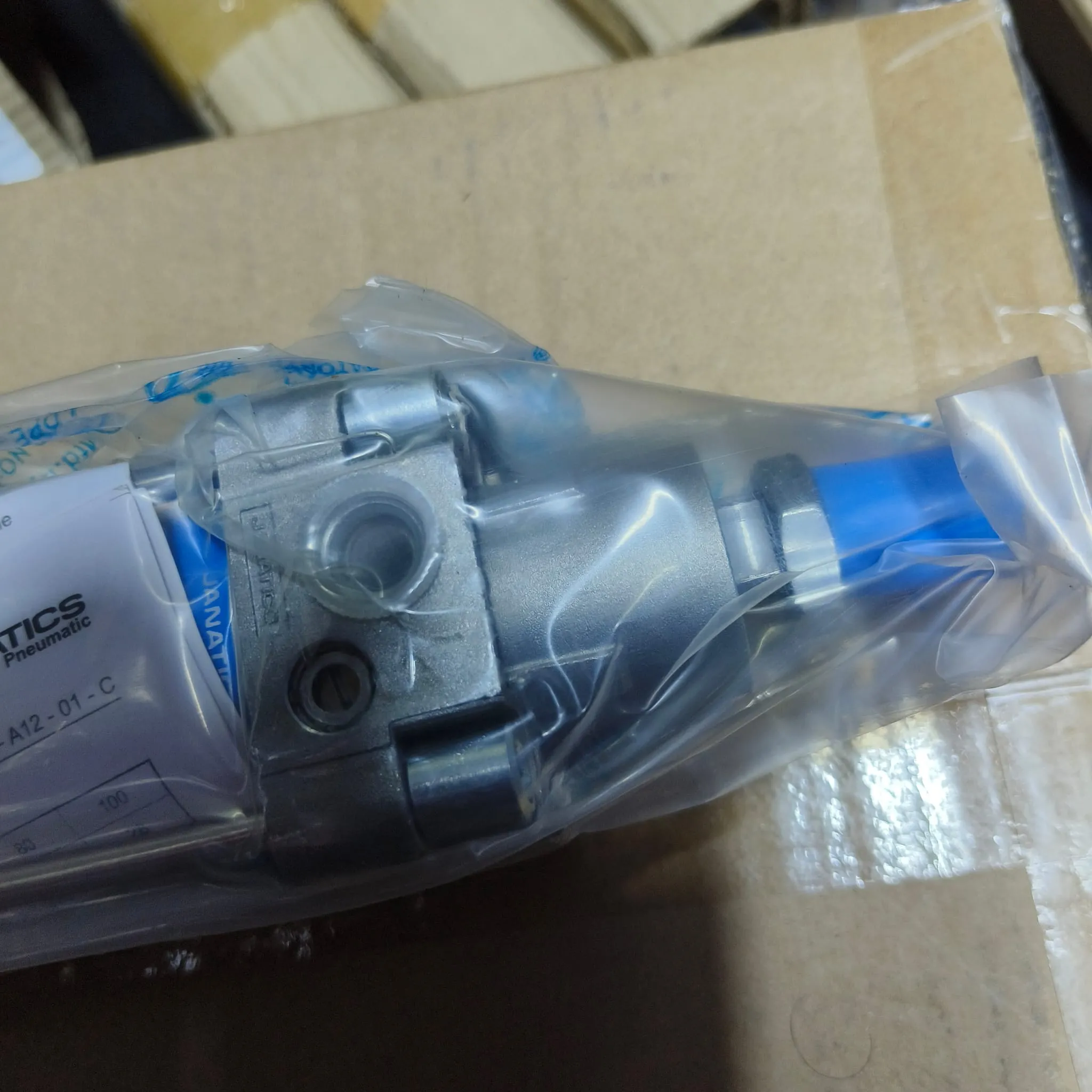

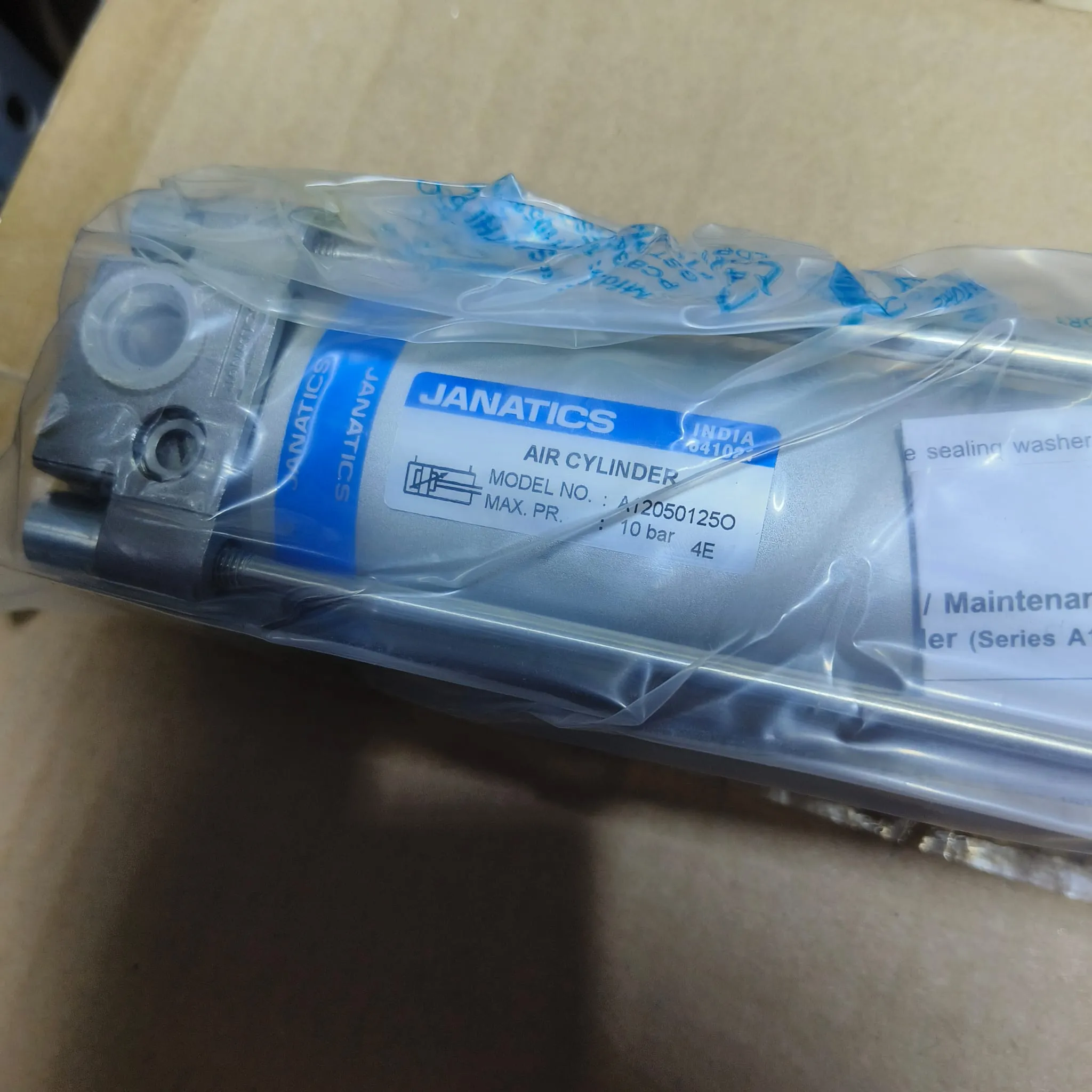

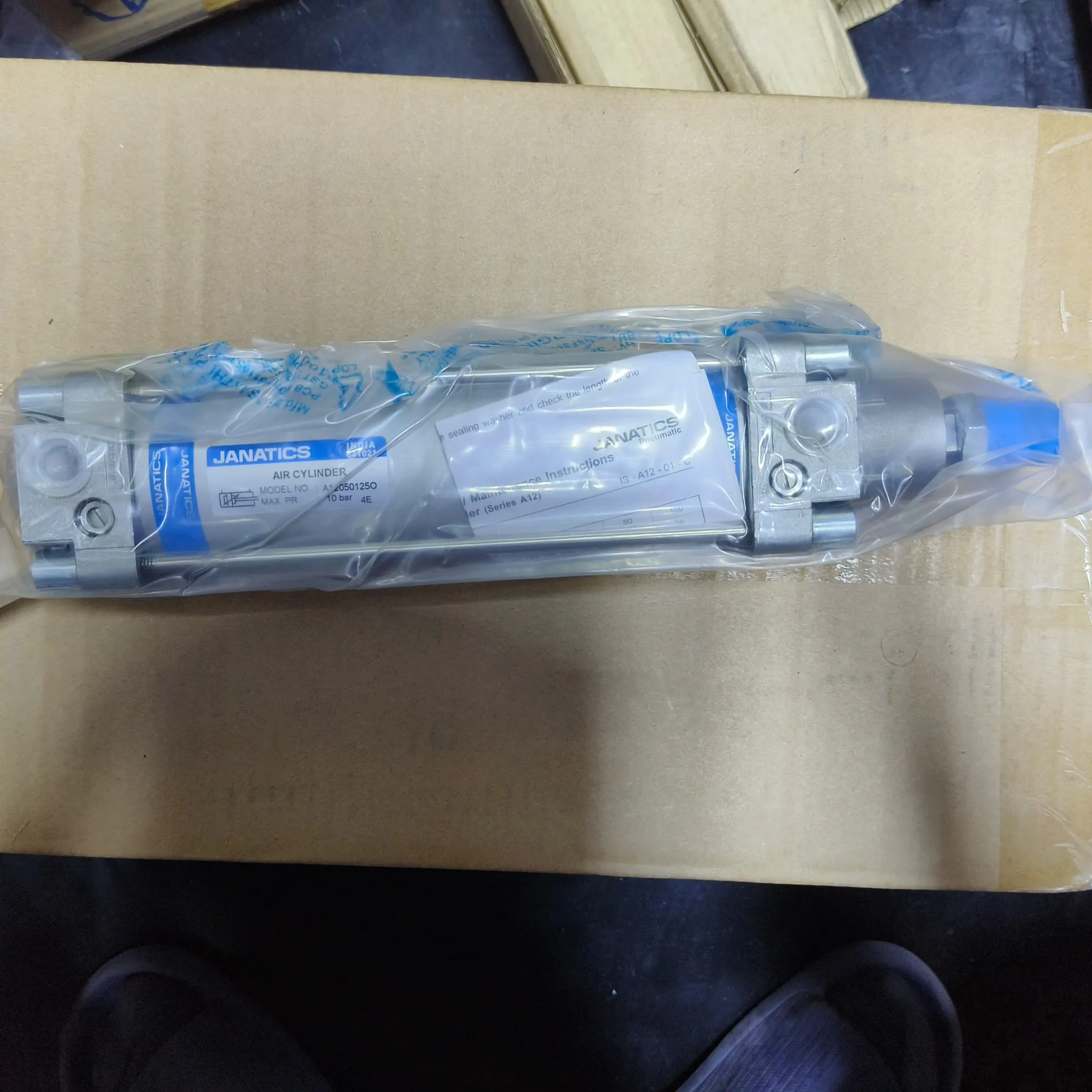

Janatics A12 Series Tie Rod Pneumatic Cylinder, Bore Diameter 50 mm, Stroke 125 mm, Double Acting Non-Magnetic Piston, A12050125O
- Mfr. part no.
- A12050125O
- SKU
- PN-CYLA120-50125
Specifications
| Series | A12 Series |
|---|---|
| Port Size | G1/4 |
| Bore Diameter | 50 mm |
| Stroke Length | 125 mm |
| Action Type | Double Acting |
| Piston Type | Non-Magnetic Piston |
| Cushioning | Adjustable Cushioning |
| Working Pressure Range | 0.5 to 10 bar |
| Ambient Temperature Range | -10 °C to +60 °C |
| Piston Rod Diameter | 20 mm |
| Piston Rod End | M16 × 1.5 Thread |
| Compliance Standards | ISO 6431 / CETOP RP43P, RP53P |
Key Features
- Tie rod cylinder construction provides dependable linear pneumatic actuation.
- Double acting operation supports controlled forward and return strokes using compressed air.
- Cushioned end travel helps reduce impact during repeated cycling.
- Rigid body construction is suitable for industrial automation environments.
- Compatible mounting arrangements support integration into machine frames and fixtures.
- Made in India.
Description
The Janatics A12 Series is a tie rod type non-magnetic pneumatic cylinder for general machine automation where a strong cylinder body and straightforward air actuation are required. It is a double acting linear pneumatic actuator with a 50 mm bore and 125 mm stroke, intended for controlled extension and retraction in medium-duty pneumatic systems. The tie rod construction supports secure cylinder assembly and practical mounting in equipment, without magnetic sensing, making it suitable for simple pneumatic motion where position feedback is not required. It is suitable for pushing, lifting, holding, indexing and material handling movements in fixtures, conveyors, packaging equipment and industrial machinery, with G1/4 pneumatic air port thread.
Applications
- Machine tools, production machines and automation systems.
- Pressing, lifting, pushing, pulling and positioning operations.
- Material handling, packaging and fixture movement.
- Replacement use in industrial pneumatic actuator assemblies.
