ACL Series 5 Coil with Connector, 240V AC, 50/60Hz for Solenoid Valves, 52F
Technical overview

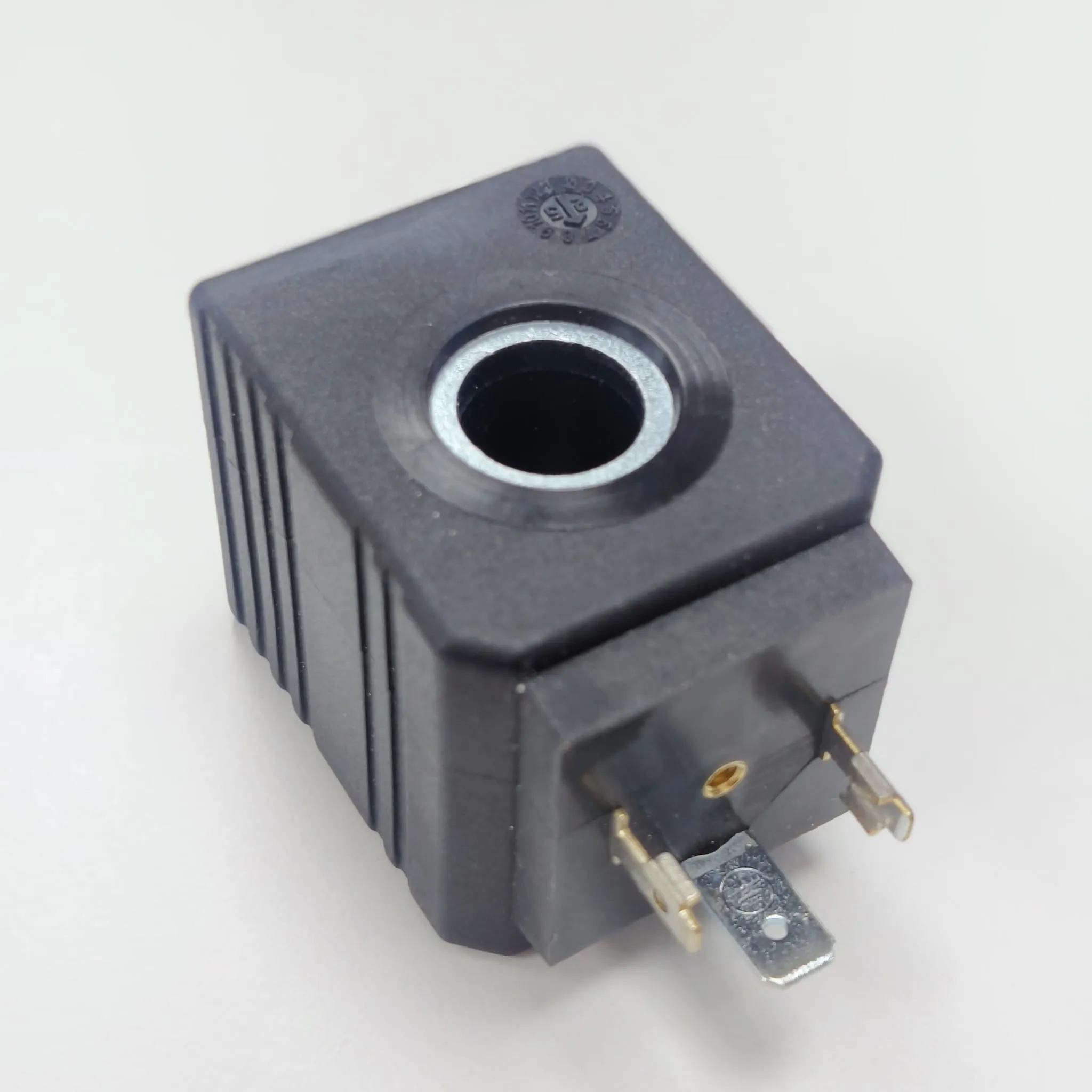

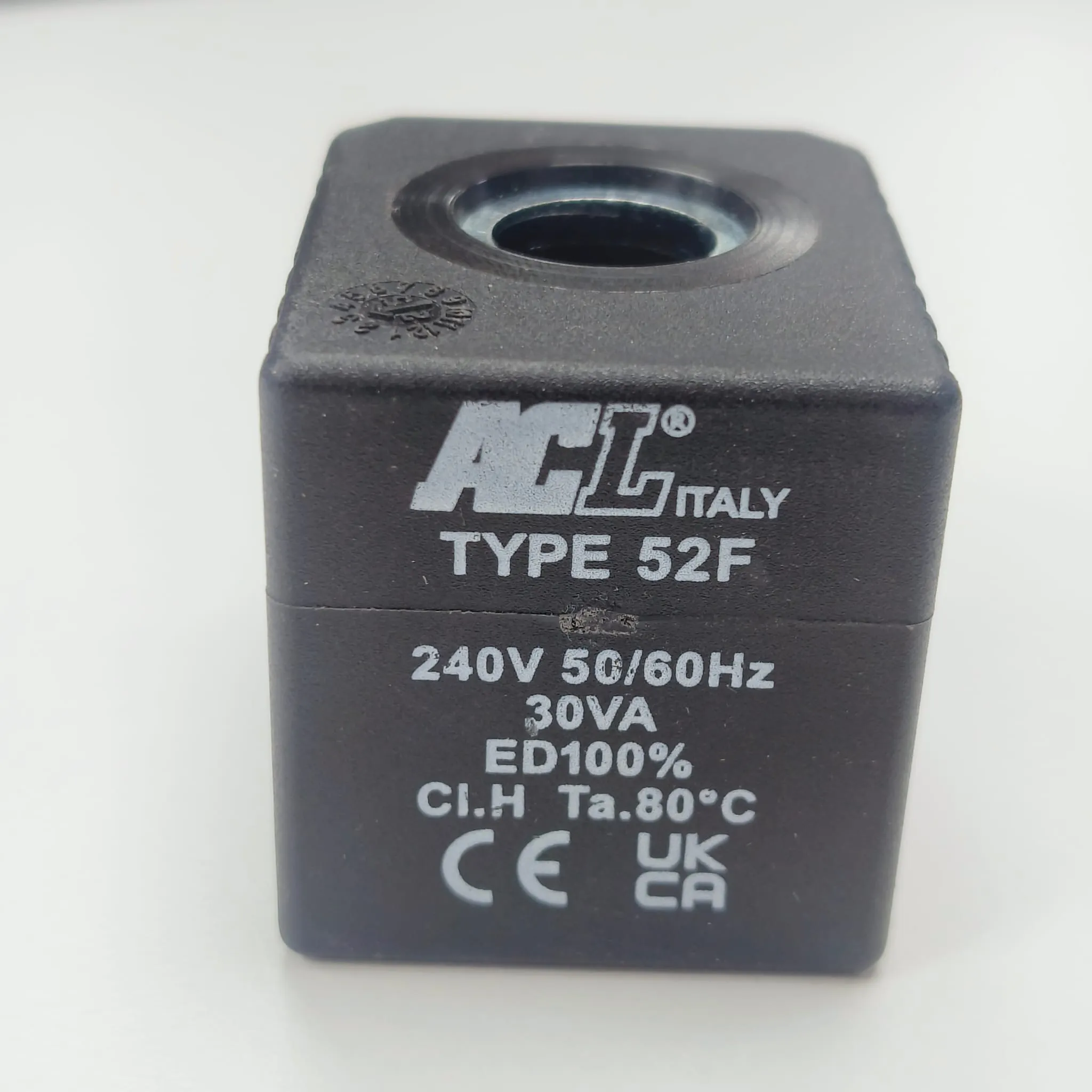

ACL coil code 52F is a series 5 replacement solenoid coil supplied with PG11 connector code 10349001. It is rated for 240V AC, 50/60Hz and uses DIN 43650 A (EN 175301-803 / ISO 4400). The coil delivers 30 VA nominal power at 20°C with a 36 mm body Class H insulation and ED100% continuous service. Protection is IP65 when the supplied connector is fitted. It is intended for acl series 108 solenoid valves.
Key Features
- Series 5 encapsulated coil with 36 mm body
- Class H insulation
- 30 VA nominal power rating at 20°C
- Supplied with PG11 connector code 10349001
- IP65 with connector fitted, IP00 without connector
- Voltage tolerance AC +15% / -10%
- Made in Italy
Specifications
Model52F
SeriesSeries 5 (36 mm width)
Rated Voltage240V AC
Frequency50/60Hz
Power Consumption30 VA
Body MaterialPolyarylamide
Insulation ClassClass H
Ingress ProtectionIP65 with connector fitted
Electrical ConnectionDIN 43650 A (EN 175301-803 / ISO 4400)
Connector TypePG11 10349001
Duty CycleED100% continuous service
Ambient Temperature Range-10°C to +55°C
Compatible Valve Series106, 107, 108, 206 Series
