ACL Series 2 Coil with Connector, 220/230V AC, 50/60Hz for Solenoid Valves, 20E
Technical overview

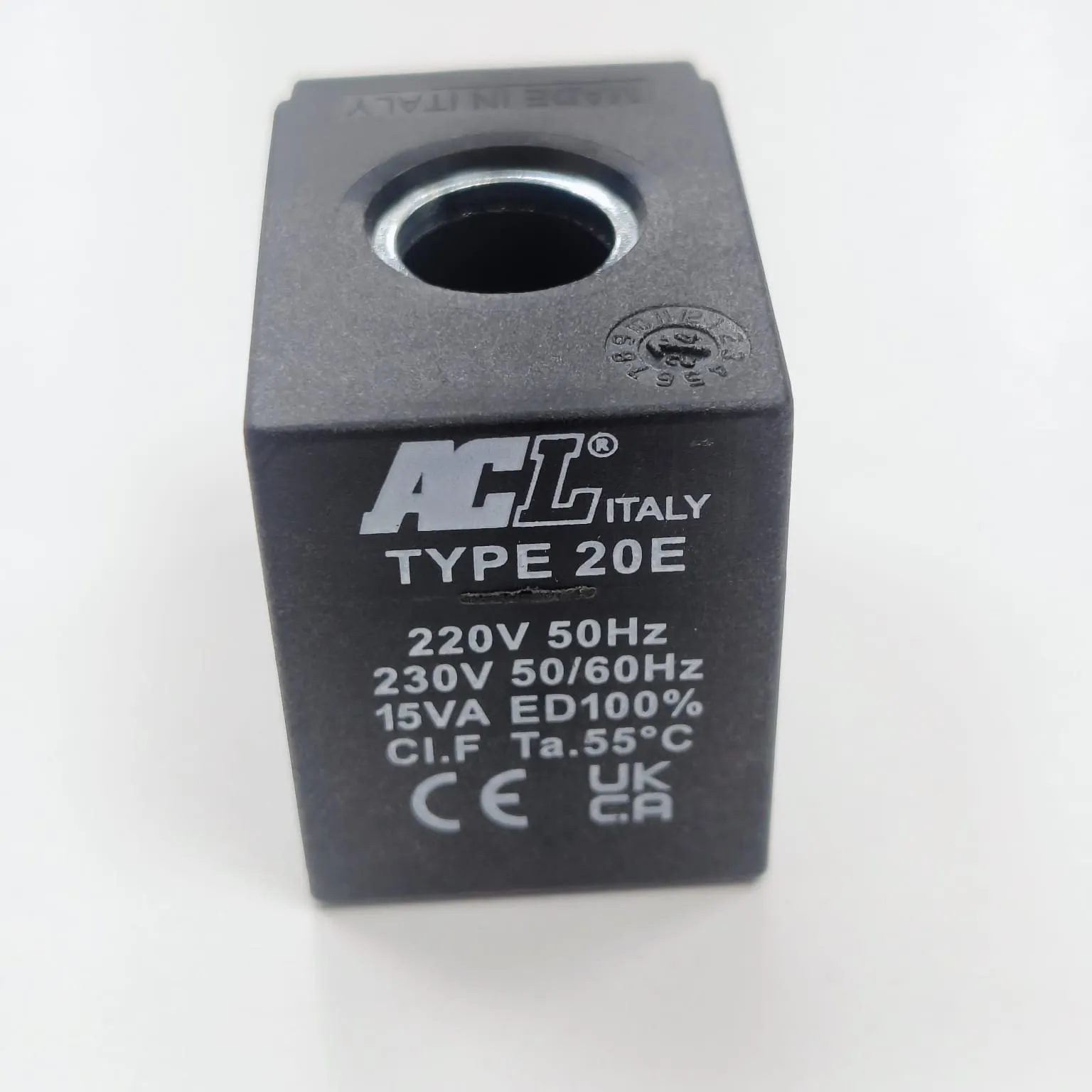

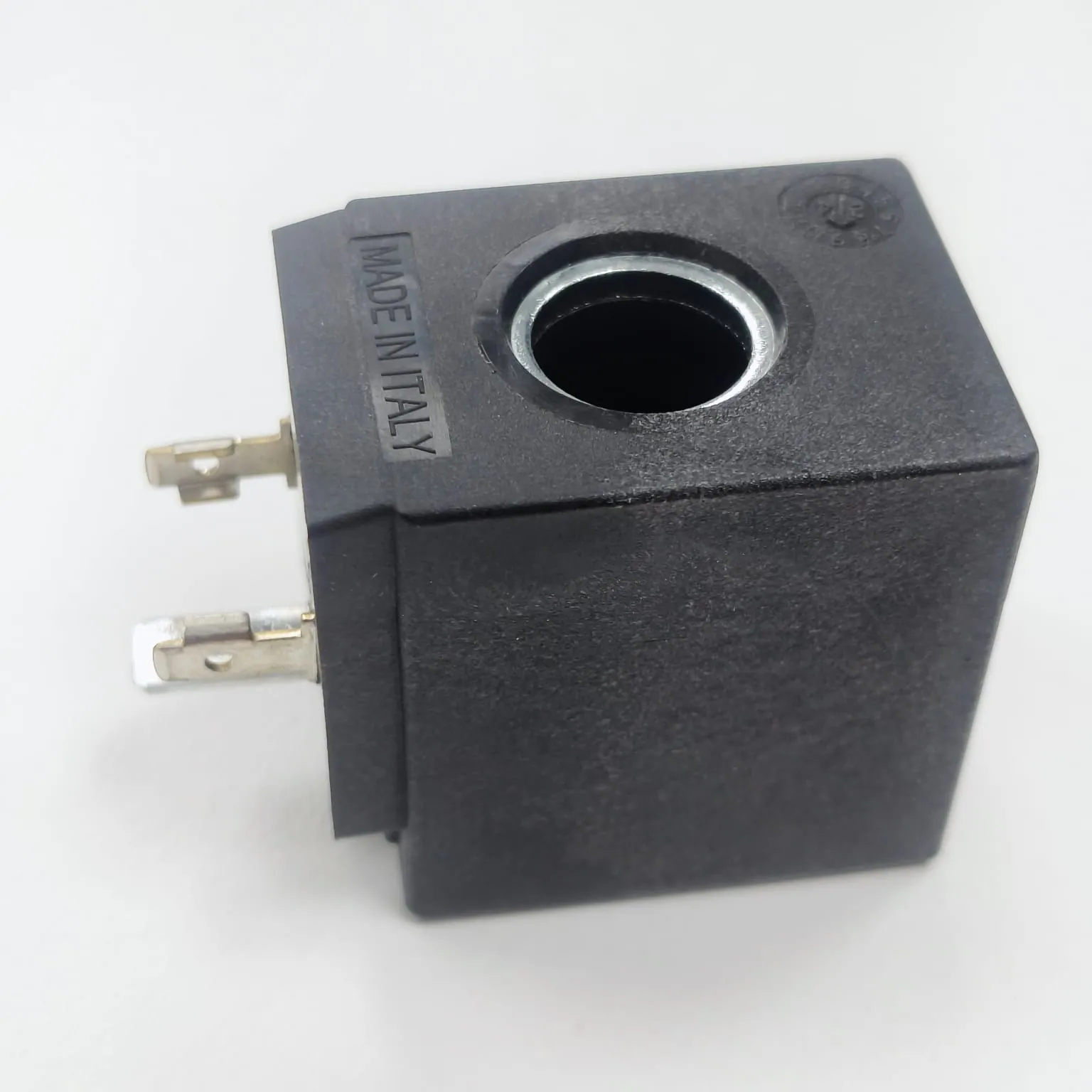

ACL coil code 20E is a series 2 replacement solenoid coil supplied with PG9 connector code 10349000. It is rated for 220/230V AC, 50/60Hz and uses DIN 43650 A (EN 175301-803 / ISO 4400). The coil delivers 15 VA nominal power at 20°C with a 30 mm body Class F insulation and ED100% continuous service. Protection is IP65 when the supplied connector is fitted. It is intended for acl series 108 solenoid valves.
Key Features
- Series 2 encapsulated coil with 30 mm body
- Class F insulation
- 15 VA nominal power rating at 20°C
- Supplied with PG9 connector code 10349000
- IP65 with connector fitted, IP00 without connector
- Voltage tolerance AC +15% / -10%
- Made in Italy
Specifications
Model20E
SeriesSeries 2 (30 mm width)
Rated Voltage220V / 230V AC
Frequency50/60Hz
Power Consumption15 VA
Body MaterialNylon 6 + 18% Fibre Glass
Insulation ClassClass F
Ingress ProtectionIP65 with connector fitted
Electrical ConnectionDIN 43650 A (EN 175301-803 / ISO 4400)
Connector TypePG9 10349000
Duty CycleED100% continuous service
Ambient Temperature Range-10°C to +55°C
Compatible Valve Series106, 107, 108, 206 Series
