Solenoid Valve Coils
ACL Series 2 Coil with Connector, 12V AC, 50/60Hz for Solenoid Valves, 20A
ACL

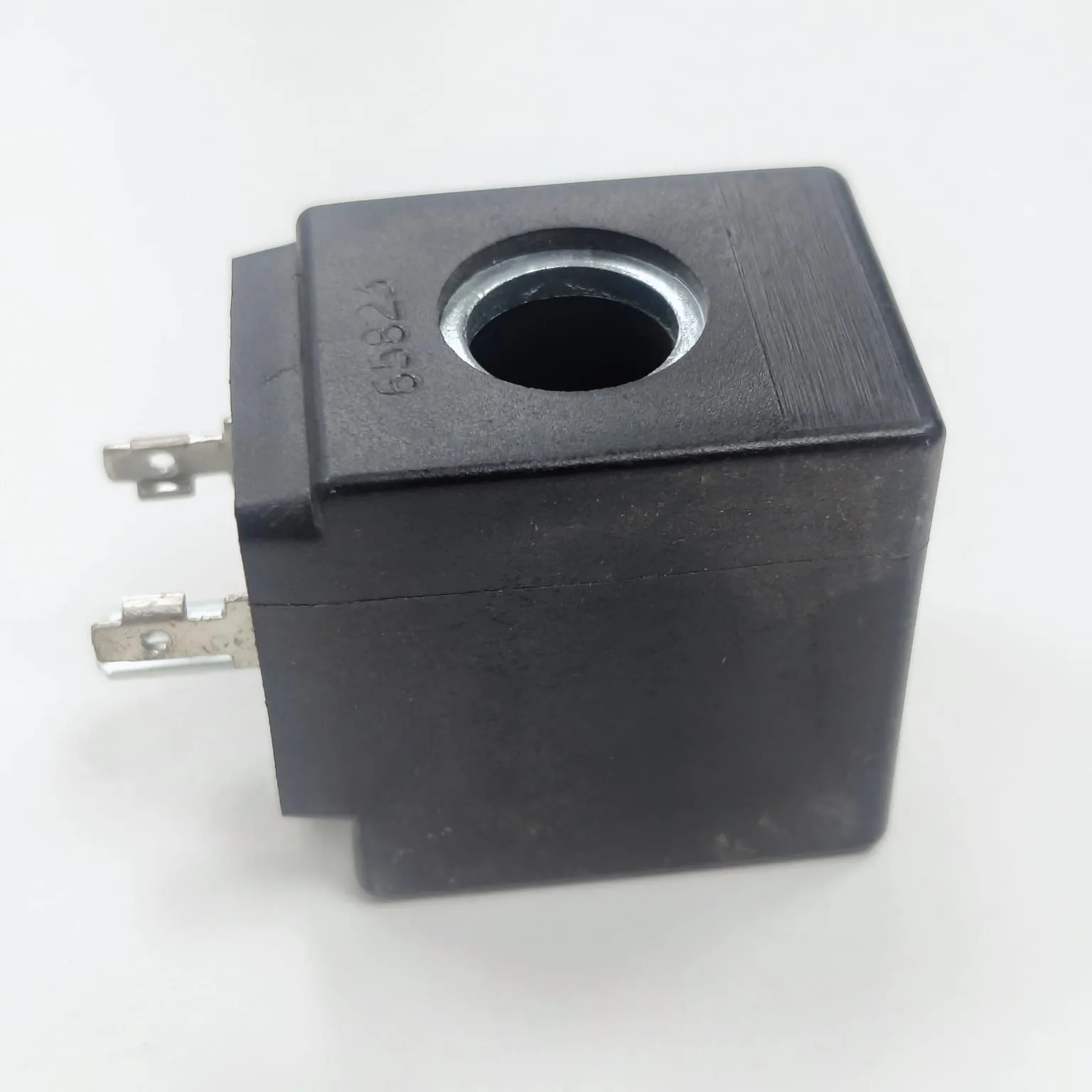

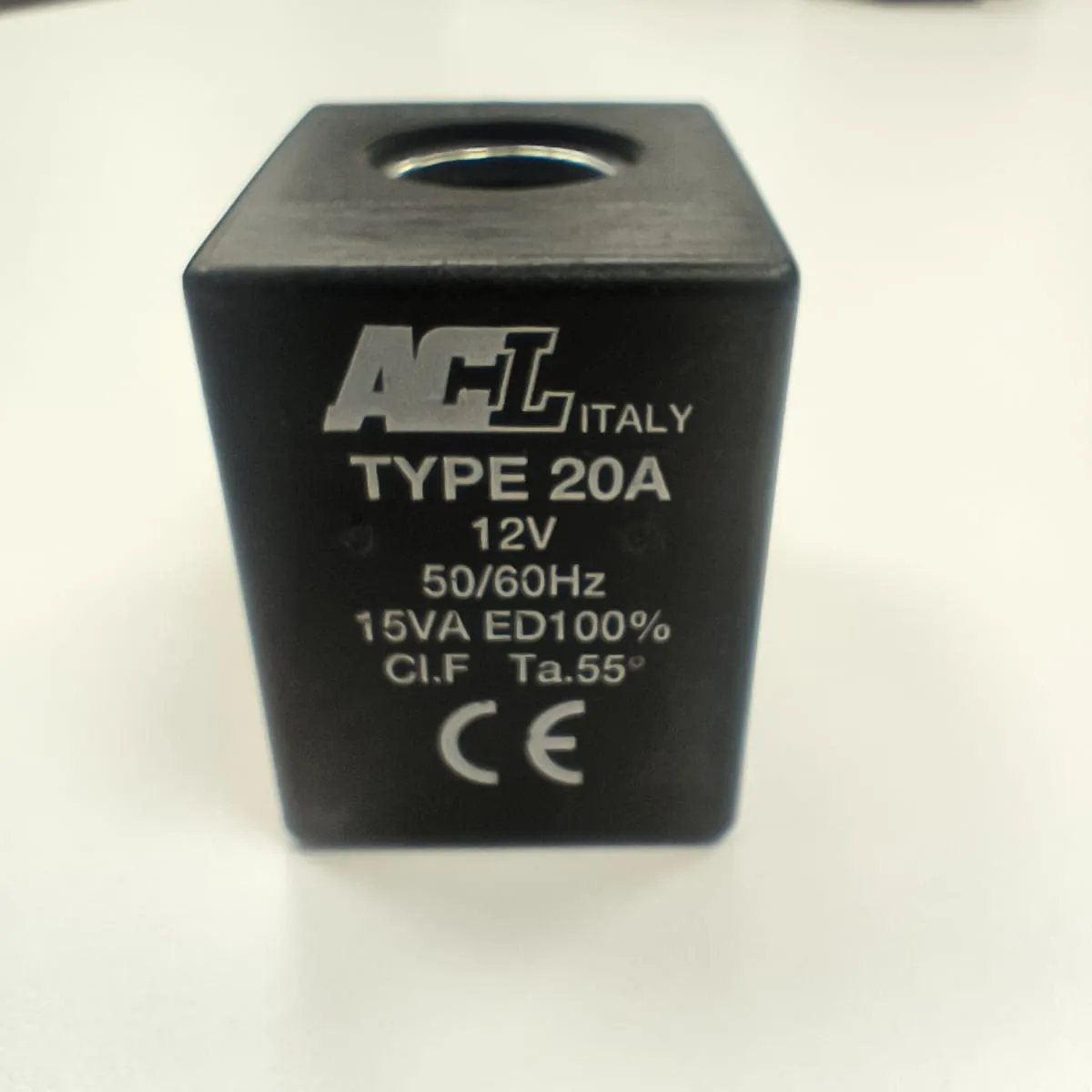

ACL Series 2 Coil with Connector, 12V AC, 50/60Hz for Solenoid Valves, 20A

Mfr. part no.
20A
SKU
SOL-COIL-108-12AC-20A

Specifications

Model 20A
Series Series 2 (30 mm width)
Coil Voltage 12V AC
Frequency 50/60Hz
Power Consumption 15 VA
Body Material Nylon 6 + 18% Fibre Glass
Insulation Class Class F
Ingress Protection IP65 with connector fitted
Electrical Connection DIN 43650 A (EN 175301-803 / ISO 4400)
Connector Type PG9 10349000
Duty Cycle ED100% continuous service
Ambient Temperature Range -10°C to +55°C
Compatible Valve Series 106, 107, 108, 206 Series

Key Features

  • Series 2 encapsulated coil with 30 mm body
  • Class F insulation
  • 15 VA nominal power rating at 20°C
  • Supplied with PG9 connector code 10349000
  • IP65 with connector fitted, IP00 without connector
  • Voltage tolerance AC +15% / -10%
  • Made in Italy

Description

ACL coil code 20A is a series 2 replacement solenoid coil supplied with PG9 connector code 10349000. It is rated for 12V AC, 50/60Hz and uses DIN 43650 A (EN 175301-803 / ISO 4400). The coil delivers 15 VA nominal power at 20°C with a 30 mm body Class F insulation and ED100% continuous service. Protection is IP65 when the supplied connector is fitted. It is intended for acl series 108 solenoid valves.

Documents

  • ACL-2 Coil Series — Datasheet

    PDF, 153 KB

  • ACL Connectors — Datasheet

    PDF, 626 KB
