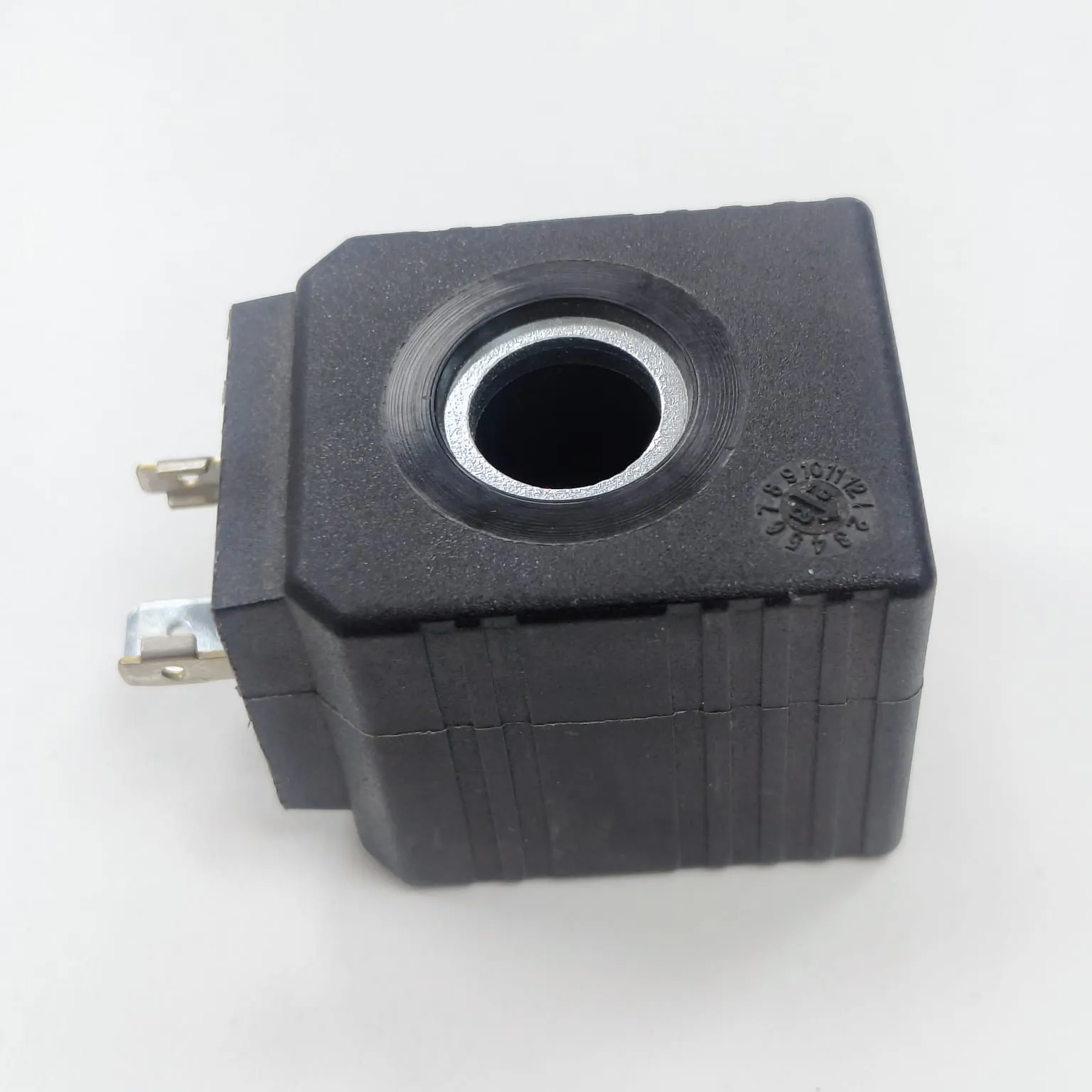

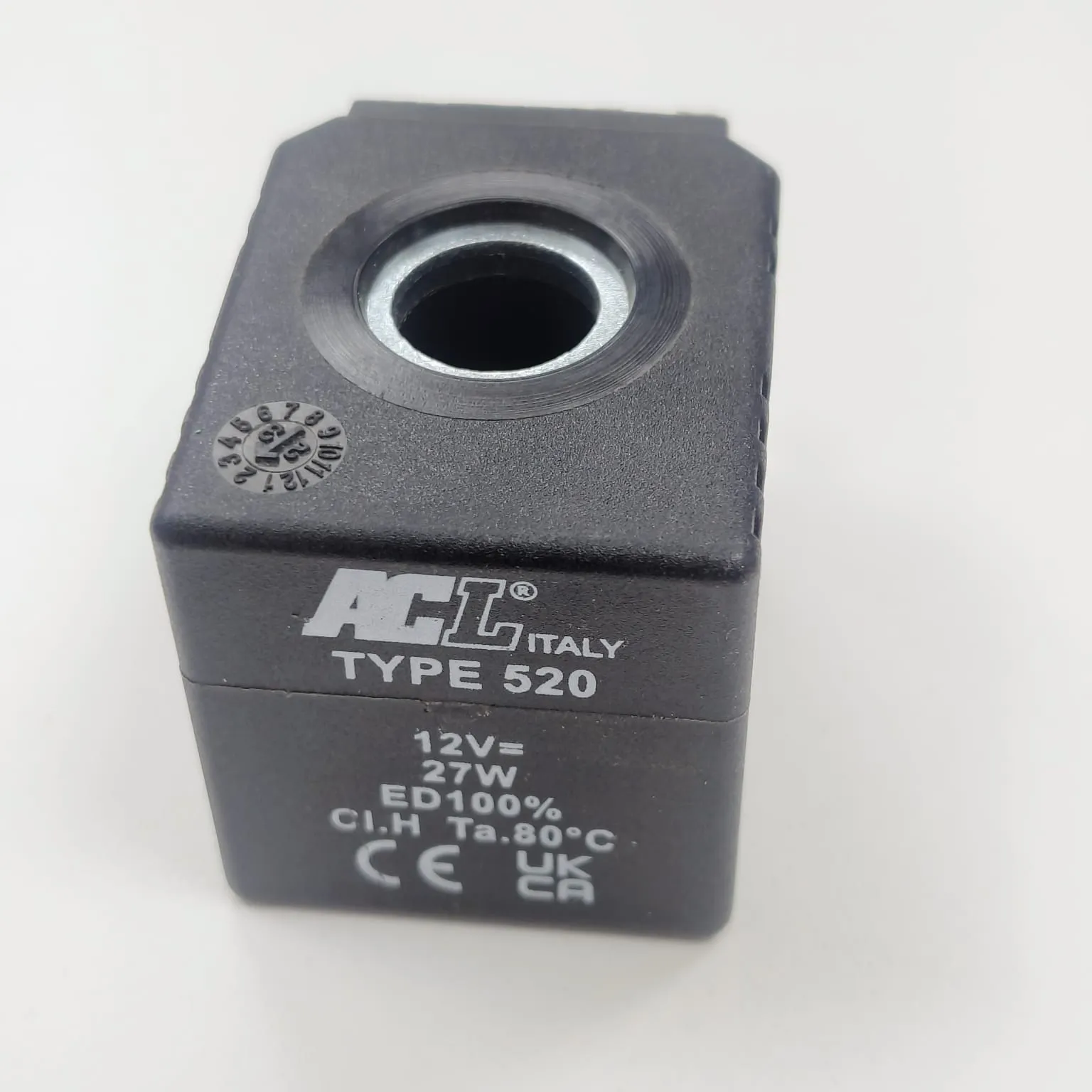

ACL Series 5 Coil with Connector, 12V DC for Solenoid Valves, 520
Technical overview
ACL coil code 520 is a series 5 replacement solenoid coil supplied with PG11 connector code 10349001. It is rated for 12V DC and uses DIN 43650 A (EN 175301-803 / ISO 4400). The coil delivers 27 W nominal power at 20°C with a 36 mm body Class H insulation and ED100% continuous service. Protection is IP65 when the supplied connector is fitted. It is intended for acl series 108 solenoid valves.
Key Features
- Series 5 encapsulated coil with 36 mm body
- Class H insulation
- 27 W nominal power rating at 20°C
- Supplied with PG11 connector code 10349001
- IP65 with connector fitted, IP00 without connector
- Voltage tolerance DC ±10%
- Made in Italy
Specifications
Model520
SeriesSeries 5 (36 mm width)
Rated Voltage12V DC
Power Consumption27 W
Body MaterialPolyarylamide
Insulation ClassClass H
Ingress ProtectionIP65 with connector fitted
Electrical ConnectionDIN 43650 A (EN 175301-803 / ISO 4400)
Connector TypePG11 10349001
Duty CycleED100% continuous service
Ambient Temperature Range-10°C to +55°C
Compatible Valve Series106, 107, 108, 206 Series
