Solenoid Valve Coils
ACL Series 5 Coil with Connector, 110/120V AC, 50/60Hz for Solenoid Valves, 52D
ACL

ACL Series 5 Coil with Connector, 110/120V AC, 50/60Hz for Solenoid Valves, 52D

Mfr. part no.
52D
SKU
SOL-COIL-108-110AC-52D

Specifications

Model 52D
Series Series 5 (36 mm width)
Coil Voltage 110V / 120V AC
Frequency 50/60Hz
Power Consumption 30 VA
Body Material Polyarylamide
Insulation Class Class H
Ingress Protection IP65 with connector fitted
Electrical Connection DIN 43650 A (EN 175301-803 / ISO 4400)
Connector Type PG11 10349001
Duty Cycle ED100% continuous service
Ambient Temperature Range -10°C to +55°C
Compatible Valve Series 106, 107, 108, 206 Series

Key Features

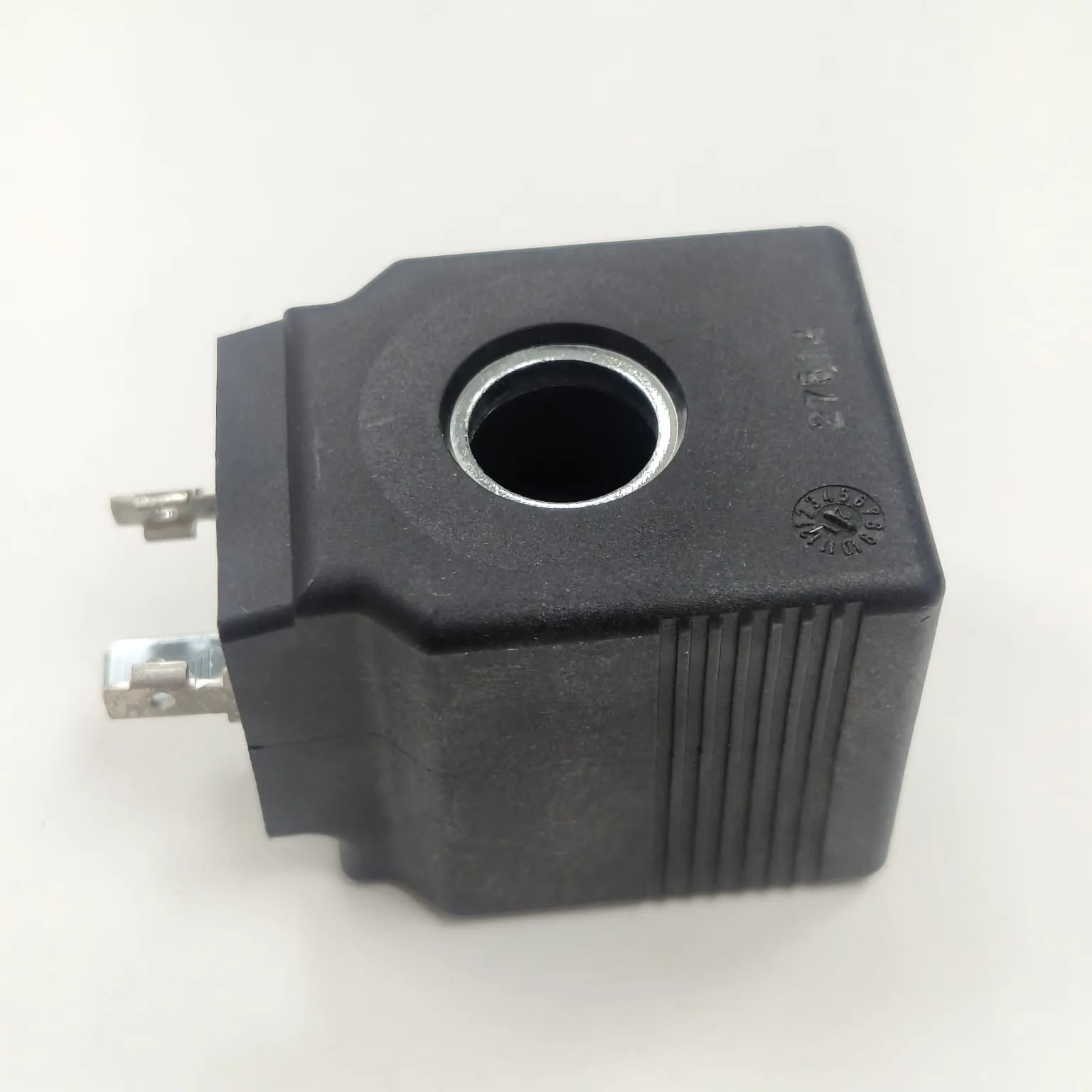

  • Series 5 encapsulated coil with 36 mm body
  • Class H insulation
  • 30 VA nominal power rating at 20°C

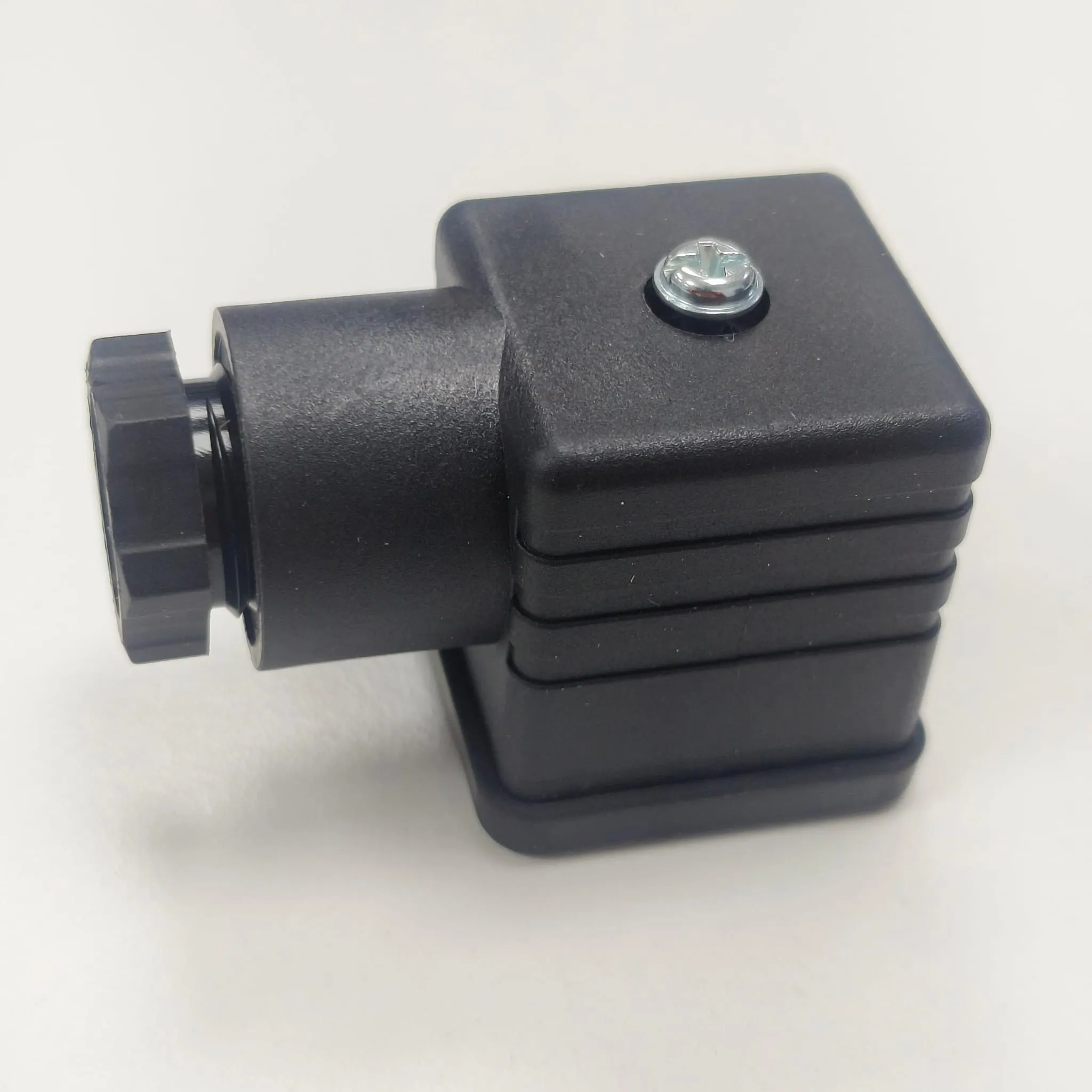

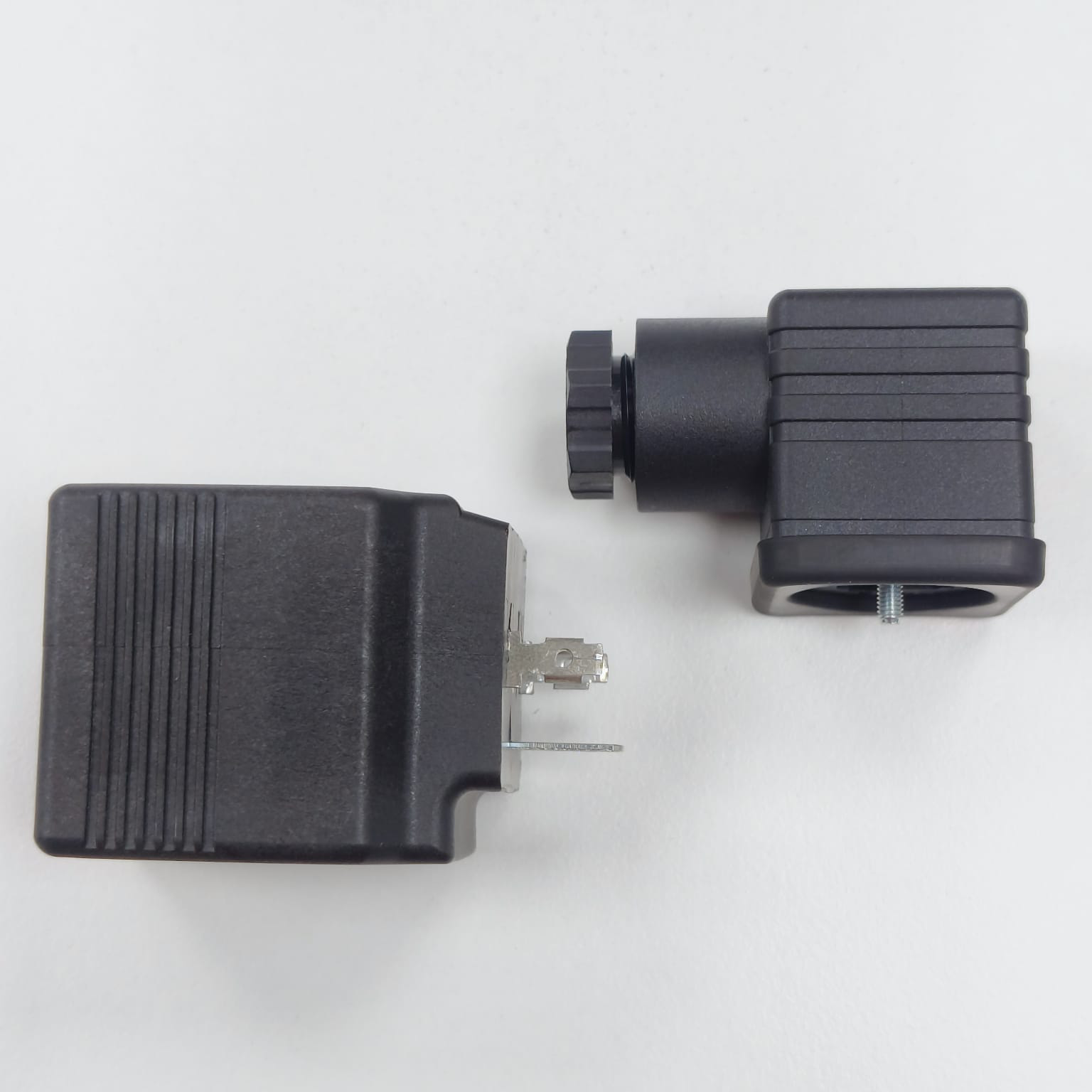

  • Supplied with PG11 connector code 10349001

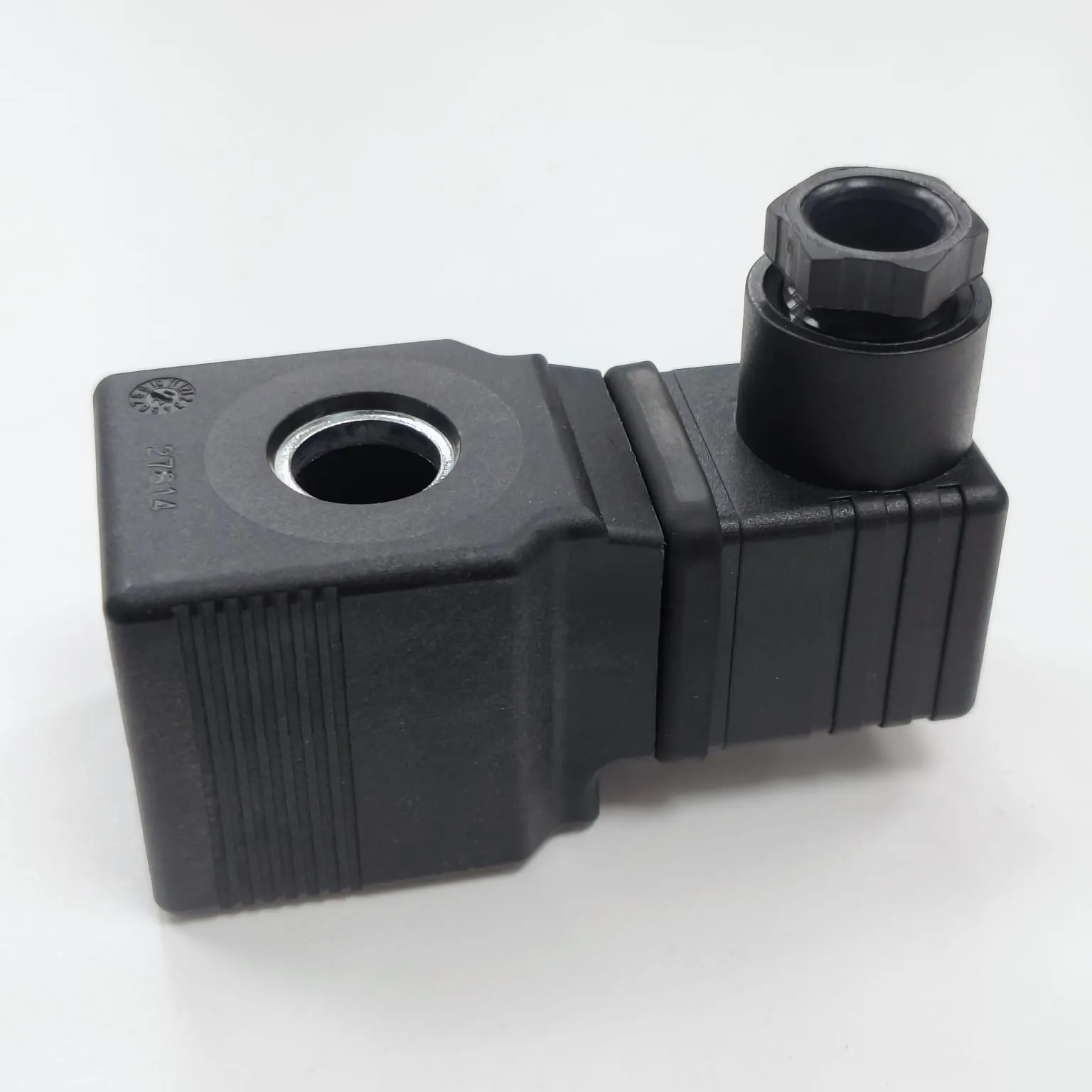

  • IP65 with connector fitted, IP00 without connector
  • Voltage tolerance AC +15% / -10%
  • Made in Italy

Description

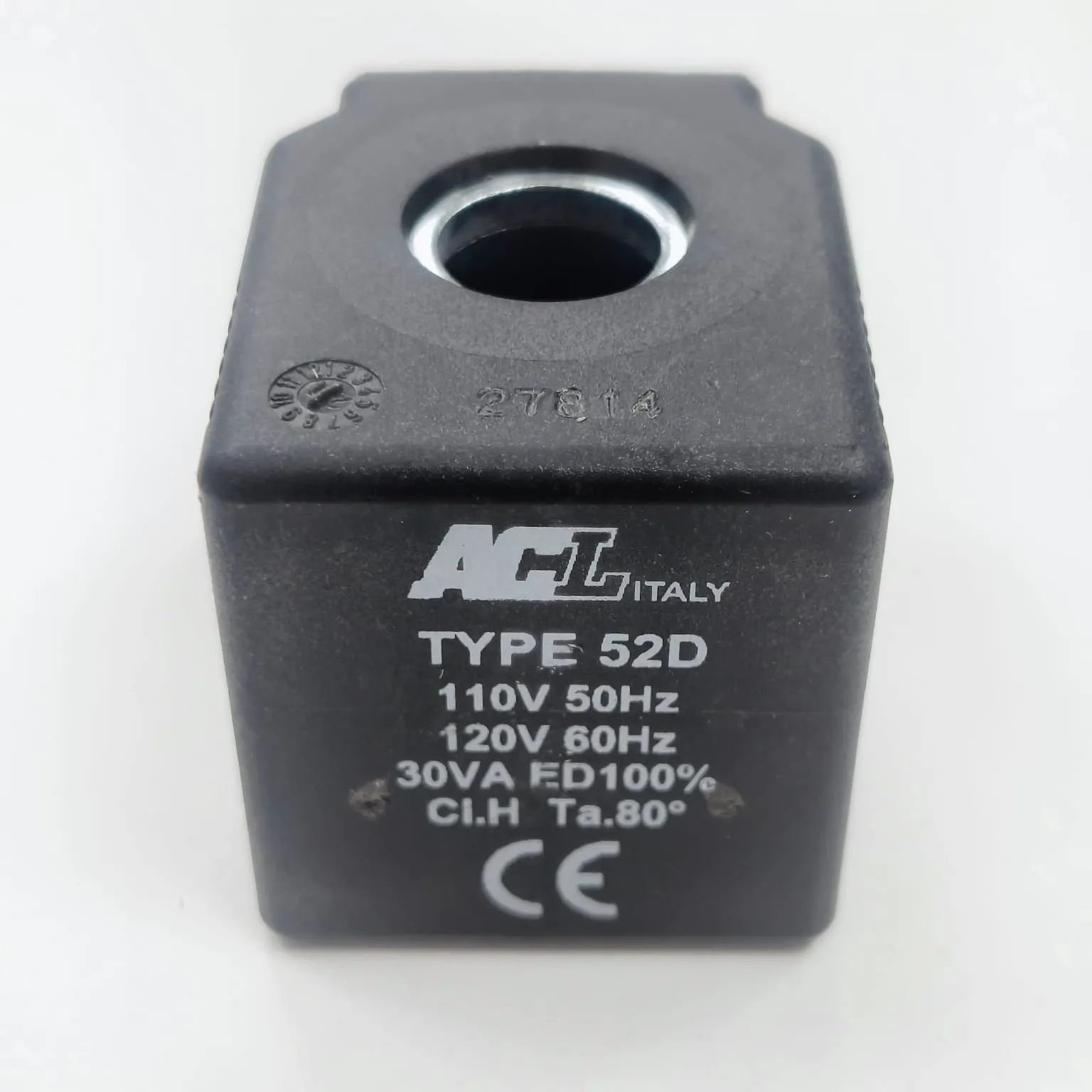

ACL coil code 52D is a series 5 replacement solenoid coil supplied with PG11 connector code 10349001. It is rated for 110V AC, 50/60Hz and uses DIN 43650 A (EN 175301-803 / ISO 4400). The coil delivers 30 VA nominal power at 20°C with a 36 mm body Class H insulation and ED100% continuous service. Protection is IP65 when the supplied connector is fitted. It is intended for acl series 108 solenoid valves.

Documents

  • ACL-5 Coil Series — Datasheet

    PDF, 177 KB

  • ACL Connectors — Datasheet

    PDF, 626 KB
