Solenoid Valve Coils
ACL Series 3 Coil with Connector, 48V AC, 50/60Hz for Solenoid Valves, 30C
ACL

ACL Series 3 Coil with Connector, 48V AC, 50/60Hz for Solenoid Valves, 30C

Mfr. part no.
30C
SKU
SOL-COIL-107/207-48AC-30C

Specifications

Model 30C
Series Series 3 (22 mm width)
Coil Voltage 48V AC
Frequency 50/60Hz
Power Consumption 8 VA
Body Material Nylon 6 + 18% Fibre Glass
Insulation Class Class H
Ingress Protection IP65 with connector fitted

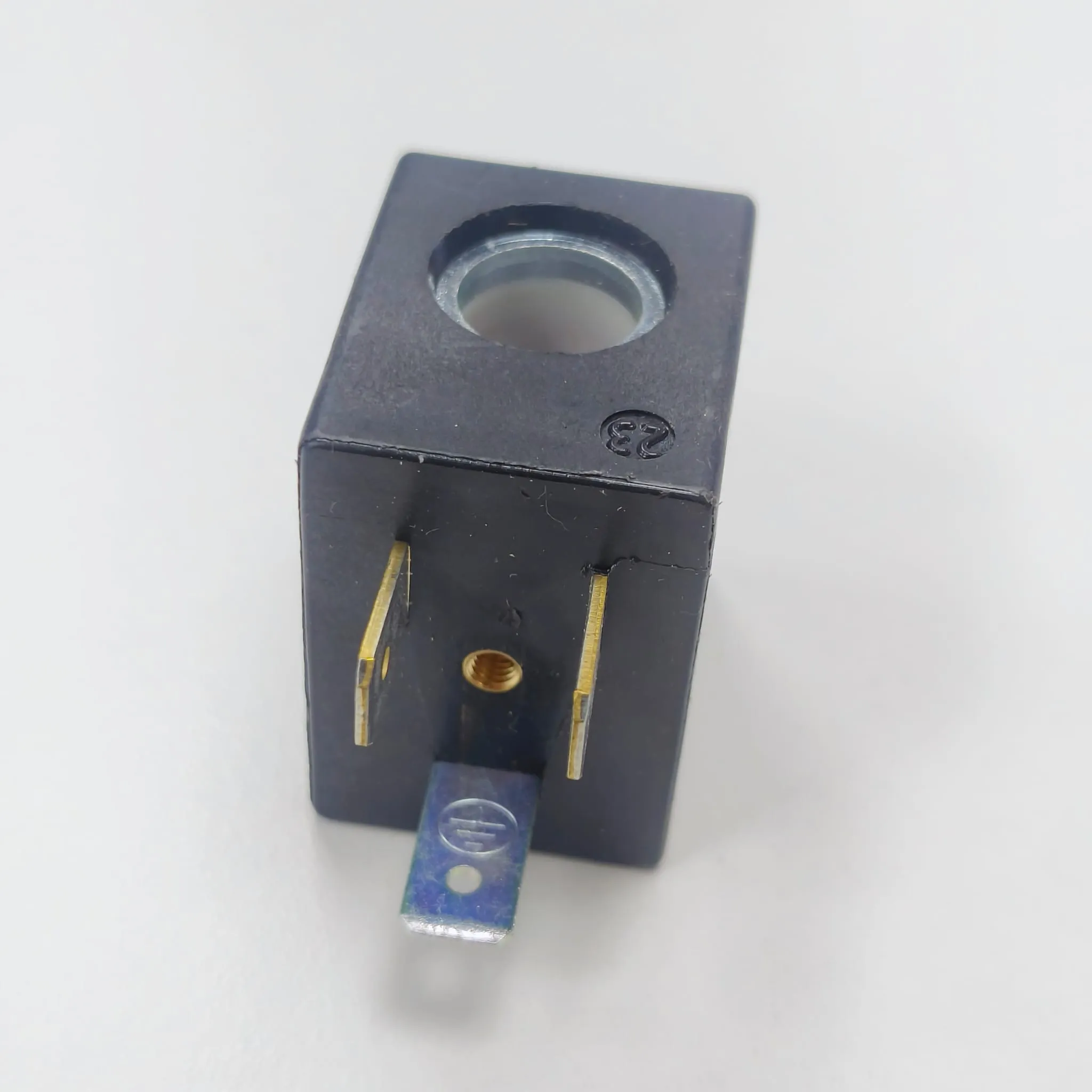

Electrical Connection DIN 43650 B / DIN 46244 industrial connection
Connector Type PG9 10348000
Duty Cycle ED100% continuous service
Ambient Temperature Range -10°C to +55°C
Compatible Valve Series 107, 207 Series

Key Features

  • Series 3 encapsulated coil with 22 mm body
  • Class H insulation
  • 8 VA nominal power rating at 20°C
  • Supplied with PG9 connector code 10348000
  • IP65 with connector fitted, IP00 without connector
  • Voltage tolerance AC +15% / -10%
  • Made in Italy

Description

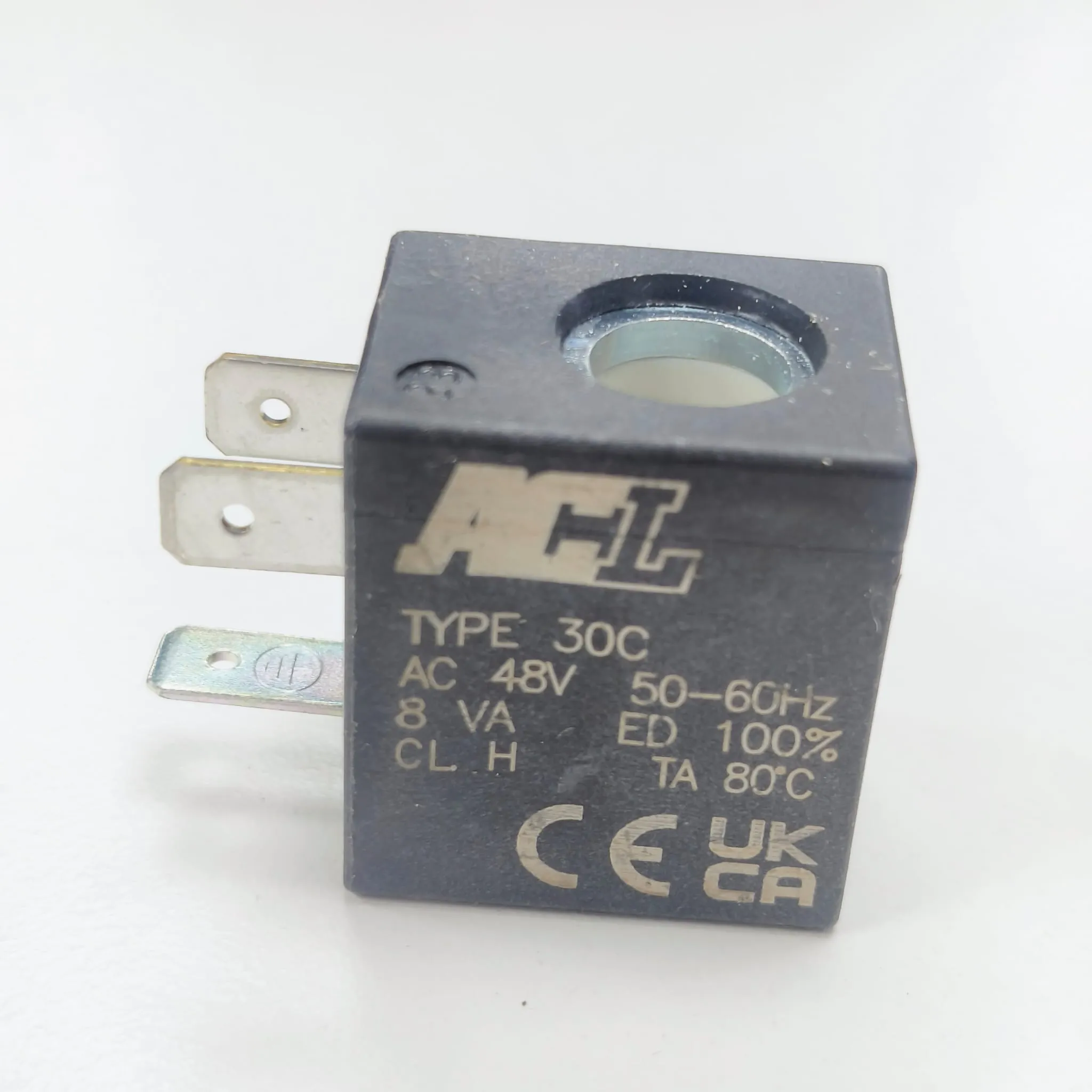

ACL coil code 30C is a series 3 replacement solenoid coil supplied with PG9 connector code 10348000. It is rated for 48V AC, 50/60Hz and uses DIN 43650 B / DIN 46244 industrial connection. The coil delivers 8 VA nominal power at 20°C with a 22 mm body Class H insulation and ED100% continuous service. Protection is IP65 when the supplied connector is fitted. It is intended for acl series 107 and 207 solenoid valves.

Documents

  • ACL-3 Coil Series — Datasheet

    PDF, 177 KB

  • ACL Connectors — Datasheet

    PDF, 626 KB
