ACL Series 3 Coil with Connector, 24V DC for Solenoid Valves, 301
Technical overview

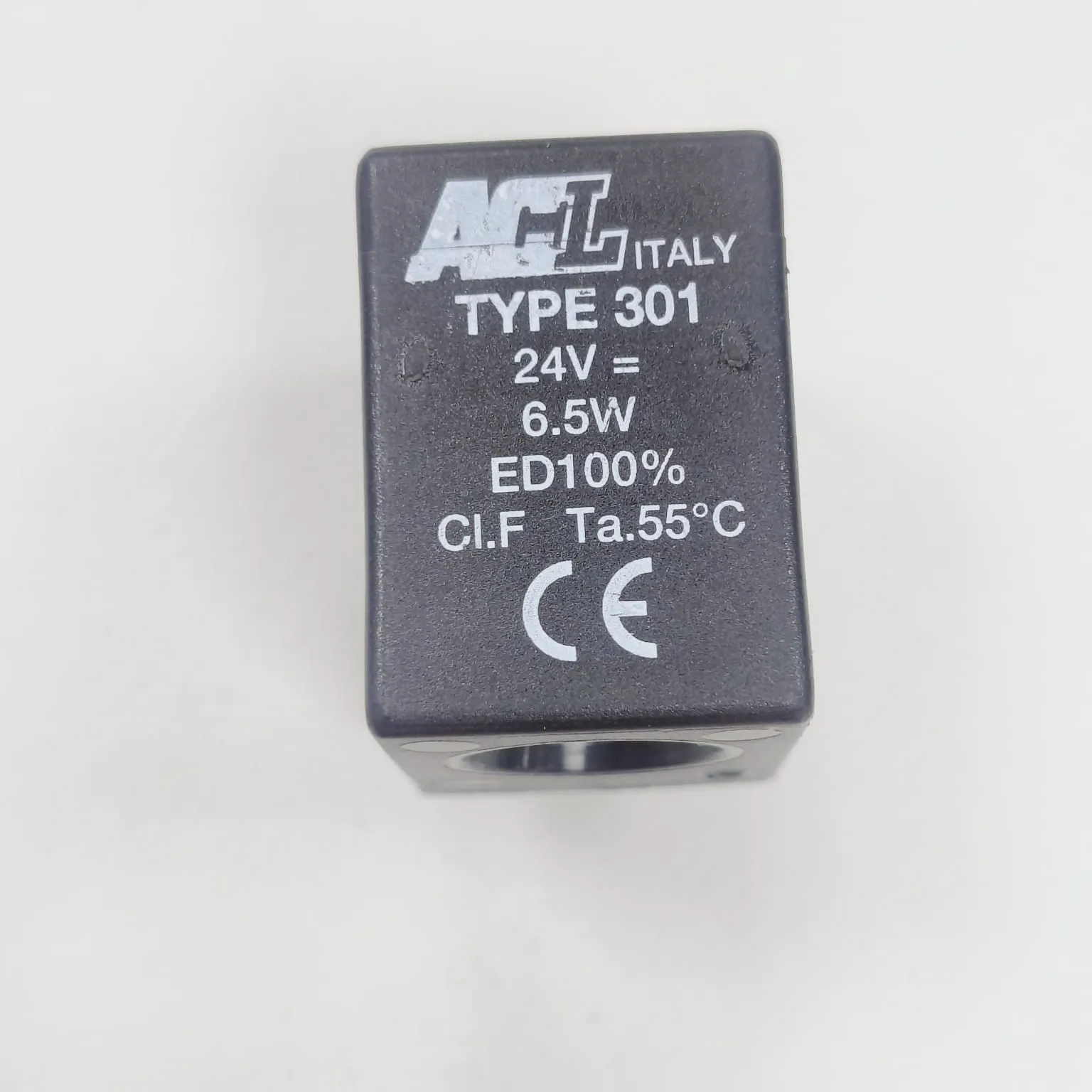

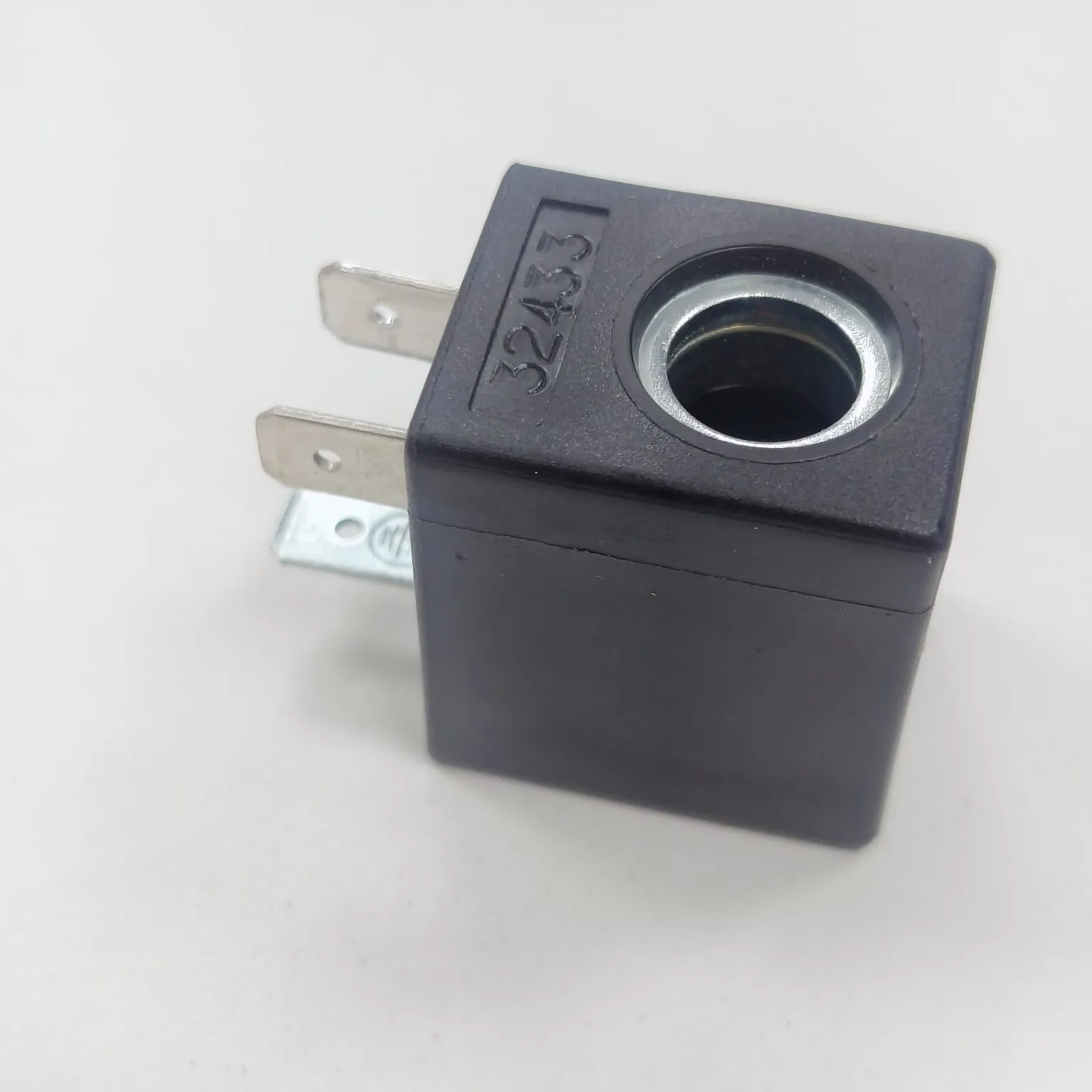

ACL coil code 301 is a series 3 replacement solenoid coil supplied with PG9 connector code 10348000. It is rated for 24V DC and uses DIN 43650 B / DIN 46244 industrial connection. The coil delivers 6.5 W nominal power at 20°C with a 22 mm body Class F insulation and ED100% continuous service. Protection is IP65 when the supplied connector is fitted. It is intended for acl series 107 solenoid valves.
Key Features
- Series 3 encapsulated coil with 22 mm body
- Class F insulation
- 6.5 W nominal power rating at 20°C
- Supplied with PG9 connector code 10348000
- IP65 with connector fitted, IP00 without connector
- Voltage tolerance DC ±10%
- Made in Italy
Specifications
Model301
SeriesSeries 3 (22 mm width)
Rated Voltage24V DC
Power Consumption6.5 W
Body MaterialNylon 6 + 18% Fibre Glass
Insulation ClassClass F
Ingress ProtectionIP65 with connector fitted
Electrical ConnectionDIN 43650 B / DIN 46244 industrial connection
Connector TypePG9 10348000
Duty CycleED100% continuous service
Ambient Temperature Range-10°C to +55°C
Compatible Valve Series107, 207 Series
