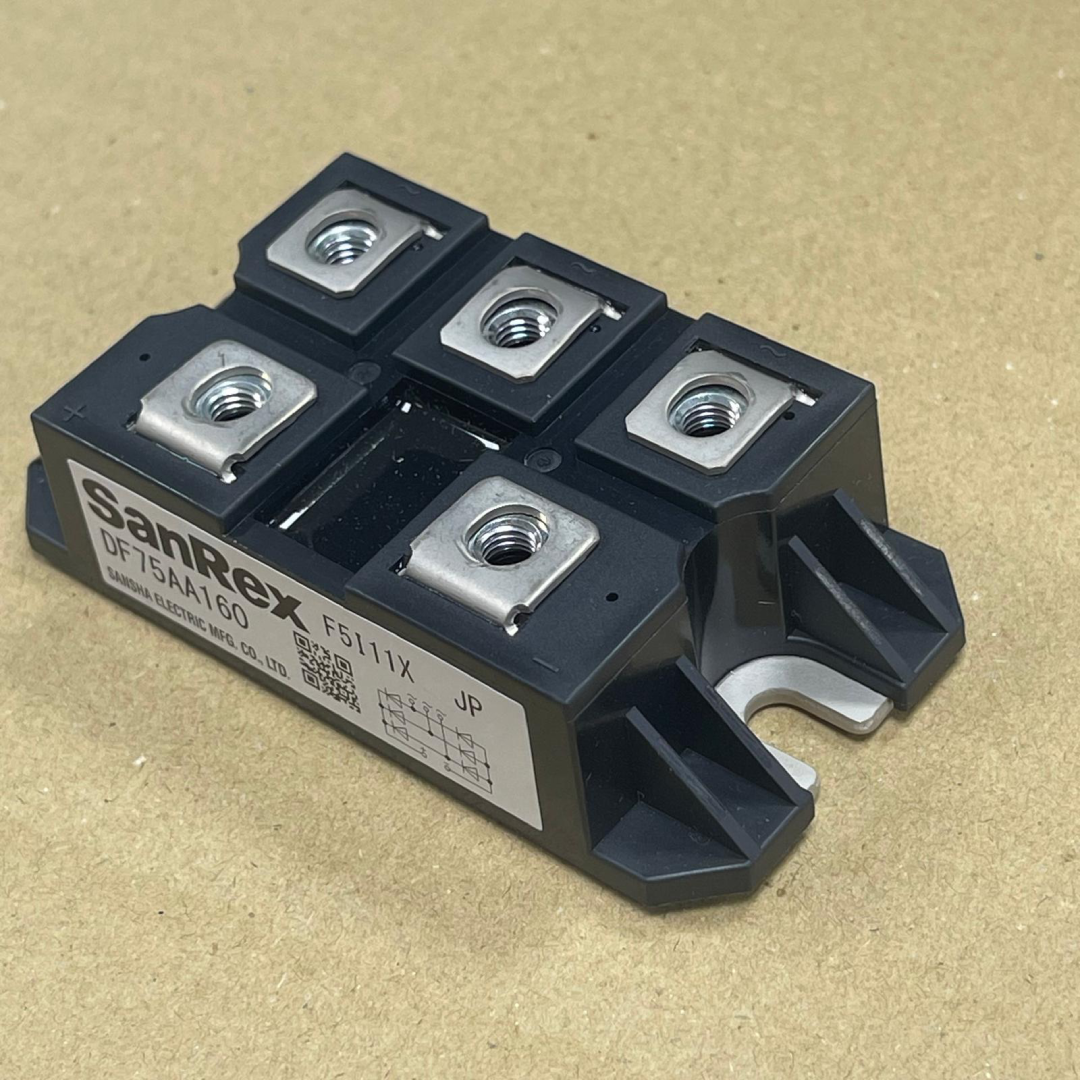

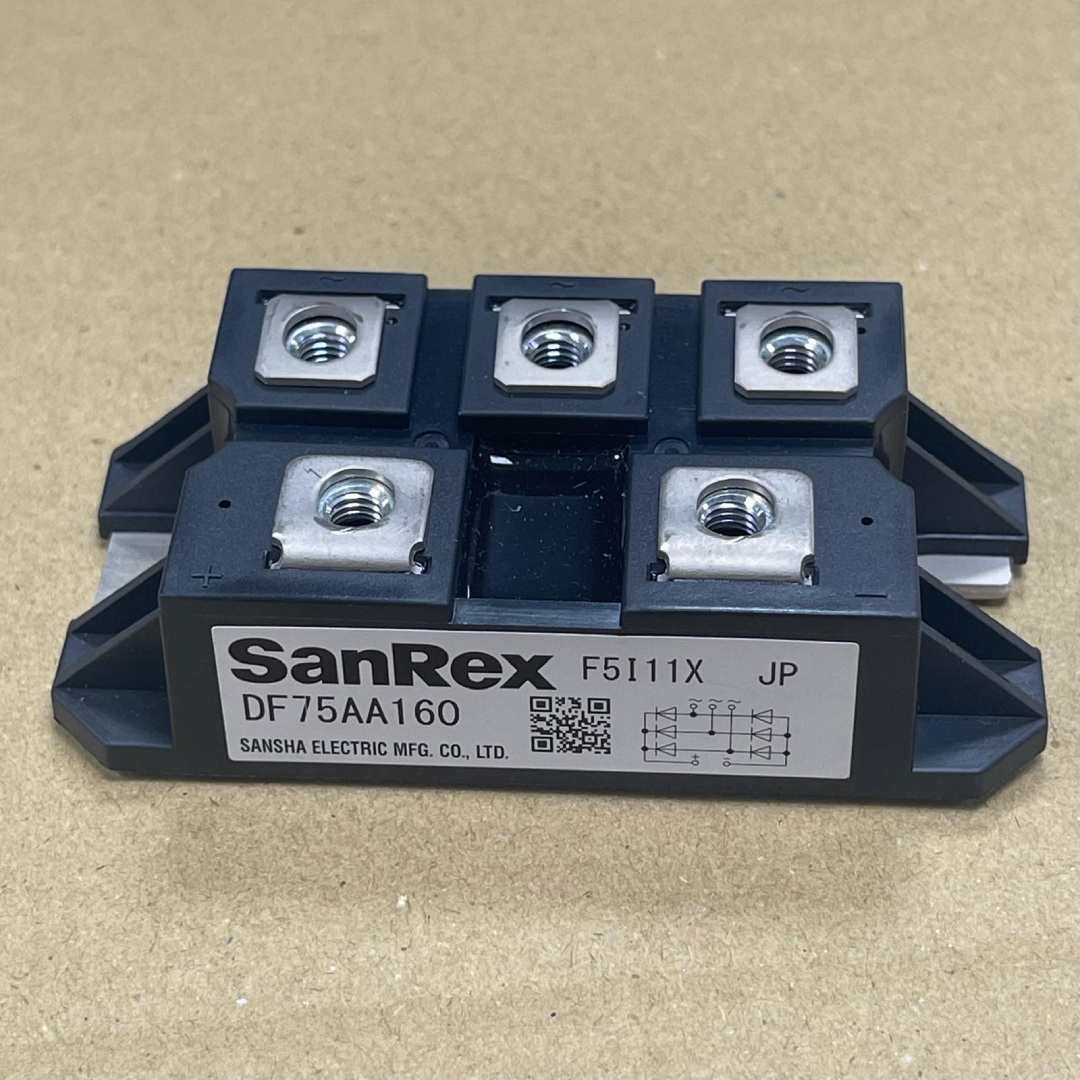

Sanrex DF Series Six-Diode Isolated Three-Phase Bridge Rectifier Module, 75 A, 1600 V VRRM, DF75AA160
Sanrex

Sanrex DF Series Six-Diode Isolated Three-Phase Bridge Rectifier Module, 75 A, 1600 V VRRM, DF75AA160

Mfr. part no.
DF75AA160
SKU
RECT-SANREX-DF75AA160

Specifications

Product Type Three-Phase Bridge Rectifier Module
Output Current 75 A @ Tc 100 °C
Forward Voltage Drop 1.40 V Max @ 75 A
Reverse Leakage Current 10 mA Max @ 1600 V
Thermal Resistance 0.24 °C/W Junction-to-Case
Temperature Range Junction -40 to +150 °C
Installation Type M5 Screw Mount

Key Features

  • DF-series module with six-diode three-phase bridge configuration
  • 75 A DC output rating at Tc 100 °C
  • 1600 V repetitive peak reverse voltage
  • 1000 A non-repetitive surge current at 60 Hz
  • 2500 V RMS isolation between terminals and mounting base
  • Electrically isolated base simplifies common-heatsink construction
  • M5 mounting and power terminals support secure panel installation
  • Made in Japan.

Description

The Sanrex DF75AA160 provides a ready-built six-diode, three-phase full-wave bridge for industrial AC-to-DC conversion. As an isolated three-phase rectifier diode module, it is also commonly searched as a 3-phase bridge diode module or six-pulse rectifier. Rated 75 A DC at a 100 °C case temperature and 1600 V VRRM, it offers 1000 A surge capability at 60 Hz and 2500 V RMS isolation, while M5 terminals suit motor drives, AVR systems and switching power supplies.

Applications

  • Three-phase AC-to-DC rectifier assemblies
  • AC and DC motor drive input stages
  • Automatic voltage regulator systems
  • Industrial switching power supplies
  • Machine power conversion and control panels

Documents

  • Sanrex Datasheet-DF75AA120-160

    PDF, 93 KB

  • Sanrex Power Semiconductors — Catalog

    PDF, 3.2 MB
