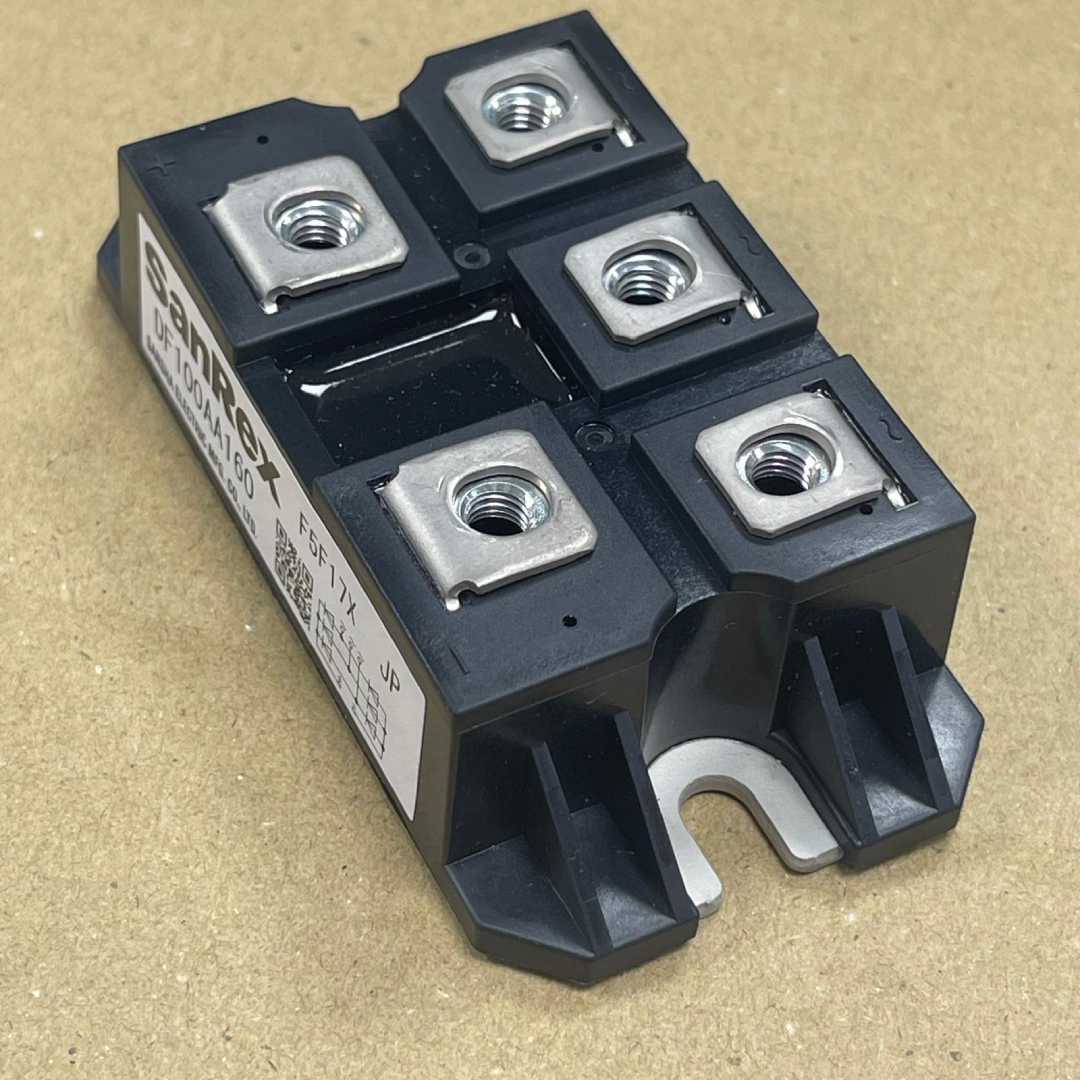

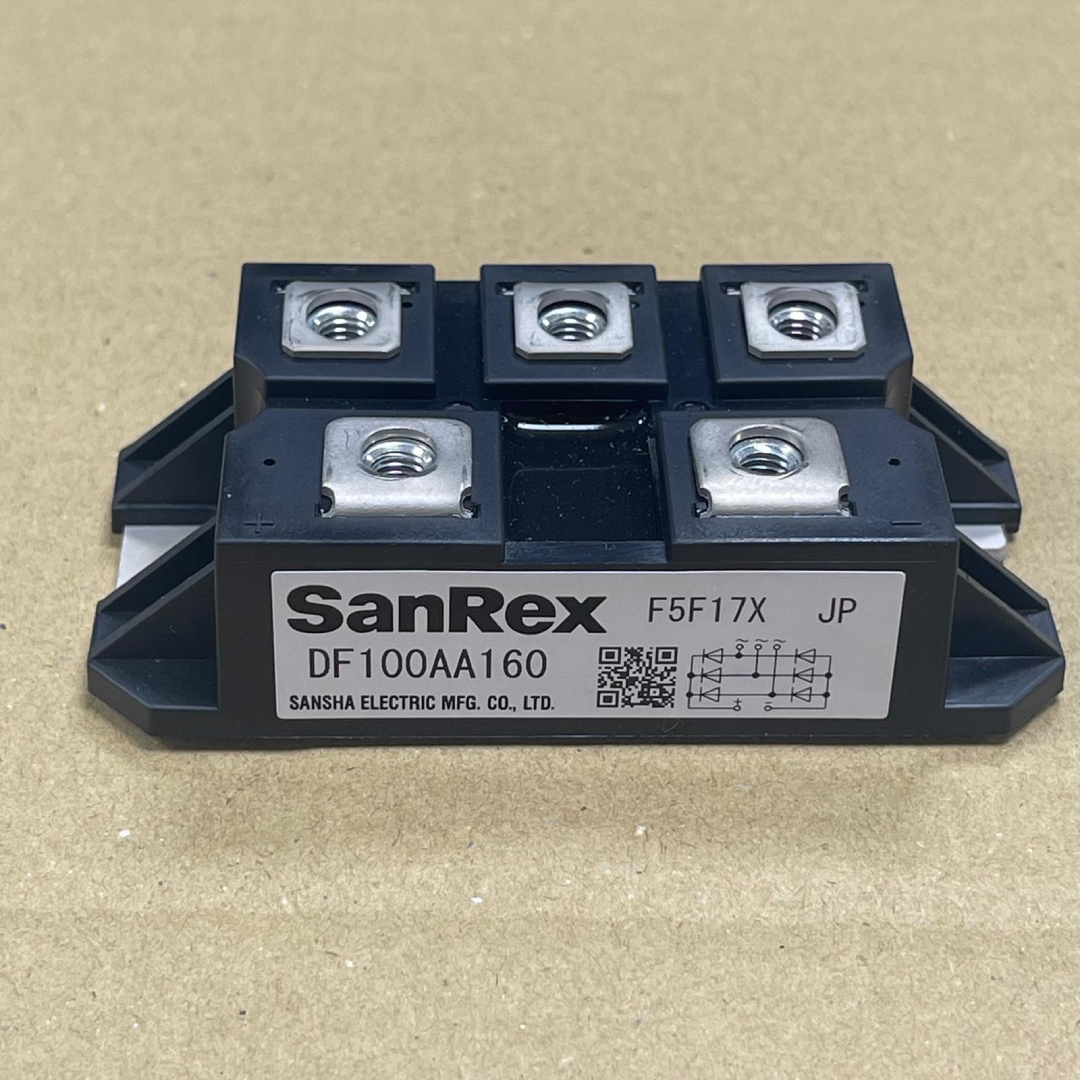

Sanrex DF Series Six-Diode Isolated Three-Phase Bridge Rectifier Module, 100 A, 1600 V VRRM, DF100AA160
Sanrex

Sanrex DF Series Six-Diode Isolated Three-Phase Bridge Rectifier Module, 100 A, 1600 V VRRM, DF100AA160

Mfr. part no.
DF100AA160
SKU
RECT-SANREX-DF100AA160

Specifications

Product Type Three-Phase Bridge Rectifier Module
Output Current 100 A @ Tc 102 °C
Forward Voltage Drop 1.20 V Max @ 100 A
Reverse Leakage Current 15 mA Max @ 1600 V
Thermal Resistance 0.20 °C/W Junction-to-Case
Temperature Range Junction -40 to +150 °C
Installation Type M5 Screw Mount

Key Features

  • DF-series module with six-diode three-phase bridge configuration
  • 100 A DC output rating at Tc 102 °C
  • 1600 V repetitive peak reverse voltage
  • 1000 A non-repetitive surge current at 60 Hz
  • 2500 V RMS isolation between terminals and mounting base
  • Electrically isolated base simplifies common-heatsink construction
  • M5 mounting and power terminals support secure panel installation
  • Made in Japan.

Description

Built for higher-current rectifier stages, the Sanrex DF100AA160 integrates six glass-passivated power diodes in an electrically isolated three-phase full-wave bridge. This chassis-mount rectifier diode module operates as a six-pulse AC-to-DC rectifier and is also commonly described as a 3-phase bridge diode module. It is rated 100 A DC at a 102 °C case temperature and 1600 V VRRM, with 1000 A surge capability at 60 Hz, a maximum 1.2 V forward drop, 2500 V RMS isolation and M5 screw connections for durable heatsink mounting.

Applications

  • Three-phase AC-to-DC rectifier assemblies
  • AC and DC motor drive input stages
  • Automatic voltage regulator systems
  • Industrial switching power supplies
  • Machine power conversion and control panels

Documents

  • Sanrex Datasheet-DF100AA120-160

    PDF, 95 KB

  • Sanrex Power Semiconductors — Catalog

    PDF, 3.2 MB
