Sanrex DF Series Six-Diode Isolated Three-Phase Bridge Rectifier Module, 60 A, 1600 V VRRM, DF60AA160
Sanrex

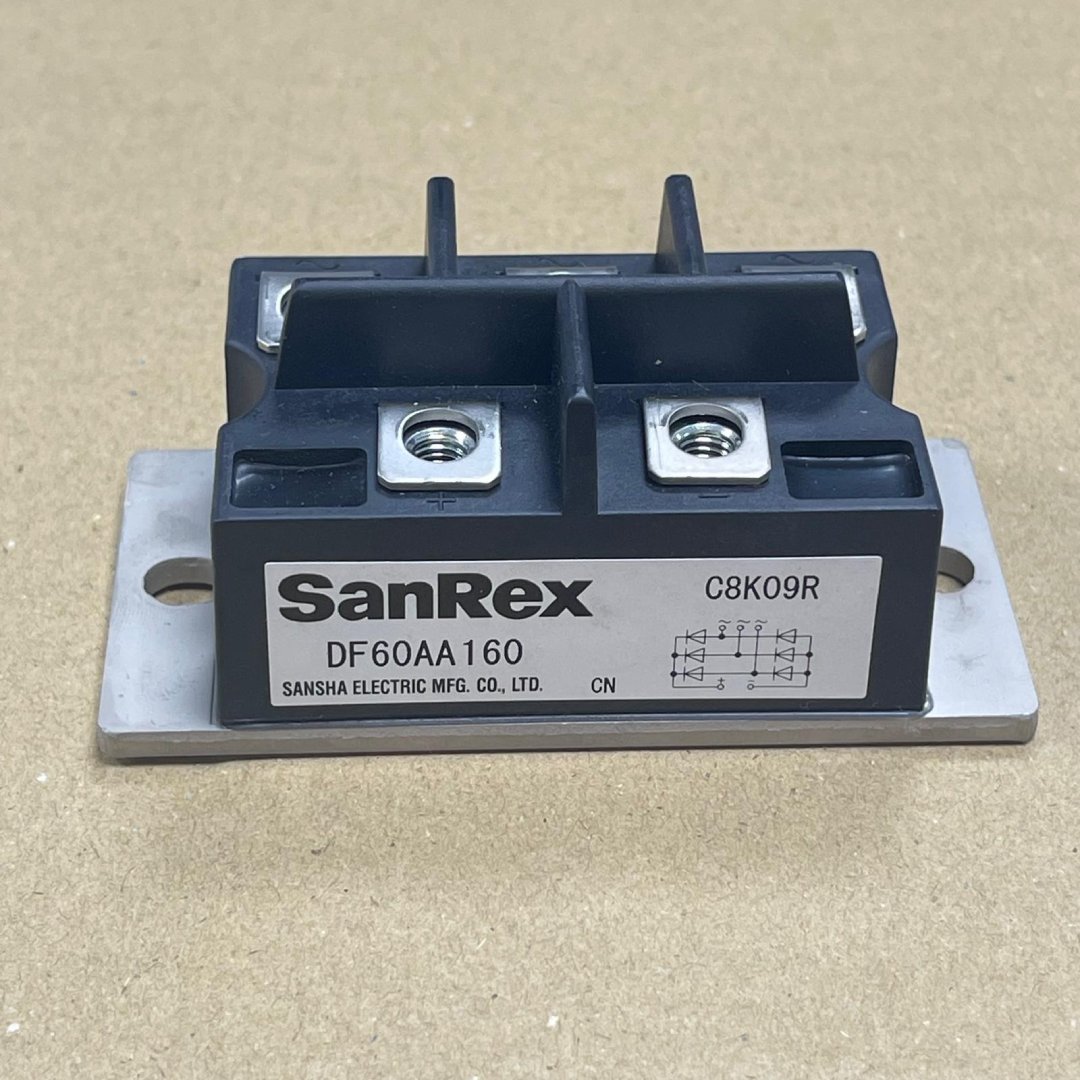

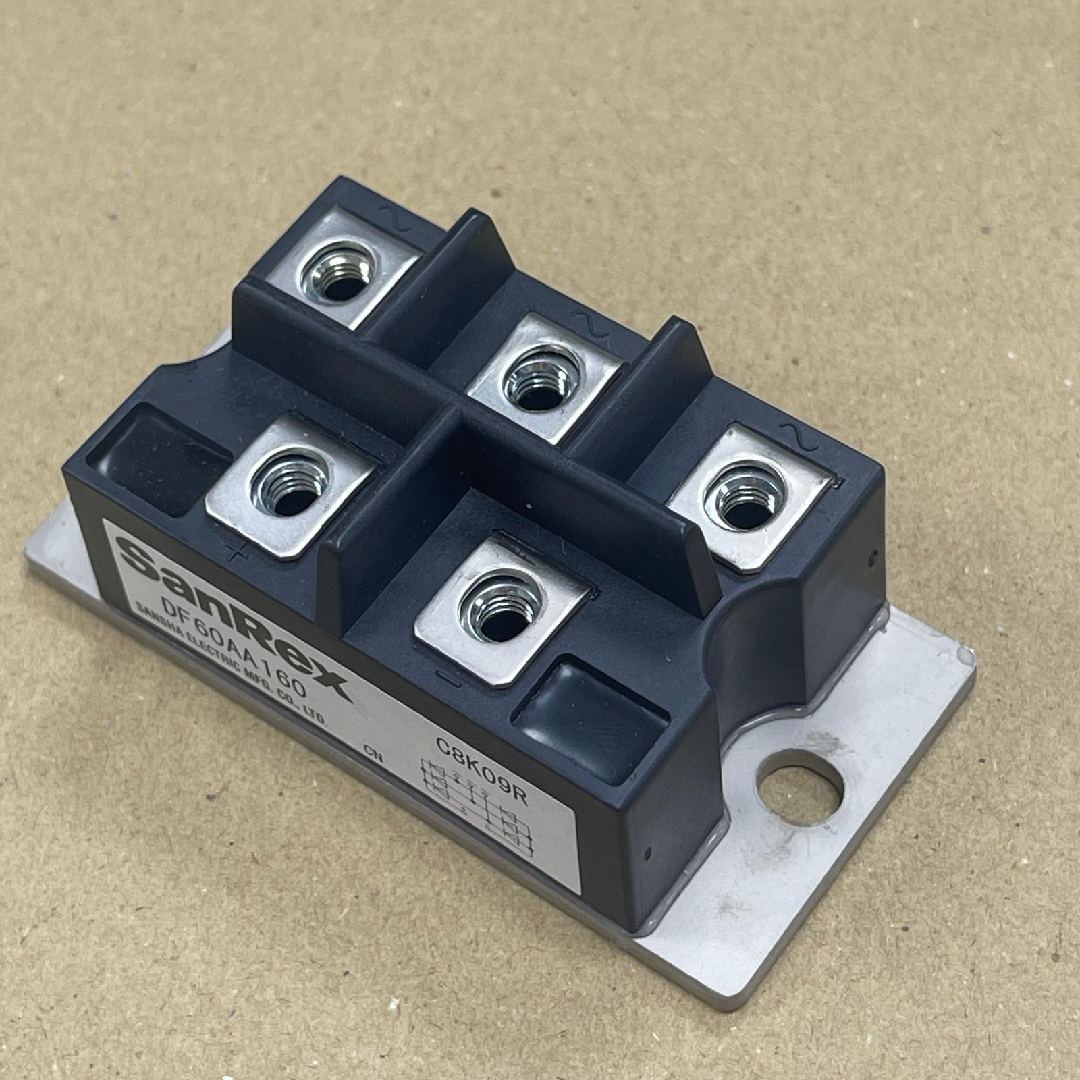

Sanrex DF Series Six-Diode Isolated Three-Phase Bridge Rectifier Module, 60 A, 1600 V VRRM, DF60AA160

Mfr. part no.
DF60AA160
SKU
RECT-SANREX-DF60AA160

Specifications

Product Type Three-Phase Bridge Rectifier Module
Output Current 60 A @ Tc 112 °C
Forward Voltage Drop 1.30 V Max @ 60 A
Reverse Leakage Current 12 mA Max @ 1600 V
Thermal Resistance 0.24 °C/W Junction-to-Case
Temperature Range Junction -40 to +150 °C
Installation Type M6 Heatsink Mount

Key Features

  • DF-series module with six-diode three-phase bridge configuration
  • 60 A DC output rating at Tc 112 °C
  • 1600 V repetitive peak reverse voltage
  • 1000 A non-repetitive surge current at 60 Hz
  • 2500 V RMS isolation between terminals and mounting base
  • Electrically isolated base simplifies common-heatsink construction
  • M6 mounting holes and M5 power terminals simplify heatsink installation

Description

The Sanrex DF60AA160 is a robust six-diode, three-phase full-wave bridge rectifier for converting industrial three-phase AC into DC. This isolated rectifier diode module is also known as a 3-phase bridge diode module or six-pulse rectifier. It carries 60 A at a 112 °C case temperature and blocks 1600 V VRRM, with 1000 A surge capability at 60 Hz and 2500 V RMS isolation, while M5 power terminals and M6 mounting points support secure heatsink installation.

Applications

  • Three-phase AC-to-DC rectifier assemblies
  • AC and DC motor drive input stages
  • Automatic voltage regulator systems
  • Industrial switching power supplies
  • Machine power conversion and control panels

Documents

  • Sanrex Datasheet-DF60AA120-160

    PDF, 92 KB

  • Sanrex Power Semiconductors — Catalog

    PDF, 3.2 MB

More Sanrex power semiconductors in stock
