Sanrex DF Series Six-Diode Isolated Three-Phase Bridge Rectifier Module, 30 A, 1600 V VRRM, DF30AA160
Sanrex

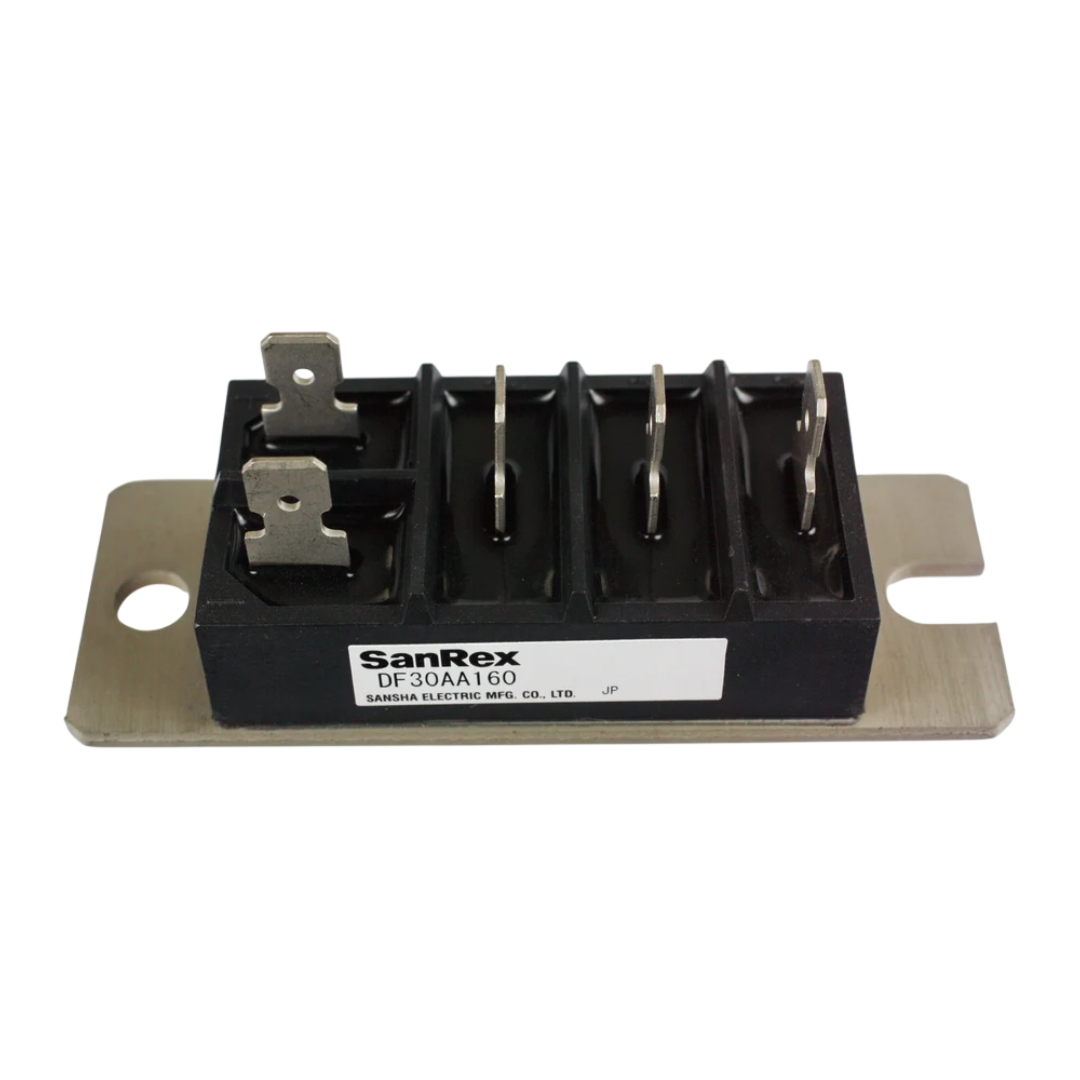

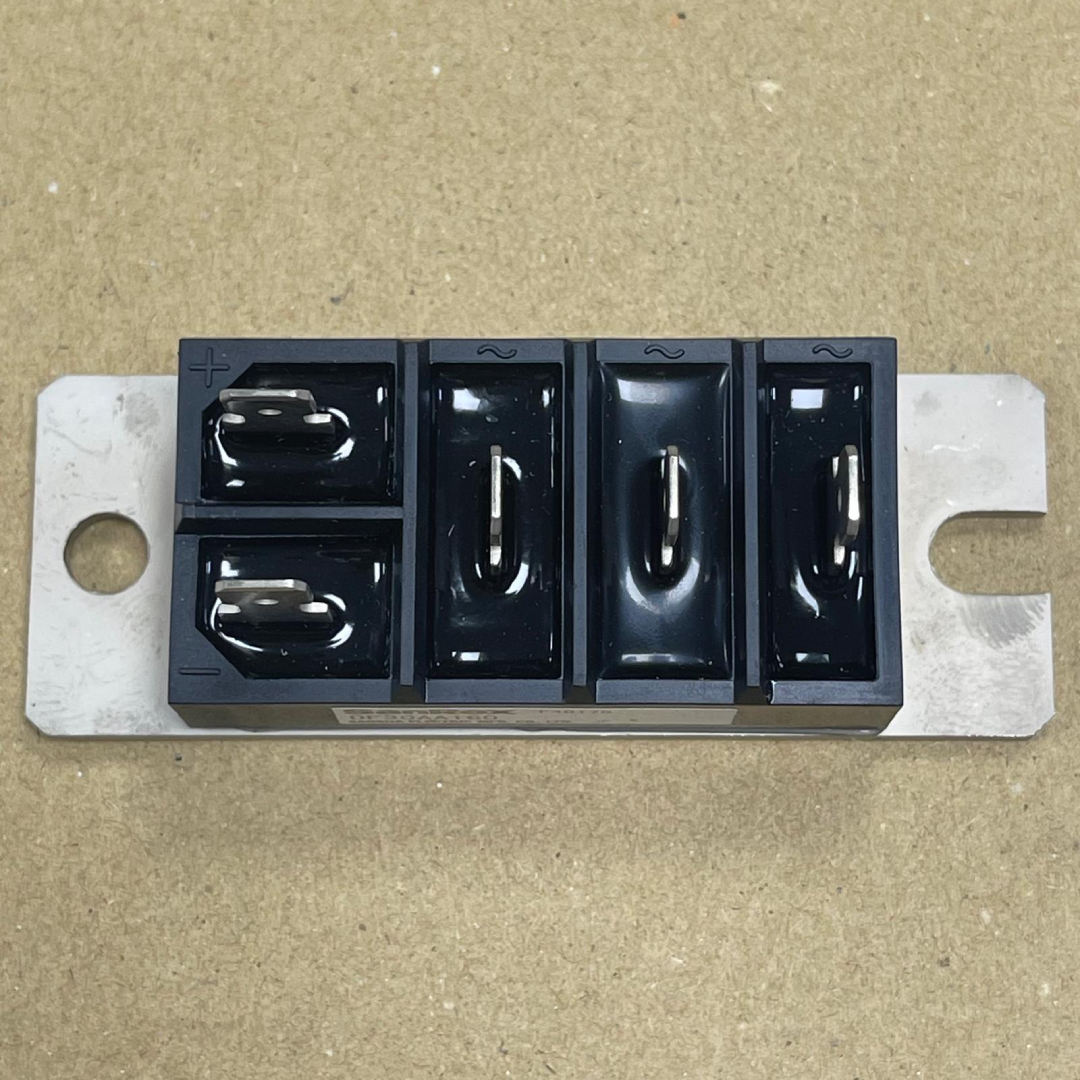

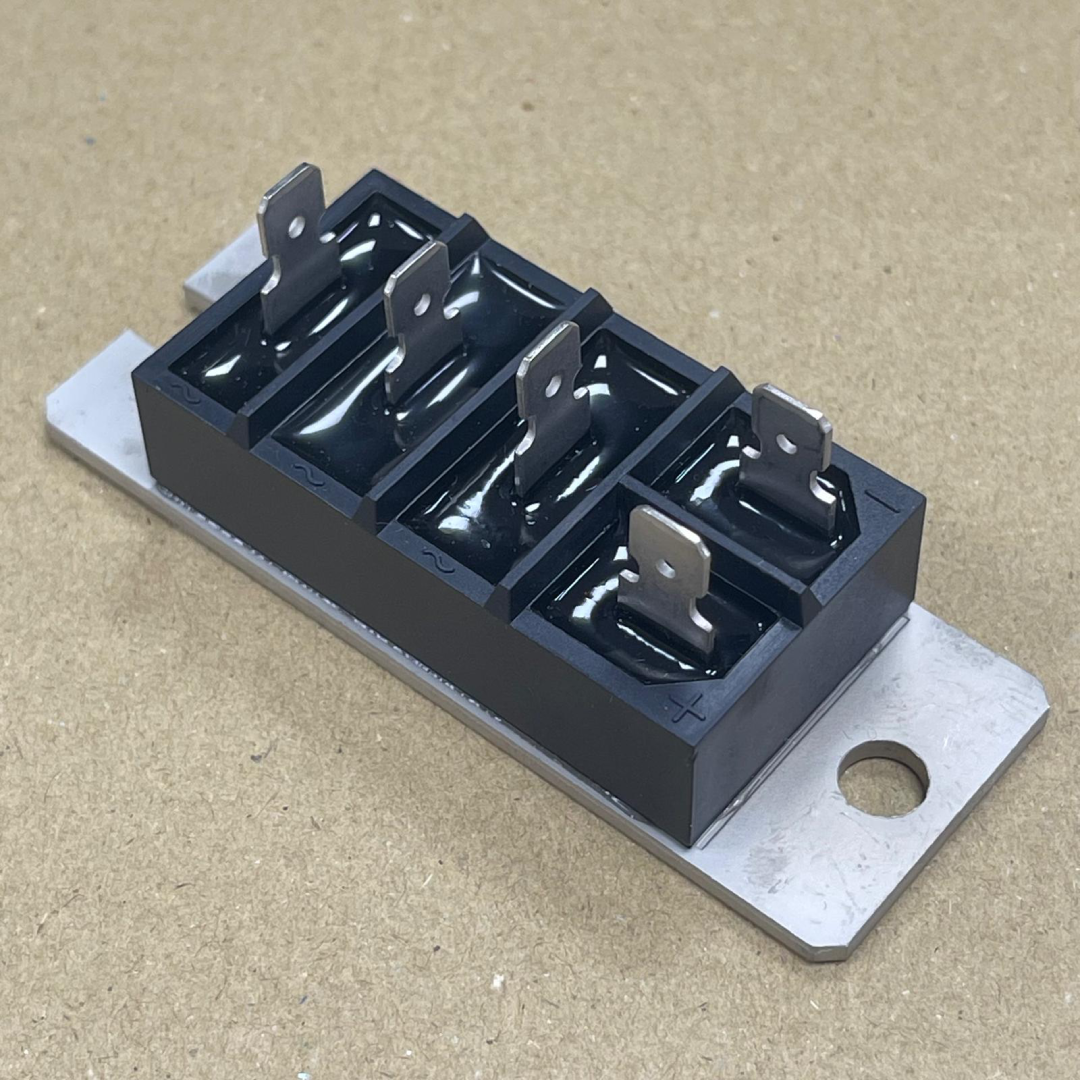

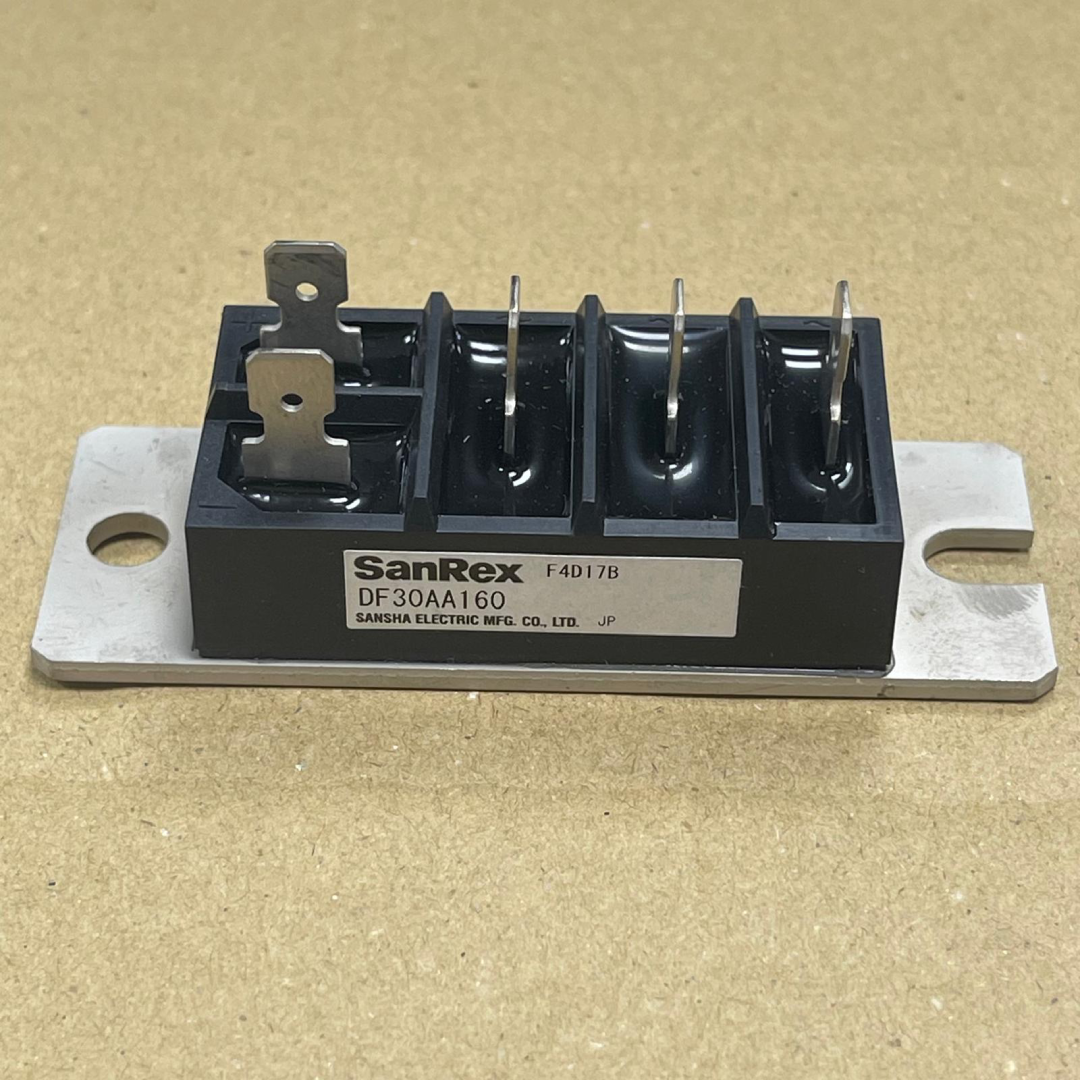

Sanrex DF Series Six-Diode Isolated Three-Phase Bridge Rectifier Module, 30 A, 1600 V VRRM, DF30AA160

Mfr. part no.
DF30AA160
SKU
RECT-SANREX-DF30AA160

Specifications

Product Type Three-Phase Bridge Rectifier Module
Output Current 30 A @ Tc 117 °C
Forward Voltage Drop 1.30 V Max @ 30 A
Reverse Leakage Current 3 mA Max @ 1600 V
Thermal Resistance 0.42 °C/W Junction-to-Case
Temperature Range Junction -40 to +150 °C
Installation Type M6 Heatsink Mount

Key Features

  • DF-series module with six-diode three-phase bridge configuration
  • 30 A DC output rating at Tc 117 °C
  • 1600 V repetitive peak reverse voltage
  • 300 A non-repetitive surge current at 60 Hz
  • 2500 V RMS isolation between terminals and mounting base
  • Electrically isolated base simplifies common-heatsink construction
  • #250 quick-connect tab terminals simplify electrical assembly
  • Made in Japan.

Description

The Sanrex DF30AA160 is a compact three-phase full-wave bridge rectifier built around six glass-passivated silicon diodes. This isolated rectifier diode module performs six-pulse AC-to-DC conversion and is also known as a 3-phase bridge diode module. It delivers 30 A DC at a 117 °C case temperature and withstands 1600 V repetitive reverse voltage, while the 2500 V isolated base and #250 quick-connect tabs support installation in motor drives, AVR units and switching power supplies.

Applications

  • Three-phase AC-to-DC rectifier assemblies
  • AC and DC motor drive input stages
  • Automatic voltage regulator systems
  • Industrial switching power supplies
  • Machine power conversion and control panels

Documents

  • Sanrex Datasheet-DF30AA120-160

    PDF, 91 KB

  • Sanrex Power Semiconductors — Catalog

    PDF, 3.2 MB
