Mitutoyo Series 7 Magnetic Stand with V-Block Base, 7010S-10
Mitutoyo

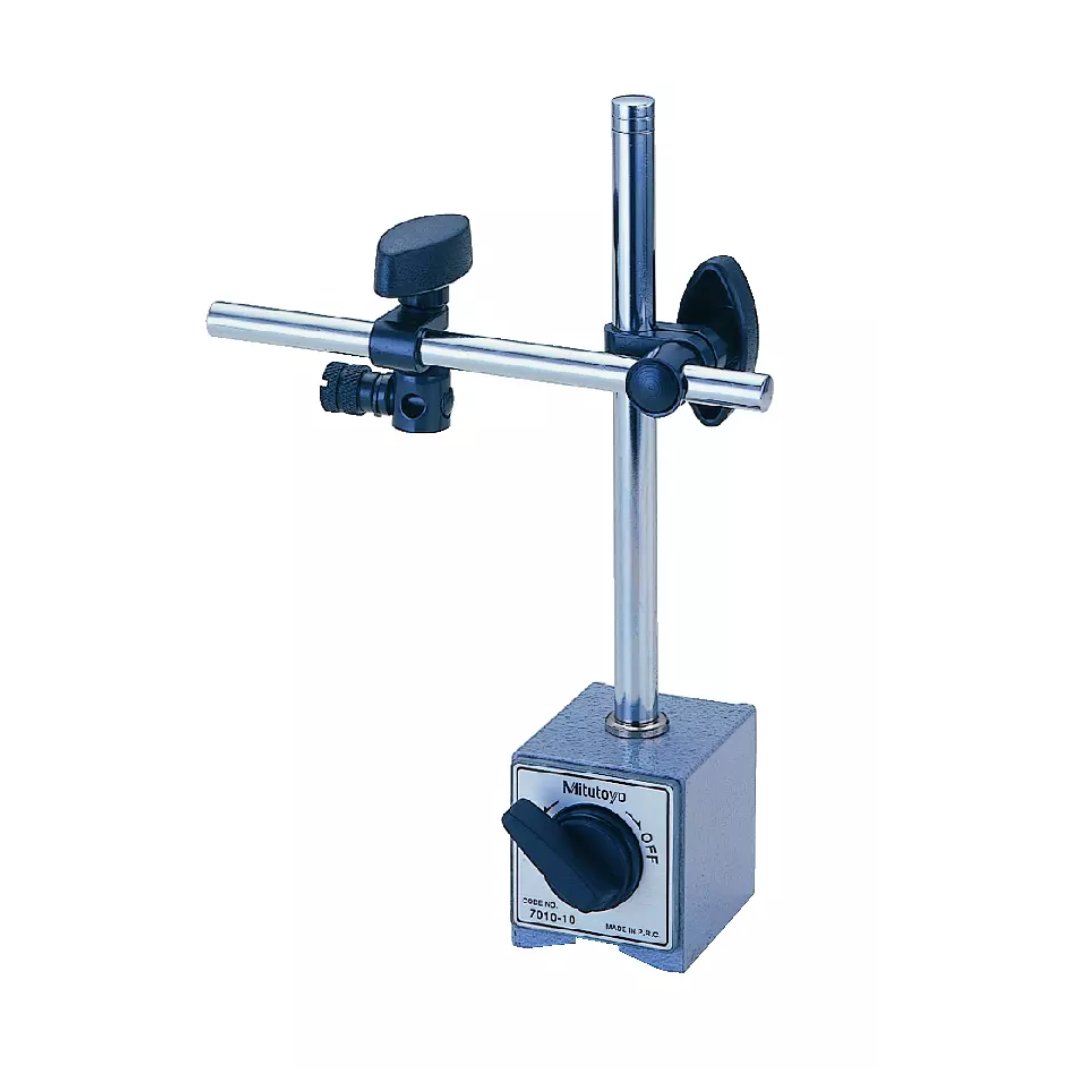

Mitutoyo Series 7 Magnetic Stand with V-Block Base, 7010S-10

Mfr. part no.
7010S-10

Specifications

Product Type Magnetic Stand
Body Material Magnetic Steel Base
Stem Holes 3/8, 4, 8 mm
Working Radius 165 mm
Measuring Depth 232 mm

Key Features

  • V-block magnetic base type for stable gauge positioning.
  • Magnetic steel base provides 600 N vertical retractile force.
  • Accepts 3/8 inch, 4 mm and 8 mm stem sizes with supplied stem bush.
  • 165 mm working radius supports flexible dial indicator positioning.
  • Supplied in carton box with stem bush.

Description

Mitutoyo 7010S-10 is a magnetic stand with V-block magnetic base for holding dial indicators and similar gauges during setup and inspection work. The magnetic steel base provides 600 N vertical retractile force and supports mounting on flat or round ferrous surfaces. Its stem holes, working radius and M8 arm/base thread make it useful for positioning gauges on machine tools, shafts, fixtures and maintenance measurement points.

Applications

  • Holding dial indicators and dial test indicators during inspection.
  • Runout checks on shafts, rollers and rotating components.
  • Machine alignment, setup and maintenance measurement.
  • Surface plate inspection and general workshop gauge positioning.

Documents

  • Mitutoyo-7010S-10 — Datasheet

    PDF, 381 KB
