Mitutoyo Series 3 Large Dial Face Indicator, 0 to 50 mm Range, 3058A-19
Mitutoyo

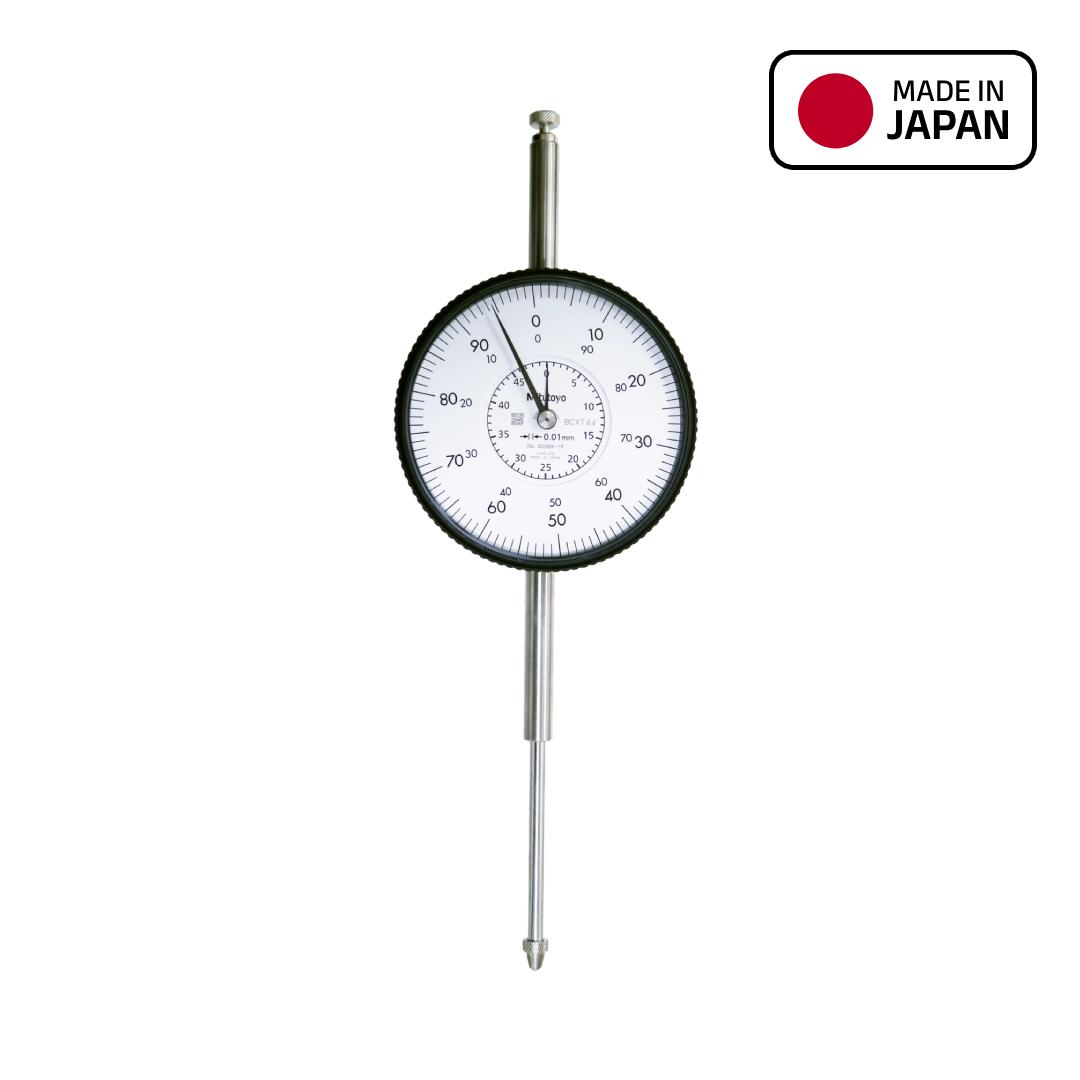

Mitutoyo Series 3 Large Dial Face Indicator, 0 to 50 mm Range, 3058A-19

Mfr. part no.
3058A-19

Specifications

Product Type Large Dial Indicator
Measuring Range 50 mm
Graduation 0.01 mm
Accuracy 30 µm
Body Material Metal Indicator Body
Measuring Face Carbide Tipped
Stem Diameter 8 mm
Dial Size 78 mm

Key Features

  • Large 78 mm dial face supports easy reading from a distance.
  • Metal indicator body with hardened stainless stem supports routine shop use.
  • Carbide-tipped contact point improves wear resistance at the measuring tip.
  • Shockproof construction supports demanding inspection conditions.
  • Coaxial revolution counter helps track longer travel readings.
  • Made in Japan.

Description

Mitutoyo 3058A-19 is a large dial face analog indicator for general measurement, runout checking, setup work and inspection fixtures. It offers 50 mm measuring range with 0.01 mm graduation in a metal indicator body with hardened stainless stem and carbide-tipped contact point. The 78 mm dial face, shockproof design and coaxial revolution counter help operators read and track longer measurements during machine shop and maintenance checks.

Applications

  • Runout, alignment and comparative measurement checks.
  • Surface plate, fixture and machine setup inspection.
  • Use with magnetic stands, holders and height gauges.
  • Quality control and maintenance measurement of mechanical parts.

Documents

  • Mitutoyo-3058A-19 — Datasheet

    PDF, 924 KB

  • Mitutoyo Series-3 Large Dial Face and Long Stroke Indicator — Catalog

    PDF, 207 KB
