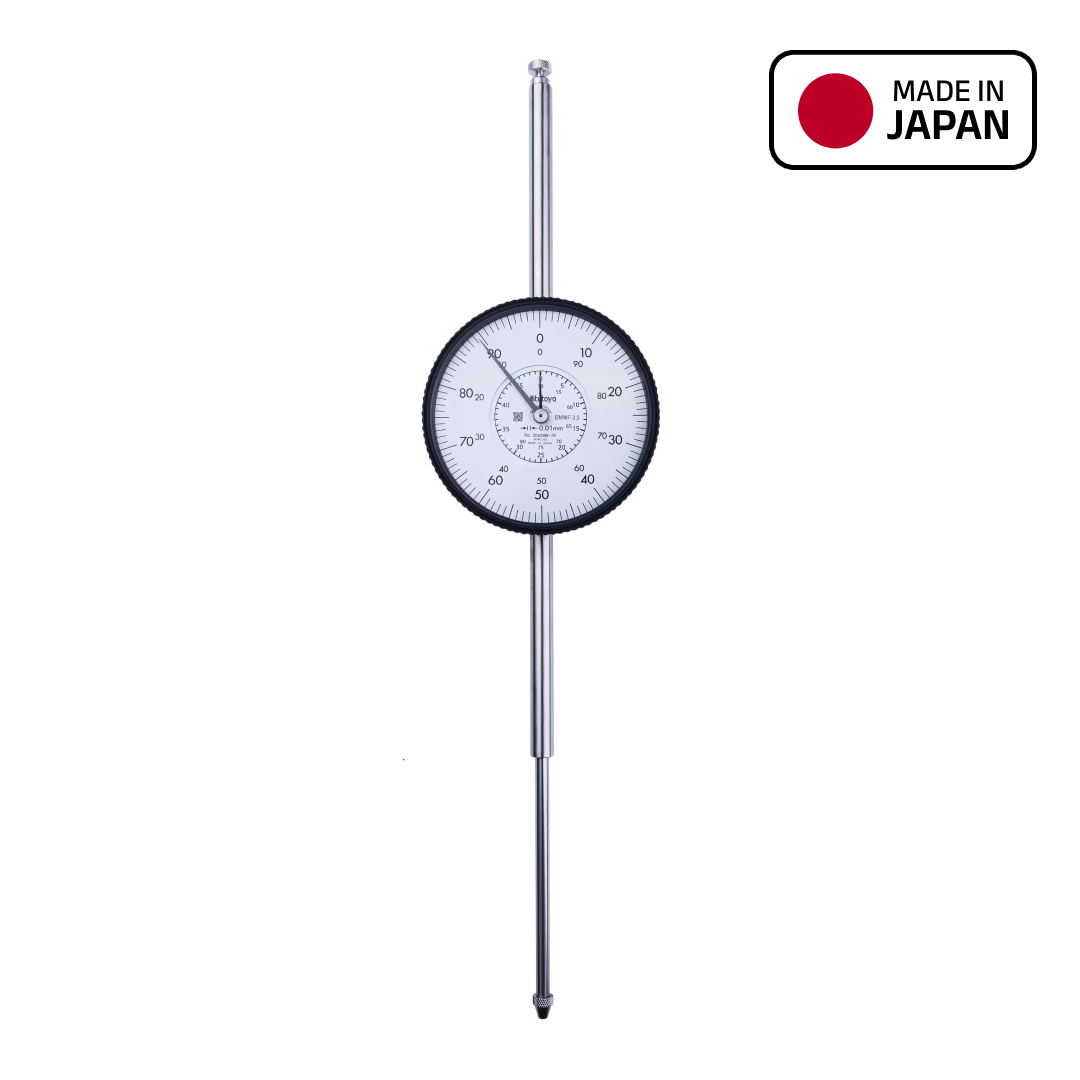

Mitutoyo Series 3 Large Dial Face Indicator, 0 to 80 mm Range, 3060A-19
Mitutoyo

Mitutoyo Series 3 Large Dial Face Indicator, 0 to 80 mm Range, 3060A-19

Mfr. part no.
3060A-19

Specifications

Product Type Shockproof Dial Indicator
Measuring Range 80 mm
Graduation 0.01 mm
Accuracy 45 µm
Body Material Metal Indicator Body
Measuring Face Carbide Tipped
Stem Diameter 8 mm

Key Features

  • Shockproof multi-revolution dial indicator for vertical measurement applications.
  • Metal indicator body with hardened stainless stem supports routine shop use.
  • Carbide-tipped contact point improves wear resistance at the measuring tip.
  • Jewelled movement supports smooth and precise plunger response.
  • Coaxial revolution counter helps track long 80 mm travel readings.
  • Made in Japan.

Description

Mitutoyo 3060A-19 is a shockproof multi-revolution dial indicator for vertical measurement, runout, alignment and fixture setup work. It provides 80 mm range with 0.01 mm graduation in a metal indicator body with hardened stainless stem and carbide-tipped contact point. The jewelled movement, shockproof construction and coaxial revolution counter support smooth readings on machine tools, gauge stands and quality inspection stations.

Applications

  • Runout, alignment and comparative measurement checks.
  • Surface plate, fixture and machine setup inspection.
  • Use with magnetic stands, holders and height gauges.
  • Quality control and maintenance measurement of mechanical parts.

Documents

  • Mitutoyo-3060A-19 — Datasheet

    PDF, 1.1 MB

  • Mitutoyo Series-3 Large Dial Face and Long Stroke Indicator — Catalog

    PDF, 207 KB
