Mitutoyo Series 2 Flat Back Dial Indicator, 0 to 25 mm Range, 2056A-01
Mitutoyo

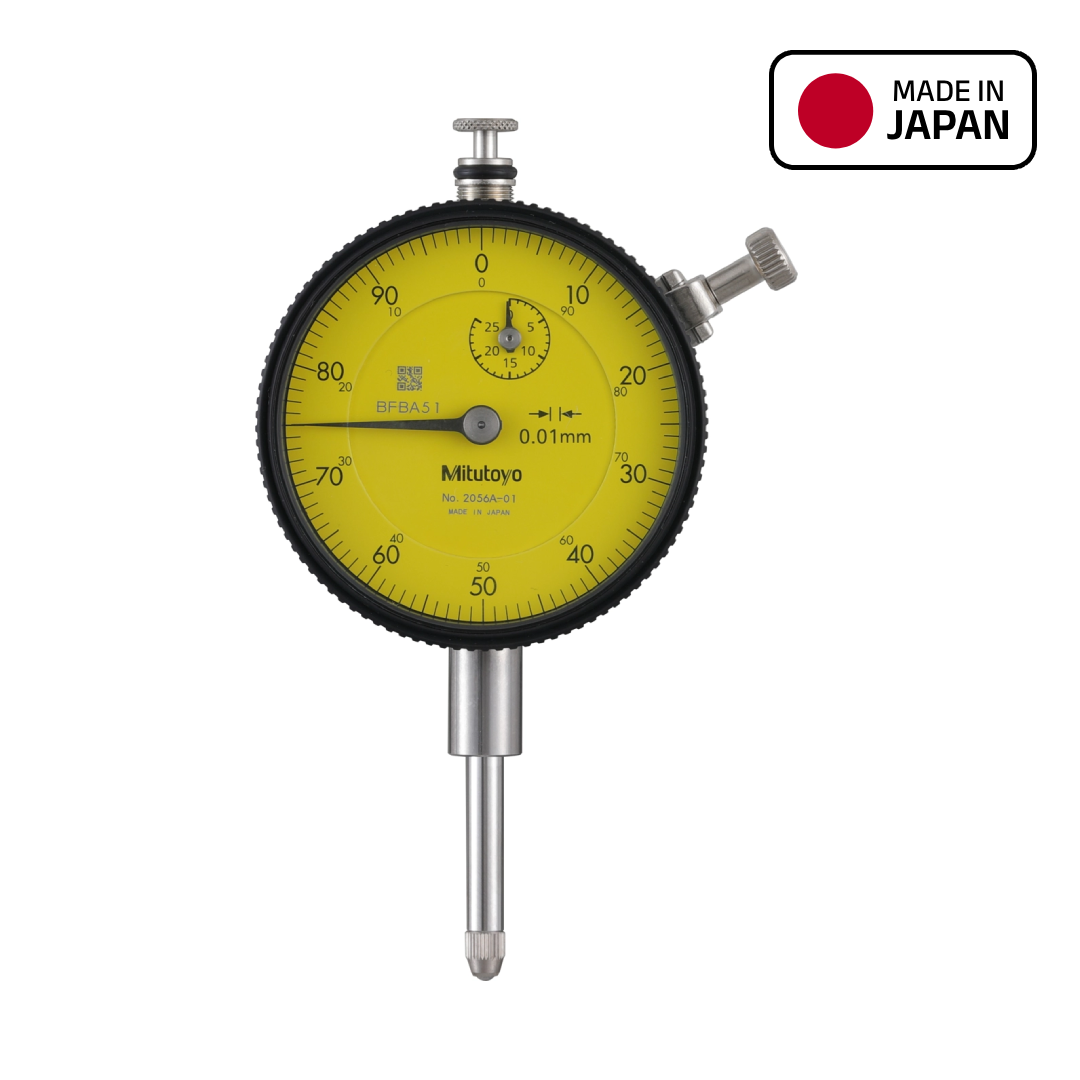

Mitutoyo Series 2 Flat Back Dial Indicator, 0 to 25 mm Range, 2056A-01

Mfr. part no.
2056A-01

Specifications

Product Type Flat Back Dial Indicator
Measuring Range 25 mm
Graduation 0.01 mm
Accuracy ±25 µm
Body Material Metal Indicator Body
Measuring Face Carbide Tipped
Stem Diameter 9.52 mm / 0.375 inch

Key Features

  • Flat-back ANSI/AGD dial indicator for fixture and stand mounting.
  • Metal indicator body with hardened stainless stem supports routine shop use.
  • Carbide-tipped contact point improves wear resistance at the measuring tip.
  • 25 mm measuring range suits longer plunger travel checks.
  • Supplied with certificate of inspection and bezel clamp.
  • Made in Japan.

Description

Mitutoyo 2056A-01 is an analog flat-back dial indicator for displacement, runout, fixture setting and alignment work. It provides 25 mm range with 0.01 mm graduation in an ANSI/AGD style metal indicator body with hardened stainless stem and carbide-tipped contact point. The flat back, bezel clamp and inspection certificate make it suitable for workshop measurement, gauge stands and quality inspection setups.

Applications

  • Runout, alignment and comparative measurement checks.
  • Surface plate, fixture and machine setup inspection.
  • Use with magnetic stands, holders and height gauges.
  • Quality control and maintenance measurement of mechanical parts.

Documents

  • Mitutoyo-2056A-01 — Datasheet

    PDF, 713 KB

  • Mitutoyo ANSI AGD Type Series-2 Dial Indicators — Catalog

    PDF, 270 KB
