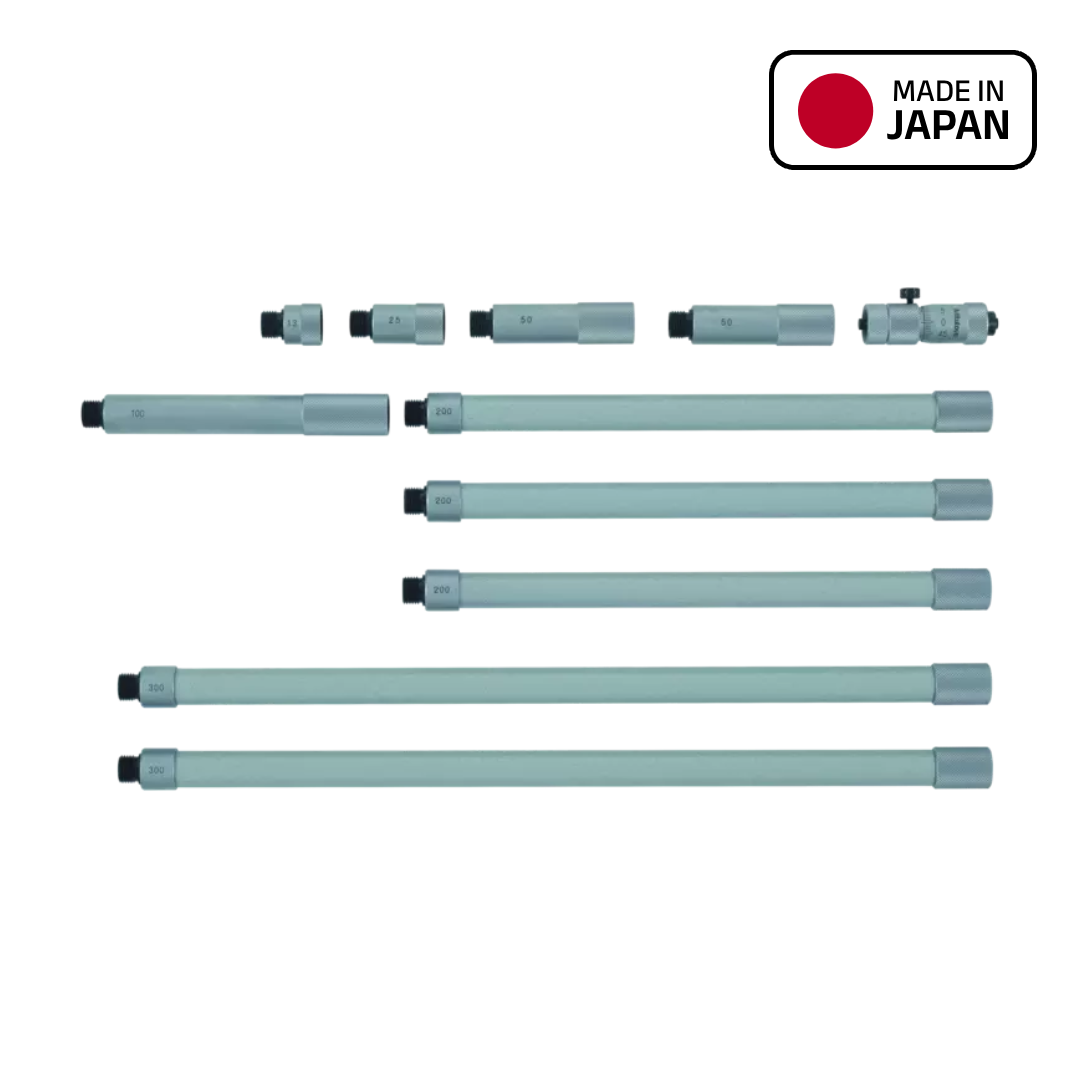

Mitutoyo Series 137 Tubular Inside Micrometer, 50 to 1500 mm Range, 137-205
Mitutoyo

Mitutoyo Series 137 Tubular Inside Micrometer, 50 to 1500 mm Range, 137-205

Mfr. part no.
137-205

Specifications

Product Type Tubular Inside Micrometer
Measuring Range 50 to 1500 mm
Graduation 0.01 mm
Body Material Steel Rod Assembly
Measuring Face Hardened Steel
Included Items 10 Extension Rods

Key Features

  • Extension rod inside micrometer covers wide internal measurement.
  • Steel rod assembly with hardened steel measuring faces supports stable contact.
  • Spring-mounted cylindrical gage rods are held in protective sleeves.
  • Satin chrome thimble and sleeve support clear scale reading.
  • Supplied with micrometer head, extension rods, spanner and box.
  • Made in Japan.

Description

Mitutoyo 137-205 is a tubular inside micrometer for checking internal dimensions over a wide 50 to 1500 mm range. The steel rod assembly uses hardened steel measuring faces, spring-mounted cylindrical gage rods and a satin chrome scale for reliable 2-point internal measurement. It is suitable for inspection of bores, large internal spans, fabricated components and machine maintenance work where an inside micrometer or ID micrometer is required.

Applications

  • Internal measurement of bores, tubes, cylinders and pipe IDs.
  • Maintenance inspection of large mechanical assemblies.
  • Machine shop and fabrication dimensional control.
  • Quality checks where an extension rod inside micrometer is required.

Documents

  • Mitutoyo-137-205 — Datasheet

    PDF, 216 KB

  • Mitutoyo-137 Series Tubular Inside Micrometers — Catalog

    PDF, 92 KB
