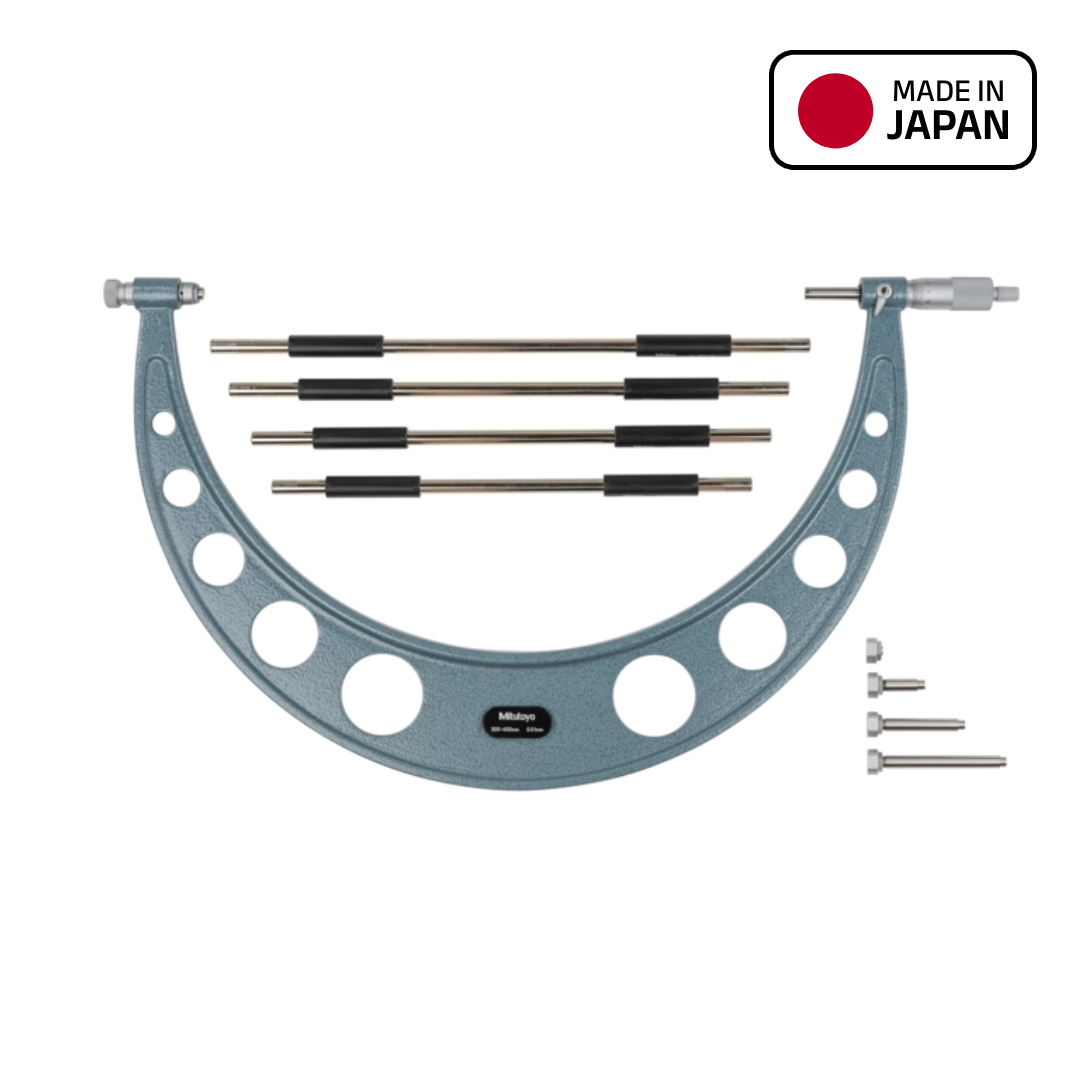

Mitutoyo Series 104 Interchangeable Anvil Outside Micrometer, 300 to 400 mm Range, 104-142A
KWD 142.200
Lead time: 15 Days
All Mitutoyo products
Mitutoyo Dimensional Measuring Tools
All Dimensional Measuring Tools (every brand)
Technical overview
Mitutoyo 104-142A is an analog interchangeable anvil outside micrometer for measuring larger outside diameters, tubing thickness, shoulder-edge distances and rivet heights. It covers the 300 to 400 mm range with 0.01 mm graduation and uses a baked-enamel steel frame for robust workshop handling. The carbide-tipped micro-lap spindle, hardened steel anvils, friction thimble and satin chrome scale support reliable readings during machine shop, maintenance and inspection work.
Key Features
- Interchangeable anvil design supports one tool across a wide range.
- Friction thimble helps maintain repeatable measuring force.
- Baked-enamel steel frame supports heavy-duty external measurement.
- Carbide-tipped spindle and hardened steel anvils suit industrial use.
- Satin chrome thimble and sleeve support clear scale reading.
- Supplied with setting standards, anvils, key and box.
- Made in Japan.
Applications
- Large outside measurement of shafts, rollers, rings and machined parts.
- Tubing thickness, shoulder-edge distance and rivet height checks.
- Workshop inspection, maintenance and quality control use.
- Industrial measuring jobs requiring a large-range mechanical micrometer.
Specifications
Product TypeInterchangeable Anvil Micrometer
Measuring Range300 to 400 mm
Graduation0.01 mm
Accuracy±10 µm
Body MaterialBaked-Enamel Steel Frame
Measuring FaceCarbide-Tipped Spindle Face
Number of Leaves/Anvils4 pcs
Included Items300, 325, 350, 375 mm Setting Standards
