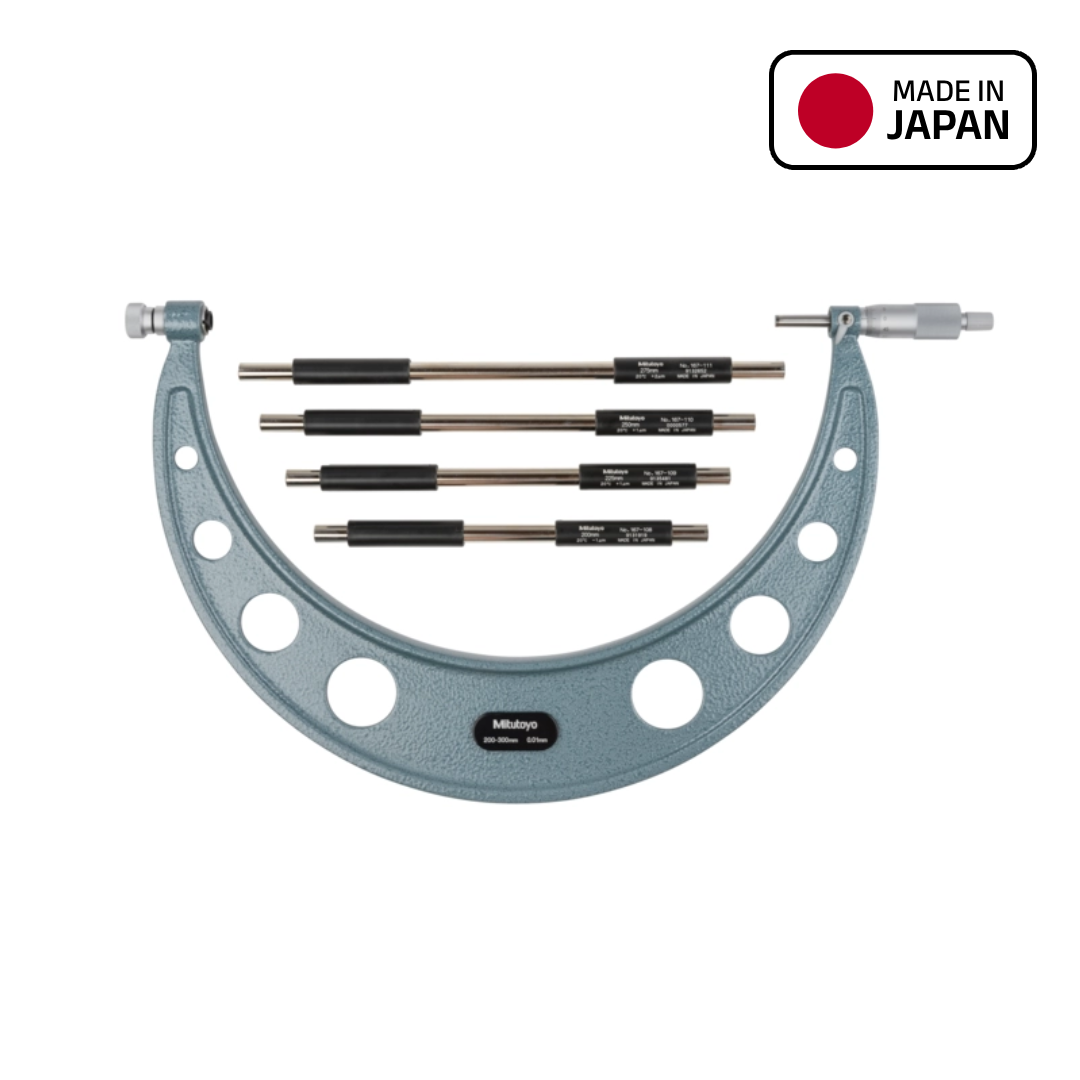

Mitutoyo Series 104 Interchangeable Anvil Outside Micrometer, 200 to 300 mm Range, 104-141A
Mitutoyo

Mitutoyo Series 104 Interchangeable Anvil Outside Micrometer, 200 to 300 mm Range, 104-141A

Mfr. part no.
104-141A

Specifications

Product Type Interchangeable Anvil Micrometer
Measuring Range 200 to 300 mm
Graduation 0.01 mm
Accuracy ±8 µm
Body Material Baked-Enamel Steel Frame
Measuring Face Carbide-Tipped Spindle Face
Number of Leaves/Anvils 4 pcs
Included Items 200, 225, 250, 275 mm Setting Standards

Key Features

  • Interchangeable anvil design supports one tool across a wide range.
  • Friction thimble helps maintain repeatable measuring force.
  • Baked-enamel steel frame supports heavy-duty external measurement.
  • Carbide-tipped spindle and hardened steel anvils suit industrial use.
  • Satin chrome thimble and sleeve support clear scale reading.
  • Supplied with setting standards, anvils, key and box.
  • Made in Japan.

Description

Mitutoyo 104-141A is an analog interchangeable anvil outside micrometer for measuring larger outside diameters, tubing thickness, shoulder-edge distances and rivet heights. It covers the 200 to 300 mm range with 0.01 mm graduation and uses a baked-enamel steel frame for robust workshop handling. The carbide-tipped micro-lap spindle, hardened steel anvils, friction thimble and satin chrome scale support reliable readings during machine shop, maintenance and inspection work.

Applications

  • Large outside measurement of shafts, rollers, rings and machined parts.
  • Tubing thickness, shoulder-edge distance and rivet height checks.
  • Workshop inspection, maintenance and quality control use.
  • Industrial measuring jobs requiring a large-range mechanical micrometer.

Documents

  • Mitutoyo-104-141A — Datasheet

    PDF, 584 KB

  • Mitutoyo-104 Series Outside Micrometers — Catalog

    PDF, 135 KB
