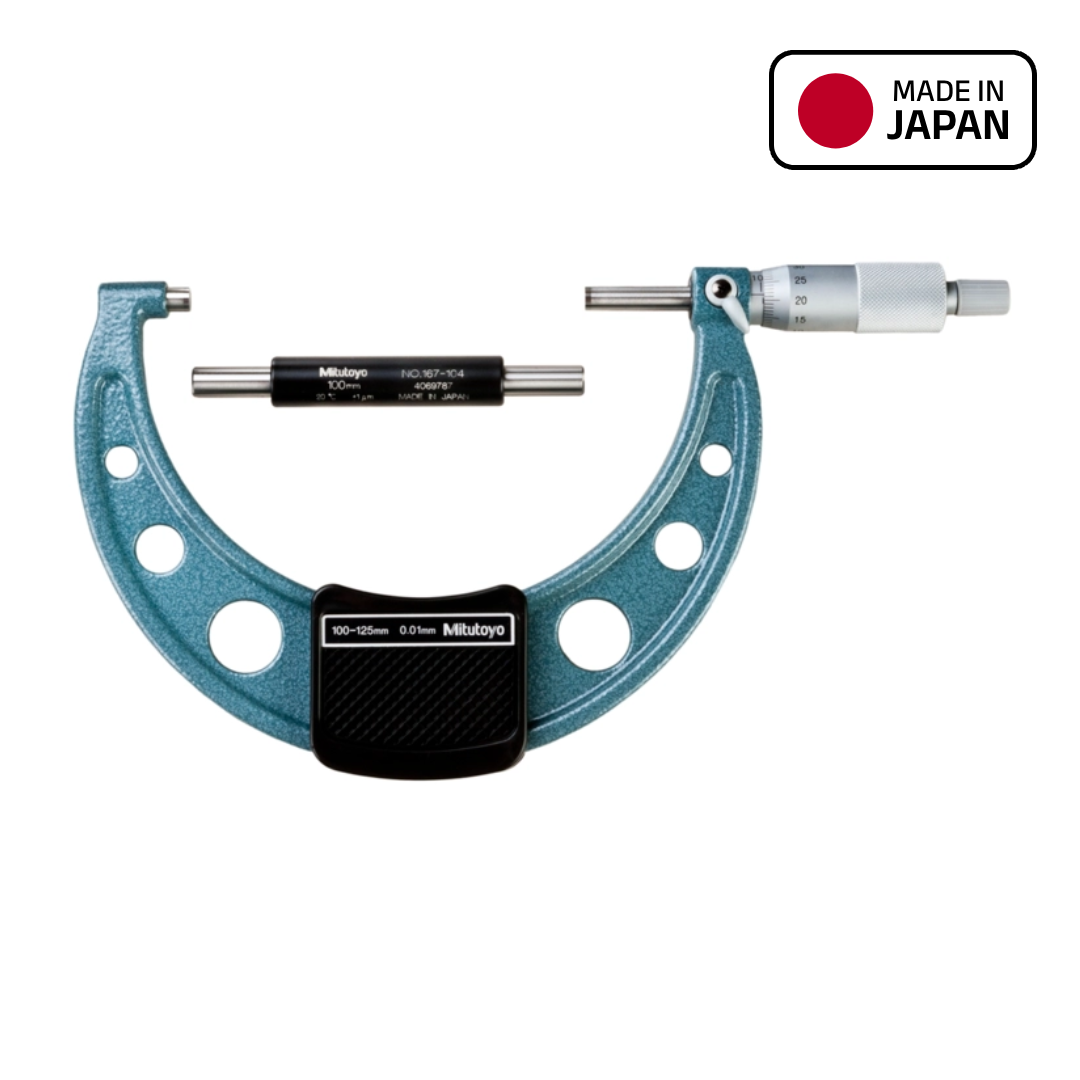

Mitutoyo Series 103 Outside Micrometer, 100 to 125 mm Range, 103-141-10
Mitutoyo

Mitutoyo Series 103 Outside Micrometer, 100 to 125 mm Range, 103-141-10

Mfr. part no.
103-141-10

Specifications

Product Type Outside Micrometer
Measuring Range 100 to 125 mm
Graduation 0.01 mm
Accuracy ±3 µm
Body Material Baked-Enamel Steel Frame
Measuring Face Carbide-Tipped Micro-Lap
Included Items 100 mm Setting Standard

Key Features

  • Analog metric outside micrometer for reliable external measurement.
  • Ratchet stop helps maintain repeatable measuring force.
  • Baked-enamel steel frame supports regular workshop inspection use.
  • Carbide-tipped, micro-lapped measuring faces improve wear resistance.
  • Satin chrome thimble and sleeve support clear scale reading.
  • Supplied with box, key and setting standard.
  • Made in Japan.

Description

Mitutoyo 103-141-10 is an analog metric outside micrometer made for accurate external measurement in workshop, maintenance and quality inspection work. It covers the 100 to 125 mm range with 0.01 mm graduation and has a baked-enamel steel frame for regular handling in industrial environments. The carbide-tipped, micro-lapped measuring faces, satin chrome scale, ratchet stop and spindle lock help operators take consistent readings on shafts, sleeves, pins, blocks and machined metal parts.

Applications

  • External diameter measurement of shafts, pins, sleeves and collars.
  • Machine shop, fabrication and maintenance dimensional checks.
  • Quality inspection of machined blocks and metal components.
  • Suitable where a mechanical screw gauge or analog micrometer is preferred.

Documents

  • Mitutoyo-103-141-10 — Datasheet

    PDF, 396 KB

  • Mitutoyo-103 Series Outside Micrometers — Catalog

    PDF, 160 KB
