Mitutoyo ABS Digimatic Thickness Gauge, 0 to 10 mm Range, 547-301A
Mitutoyo

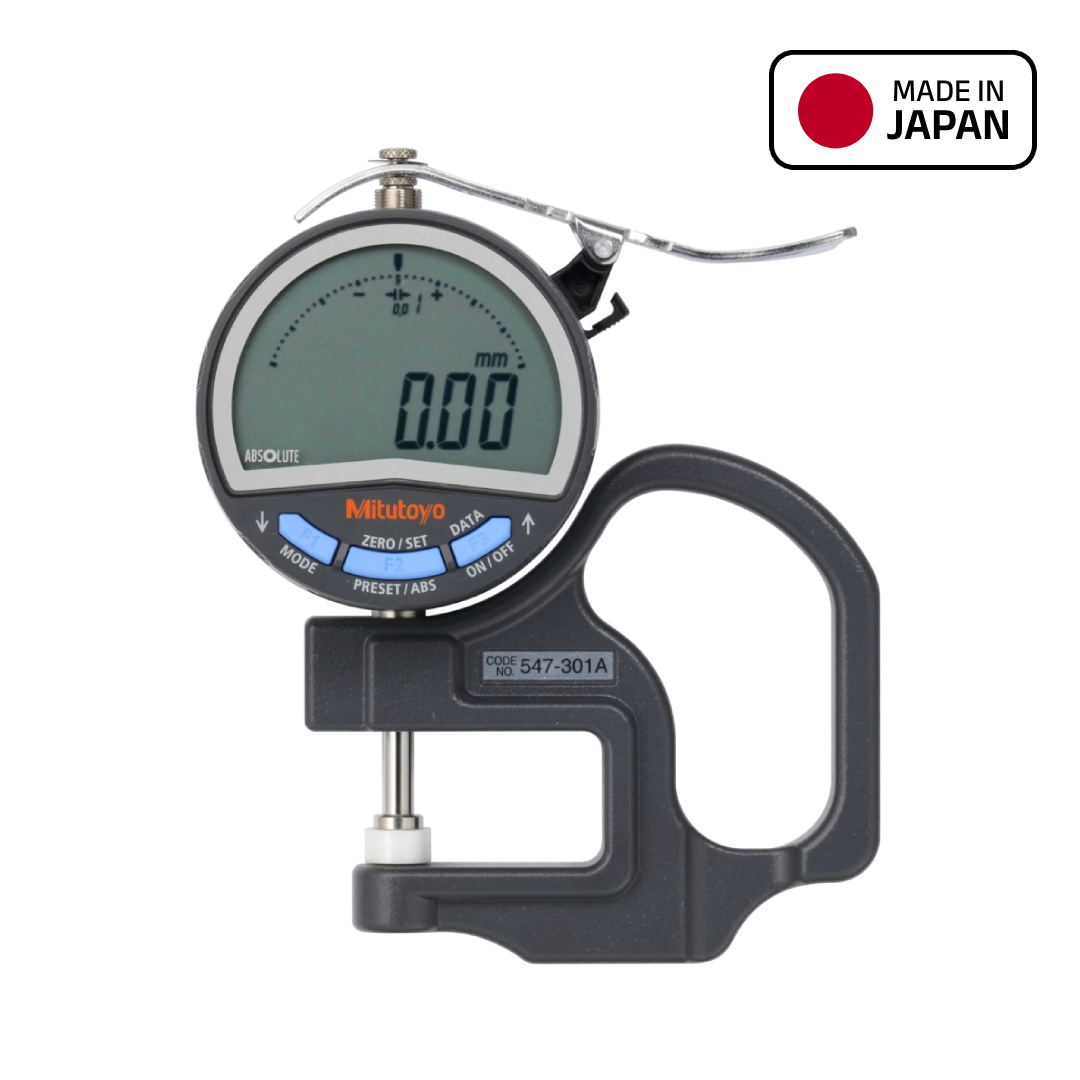

Mitutoyo ABS Digimatic Thickness Gauge, 0 to 10 mm Range, 547-301A

Mfr. part no.
547-301A

Specifications

Product Type Digital Thickness Gauge
Measuring Range 0 to 10 mm
Display Resolution 0.01 mm
Accuracy ±20 µm
Body Material Metal Gauge Frame
Measuring Face Ceramic Disc
Measuring Depth 30 mm
Power Supply CR2032 Battery

Key Features

  • ABSOLUTE Digimatic system supports quick digital thickness checks.
  • Metal gauge frame with ceramic disc contact points suits film and paper measurement.
  • IP42 protection supports general shop-floor handling.
  • Digimatic data output supports connection to compatible data systems.
  • LCD display with 11 mm characters improves readability.
  • Made in Japan.

Description

Mitutoyo 547-301A is an ABSOLUTE Digimatic thickness gauge for fast thickness checks on film, paper, sheet material, small parts and similar workpieces. It measures 0 to 10 mm with 0.01 mm digital step and uses a metal gauge frame with ceramic disc contact points for clean, wear-resistant measuring contact. The IP42 protection, Digimatic data output, LCD display and low measuring force make it practical for quality control, production checks and inspection benches.

Applications

  • Thickness measurement of film, paper, foil and plastic sheets.
  • Quality control inspection for flat flexible materials.
  • Laboratory, production and workshop thickness checks.
  • Data collection jobs using Digimatic-compatible systems.

Documents

  • Mitutoyo-547-301A — Datasheet

    PDF, 2.0 MB

  • Mitutoyo ABS Digimatic Thickness Gage — Catalog

    PDF, 4.5 MB
