Bourdon Tube Pressure Gauges

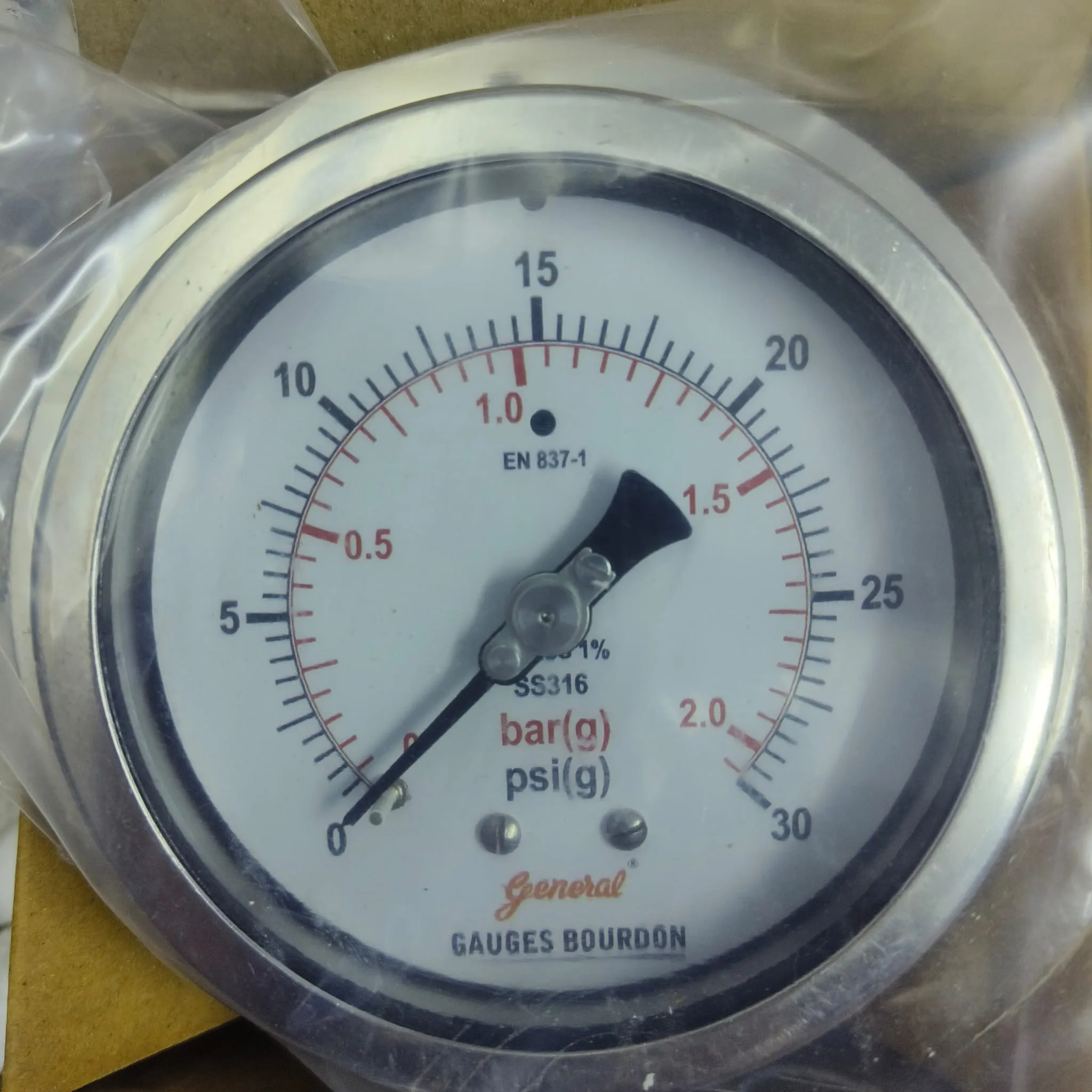

General Instruments Pressure Gauge BSPG-P, 0...30 psi, 2nd Scale bar, 4" Dial, 1/2" Male NPT Lower Back Mount With Front Flange, SS Body & Parts, BSPG-P-100-S4S-S6S-S6S-S4S-T15NTM-(0-30)-PSI/BAR-DUS
General Instruments

General Instruments Pressure Gauge BSPG-P, 0...30 psi, 2nd Scale bar, 4" Dial, 1/2" Male NPT Lower Back Mount With Front Flange, SS Body & Parts, BSPG-P-100-S4S-S6S-S6S-S4S-T15NTM-(0-30)-PSI/BAR-DUS

Mfr. part no.
BSPG-P-100-S4S-S6S-S6S-S4S-T15NTM-(0-30)-PSI/BAR-DUS
SKU
PS400-BC-00030-GG

Specifications

Model BSPG-P
Measuring System Bourdon Tube
Dial Size 100 mm / 4"
Measuring Range 0...30 psi
Secondary Scale 2nd scale bar
Process Connection 1/2" Male NPT
Mounting Position Lower back mount
Mounting Flange SS front flange
Case Filling Dry case, prepared for filling
Wetted Parts SS316
Case Material SS304
Accuracy Class Class 1.0
Window Shatterproof glass
Over Range 130% FSD
Pressure Gauge Standard EN 837-1
Ambient Temperature Range -20...+60°C
Blow Out Disc Provided on top of case (Neoprene)

Key Features

  • 4" / 100 mm dial for clear process pressure indication.
  • Primary psi scale with 2nd scale bar reference.
  • 1/2" Male NPT process connection for industrial installation.
  • SS Body & Parts with SS304 case and SS316 wetted parts.
  • Dry case, prepared for filling where vibration damping is required.
  • Class 1.0 accuracy with EN 837-1 pressure gauge standard.
  • Made in India.

Description

General Instruments pressure gauge Model BSPG-P is designed for reliable panel-mounted pressure indication in demanding industrial service. This lower back mount version uses a 4" / 100 mm dial, 1/2" Male NPT process connection and SS front flange for secure panel installation. Stainless Steel Made, with shatterproof glass window, SS316 wetted parts and a dry case prepared for filling where vibration or dynamic pressure conditions require liquid filling. Measuring range is 0...30 psi with 2nd scale bar, accuracy class is Class 1.0, and the process gauge design is suitable for machinery panels, pump skids, compressor systems and general process duties.

Applications

  • Flush panel pressure indication in machinery and control panels.
  • Pump skids, compressor packages and process equipment panels.
  • Hydraulic and pneumatic system monitoring.
  • General industrial replacement gauge requirements.

Documents

  • General Pressure Gauges BSPG-100-150 mm Dial — Datasheet

    PDF, 201 KB
