General Instruments Pressure Gauge BSPG-P, 0...160 psi, 2nd Scale bar, 4" Dial, 1/2" Male NPT Lower Back Mount With Front Flange, SS Body & Parts, BSPG-P-100-S4S-S6S-S6S-S4S-T15NTM-(0-160)-PSI/BAR-DUS
All General Instruments products
General Instruments Bourdon Tube Pressure Gauges
All Bourdon Tube Pressure Gauges (every brand)
Technical overview

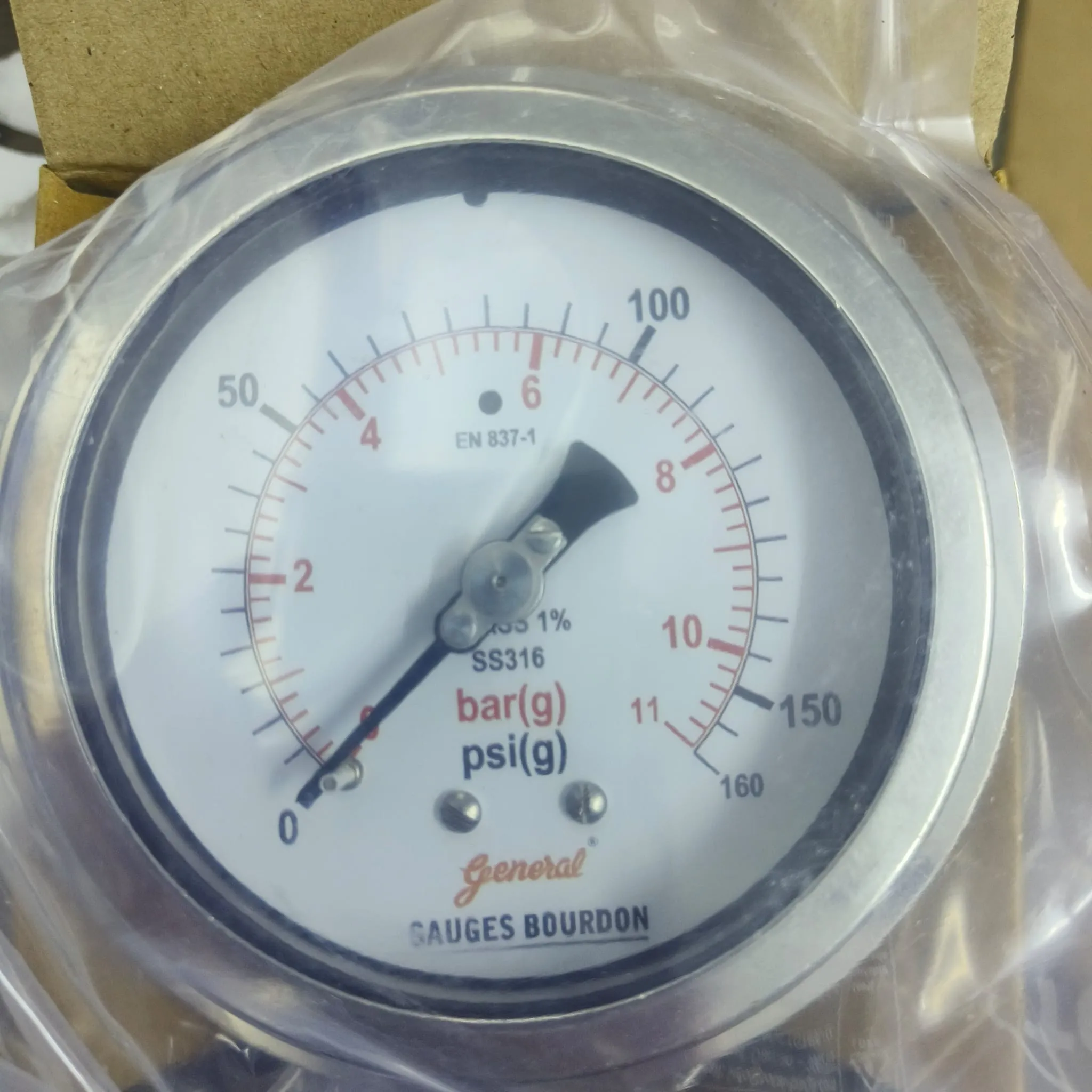

General Instruments pressure gauge Model BSPG-P is designed for reliable panel-mounted pressure indication in demanding industrial service. This lower back mount version uses a 4" / 100 mm dial, 1/2" Male NPT process connection and SS front flange for secure panel installation. Stainless Steel Made, with shatterproof glass window, SS316 wetted parts and a dry case prepared for filling where vibration or dynamic pressure conditions require liquid filling. Measuring range is 0...160 psi with 2nd scale bar, accuracy class is Class 1.0, and the process gauge design is suitable for machinery panels, pump skids, compressor systems and general process duties.
Key Features
- 4" / 100 mm dial for clear process pressure indication.
- Primary psi scale with 2nd scale bar reference.
- 1/2" Male NPT process connection for industrial installation.
- SS Body & Parts with SS304 case and SS316 wetted parts.
- Dry case, prepared for filling where vibration damping is required.
- Class 1.0 accuracy with EN 837-1 pressure gauge standard.
- Made in India.
Applications
- Flush panel pressure indication in machinery and control panels.
- Pump skids, compressor packages and process equipment panels.
- Hydraulic and pneumatic system monitoring.
- General industrial replacement gauge requirements.
Specifications
ModelBSPG-P
Measuring SystemBourdon Tube
Dial Size100 mm / 4"
Measuring Range0...160 psi
Secondary Scale2nd scale bar
Process Connection1/2" Male NPT
Mounting PositionLower back mount
Mounting FlangeSS front flange
Case FillingDry case, prepared for filling
Wetted PartsSS316
Case MaterialSS304
Accuracy ClassClass 1.0
WindowShatterproof glass
Over Range130% FSD
Pressure Gauge StandardEN 837-1
Ambient Temperature Range-20...+60°C
Blow Out DiscProvided on top of case (Neoprene)
Documentation
General-Pressure-Gauges-BSPG-100_150-mm-Dial-Datasheet
Download
