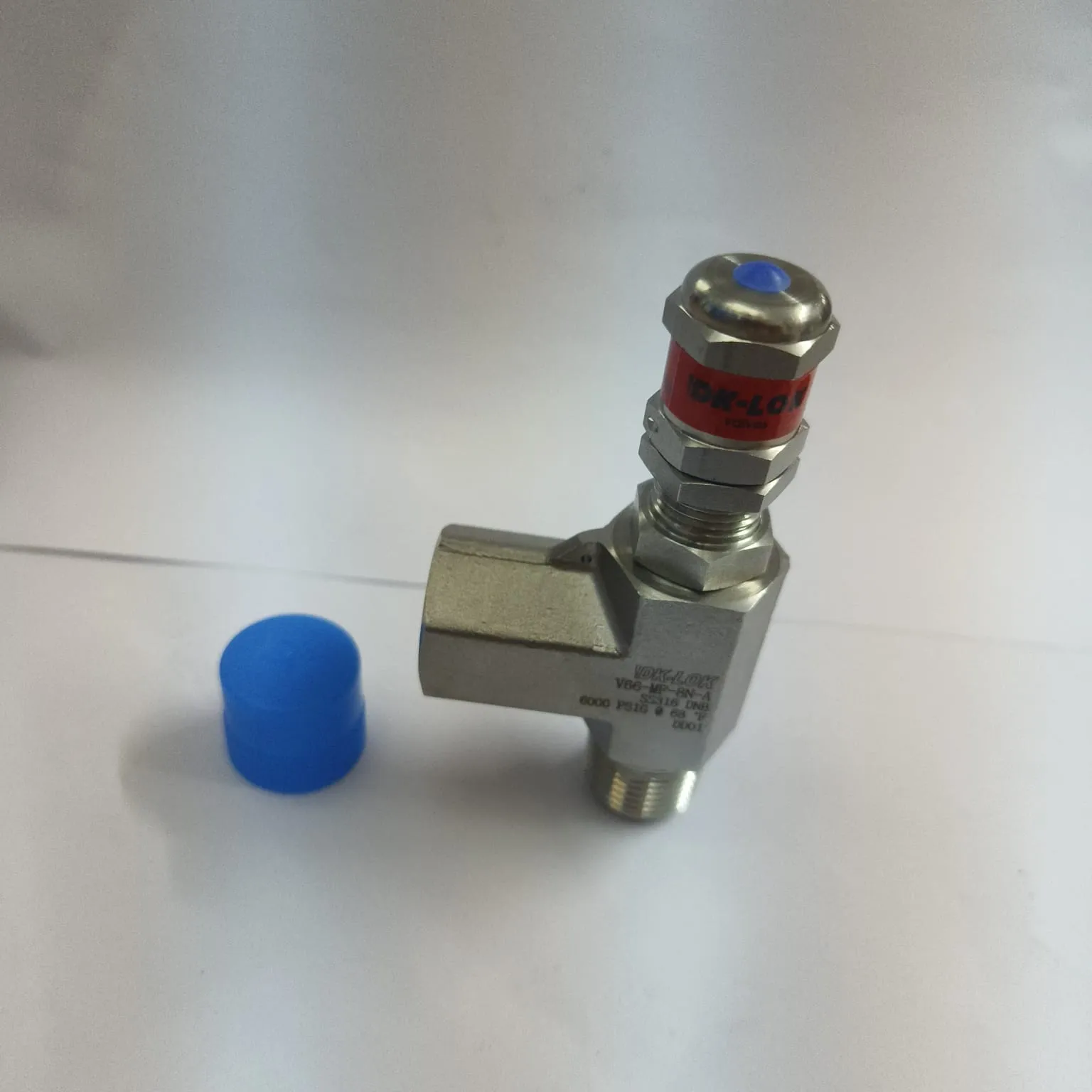

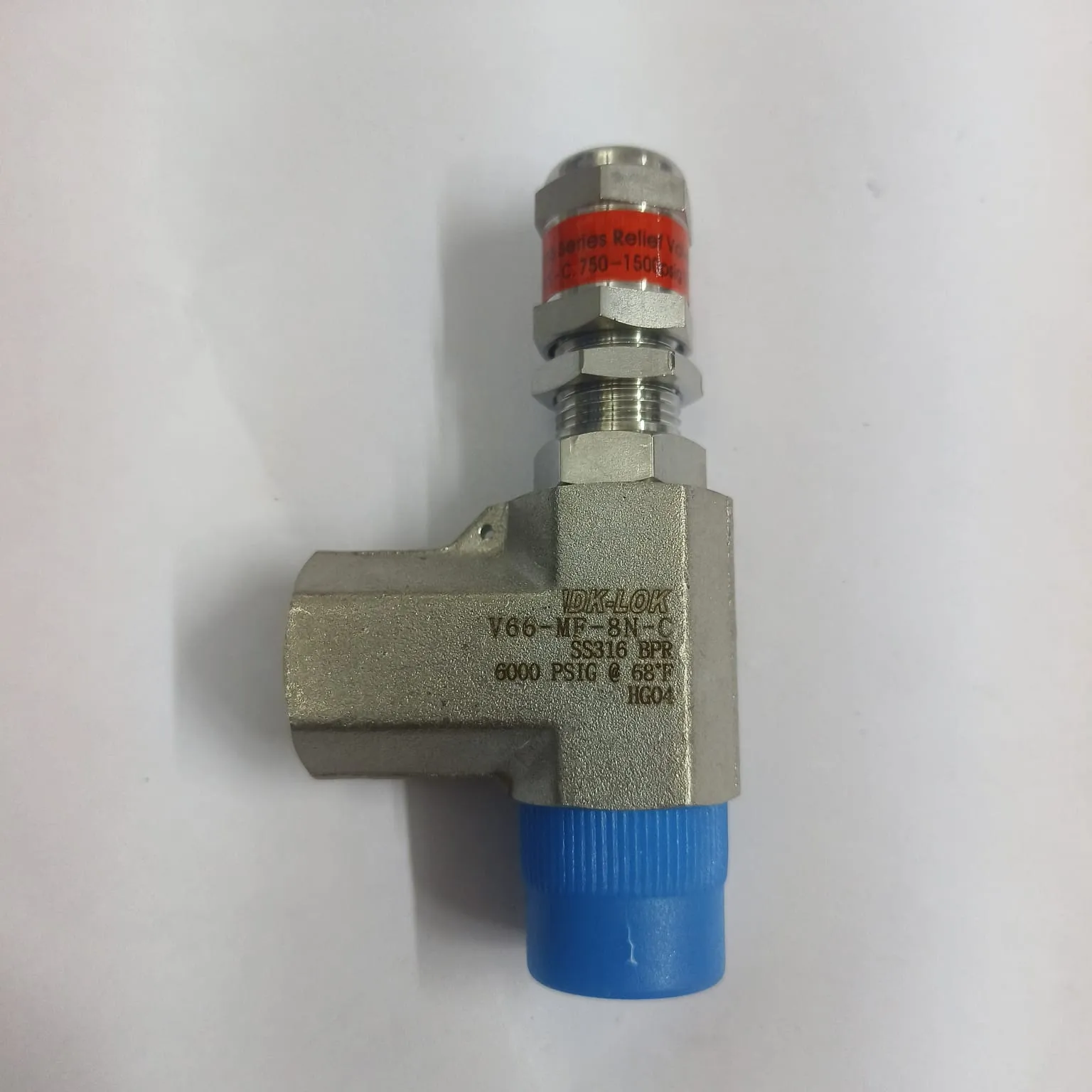

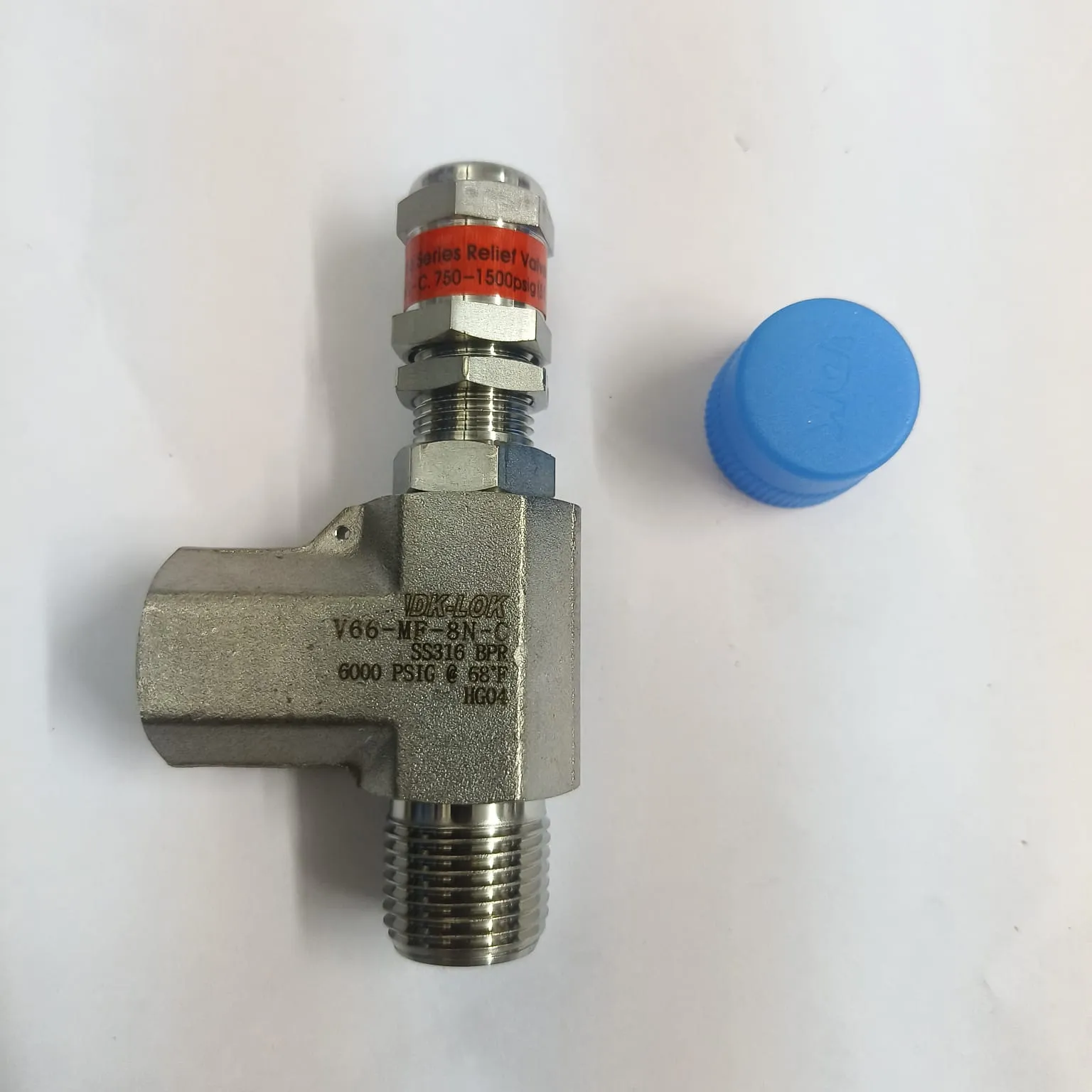

DK-LOK V66 Series Relief Valve, Cracking Pressure 750 to 1500 psig, 1/4" Male x Female NPT Connections, SS316, V66-MF-4N-C
All DK-LOK products
DK-LOK Safety/Pressure Relief Valves
All Safety/Pressure Relief Valves (every brand)
Technical overview
The DK-LOK V66 relief valve is a spring-loaded SS316 safety valve designed to open at the specified cracking pressure and relieve excess pressure to protect downstream equipment. This model is supplied with 1/4" male x female npt connections and is intended for a cracking pressure setting of 750 to 1500 psig. It uses spring designator RVS-C with Clear color code, covering a cracking pressure range of 750 to 1500 psig. The valve can be fine-adjusted within the applicable spring range during installation and is factory tested for cracking and reseal performance.
Key features
- Maximum working pressure up to 6,000 psi
- Cracking pressure range 750 to 1,500 psi
- Clear color-coded spring for pressure identification (spring code RVS-C)
- Spring-loaded relief mechanism for accurate operation
- SS316 stainless steel body for corrosion resistance
- 1/4" Male x Female NPT Connections
- Compact and durable design for industrial service
Applications
- Instrument and gauge protection
- Hydraulic and pneumatic systems
- Test benches and pressure skids
- Process and utility lines
Specifications
SeriesV66 Series
Connection Size1/4" Male x Female NPT
Cracking Pressure Range750 to 1500 psig
Maximum Pressure6,000 psig @ 68°F (413 bar @ 20°C)
Body Material316 stainless steel
Orifice Size3.4 mm (0.13 in.)
AdjustmentAdjustable within spring range
Documentation
DK-LOK-V63-V66-Series-Relief-Valves
Download
