DK-LOK V66 Series Relief Valve, Cracking Pressure 50 to 350 psig, 1/4" Male x Female NPT Connections, SS316, V66-MF-4N-A
Part no. V66-MF-4N-A
In stock, 50 available
| Series | V66 Series |
|---|---|
| Cracking Pressure Range | 2250 to 3000 psig |
| Connection Size | 1/4" Male x Female NPT |
| Maximum Pressure | 6,000 psig @ 68°F (413 bar @ 20°C) |
| Body Material | 316 stainless steel |
| Orifice Size | 3.4 mm (0.13 in.) |
| Adjustment | Adjustable within spring range |
| Seal Material | Viton |
| Part no. | Cracking Pressure Range | Connection Size | Seal Material |
|---|---|---|---|
| V66-MF-4N-B | 350 to 750 psig | 1/4" Male x Female NPT | FKM Viton |
| V66-MF-8N-B | 350 to 750 psig | 1/2" Male x Female NPT | FKM Viton |
| V66-MF-4N-C | 750 to 1500 psig | 1/4" Male x Female NPT | FKM Viton |
| V66-MF-8N-C | 750 to 1500 psig | 1/2" Male x Female NPT | FKM Viton |
| V66-MF-4N-D | 1500 to 2250 psig | 1/4" Male x Female NPT | FKM Viton |
| V66-MF-8N-D | 1500 to 2250 psig | 1/2" Male x Female NPT | FKM Viton |
| V66-MF-4N-E (This part) | 2250 to 3000 psig | 1/4" Male x Female NPT | Viton |
| V66-MF-8N-E | 2250 to 3000 psig | 1/2" Male x Female NPT | FKM Viton |
| V66-MF-4N-F | 3000 to 4000 psig | 1/4" Male x Female NPT | FKM Viton |
| V66-MF-8N-F | 3000 to 4000 psig | 1/2" Male x Female NPT | FKM Viton |
| V66-MF-4N-G | 4000 to 5000 psig | 1/4" Male x Female NPT | FKM Viton |
| V66-MF-8N-G | 4000 to 5000 psig | 1/2" Male x Female NPT | FKM Viton |
| V66-MF-4N-H | 5000 to 6000 psig | 1/4" Male x Female NPT | FKM Viton |

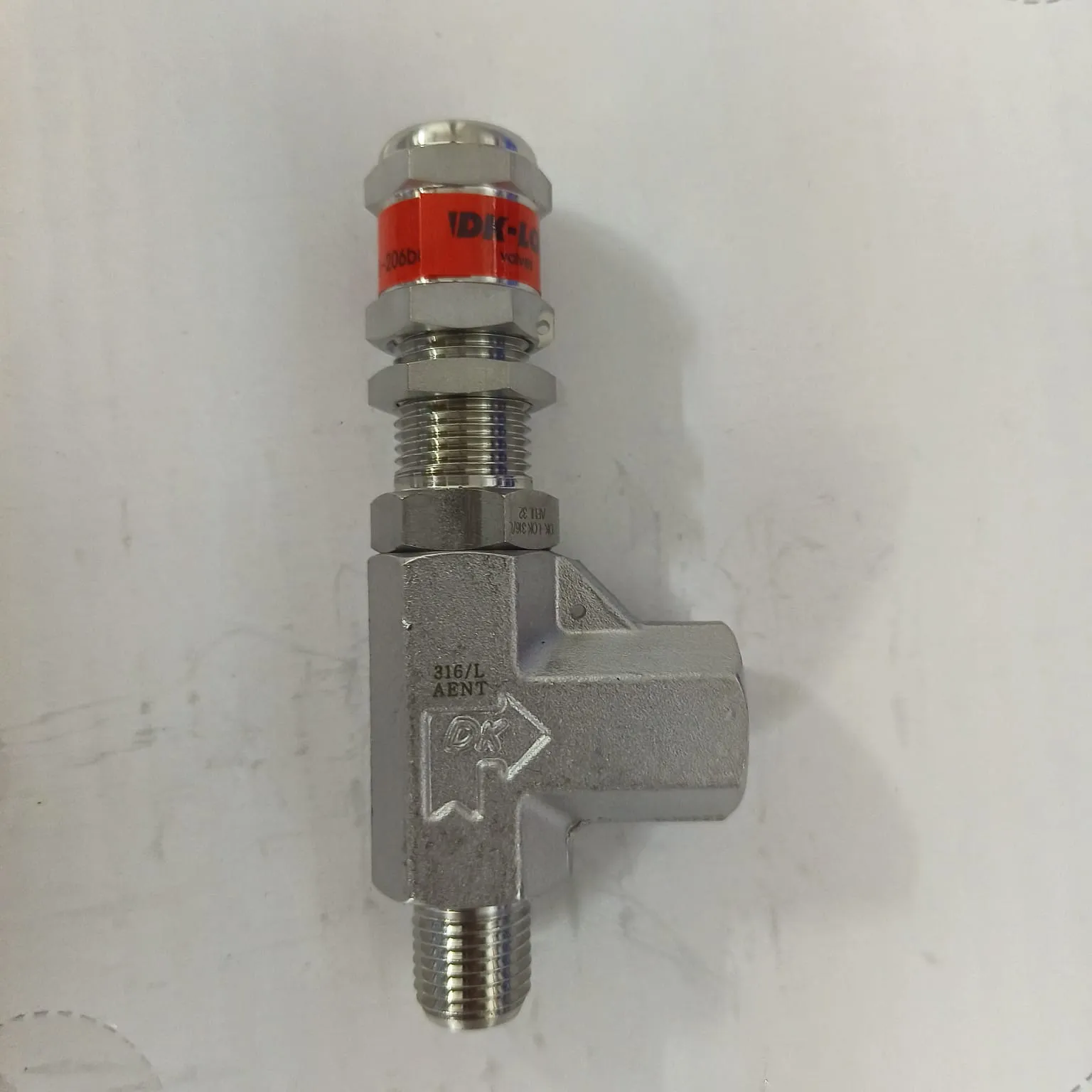

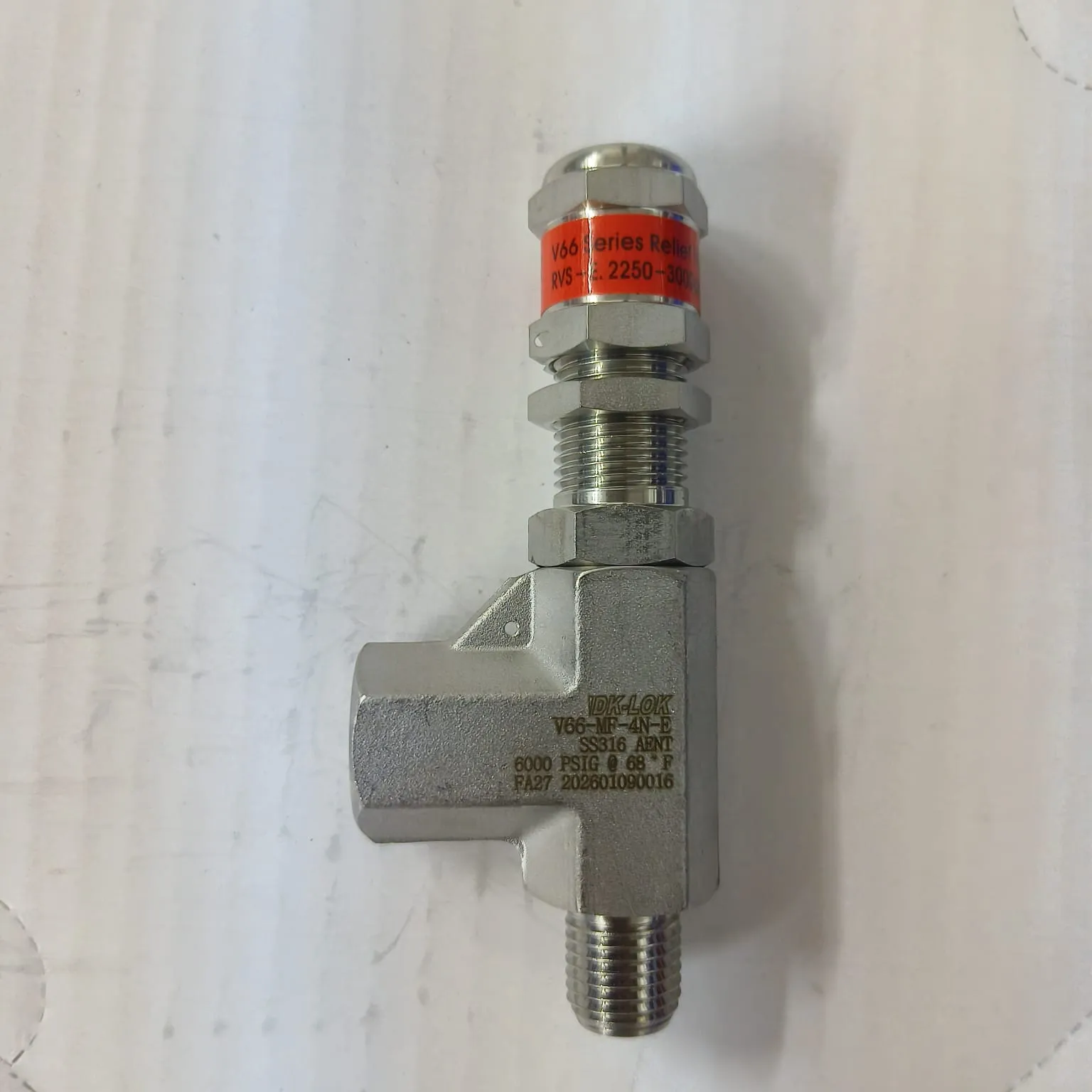

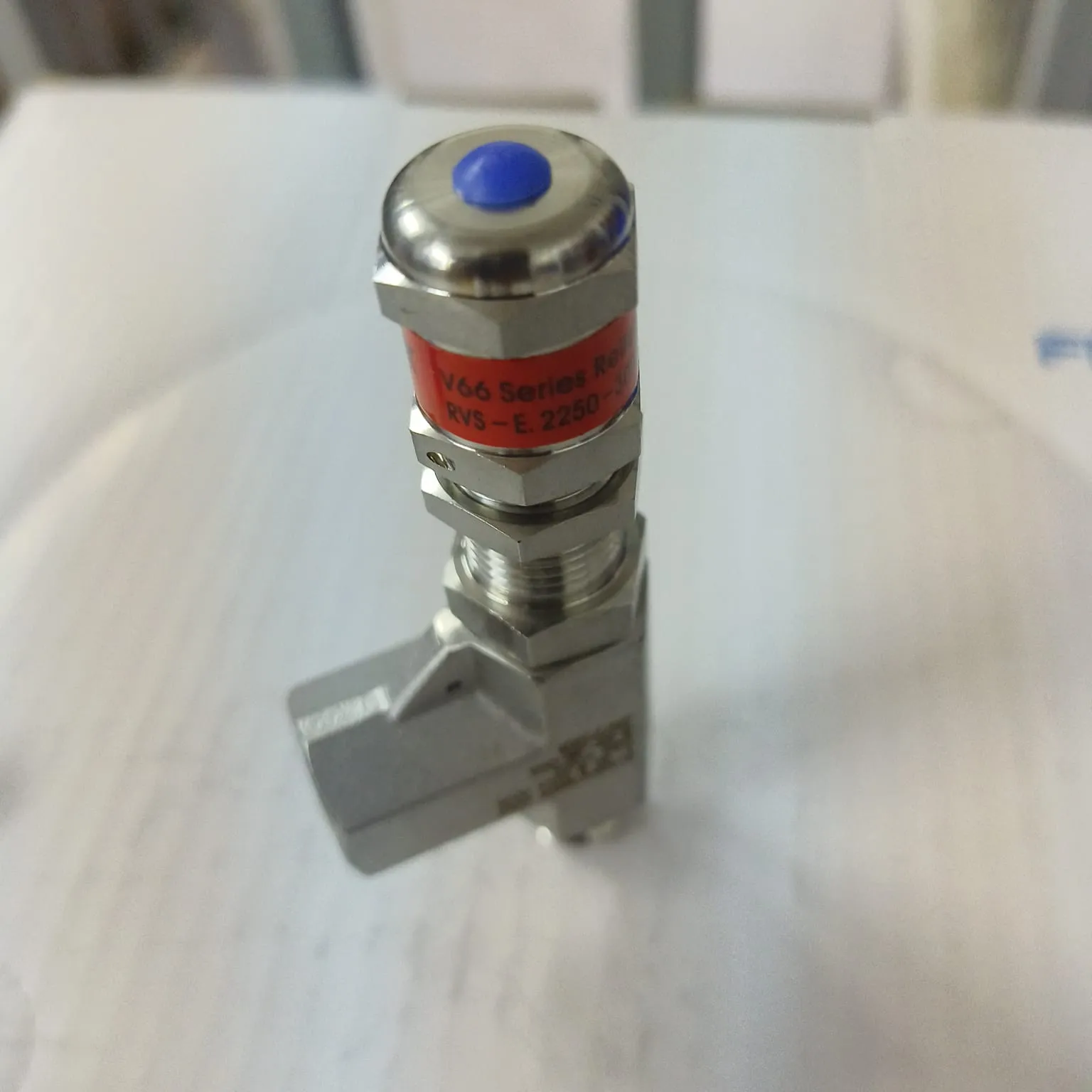

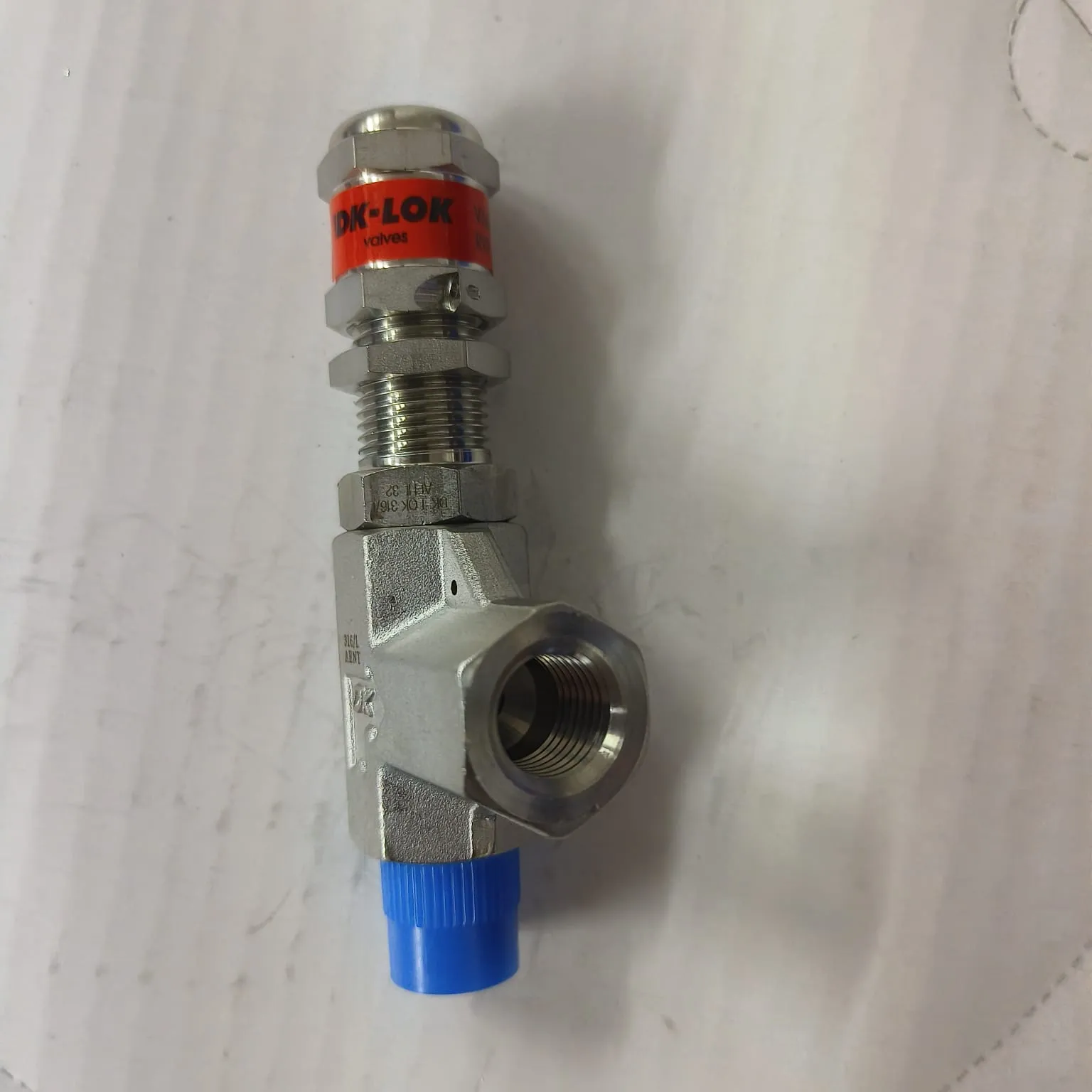

The DK-LOK V66 relief valve is a spring-loaded SS316 safety valve designed to open at the specified cracking pressure and relieve excess pressure to protect downstream equipment. This model is supplied with 1/4" male x female NPT connections and is intended for a cracking pressure setting of 2250 to 3000 psig. It uses spring designator RVS-E with Green color code, covering a cracking pressure range of 2250 to 3000 psig with FKM (Viton) seal. The valve can be fine-adjusted within the applicable spring range during installation and is factory tested for cracking and reseal performance.
DK LOK-V63-V66 Series Relief Valves
PDF, 6.7 MB
