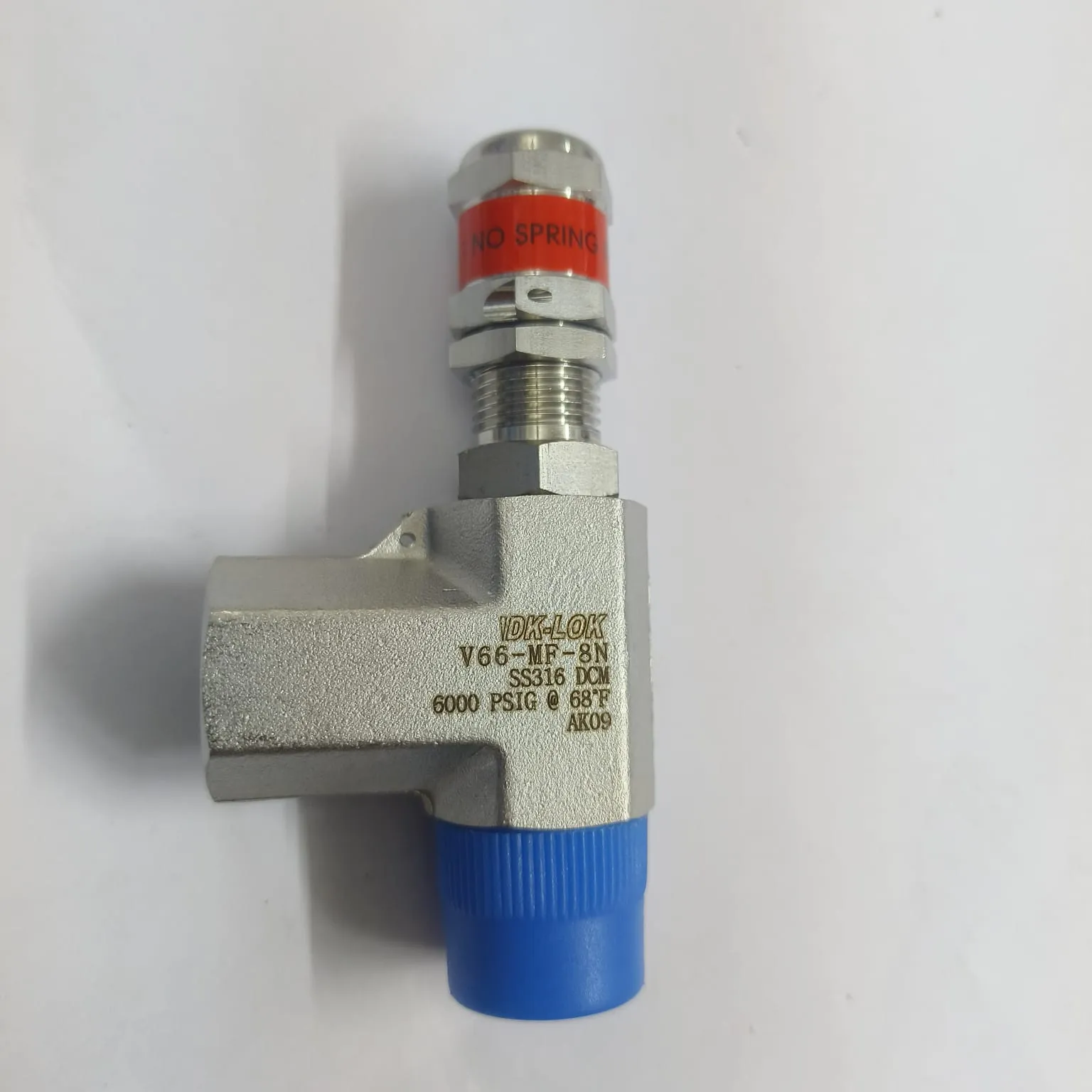

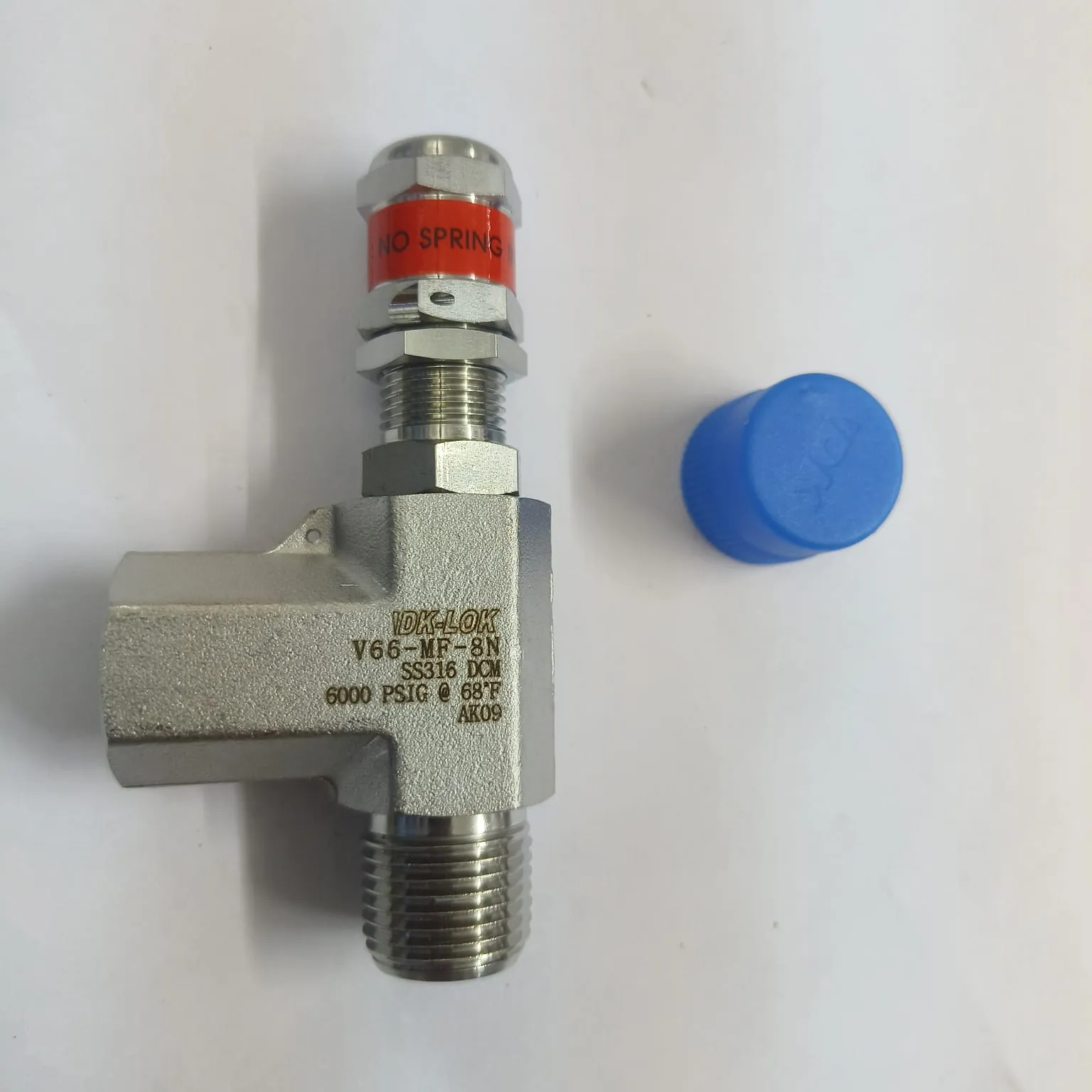

DK-LOK V66 Series Relief Valve, 1/2" Male x Female Connections, No Spring Installed, SS316, V66-MF-8N
All DK-LOK products
DK-LOK Safety/Pressure Relief Valves
All Safety/Pressure Relief Valves (every brand)
Technical overview
DK-LOK V66 series relief valve in SS316 is designed to protect instruments and system components by relieving excess pressure once the cracking pressure is reached. This item is supplied with 1/2" male x female connections and is provided without an installed spring, allowing you to select the required spring designator (RVS-A to RVS-H) based on the desired cracking pressure range and color code. After installing the correct spring, the valve can be fine-adjusted within the spring range during commissioning.
Key features
- Maximum working pressure up to 6,000 psi
- Cracking pressure range within selected spring range
- Spring-loaded relief mechanism for accurate operation
- SS316 stainless steel body for corrosion resistance
- 1/2" Male x Female Connections
- Compact and durable design for industrial service
Applications
- Instrument and gauge protection
- Hydraulic and pneumatic systems
- Test benches and pressure skids
- Process and utility lines
Specifications
SeriesV66 Series
Connection Size1/2" Male x Female NPT
Body Material316 stainless steel
Maximum Pressure6,000 psig @ 68°F (413 bar @ 20°C)
Orifice Size3.4 mm (0.13 in.)
Documentation
DK-LOK-V63-V66-Series-Relief-Valves
Download
