WIKA Pressure Gauge 212.53.100, 0...25 bar, Dual Scale, 4" Dial, 1/2" Male NPT Lower Mount, 39980768
- Mfr. part no.
- 39980768
- SKU
- PW40-00350
Specifications
| Model | 212.53.100 |
|---|---|
| Measuring System | Bourdon Tube |
| Dial Size | 100 mm / 4" |
| Measuring Range | 0...25 bar |
| Secondary Scale | 2nd scale psi |
| Process Connection | 1/2" Male NPT |
| Mounting Position | Lower mount |
| Case Filling | Dry case, prepare for filling |
| Wetted Parts | Copper alloy |
| Case Material | Stainless steel 1.4301 |
| Case Design | Crimp ring case (version 53) |
| Accuracy Class | Class 1.0 |
| Window | Plastic, clear |
Key Features
- Stainless steel case provides strong protection for industrial pressure monitoring.
- 1/2" Male NPT brass lower connection supports common installation points.

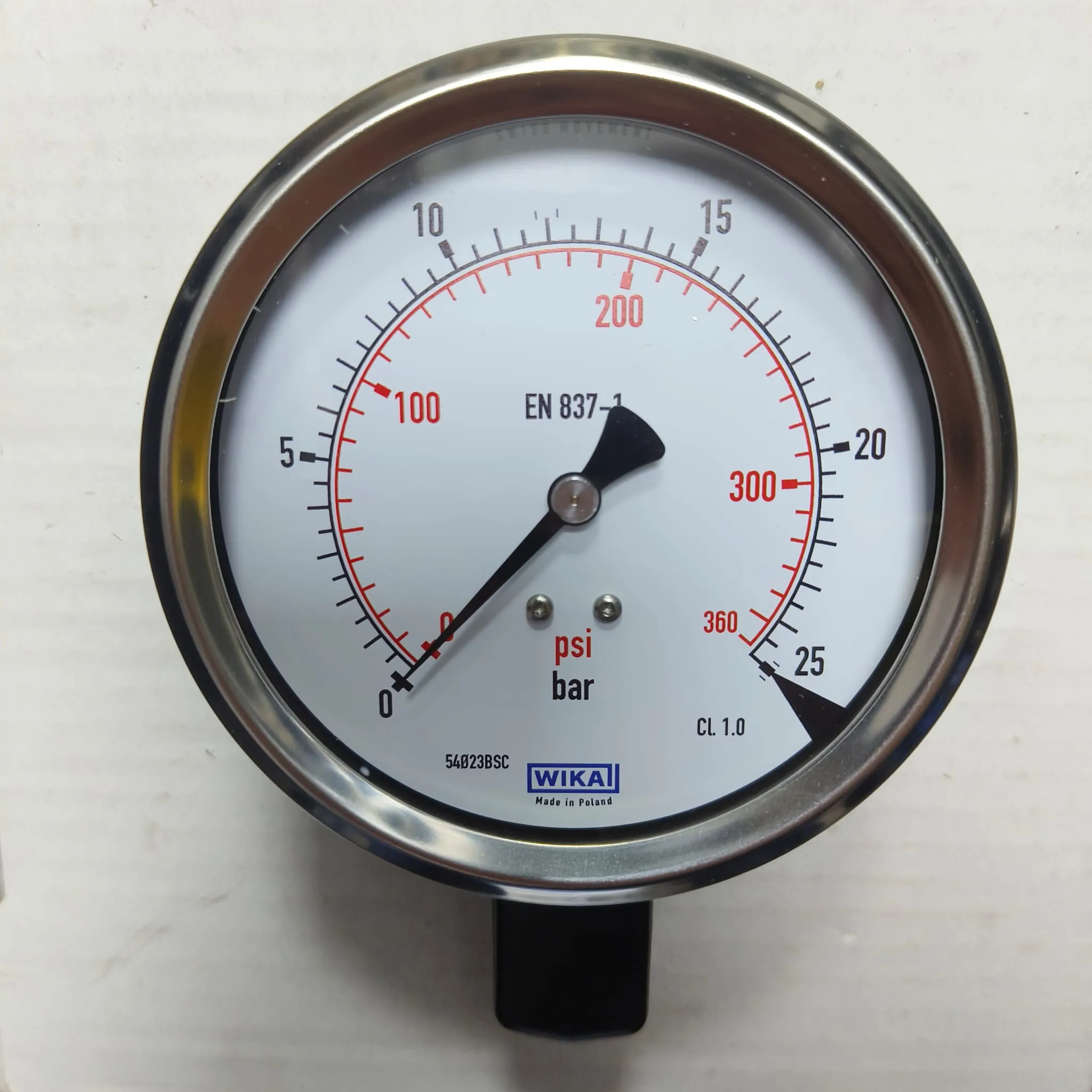

- Dual scale dial shows bar as the primary scale with a red psi secondary scale.
- Prepared for liquid filling to support service with vibration or dynamic pressure loads.
- 100 mm dial and class 1.0 accuracy support clear everyday reading.
- Made in Poland
Description
This WIKA 212.53 bourdon tube pressure gauge is designed for accurate pressure monitoring in hydraulic equipment, compressors, pumps and general industrial systems. It has a 4" dial with a 1/2" Male NPT brass lower connection and a stainless steel case for dependable everyday service. The gauge is prepared for liquid filling, which makes it suitable for installations where vibration resistance may be required. It features a 0...25 bar range with class 1.0 accuracy and a clear dial that is easy to read. The dial shows a black primary bar scale with a red secondary psi scale for quick cross reference. This model is a practical choice for reliable pressure indication across a wide range of industrial duties. This gauge can also marked as WIKA’s current part number 84254734, which corresponds to the exact matching configuration of this product.
Applications
- Hydraulic systems
- Air compressors
- Pump skids
- Industrial utilities
- Vibration service
