WIKA Pressure Gauge 111.10.100, 0...1000 psi / 0...68 bar, Dry Black Plastic Case, 4" Dial, 1/2" Male NPT Lower Mount, 13379985
Part no. 13379985
In stock, 17 available
| Model | 111.10.100 |
|---|---|
| Measuring System | Bourdon Tube |
| Dial Size | 100 mm / 4" |
| Measuring Range | 0...150 psi / 0...10 bar |
| Case Filling | Dry Case |
| Secondary Scale | 2nd scale bar |
| Process Connection | 1/2" Male NPT |
| Mounting Position | Lower mount |
| Accuracy Class | Class 2.5 |
| Wetted Parts | Copper alloy |
| Window | Plastic, clear |
| Case Material | Plastic (Black) |
| Part no. | Measuring Range | Case Material |
|---|---|---|
| 39887314 | 0...15 psi / 0...1 bar | Steel (Black) |
| 31104693 | 0...30 psi / 0...2.0 bar | Steel (Black) |
| 13379748 | 0...60 psi / 0...4 bar | Plastic (Black) |
| 13379799 | 0...100 psi / 0...6.8 bar | Plastic (Black) |
| 39939557 (This part) | 0...150 psi / 0...10 bar | Plastic (Black) |
| 13379802 | 0...160 psi / 0...11 bar | Plastic (Black) |
| 39001837 | 0...200 psi / 0...13.8 bar | Steel (Black) |
| 84200332 | 0...250 psi / 0...17 bar | Steel (Black) |
| 84061039 | 0...300 psi / 0...20 bar | Steel (Black) |
| 13379837 | 0...400 psi / 0...27 bar | Plastic (Black) |
| 39887318 | 0...500 psi / 0...34 bar | Steel (Black) |
| 39887319 | 0...600 psi / 0...40 bar | Steel (Black) |
| 39997881 | 0...800 psi / 0...55 bar | Steel (Black) |

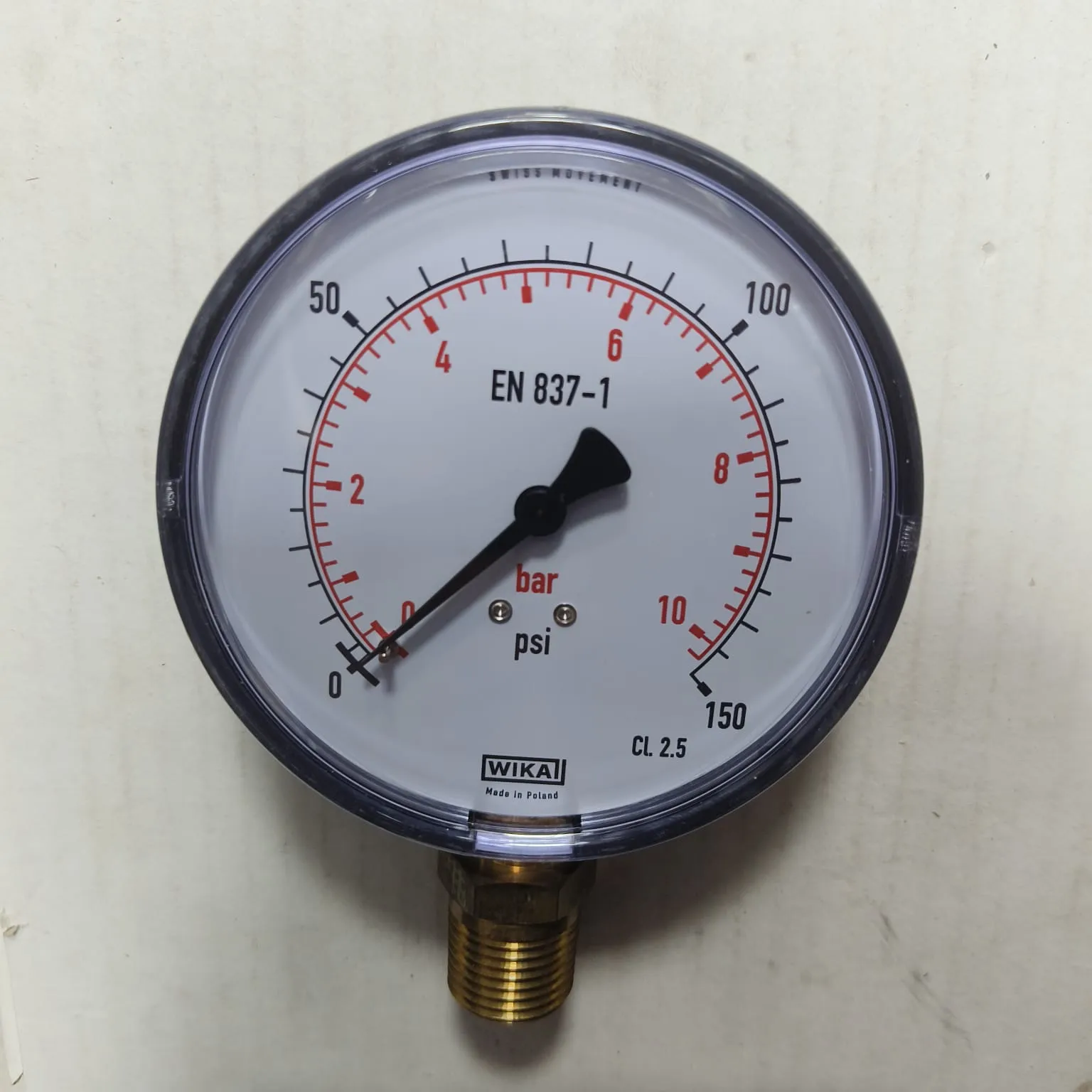

The WIKA 111.10 Bourdon tube pressure gauge with Black Plastic Case is designed for accurate pressure monitoring in hydraulic and pneumatic systems, pumps, compressors, water systems and general industrial equipment. It measures the pressure of gases and liquids that are compatible with copper alloy wetted parts and helps operators monitor system pressure for safe and reliable operation. This model has a 0...150 psi range, a 4" dial and a 1/2" Male NPT lower mount connection. The clear white dial features a black primary psi scale with a red secondary bar scale for quick cross reference. This gauge is a practical choice for dependable everyday pressure indication across a wide range of industrial duties. This gauge can also marked as WIKA’s current part number 84309192, which corresponds to the exact matching configuration of this product.
