Bourdon Tube Pressure Gauges
WIKA Pressure Gauge 111.10.063, 0...800 psi / 0...50 bar, Dry Black Plastic Case, 2.5" Dial, 1/4" Male NPT Lower Mount, 13378997
WIKA

WIKA Pressure Gauge 111.10.063, 0...800 psi / 0...50 bar, Dry Black Plastic Case, 2.5" Dial, 1/4" Male NPT Lower Mount, 13378997

Mfr. part no.
13378997
SKU
PWD25-0800

Specifications

Model 111.10.063
Measuring System Bourdon Tube
Dial Size 63 mm / 2.5"
Measuring Range 0...800 psi / 0...50 bar
Case Filling Dry Case
Secondary Scale 2nd scale bar
Process Connection 1/4" Male NPT
Mounting Position Lower mount
Accuracy Class Class 2.5
Wetted Parts Copper alloy
Window Plastic, clear
Case Material Plastic (Black)

Key Features

  • Bourdon tube pressure gauge for general industrial service.
  • Black Plastic Case provides a lightweight and practical everyday design.
  • 1/4" Male NPT lower mount connection suits common installation points.
  • Dual scale dial shows psi as the primary scale with a red secondary bar scale.
  • 63 mm / 2.5" dial size with Class 2.5 accuracy supports clear local indication.
  • Copper alloy wetted parts and clear plastic window support dependable everyday use.
  • Made in Poland

Other versions in this series

Other versions in this series
Part no. Measuring Range Case Material
39939547 0...200 psi / 0...14 bar Plastic (Black)
84060152 0...250 psi / 0...17 bar Steel (Black)
84254750 0...300 psi / 0...20 bar Steel (Black)
39001836 0...400 psi / 0...27 bar Steel (Black)
39744701 0...500 psi / 0...34 bar Steel (Black)
13378971 0...600 psi / 0...40 bar Plastic (Black)
13378997 (This part) 0...800 psi / 0...50 bar Plastic (Black)
13379021 0...1000 psi / 0...70 bar Plastic (Black)
13379055 0...1500 psi / 0...100 bar Plastic (Black)
39939548 0...2000 psi / 0...140 bar Plastic (Black)
84029441 0...3000 psi / 0...200 bar Steel (Black)
84029442 0...4000 psi / 0...270 bar Steel (Black)
39997879 0...6000 psi / 0...400 bar Steel (Black)

Description

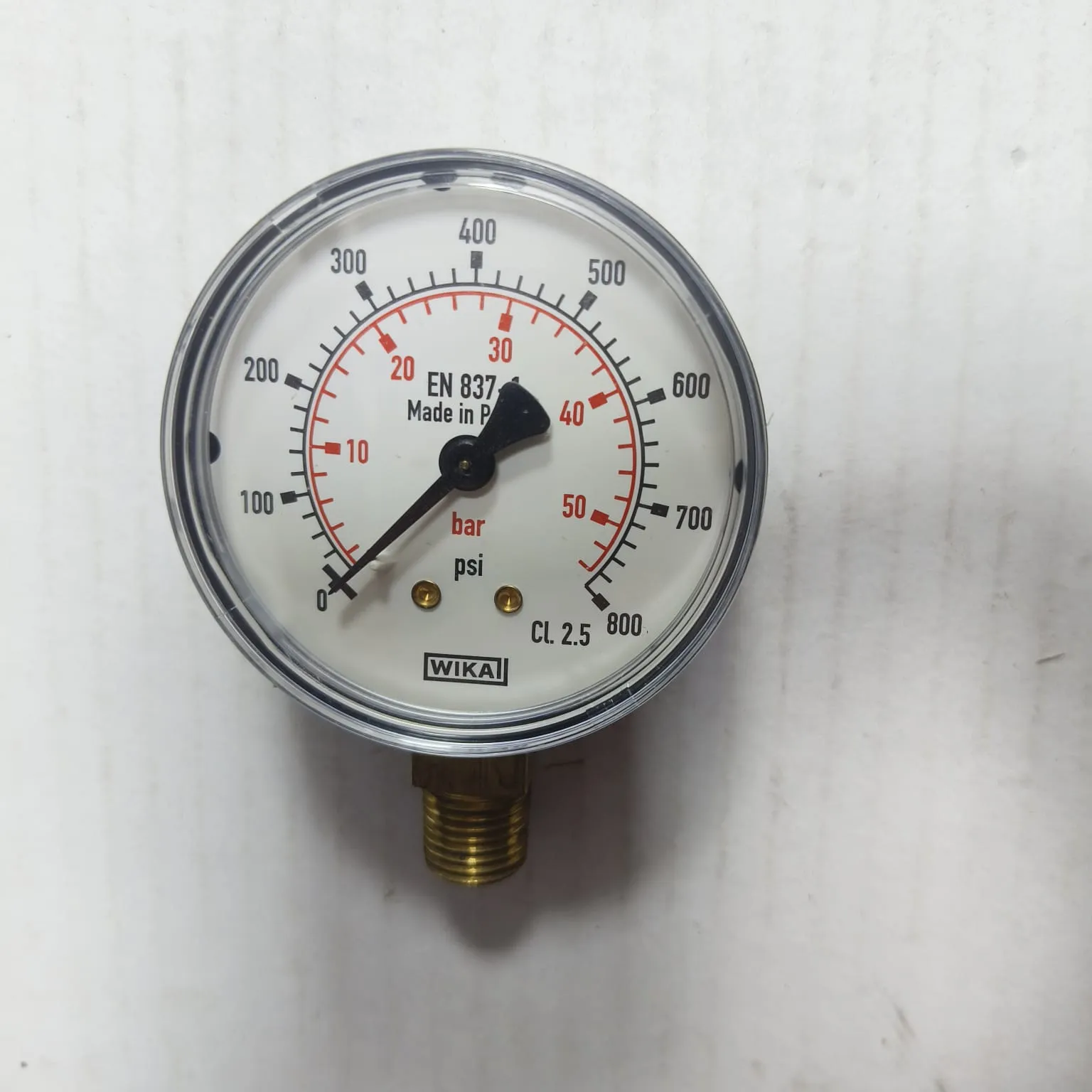

The WIKA 111.10 Bourdon tube pressure gauge with Black Plastic Case is designed for accurate pressure monitoring in hydraulic and pneumatic systems, pumps, compressors, water systems and general industrial equipment. It measures the pressure of gases and liquids that are compatible with copper alloy wetted parts and helps operators monitor system pressure for safe and reliable operation. This model has a 0...800 psi range, a 2.5" dial and a 1/4" Male NPT lower mount connection. The clear white dial features a black primary psi scale with a red secondary bar scale for quick cross reference. This gauge is a practical choice for dependable everyday pressure indication across a wide range of industrial duties. This gauge can also marked as WIKA’s current part number 84309186, which corresponds to the exact matching configuration of this product.

Applications

  • Hydraulic systems
  • Pneumatic systems
  • Pumps
  • Compressors
  • Water systems
  • Regulators

Documents

  • Wika Datasheet-84309186

    PDF, 53 KB

  • Wika Pressure Gauge Black-111.10 — Datasheet

    PDF, 418 KB
