WIKA Pressure Gauge 111.10.063, 0...1500 psi, Dry Black Plastic Case, Dual Scale, 2.5" Dial, 1/4" Male NPT Lower Mount, 13379055
Technical overview
The WIKA 111.10 Bourdon tube pressure gauge with Black Plastic Case is designed for accurate pressure monitoring in hydraulic and pneumatic systems, pumps, compressors, water systems and general industrial equipment. It measures the pressure of gases and liquids that are compatible with copper alloy wetted parts and helps operators monitor system pressure for safe and reliable operation. This model has a 0...1500 psi range, a 2.5" dial and a 1/4" Male NPT lower mount connection. The clear white dial features a black primary psi scale with a red secondary bar scale for quick cross reference. This gauge is a practical choice for dependable everyday pressure indication across a wide range of industrial duties. This gauge can also marked as WIKA’s current part number 84309188, which corresponds to the exact matching configuration of this product.
Key Features
- Bourdon tube pressure gauge for general industrial service.
- Black Plastic Case provides a lightweight and practical everyday design.
- 1/4" Male NPT lower mount connection suits common installation points.

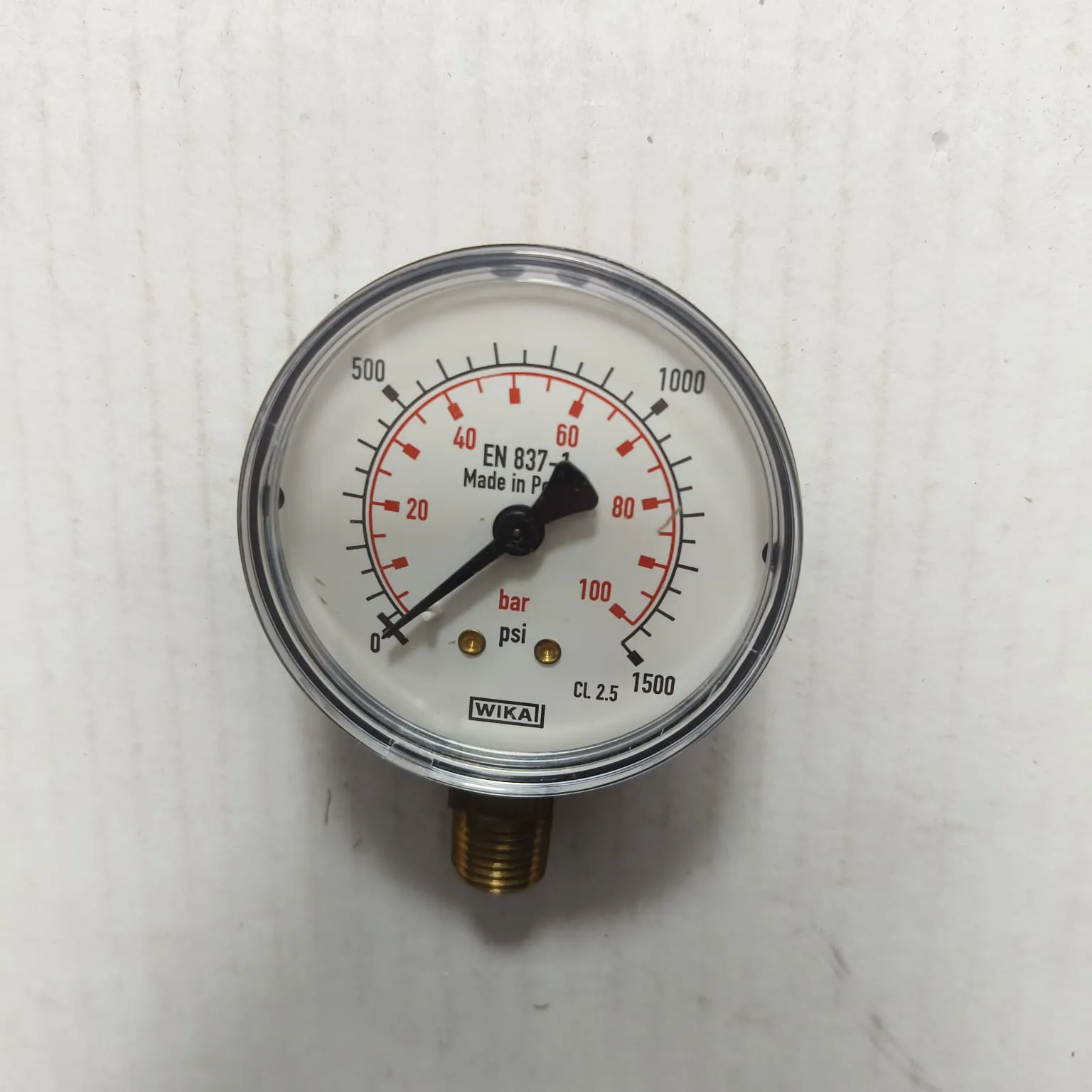

- Dual scale dial shows psi as the primary scale with a red secondary bar scale.
- 63 mm / 2.5" dial size with Class 2.5 accuracy supports clear local indication.
- Copper alloy wetted parts and clear plastic window support dependable everyday use.
- Made in Poland
Applications
- Hydraulic systems
- Pneumatic systems
- Pumps
- Compressors
- Water systems
- Regulators
Specifications
Model111.10.063
Measuring SystemBourdon Tube
Dial Size63 mm / 2.5"
Measuring Range0...1500 psi
Case FillingDry Case
Secondary Scale2nd scale bar
Process Connection1/4" Male NPT
Mounting PositionLower mount
Accuracy ClassClass 2.5
Wetted PartsCopper alloy
WindowPlastic, clear
Case MaterialPlastic (Black)
