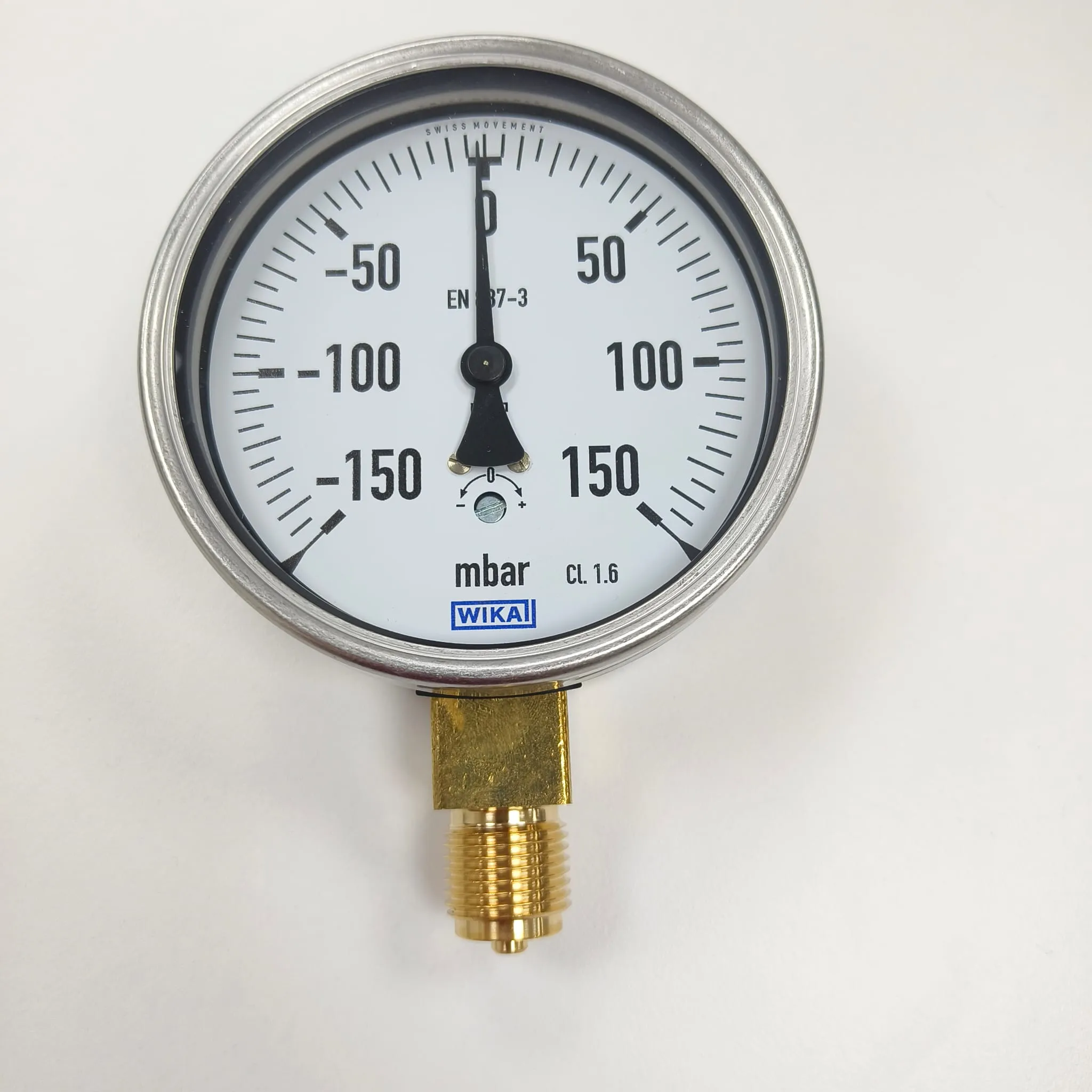

WIKA Compound Capsule Pressure Gauge Model 612.20.100, -150 to 150 mbar, 4" Dial, G 1/2" BSPP Thread, Lower Mount, 40014398
WIKA

WIKA Compound Capsule Pressure Gauge Model 612.20.100, -150 to 150 mbar, 4" Dial, G 1/2" BSPP Thread, Lower Mount, 40014398

Mfr. part no.
40014398
SKU
PW40-MBAR-150+150

Specifications

Dial Size 100 mm / 4"
Measuring Range -150...150 mbar
Accuracy Class Class 1.6 to EN 837-3
Pressure Gauge Standard International standard Europe
Wetted Parts Copper alloy
Case Material Stainless steel case with cam-ring (bayonet) bezel
Window flat instrument glass

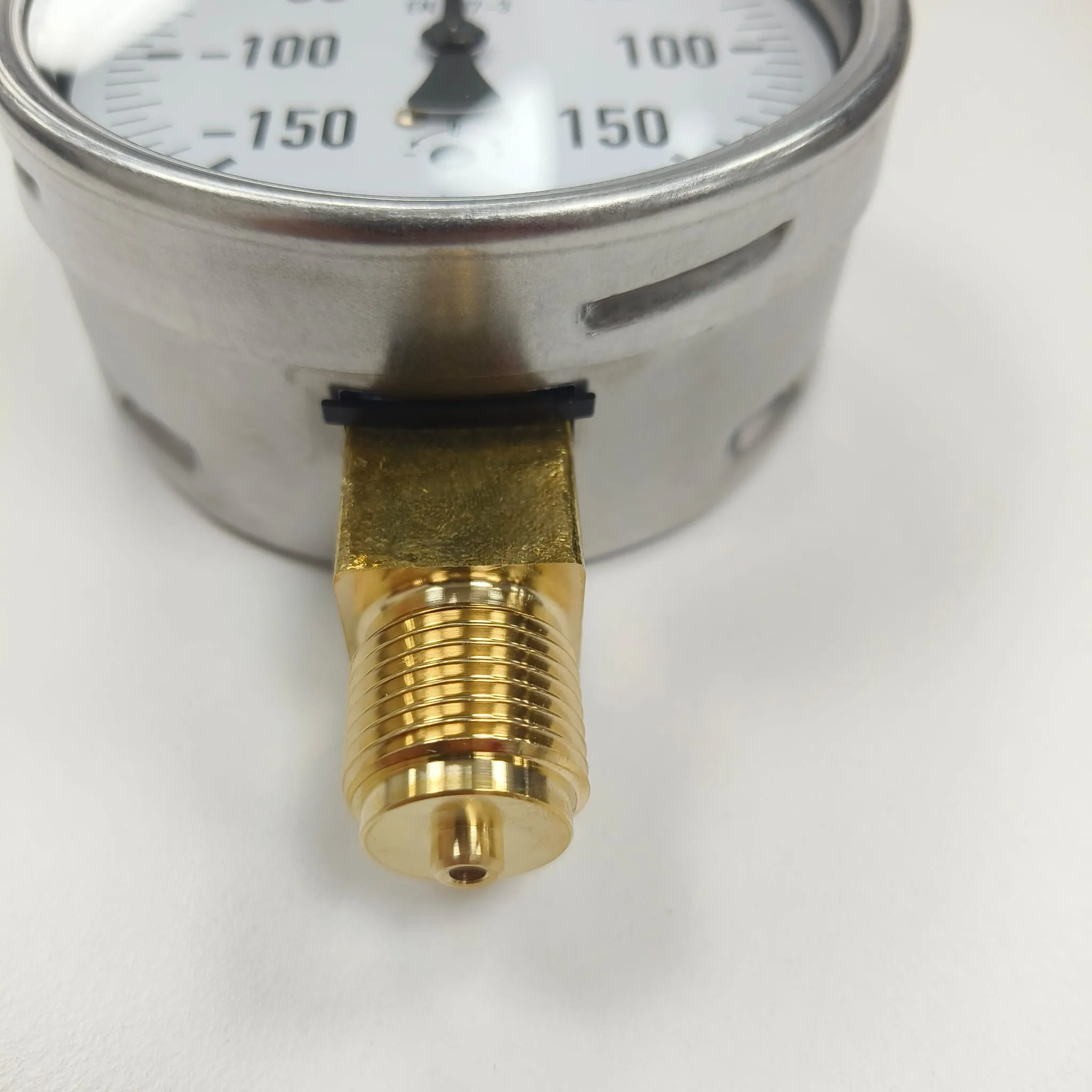

Process Connection G 1/2" Male (BSPP Thread)
Mounting Position Lower mount
Ambient Temperature Range -20...+60 °C
Ingress Protection IP54
Media Compatibility Dry, non-aggressive gases that do not corrode copper alloy

Key Features

  • Capsule pressure gauge, industrial series model 612.20.100 for ultra-low pressures
  • Copper alloy capsule measuring system for dry, non-aggressive gases
  • Stainless steel case with cam-ring (bayonet) bezel and flat glass window
  • Accuracy class 1.6 to EN 837-3
  • Typical ambient temperature -20…+60 °C, medium temperature up to +100 °C
  • High resolution at low pressures for accurate draft and level indication
  • Made in Switzerland.

Description

WIKA capsule pressure gauge model 612.20.100 is designed for stable indication of very low pressures and vacuum using a proven capsule measuring system where capsule expansion is transmitted to the movement and displayed on the dial. It is intended for gaseous, dry and non aggressive media and is commonly used in medical, vacuum, environmental and laboratory duties as well as contents measurement and filter monitoring. The instrument is built with a stainless steel case and bayonet bezel for durable everyday service, while the process connection is made from copper alloy and supplied as a G 1/2 B BSPP Thread bottom mount for standard installation. This configuration provides a clear NS 100 dial with a -150 to 150 mbar vacuum and pressure scale, front zero point correction for quick setting during commissioning, IP54 ingress protection, EN 837-3 design marking and accuracy class 1.6 for dependable local indication.

Applications

  • Draft and chimney pressure monitoring in boilers, heaters and flues
  • Filter and blower differential pressure indication at very low pressures
  • Sensitive low-pressure pneumatic control and monitoring
  • Laboratory and environmental monitoring of ultra-low gas pressures

Documents

  • Wika Datasheet-40014398

    PDF, 46 KB

  • Wika-612.20 Model — Datasheet

    PDF, 575 KB

  • Wika Operating Instructions-612.20 Model

    PDF, 248 KB

  • Wika-612.20 Model Technical Data

    PDF, 604 KB
