Capsule Pressure Gauges
Wika Capsule Pressure Gauge Model 612.20.100, 0...60 mbar / 0...600 mmWC, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272199
WIKA

Wika Capsule Pressure Gauge Model 612.20.100, 0...60 mbar / 0...600 mmWC, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272199

Mfr. part no.
84272199
SKU
PW40-MBAR-060

Specifications

Measuring Range 0...60 mbar
Dial Size 100 mm / 4"
Process Connection 1/2" Male NPT
Accuracy Class Class 1.6 to EN 837-3
Case Material Stainless steel case with cam-ring (bayonet) bezel
Wetted Parts Copper alloy
Window Flat instrument glass
Ambient Temperature Range -20...+60 °C
Ingress Protection IP54
Media Compatibility Dry, non-aggressive gases that do not corrode copper alloy
Mounting Position Lower mount

Key Features

  • Capsule pressure gauge, industrial series model 612.20.100 for ultra-low pressures

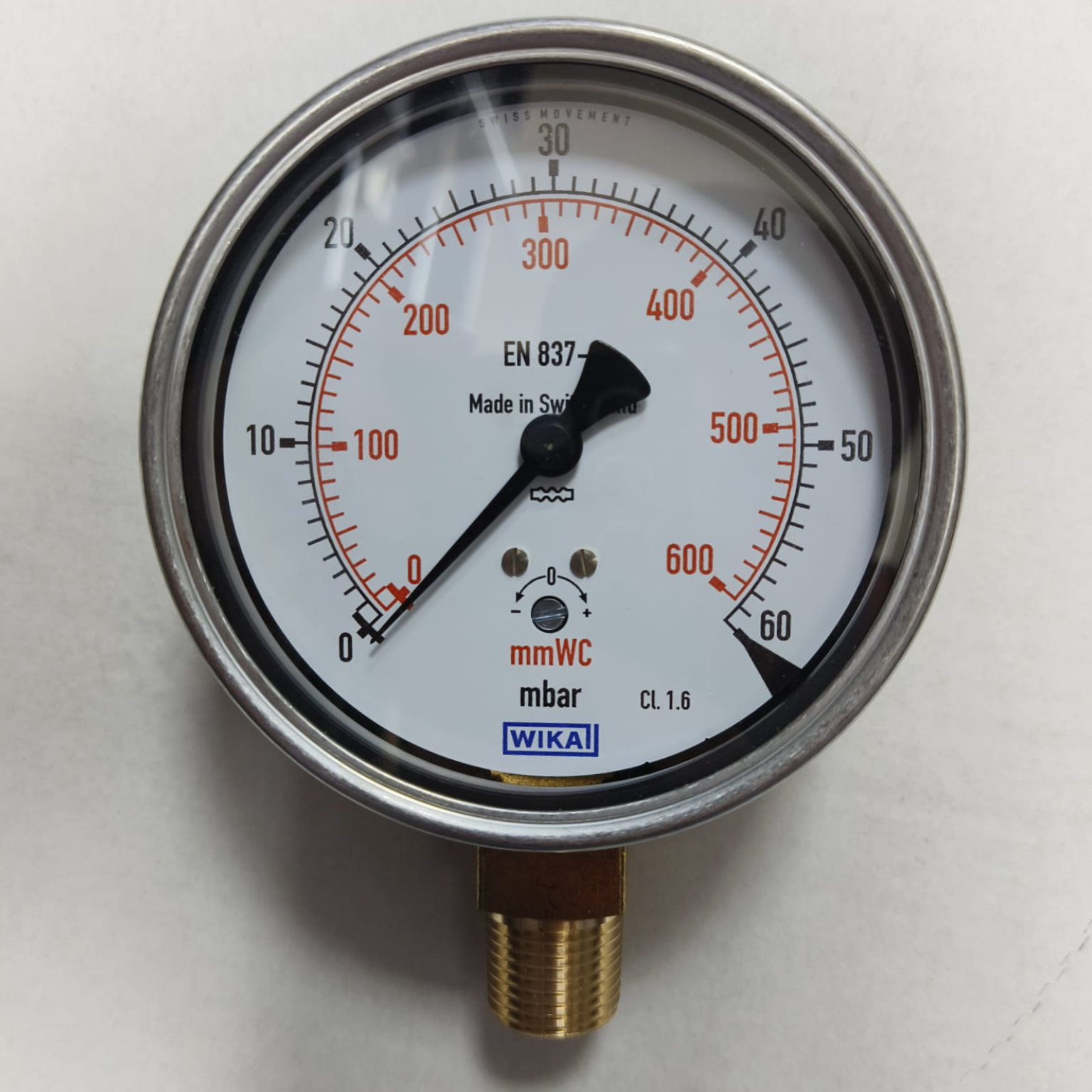

  • Dual scale 0…60 mbar primary & secondary scale mmWC (red).
  • 1/2" NPT lower Mount process connection
  • Copper alloy capsule measuring system for dry, non-aggressive gases
  • Stainless steel case with cam-ring (bayonet) bezel and flat glass window
  • Accuracy class 1.6 to EN 837-3
  • Typical ambient temperature -20…+60 °C, medium temperature up to +100 °C
  • High resolution at low pressures for accurate draft and level indication
  • Made in Switzerland.

Description

WIKA 612.20.100 capsule pressure gauge specially for very low-pressure measurement from 0…60 mbar / 0...600 mmWC. The copper alloy capsule element is particularly sensitive in this range and is suitable for dry, non-aggressive gases. The 100 mm dial shows a 0…60 mbar primary scale with red mmWC secondary scale, giving excellent resolution for fine draft and low-pressure readings. A stainless steel case with bayonet (cam-ring) bezel and flat instrument glass protects the movement and capsule, while the 1/2" NPT lower Mount process connection enables straightforward installation on manifolds, ducts or impulse lines. In line with EN 837-3, the gauge achieves class 1.6 accuracy and typical ambient and medium temperature ranges of -20…+60 °C and up to +100 °C respectively. This configuration is ideal for sensitive draft measurement, filter and blower supervision and level indication at very low pressures.

Typical Applications

  • Draft and chimney pressure monitoring in boilers, heaters and flues
  • Filter and blower differential pressure indication at very low pressures
  • Sensitive low-pressure pneumatic control and monitoring
  • Level measurement in open tanks using mmWC indication at low ranges
  • Laboratory and environmental monitoring of ultra-low gas pressures

Documents

  • Wika Datasheet-84272199

    PDF, 46 KB

  • Wika-612.20 Model — Datasheet

    PDF, 575 KB

  • Wika-612.20 Model Technical Data

    PDF, 604 KB

  • Wika Pressure Gauge Operating — Instructions

    PDF, 383 KB
