Capsule Pressure Gauges

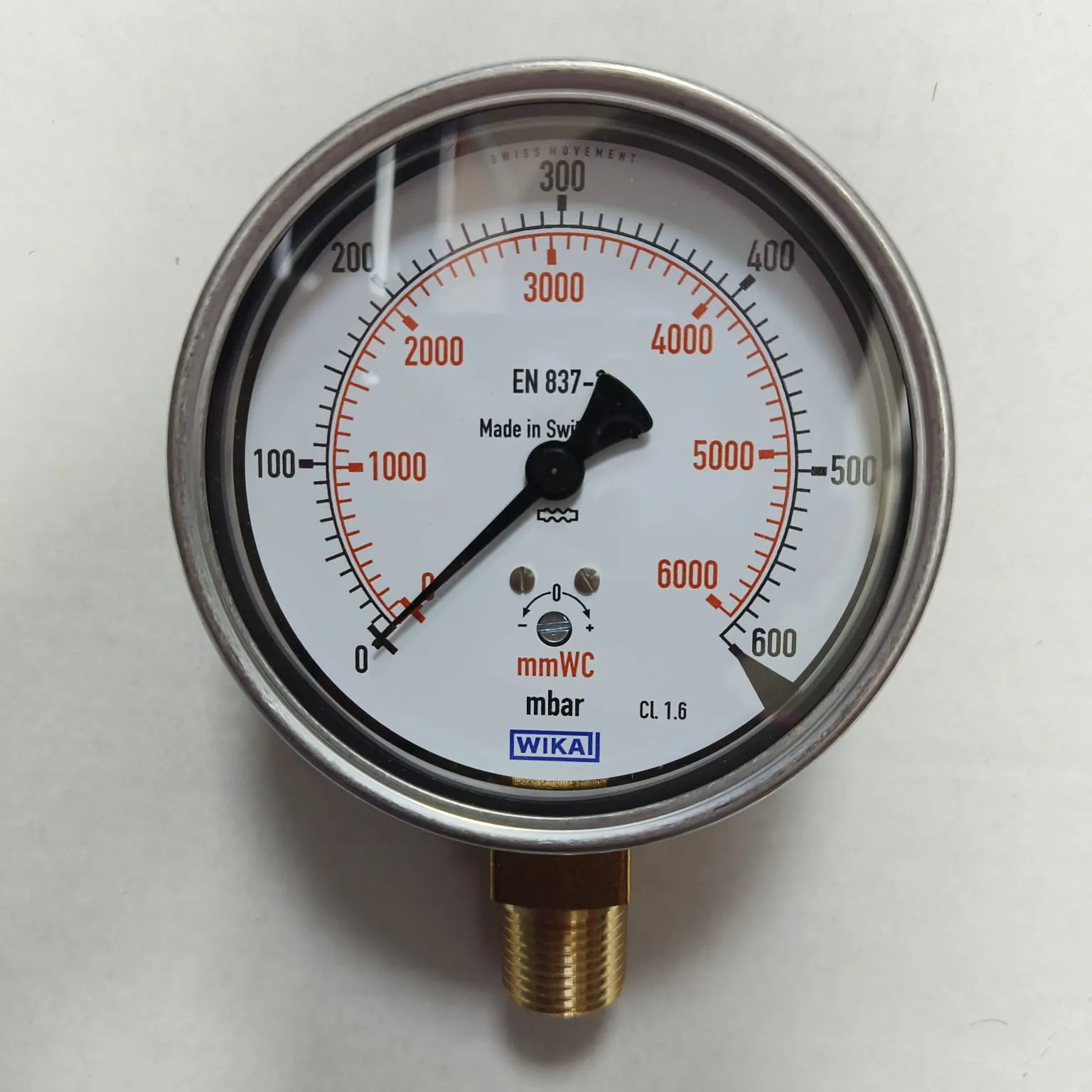

Wika Capsule Pressure Gauge Model 612.20.100, 0...600 mbar / 0...6000 mmWC, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272195
WIKA

Wika Capsule Pressure Gauge Model 612.20.100, 0...600 mbar / 0...6000 mmWC, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272195

Mfr. part no.
84272195
SKU
PW40-MBAR-600

Specifications

Measuring Range 0...600 mbar
Dial Size 100 mm / 4"
Process Connection 1/2" Male NPT
Accuracy Class Class 1.6 to EN 837-3
Case Material Stainless steel case with cam-ring (bayonet) bezel
Wetted Parts Copper alloy
Window Flat instrument glass
Ambient Temperature Range -20...+60 °C
Ingress Protection IP54
Media Compatibility Dry, non-aggressive gases that do not corrode copper alloy
Mounting Position Lower mount

Key Features

  • Capsule pressure gauge, industrial series model 612.20.100 for ultra-low pressures
  • Dual scale 0…600 mbar primary & secondary scale mmWC (red).
  • 1/2" NPT lower Mount process connection
  • Copper alloy capsule measuring system for dry, non-aggressive gases
  • Stainless steel case with cam-ring (bayonet) bezel and flat glass window
  • Accuracy class 1.6 to EN 837-3
  • Typical ambient temperature -20…+60 °C, medium temperature up to +100 °C
  • High resolution at low pressures for accurate draft and level indication
  • Made in Switzerland.

Description

The WIKA 612.20.100 capsule pressure gauge extends the industrial low-pressure series to a 0…600 mbar / 0...6000 mmWC range for higher low-pressure applications. The copper alloy capsule measuring system is designed specifically for low over-pressures of dry, non-aggressive gases and transmits the applied pressure to a precision pointer mechanism. A 100 mm dial with 0…600 mbar primary scale and red mmWC secondary scale provides clear reading of pressure in both units. The gauge features a stainless steel case with cam-ring (bayonet) bezel, flat instrument glass window and 1/2" NPT lower Mount process connection, offering robust mechanical protection and easy installation. In accordance with EN 837-3, the instrument achieves accuracy class 1.6 and typical temperature limits of -20…+60 °C ambient and up to +100 °C medium. These characteristics make it suitable for filter monitoring, low-pressure gas distribution and level indication in process, HVAC and environmental systems.

Typical Applications

  • Draft and chimney pressure monitoring in boilers, heaters and flues
  • Filter and blower differential pressure indication at very low pressures
  • Sensitive low-pressure pneumatic control and monitoring
  • Level measurement in open tanks using mmWC indication at low ranges
  • Laboratory and environmental monitoring of ultra-low gas pressures

Documents

  • Wika Datasheet-84272195

    PDF, 47 KB

  • Wika-612.20 Model — Datasheet

    PDF, 575 KB

  • Wika-612.20 Model Technical Data

    PDF, 604 KB

  • Wika Pressure Gauge Operating — Instructions

    PDF, 383 KB
