Pneumatic Cylinders

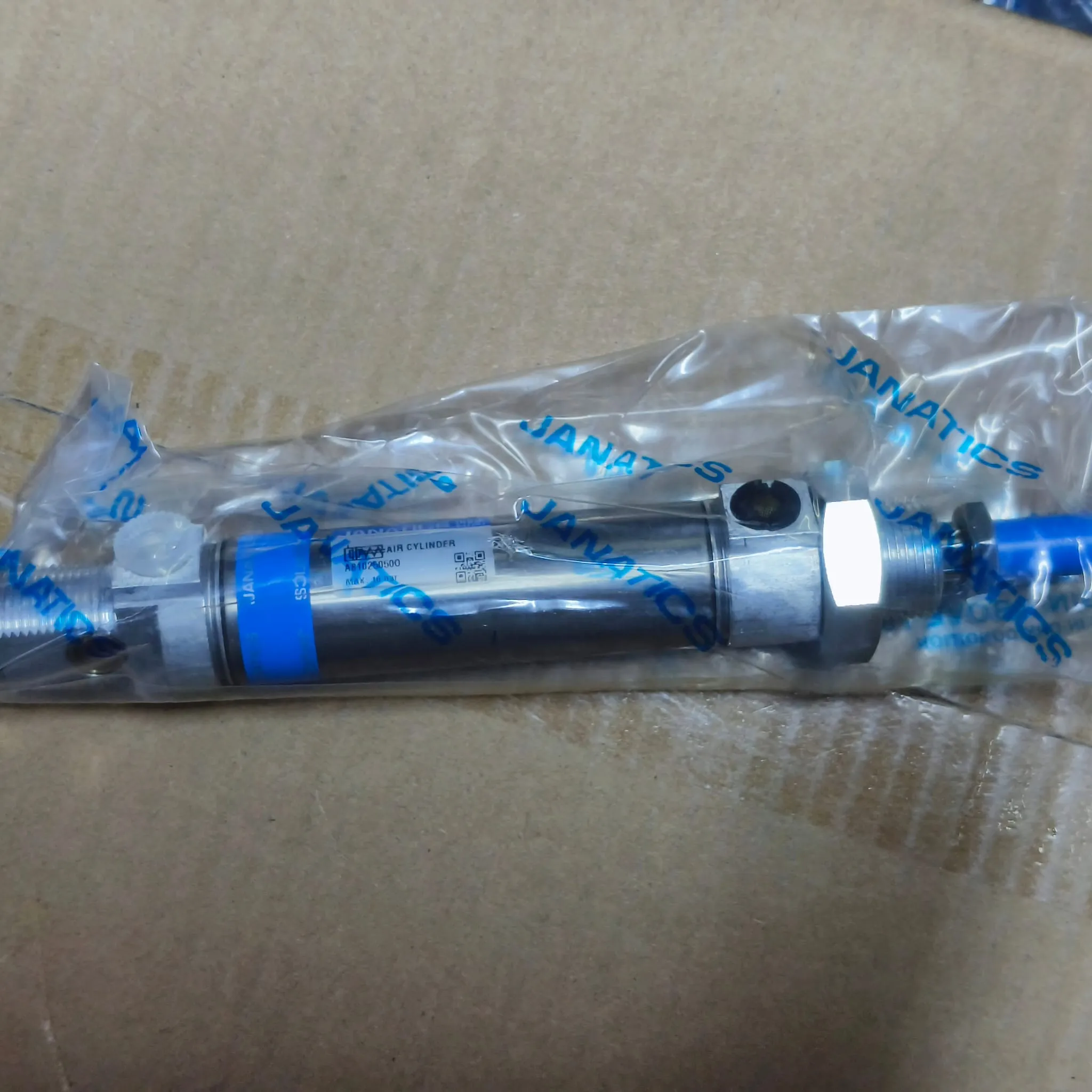

Janatics A81 Series Miniature Pneumatic Cylinder, Bore Diameter 25 mm, Stroke 50 mm, Single Acting, Front Spring, Non-Magnetic Piston, A81025050O
Janatics

Janatics A81 Series Miniature Pneumatic Cylinder, Bore Diameter 25 mm, Stroke 50 mm, Single Acting, Front Spring, Non-Magnetic Piston, A81025050O

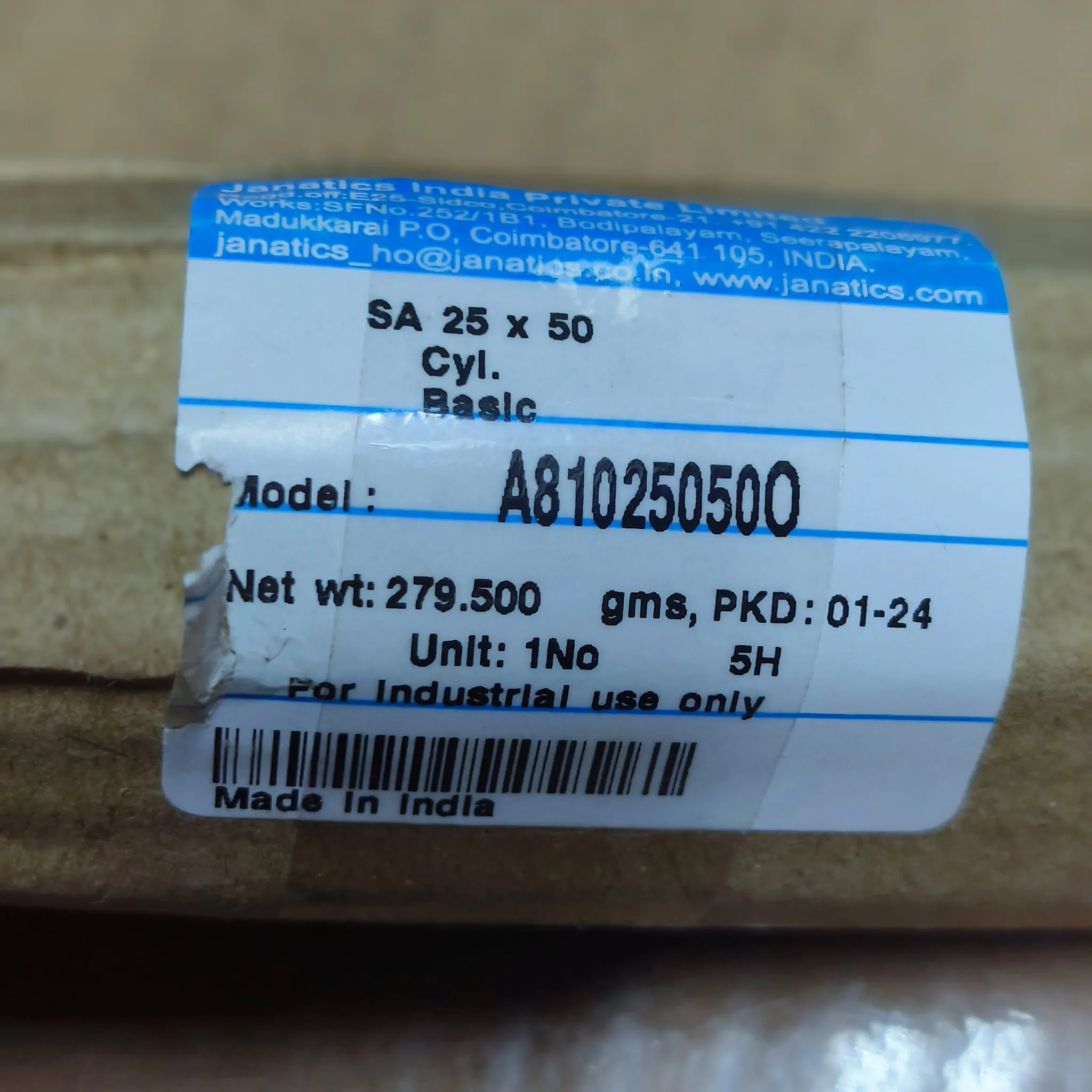

Mfr. part no.
A81025050O
SKU
PN-CYLA810-2550

Specifications

Series A81 Series
Port Size G1/8
Bore Diameter 25 mm
Stroke Length 50 mm
Action Type Single Acting, Front Spring
Piston Type Non-Magnetic Piston
Cushioning Elastomer End Cushioning
Working Pressure Range 2 to 10 bar
Ambient Temperature Range -10 °C to +60 °C
Piston Rod Diameter 10 mm
Piston Rod End M10 × 1.25 Thread
Compliance Standards ISO 6432 / CETOP RP52P

Key Features

  • Single acting front-spring operation suits compact mechanisms requiring spring-assisted movement.
  • Crimped miniature cylinder body helps save space in small machine layouts.
  • Elastomer end cushioning reduces impact during operation.
  • ISO 6432 / CETOP RP52P style design supports common miniature-cylinder mounting practice.
  • Designed for filtered and lubricated compressed air service from 2 to 10 bar.
  • Made in India.

Description

The Janatics A81 Series is a non-magnetic single acting miniature pneumatic cylinder for compact mechanisms where a crimped cylinder body and front-spring operation are preferred. This single acting linear pneumatic actuator uses a 25 mm bore and 50 mm stroke, with a 10 mm piston rod, G1/8 air port, 2 to 10 bar working pressure and elastomer end cushioning. The series follows ISO 6432 / CETOP RP52P style dimensions and uses aluminium, brass, nitrile, steel, acetal and polyurethane construction materials for filtered, lubricated compressed-air service. It is suitable for small fixtures, light clamping, ejecting, indexing, packaging mechanisms and compact machine automation.

Applications

  • Small automation equipment and compact fixture movement.
  • Light clamping, ejecting and indexing mechanisms.
  • Packaging mechanisms and compact machine assemblies.
  • Low-friction miniature pneumatic actuator applications.
  • Machine locations where a compact single acting cylinder is preferred.

Documents

  • A81025050O-A81 Series — Datasheet

    PDF, 1.3 MB

  • Janatics-A81 Series Cylinders — Datasheet

    PDF, 440 KB
