Pneumatic Cylinders

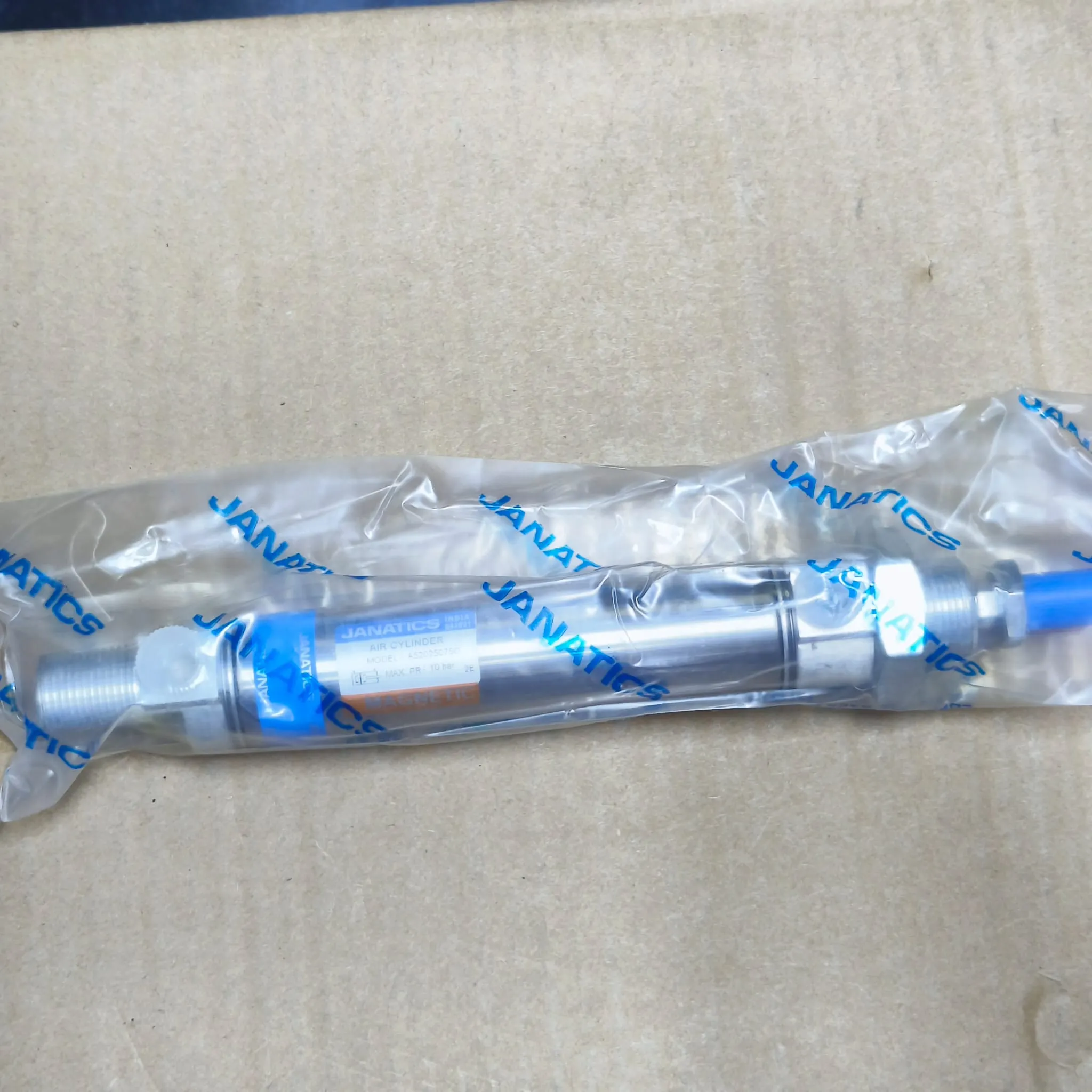

Janatics A52 Series Miniature Pneumatic Cylinder, Bore Diameter 25 mm, Stroke 75 mm, Double Acting Magnetic Piston, A52025075O
Janatics

Janatics A52 Series Miniature Pneumatic Cylinder, Bore Diameter 25 mm, Stroke 75 mm, Double Acting Magnetic Piston, A52025075O

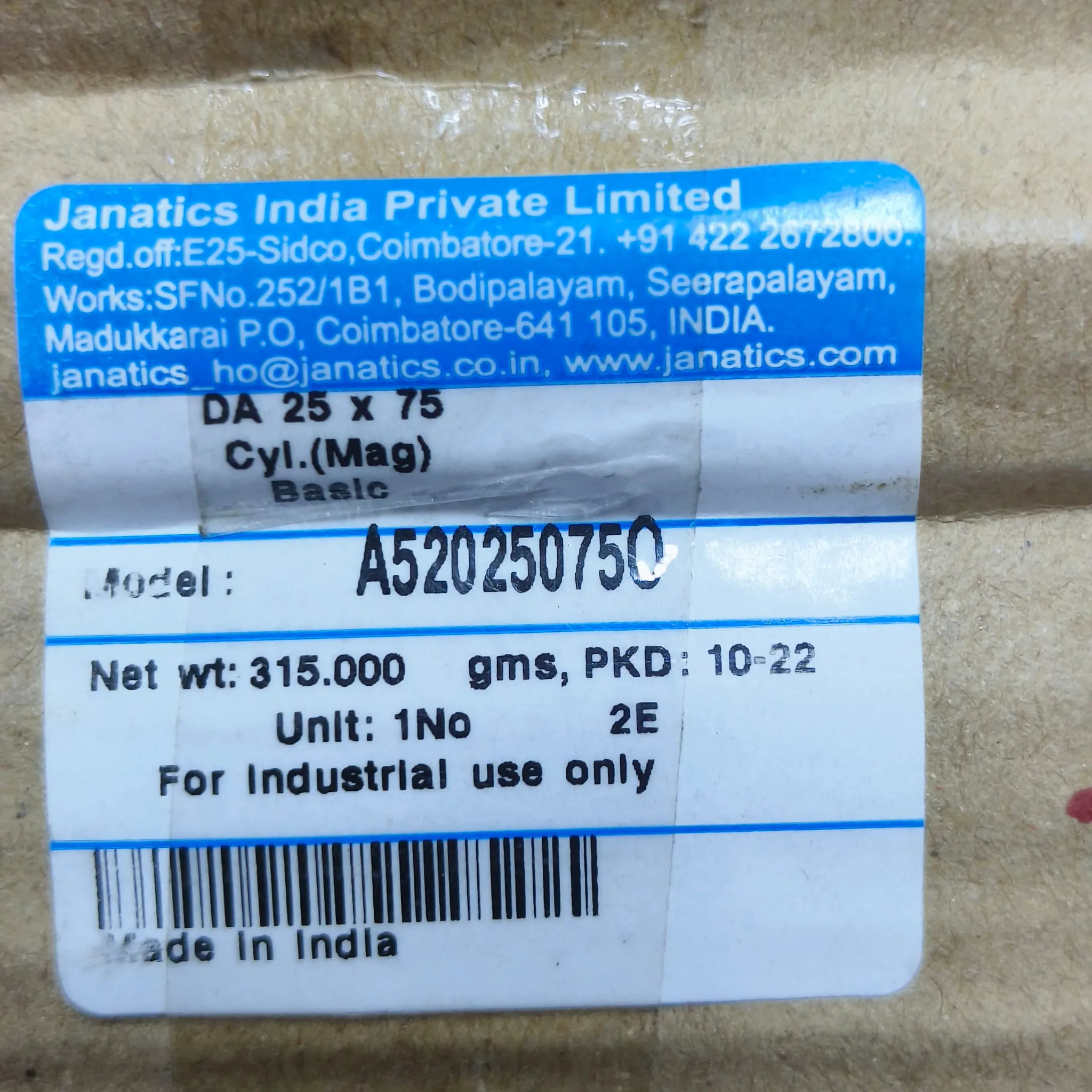

Mfr. part no.
A52025075O
SKU
PN-CYLA520-2575

Specifications

Series A52 Series
Port Size G1/8
Bore Diameter 25 mm
Stroke Length 75 mm
Action Type Double Acting
Piston Type Magnetic Piston
Cushioning Elastomer Cushioning at Both Ends
Working Pressure Range 0.5 to 10 bar
Ambient Temperature Range -10 °C to +60 °C
Piston Rod Diameter 10 mm

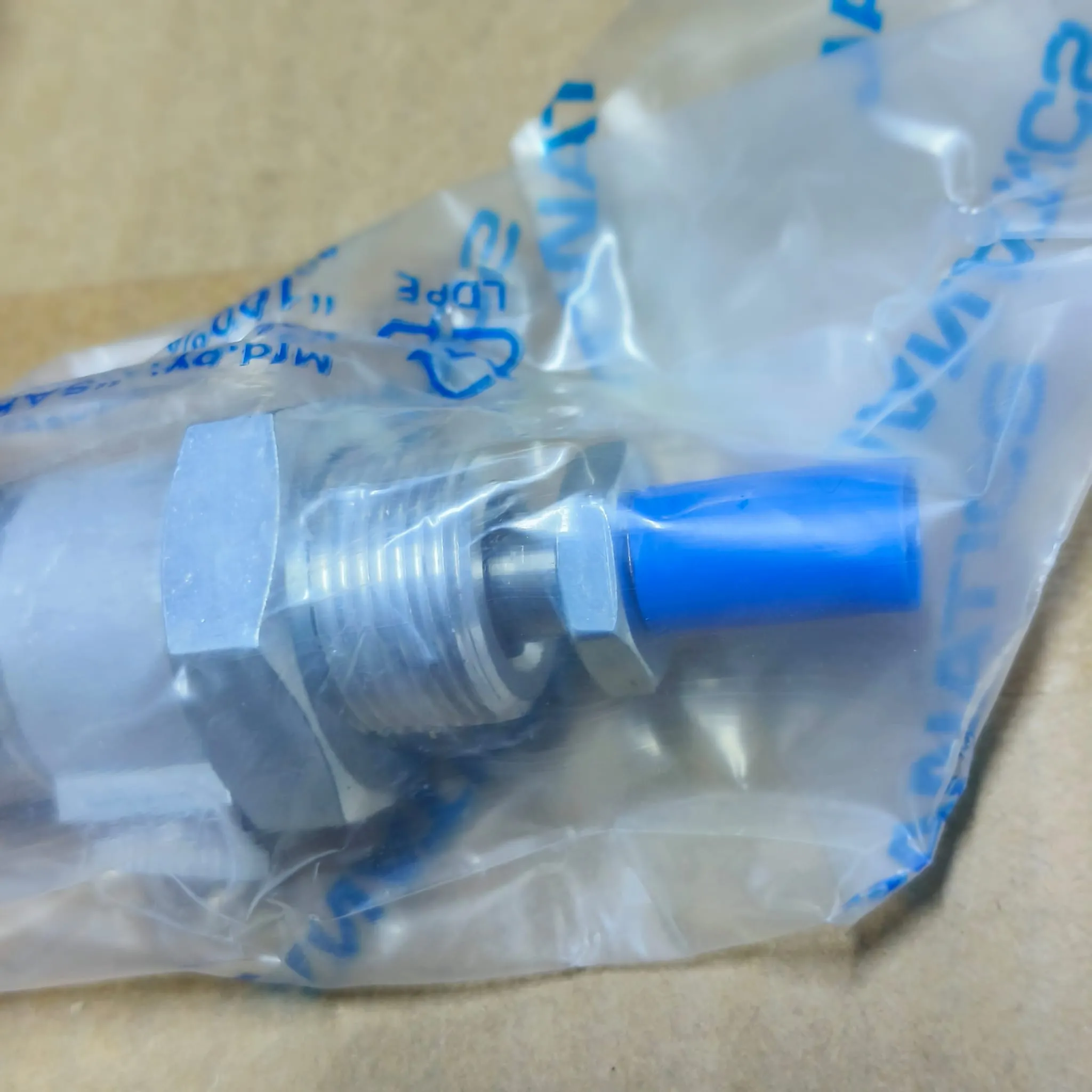

Piston Rod End M10 × 1.25 Thread
Compliance Standards ISO 6432 / CETOP RP52P

Key Features

  • Miniature cylinder construction supports compact linear pneumatic actuation.
  • Double acting operation provides controlled extension and retraction using compressed air.
  • Magnetic piston design supports external position sensing with compatible sensors.
  • Small body size is useful for light-duty automation and fixture movement.
  • Suitable for repetitive push-pull motion in compact pneumatic systems.
  • Made in India.

Description

The Janatics A52 Series is a miniature magnetic pneumatic cylinder for small mechanisms where the actuator must be light, compact and easy to place close to the work area. It is a double acting linear pneumatic actuator with a 25 mm bore and 75 mm stroke, with magnetic piston position detection for compatible reed switches and elastomer cushioning at both ends for softer end-stroke movement. The miniature round-cylinder construction suits ISO-style compact installations where small bore pneumatic motion is needed without using a large actuator body. It is suitable for small jigs, pick-and-place units, packaging machines, indexing devices, light clamping and other compact automation applications, with G1/8 pneumatic air port thread.

Applications

  • Small machines, test rigs and compact automation systems.
  • Light-duty clamping, feeding, ejecting and positioning tasks.
  • Packaging, assembly and electronics machinery.
  • Replacement use in miniature pneumatic actuator applications.

Documents

  • Janatics-A52 Series Cylinders — Datasheet

    PDF, 3.3 MB

Cross-reference

The closest equivalent from another brand, with the differences stated so you can check before you order.

Parker P1A-S025DS-0075

Parker Hannifin P1A — Mini ISO 6432 Pneumatic Cylinder (Pneumatic Division Europe)

Parker P1A-S025DS-0075 — Mini ISO 6432 miniature cylinder: 25 mm bore, 75 mm stroke, double-acting, fixed end cushioning at both ends, magnetic piston, 10 mm piston rod with an M10 x 1.25 thread, G1/8 ports, 10 bar maximum. The Janatics A52025075O shown here matches it on bore, stroke, piston rod diameter, rod thread, port size, cushioning type, magnetic piston and maximum pressure, and both are built to ISO 6432 / CETOP RP52P mounting dimensions. Two points to check before you order. 75 mm is not one of Parker's standard stroke lengths, so the Parker part is a build-to-order item against its non-standard stroke option rather than a shelf length. And the temperature ratings differ: this cylinder is rated -10 °C to +60 °C, where the Parker part is rated -20 °C to +80 °C, so confirm the working temperature of your application before treating the two as interchangeable.

We carry A52025075O as the indSpare-stocked equivalent. Looking for a different brand? Request a quote →
